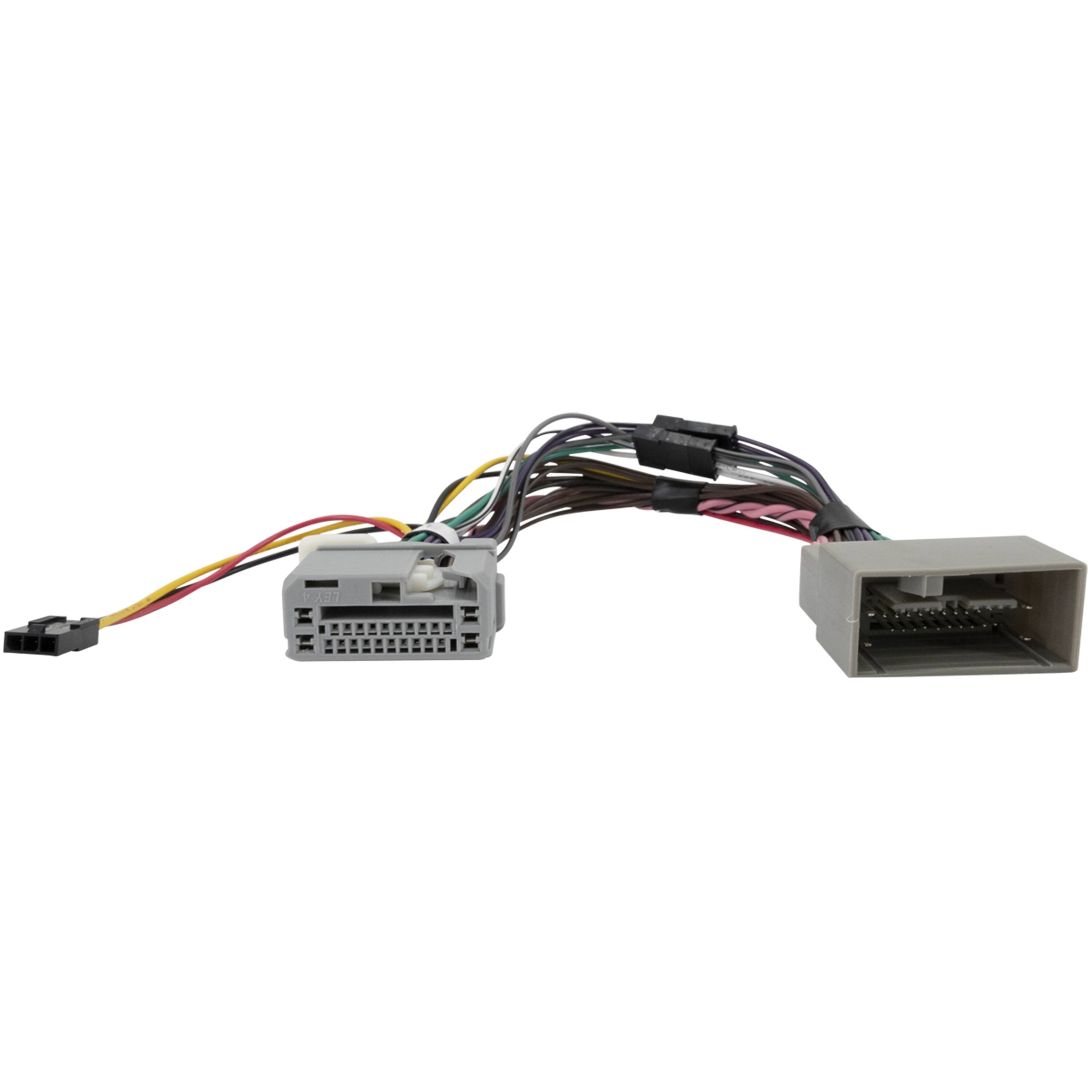

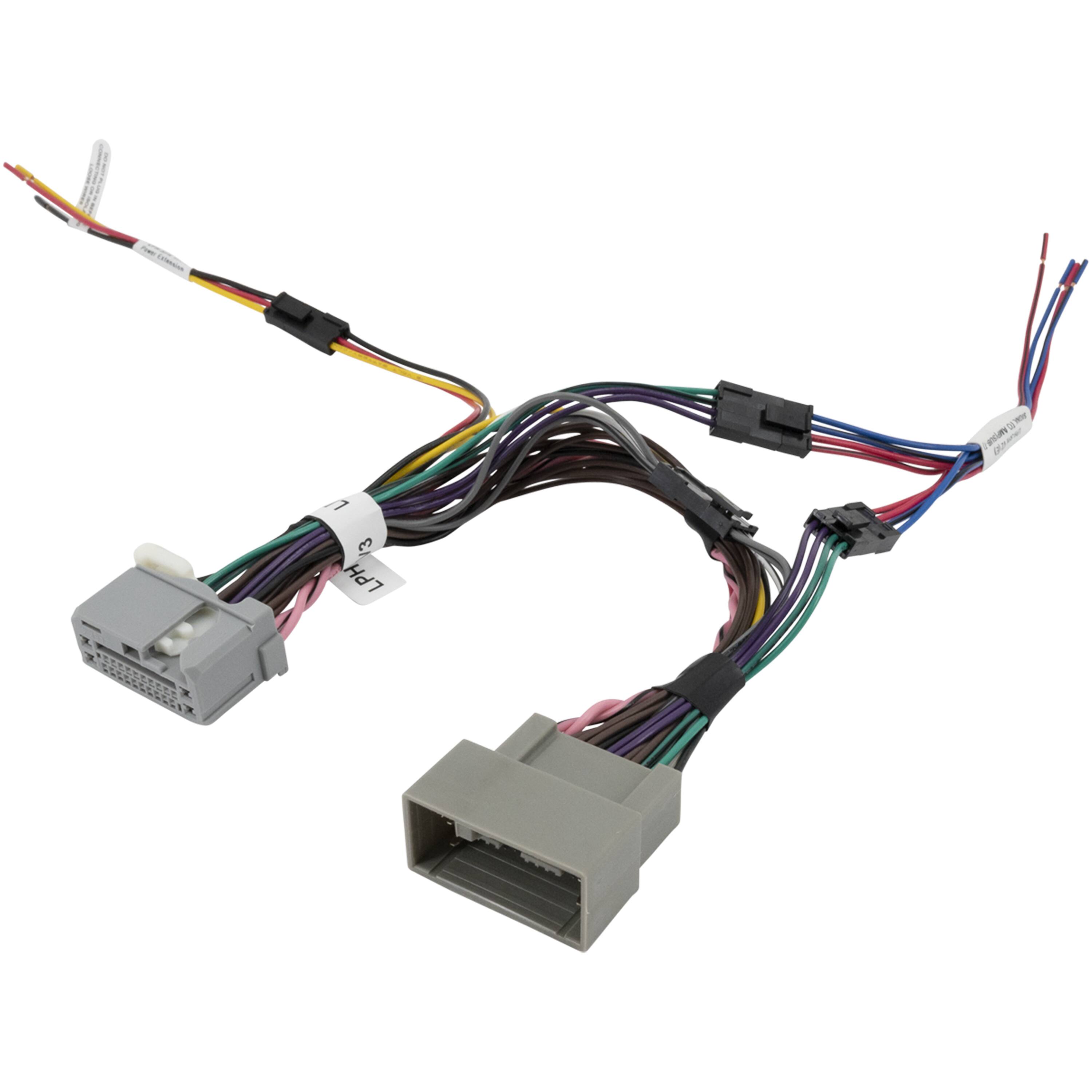

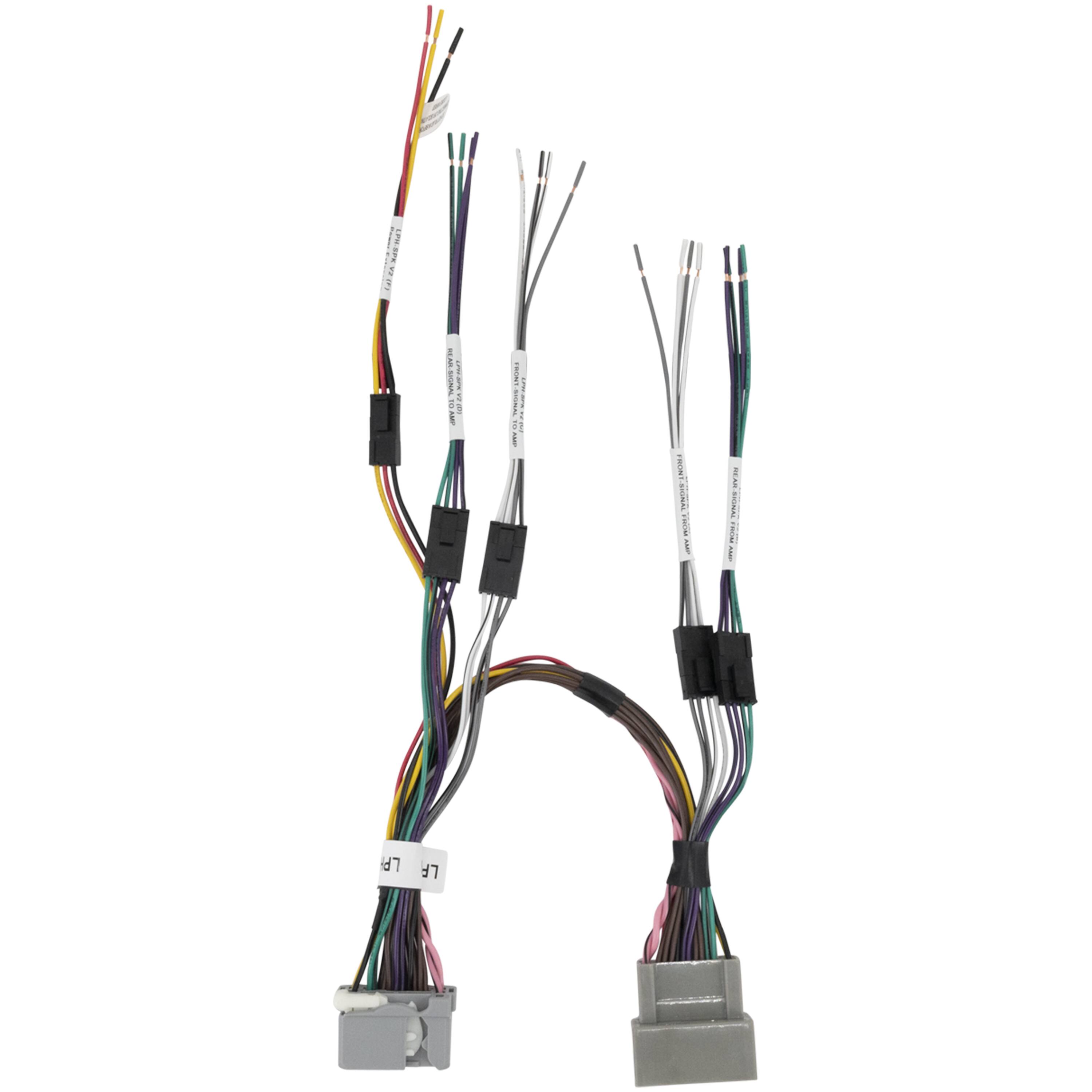

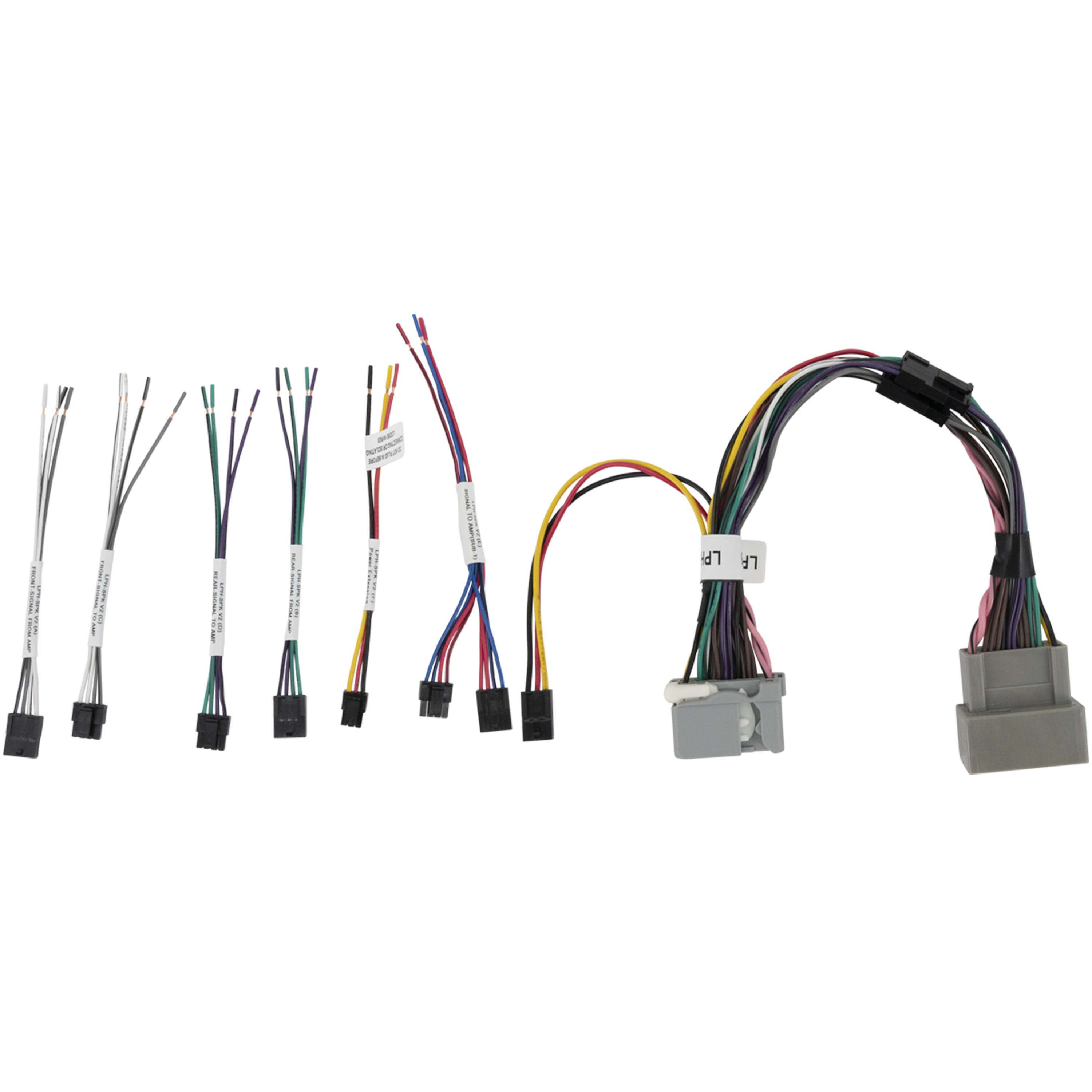

PAC - LocPRO Advanced T-Harness for Select Honda and Acura Vehicles - Multi
PAC - LocPRO Advanced T-Harness for Select Honda and Acura Vehicles - Multi
About This Item
- General
- Brand: PAC
- Model Number: LPHHD03
- Product Name: LocPRO Advanced T-Harness for Select Honda and Acura Vehicles
- Color: Multi
- Compatibility
- Vehicle Compatibility: Select 2008-2021 Honda and Acura vehicles with non-amplified audio systems and 24-pin connectors
- Product Compatibility: Stereo/receiver
- Product Type: Harness
- Features
- Harness Type: Stereo/receiver
- Dimensions
- Product Height: 8.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.25 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 609098901406
Keep your OEM wiring intact and take the guesswork out of identifying appropriate speaker wires with the LocPRO Advanced T-Harness for Select Honda and Acura Vehicles by PAC. The LPHHD03 provides speaker leads, 12V, and ground inputs for adding aftermarket audio equipment to factory non-amplified audio systems. This T-harness can be used with any line output converter, amplifier, or digital signal processor (DSP).
- Compatible with select Honda and Acura vehicles: Including 2008-2016 Accord, 2012-2015 Civic, 2012-2016 CR-V, 2011-2016 CR-Z, 2010-2012 Crosstour, 2009-2020 Fit, 2016-2021 HRV, 2010-2014 Insight, 2011-2016 Odyssey, 2009-2016 Pilot, 2009-2014 Ridgeline, and 2009-2013 TSX models for a customized fit.
- Designed for factory non-amplified systems with 24-pin lock-type connectors*: Allows you to retain your OEM radio when adding amplifiers to your car audio system.
- Simplifies subwoofer installation: Includes LPH-SPK (E) subwoofer T-harness pigtail to make connections simple.
- Color-coded E.I.A. wires: Enable quick and easy installation.
- Optional 17’ speaker harness extension: Provides added flexibility (LPHEXT17 sold separately).
- Compatible with select Honda and Acura vehicles: Including 2008-2016 Accord, 2012-2015 Civic, 2012-2016 CR-V, 2011-2016 CR-Z, 2010-2012 Crosstour, 2009-2020 Fit, 2016-2021 HRV, 2010-2014 Insight, 2011-2016 Odyssey, 2009-2016 Pilot, 2009-2014 Ridgeline, and 2009-2013 TSX models for a customized fit.
- Designed for factory non-amplified systems with 24-pin lock-type connectors*: Allows you to retain your OEM radio when adding amplifiers to your car audio system.
- Simplifies subwoofer installation: Includes LPH-SPK (E) subwoofer T-harness pigtail to make connections simple.
- Color-coded E.I.A. wires: Enable quick and easy installation.
- Optional 17’ speaker harness extension: Provides added flexibility (LPHEXT17 sold separately).
Q: What type of connection method does this harness use?
A: This harness uses a slide-on connection method.
Q: Does this T-harness simplify subwoofer installation?
A: Yes, it includes the LPH-SPK (E) subwoofer T-harness pigtail to make connections simple.
Q: What is the LocPRO Advanced T-Harness designed for?
A: The LocPRO Advanced T-Harness is designed for factory non-amplified systems with 24-pin lock-type connectors, allowing you to retain your OEM radio when adding amplifiers to your car audio system.
Q: Is there an optional speaker harness extension available?
A: Yes, a 17' speaker harness extension (LPHEXT17) is sold separately for added flexibility.
A: Yes, the wires are color-coded according to the E.I.A. standard for quick and easy installation.
