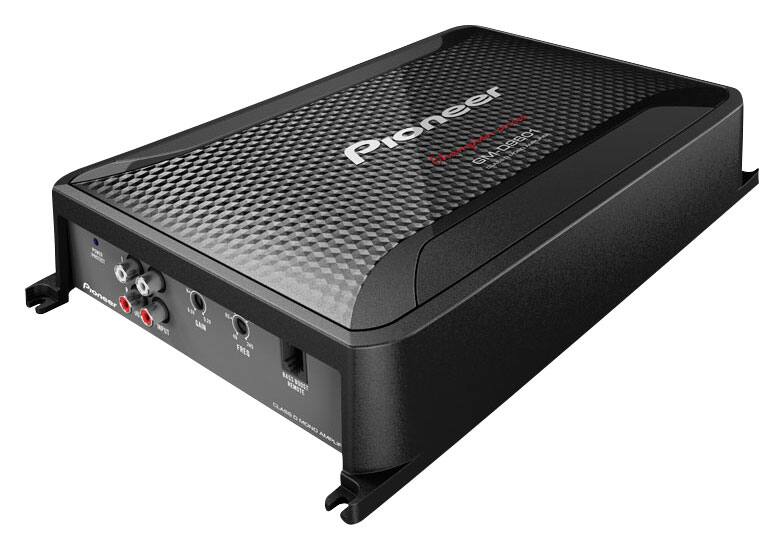

Pioneer - 2400W Class D Mono Amplifier - Black
Model: GMD9601
SKU: 8819666
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 1200 x 1 x 1 ohm
- Maximum Watts x Channel @ Ohms: Handles up to 2400W maximum power (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Pioneer
- Model Number: GMD9601
- Product Name: 2400W Class D Mono Amplifier
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 1200 x 1 x 1 ohm
- Watts Per Channel RMS: 800 watts
- Maximum Watts x Channel @ Ohms: Handles up to 2400W maximum power (This is the maximum load the speaker, subwoofer or amp can drive.)
- Watts Per Channel Maximum: 2400 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 240 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.5 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: None (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: true
- Dimensions
- Product Height: 5.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 15.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.88 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 884938193191
Upgrade the audio system in your vehicle with this Pioneer GMD9601 class D mono amplifier, which features 2400W maximum power handling for ample sound output. A bass boost remote and variable bass control make it simple to adjust levels.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 2400W maximum power: To deliver powerful audio.
- Wired bass boost remote: Along with variable bass control lets you enjoy your music at an optimal volume.
- 1-ohm stable: For reliable power handling.
- Compact design: Provides versatile installation options.
Whats Included
- Pioneer 2400W Class D Mono Amplifier
- Owner's manual
Q: Will this amp push one 2500 w Power Acoustik Gothic 12 inch speaker?
A: I promise you this amp will blow that sub in under a minute . I've seen the exact same sub smoke and then blow 2 times . Both times it was this amp . Those subs are not made for this much power.
Q: Is this amp to much power for a kicker comp r 12 inch duel 2 ohm voice coil sub
A: ABSOLUTELY WITHOUT DOUBT. I CURRENTLY RUN 2 SOLO-BARIC L7S 12'S WITH ONE AND HAVE TO STAY UNDER HALF GAIN OR BLOW THEM. CAPS LOCK WON'T STOP SORRY
