Pioneer - 6.8" Bluetooth Digital Media (DM) Receiver - Black
More Buying Options
Related Item
Specifications
- App CompatibleNoBluetooth EnabledYesSteering Wheel Control CompatibleYesTuner Type(s)AM/FMCD PlayerNoScreen Size6.8 inches
- Key Specs
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Steering Wheel Control Compatible: true
- Tuner Type(s): AM/FM
- CD Player: false
- Screen Size: 6.8 inches (Size of the screen, measured diagonally from corner to corner.)
- Selectable Color Illumination: true
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Pioneer
- Model Number: DMH-342EX
- Product Name: 6.8" Bluetooth Digital Media (DM) Receiver
- Color: Black
- Audio
- Watts Per Channel: 50 watts
- RMS Power: 22 watts (The maximum amount of continuous power the device is able to handle.)
- Number Of Channels: 4
- Compatibility
- Mount Style: Double DIN
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Operating System Compatibility: Android, Apple iOS
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Number of Camera Inputs: 1
- Steering Wheel Control Compatible: true
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Tuner
- Tuner Type(s): AM/FM
- Number Of Station Presets: 24
- Satellite Radio: No
- Receivers With HD Radio: false
- Players
- CD Player: false
- DVD Player: false
- Features
- USB Device Charging: true
- Hands-Free Calling: true
- Built-In Microphone: TRUE
- External Microphone: Included
- Remote Control Included: true
- Marine: false
- EQ Presets: true
- Display
- Screen Size: 6.8 inches (Size of the screen, measured diagonally from corner to corner.)
- Screen Type: LED-LCD
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Touch Screen Type: Capacitive
- Selectable Color Illumination: true
- Faceplate Style: Fixed
- Dimensions
- Product Height: 9.996 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.504 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.504 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.9 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 884938485616

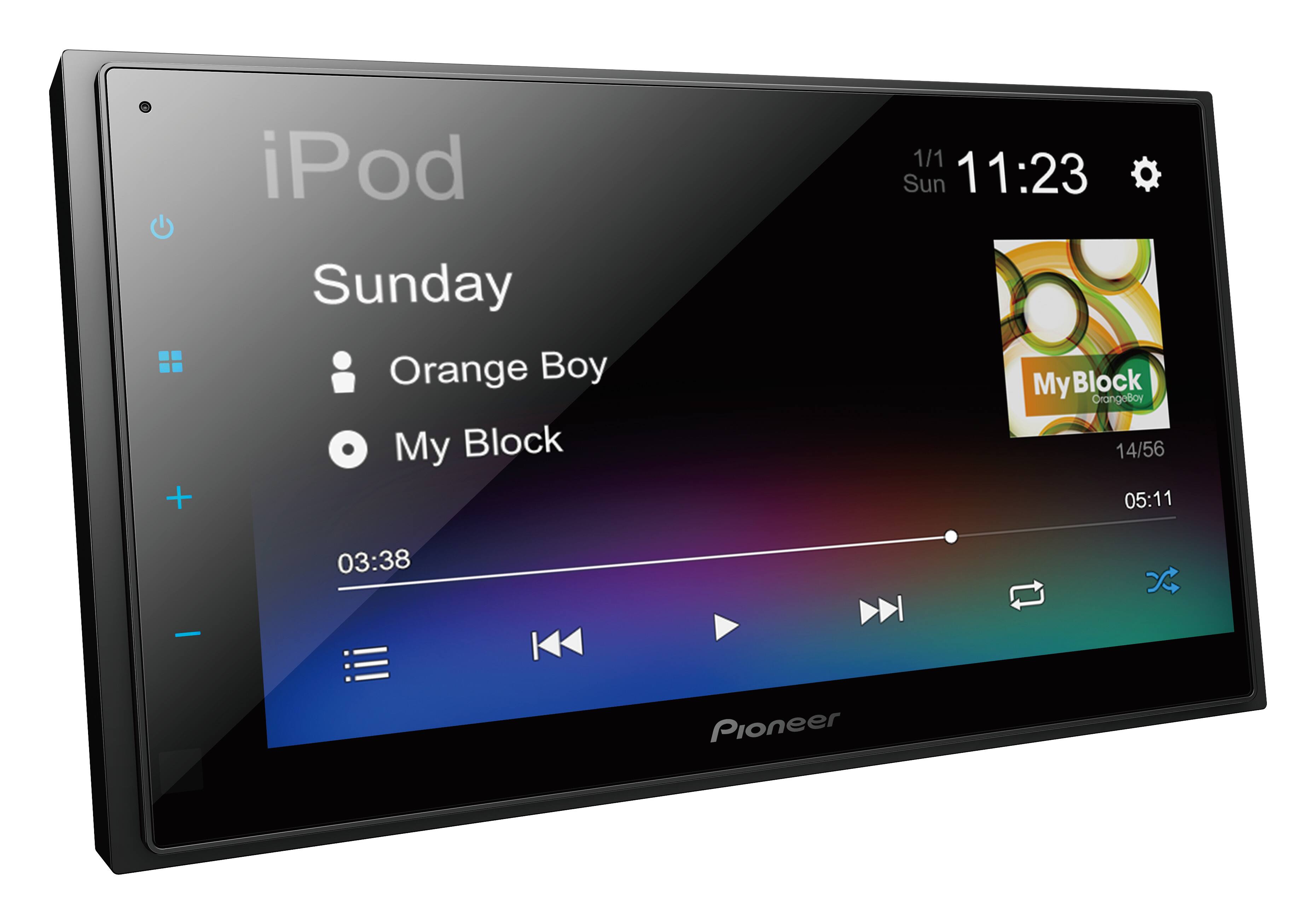

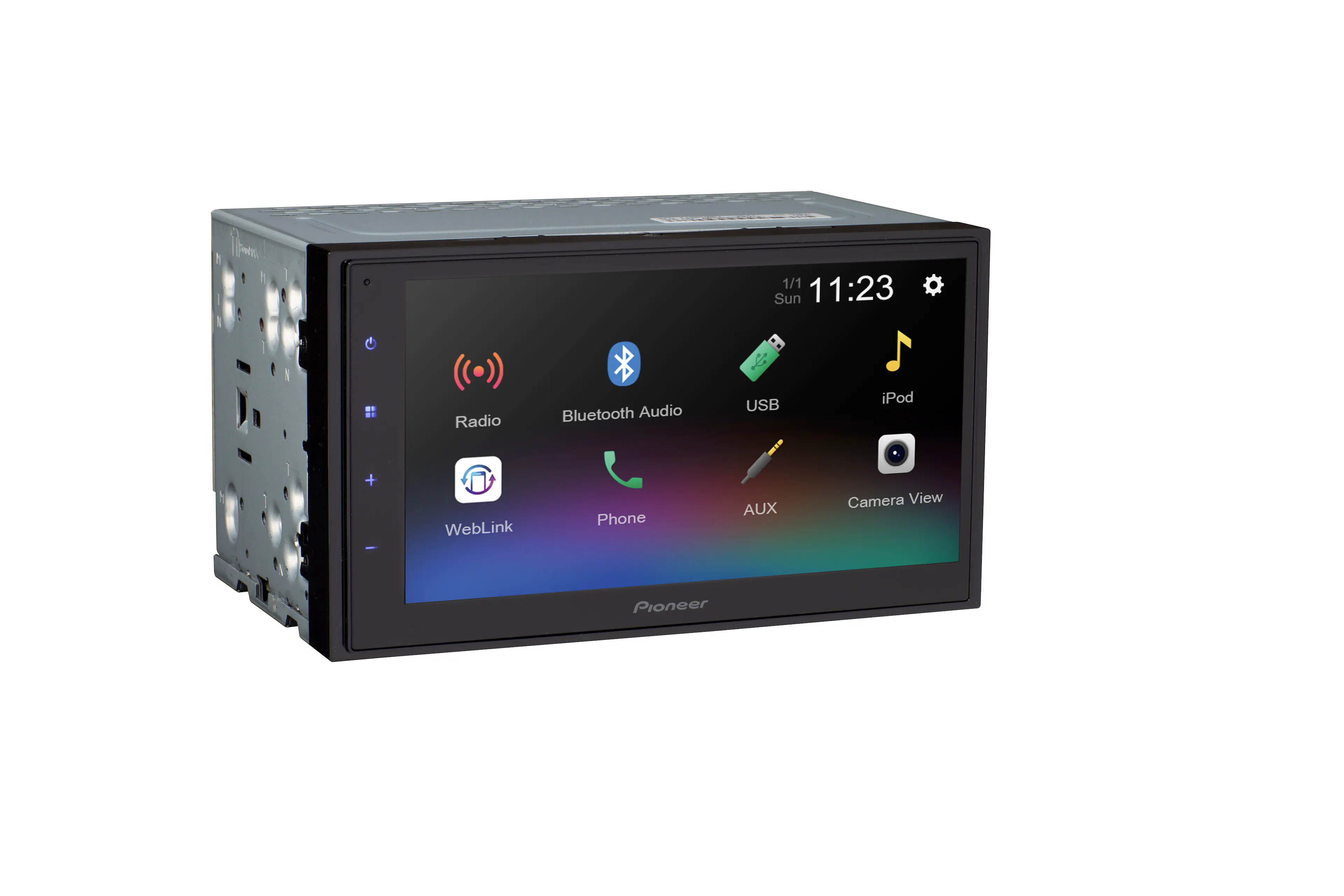

The DMH-342EX is a 6.8" capacitive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth for hands-free calling and audio streaming. Audio/Video playback from USB. Safety features such as backup camera ready and much more.
- 6.8 Inch WVGA Touchscreen (Capacitive): Upgrade your ride with a capacitive WVGA touchscreen display with built-in LED backlight, color customization, an illumination timer, dimmer setting, and brightness control.
- WebLink Smartphone Interface (Wired): WebLink enables smartphone app projection from many popular Android and iOS devices to in-vehicle touch displays.
- Pioneer Vozsis With Alexa App: Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app.
- Bluetooth: Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth devices.
- Back Up Camera Input (1-Camera): Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
- Wired Remote Input: This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons.
- FLAC: Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
- Audio Equalizer: The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired.
- 6.8 Inch WVGA Touchscreen (Capacitive): Upgrade your ride with a capacitive WVGA touchscreen display with built-in LED backlight, color customization, an illumination timer, dimmer setting, and brightness control.
- WebLink Smartphone Interface (Wired): WebLink enables smartphone app projection from many popular Android and iOS devices to in-vehicle touch displays.
- Pioneer Vozsis With Alexa App: Invite Amazon's versatile voice assistant into your car with a WebLink-compatible Pioneer in-dash multimedia receiver and the Vozsis with Alexa app.
- Bluetooth: Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth devices.
- Back Up Camera Input (1-Camera): Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
- Wired Remote Input: This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons.
- FLAC: Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
- Audio Equalizer: The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired.

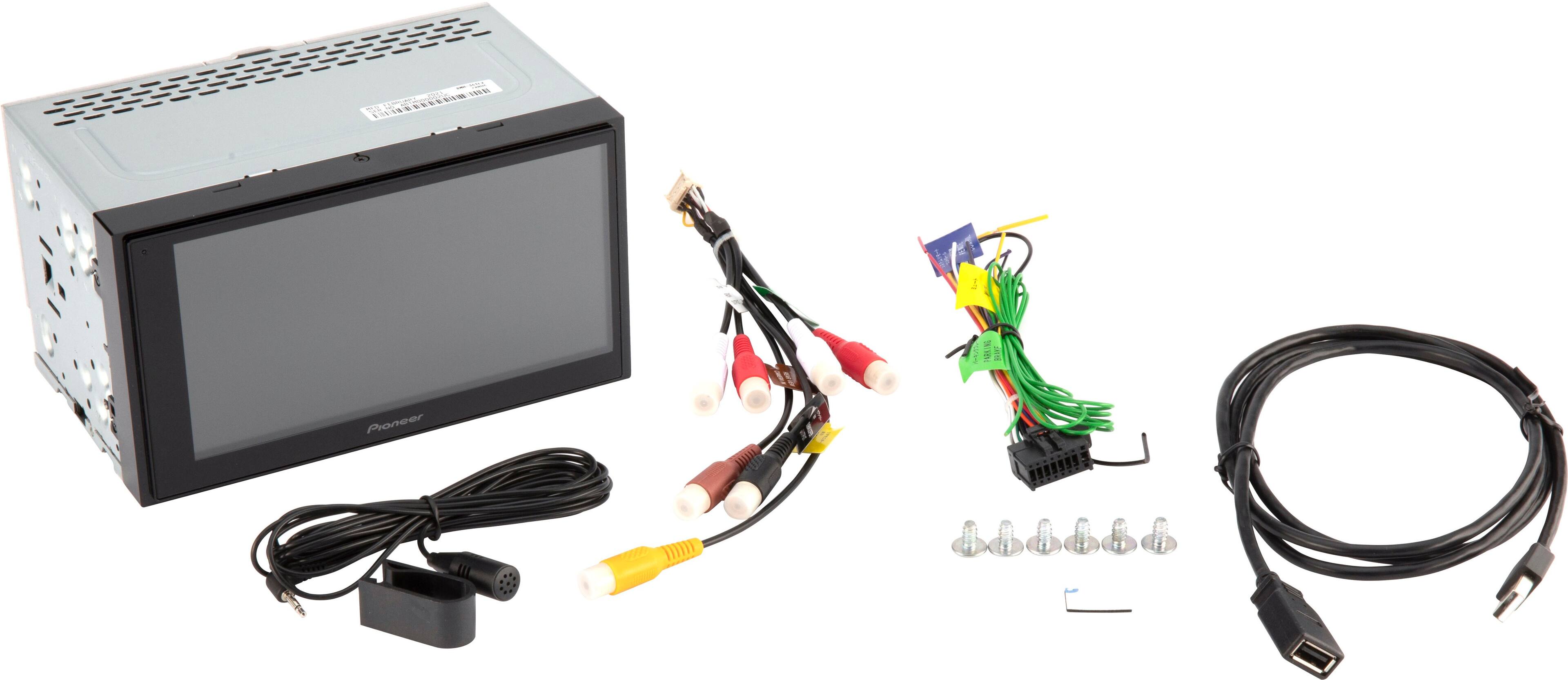

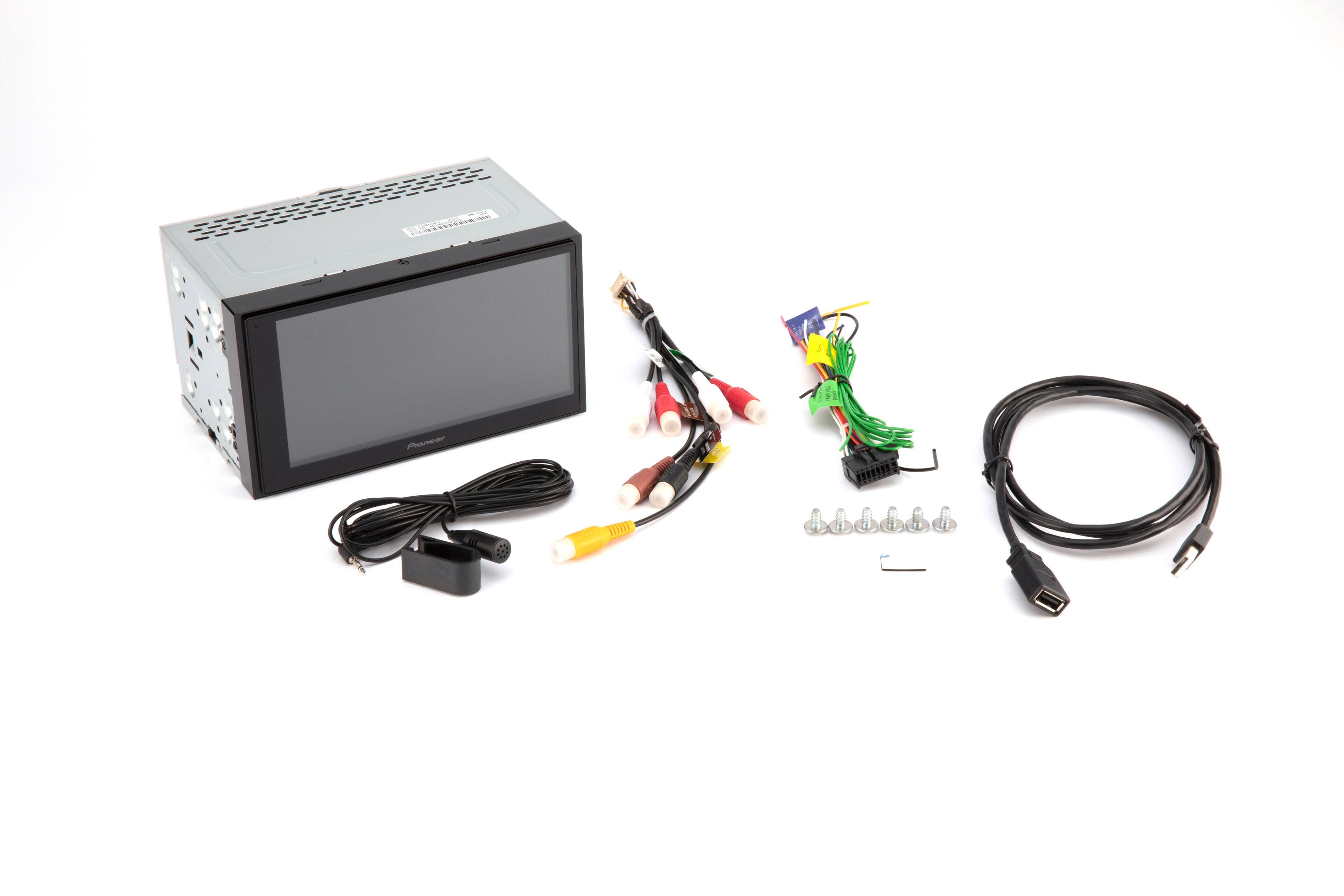

Whats Included
- Digital receiver w/ fixed 6.8" touchscreen monitor (10A fuse)
- Wiring harness
- Remote control (CXE9605)
- CR2025 3V lithium battery (installed in remote)
- 1.5m USB Extension Cable Type A(M) to Type A(F)
- Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- 6 Installation Screws
- Installation Manual
- Quick Start Guide
- 1 year Warranty Sheet
- Digital receiver w/ fixed 6.8" touchscreen monitor (10A fuse)
- Wiring harness
- Remote control (CXE9605)
- CR2025 3V lithium battery (installed in remote)
- 1.5m USB Extension Cable Type A(M) to Type A(F)
- Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- 6 Installation Screws
- Installation Manual
- Quick Start Guide
- 1 year Warranty Sheet
Q: What is the screen size of this Pioneer receiver?
A: This Pioneer receiver has a 6.8-inch screen.
Q: How many watts per channel does this Pioneer receiver have?
A: This Pioneer receiver has 50 watts per channel.
Q: Does this receiver allow for hands-free calling?
A: Yes, it offers hands-free calling through its Bluetooth connectivity feature.
Q: Does this Pioneer receiver have bluetooth?
A: Yes, this digital media receiver has built-in Bluetooth for hands-free calling and audio streaming.
Q: Can I connect a backup camera to this Pioneer receiver?
A: Yes, you can connect a single backup camera to this receiver.
Q: Can I customize the display color on this receiver?
A: Yes, you can choose from five colors for the display and 112 colors to match your vehicle's interior lighting.
Q: What type of screen does this receiver have?
A: This receiver is equipped with an LED-LCD screen.
Q: Once I put my car in reverse will it automatically go into the backup camera?
A: Hi Bryant, This product features a function that automatically switches to the full-screen image of the rear view camera installed on your vehicle when the shift lever is in the REVERSE (R) position. Pioneer Products Lisa https://www.pioneerelectronics.com/PUSA/
