Pioneer - NTSC Universal Backup Camera - Black
- Key Specs
- Field of View: 129 degrees
- Automatic Incident Detection: false
- G-Sensor: true
- Compatibility: compatible with any receiver with an RCA video input
- Camera Mounting Location: Vehicle specific
- Vehicle Camera Type: Dashboard
- General
- Brand: Pioneer
- Model Number: ND-BC8
- Product Name: NTSC Universal Backup Camera
- Color: Black
- Vehicle Camera Type: Dashboard
- Recording & Playback
- Field of View: 129 degrees
- Automatic Incident Detection: false
- G-Sensor: true
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- GPS Enabled: false
- Camera Power Source: Vehicle battery
- Expandable Memory Compatibility: None
- Compatibility
- Compatibility: compatible with any receiver with an RCA video input
- Features
- Night Vision: true
- Display
- Screen Included: false
- Mounting
- Camera Mounting Location: Vehicle specific
- Mount Included: true
- Mount Type: Adhesive
- Input
- Number Of Auxiliary Inputs: 0
- Number of USB Port(s): 0
- Dimensions
- Product Height: 2.748 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.344 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.492 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.924 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Warranty - Labor: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Other
- UPC: 884938302869

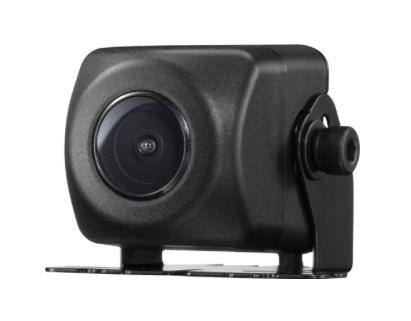

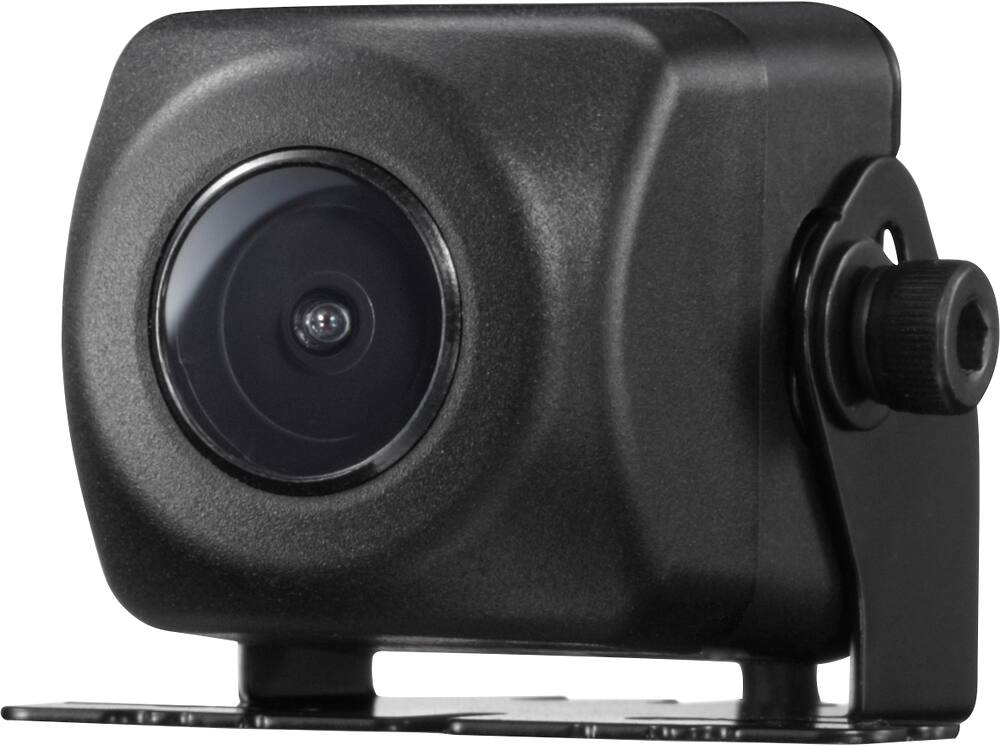

The ND-BC8 Universal Rearview / Backup Camera is compatible with Pioneer A/V and Navigation in-dash receivers that feature a rear-view camera input. The ND-BC8 features a wide-angle 129 degree horizontal and 105-degree vertical view with more than 300,000-pixel resolution for detailed imagery. The ND-BC8 features a CMOS (Complementary Metal Oxide Semiconductor) sensor that delivers improved resolution and glare reduction during daytime use with improved low-light capability for nighttime use.
- Improved Visibility: A wide-angle 129 degree horizontal and 105-degree vertical angle lens allows viewing more objects. The ND-BC8 CMOS sensor delivers improved resolution and glare reduction during daytime use with improved low-light capability for nighttime use.
- Installation Flexibility: The ND-BC8 utilizes a built-in power supply with minimal connections for easier installation and its compact size provides hassle-free mounting. It also includes 10 meter cable for installation on long trucks, SUVs and recreational vehicles.
Whats Included
- Rearview camera w/ bracket (attached 9' power/video cable)
- 23' Power/video cable
- 6 Self-adhesive clamps
- Rubber wedge
- Two-sided tape
- Hex-key
- Owner's Manual
Product Manuals
A: It is hard wired in not Bluetooth. So it will be useless if stolen. U can choose a good mounting place . It sticks on with double sided tape no screws .
A: This is a hardwired camera that needs a video screen/monitor to plug its RCA plug into. It also requires a power source to be wired in. I installed mine with a Pioneer 62000-NEX head unit (added GPS with the upgrade). it is not a Bluetooth camera. if you do not have a video screen on your current radio, this will likely not work for you with out replacing your factory radio. Bummer
Q: Does this camera have night vision
A: This model depends on the car reverse lights for night vision.
A: This camera does not show the assist lines. It is installed to the exterior of the vehicle and does not use up the radio slot.
Q: Does this have night vision? If it doesn't, how good is the picture quality at night?

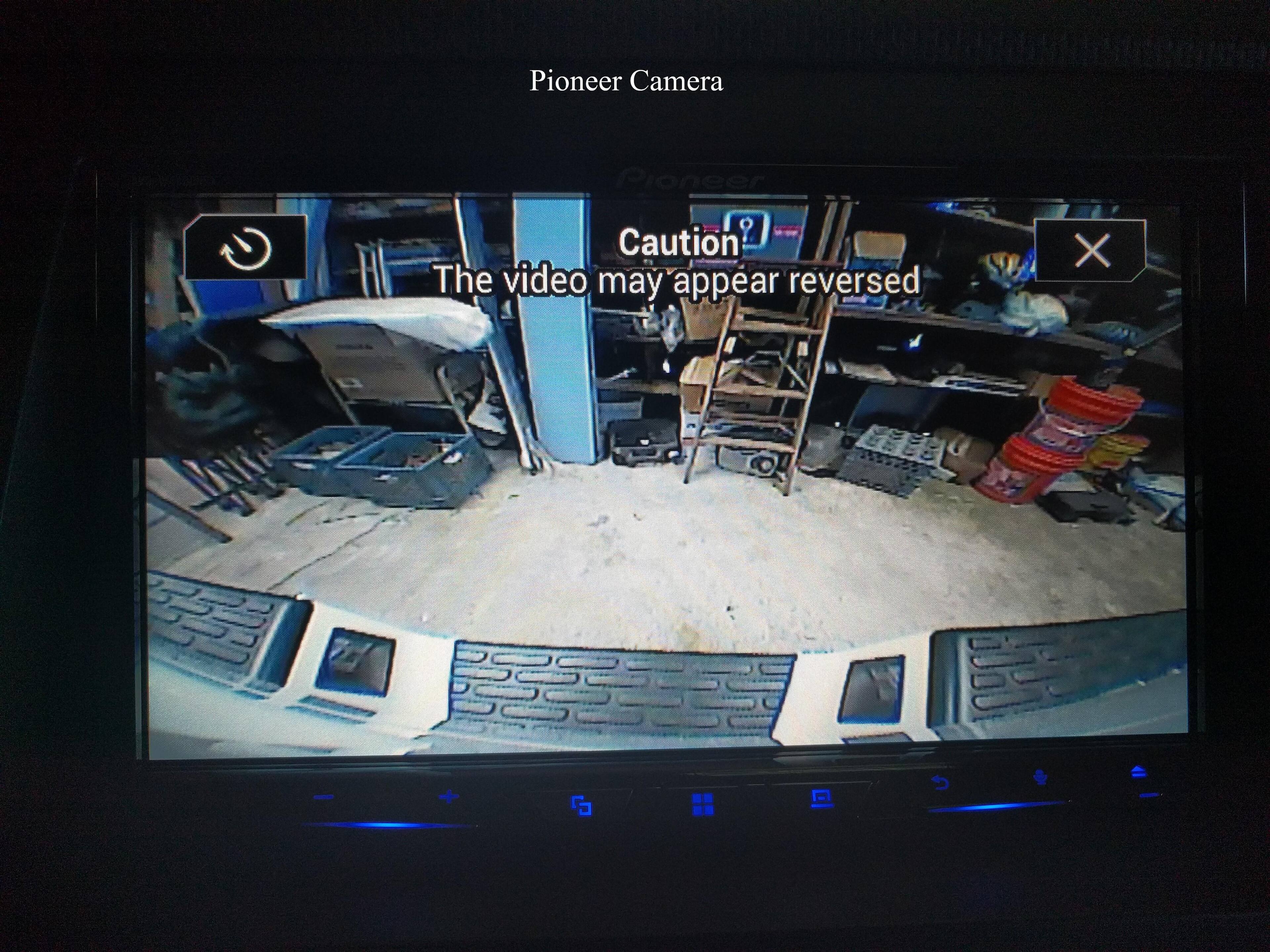

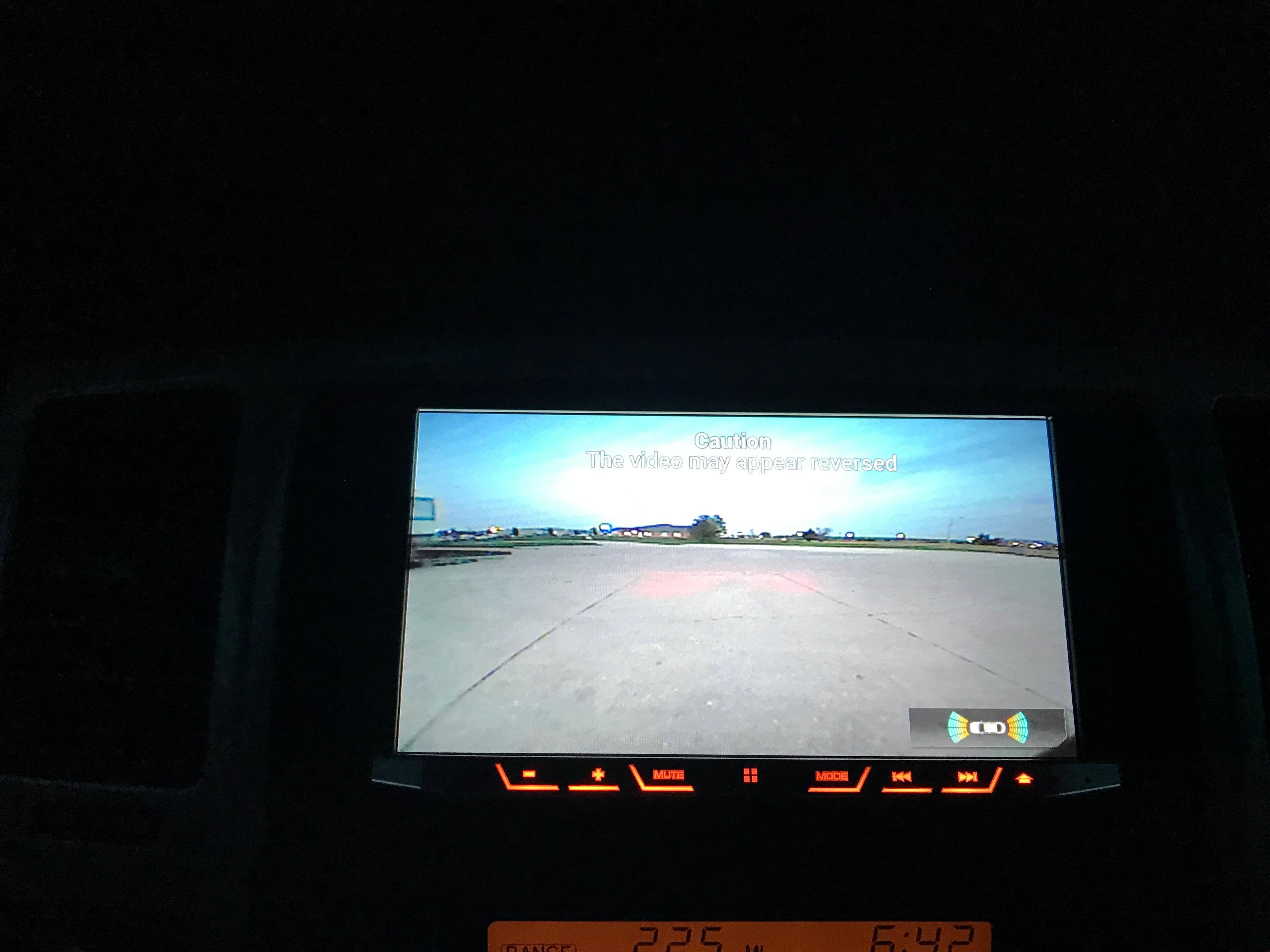

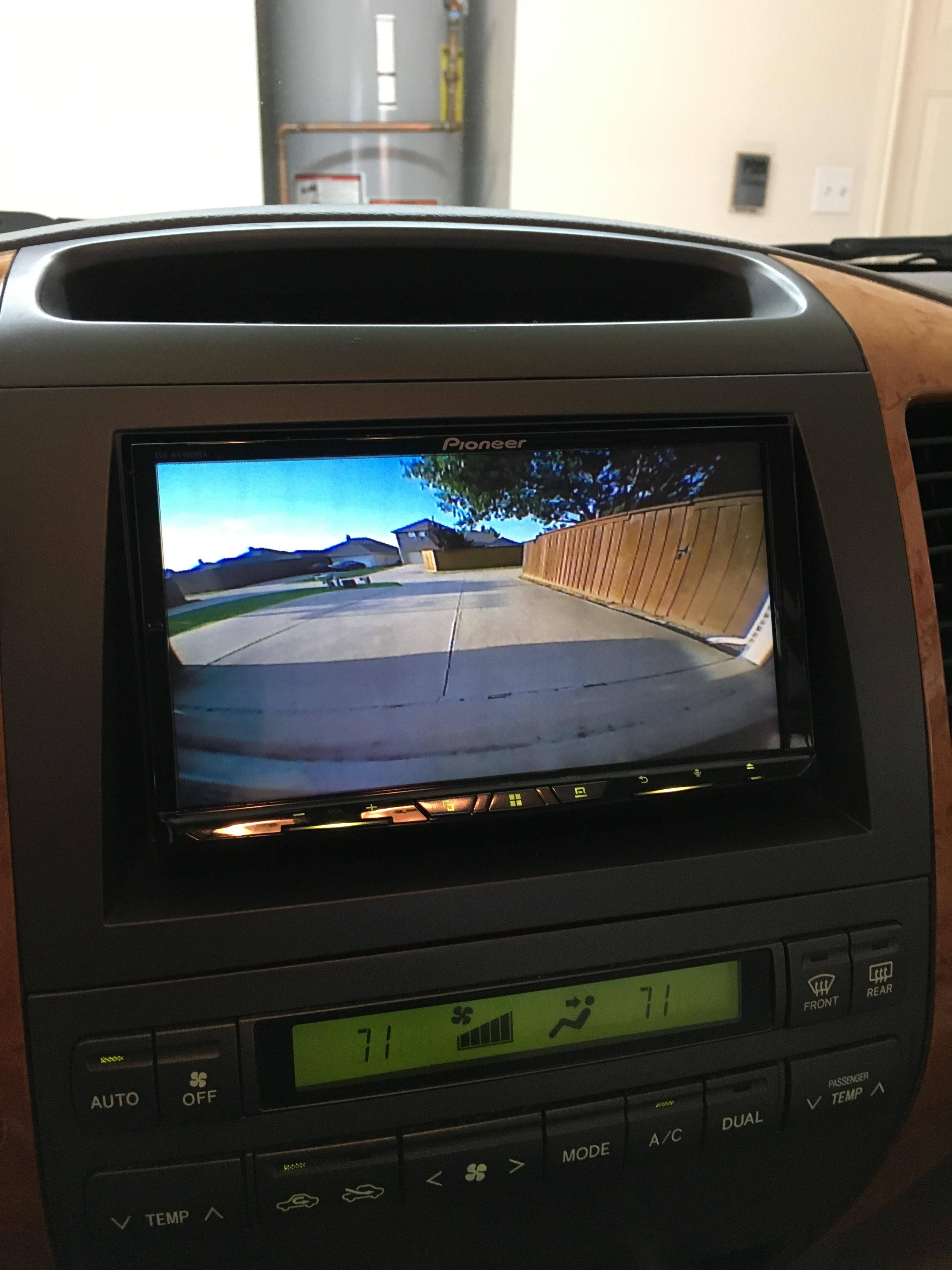

A: This does have night vision. I have it set as a back-up camera on my Jeep. There are better cameras out there, but many do not reverse the image like this does... which is needed for a back-up Camera. The image is fine during the day and more grainy at night, but it serves its purpose.
Q: Would this camera work installed on extra tire on back of my jeep?
A: Yes! I have done exactly that on my Jeep. I mounted the camera to my spare tire, ran the wire into a grommet in my tailgate, ran wires along factory wires from tailgate to right rear fender then under rollbar padding to the front A-pillar then down to dash. Connections are simple. Plug the RCA cable to the brown input on the back of your stereo. Ground the black wire. Connect red wire to a power source. If you connect the violet/white wire coming out of yourAVH-1500 to a wire that powers your reverse lights, the screen will automatically switch to the back-up camera when you put the Jeep in reverse.

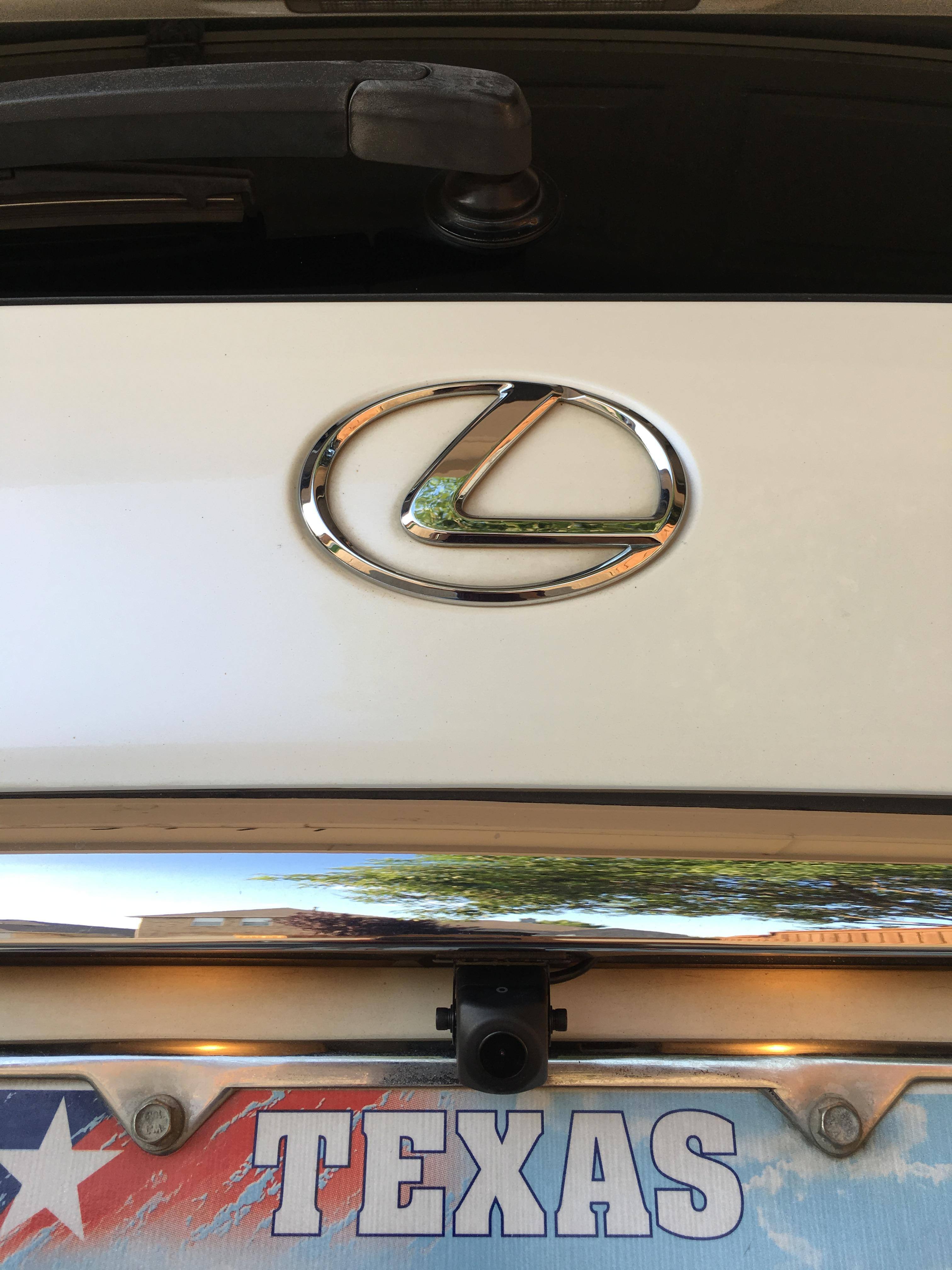

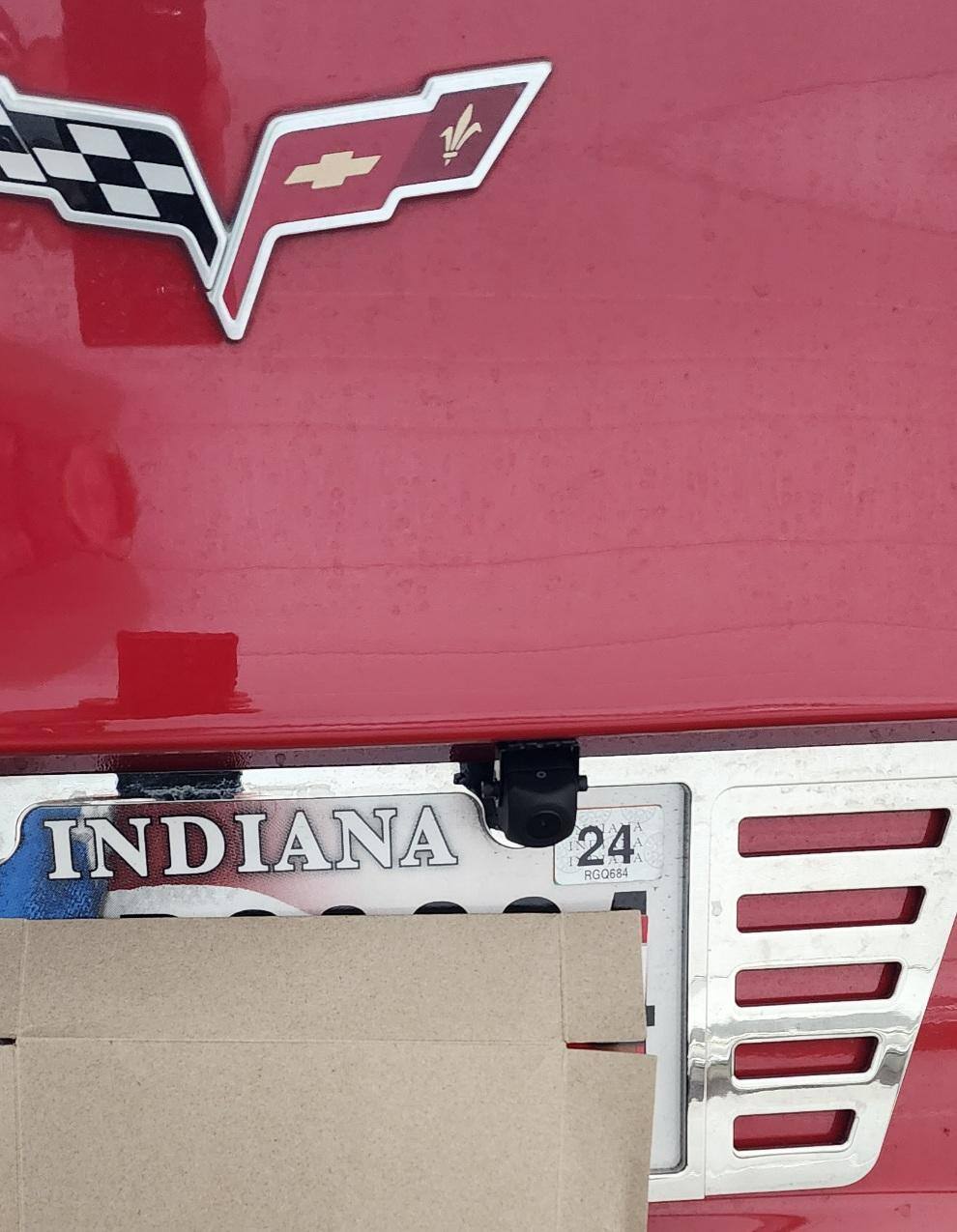

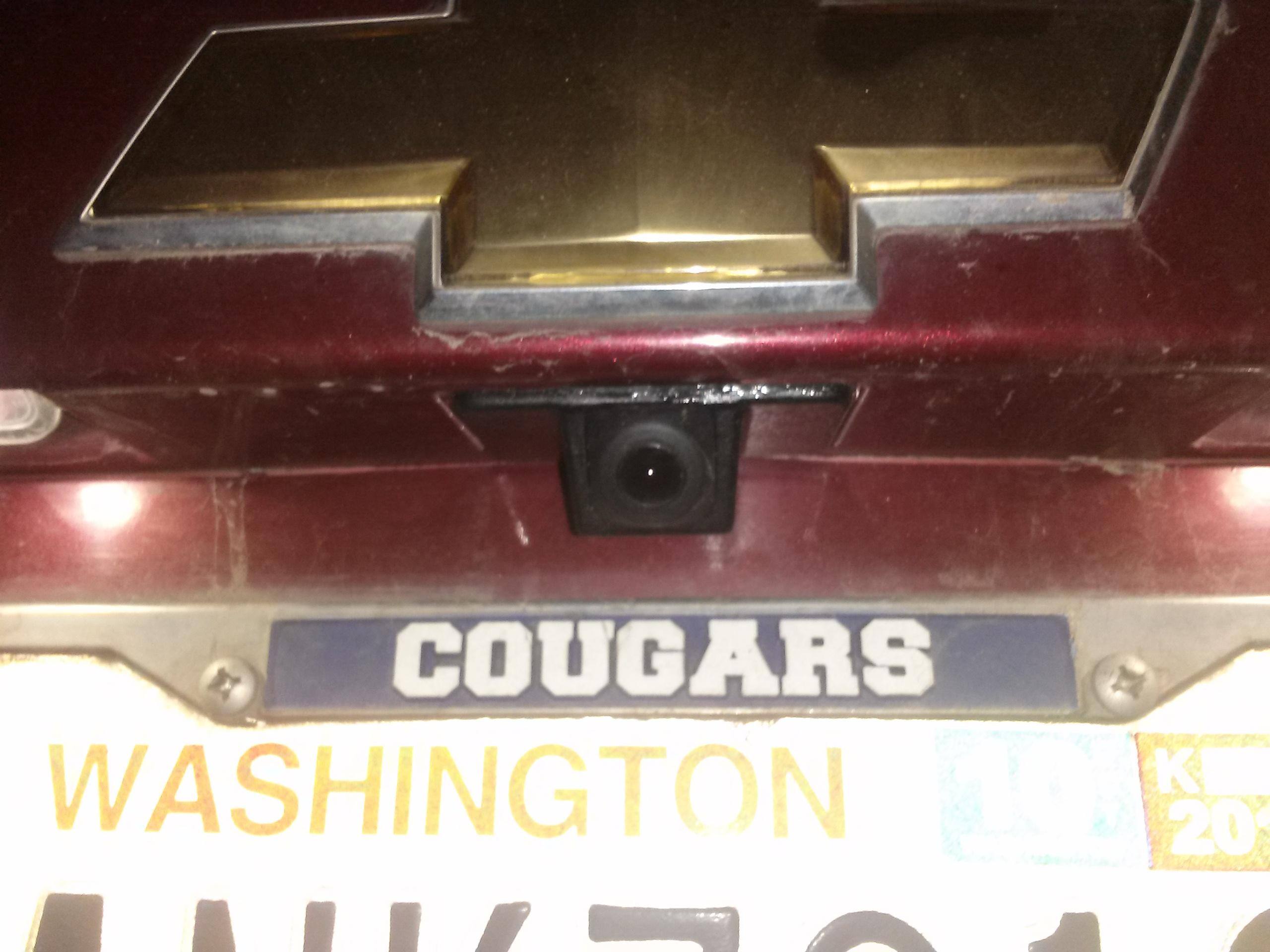

Q: Where on the car does this gets mounted? I have a pickup truck.

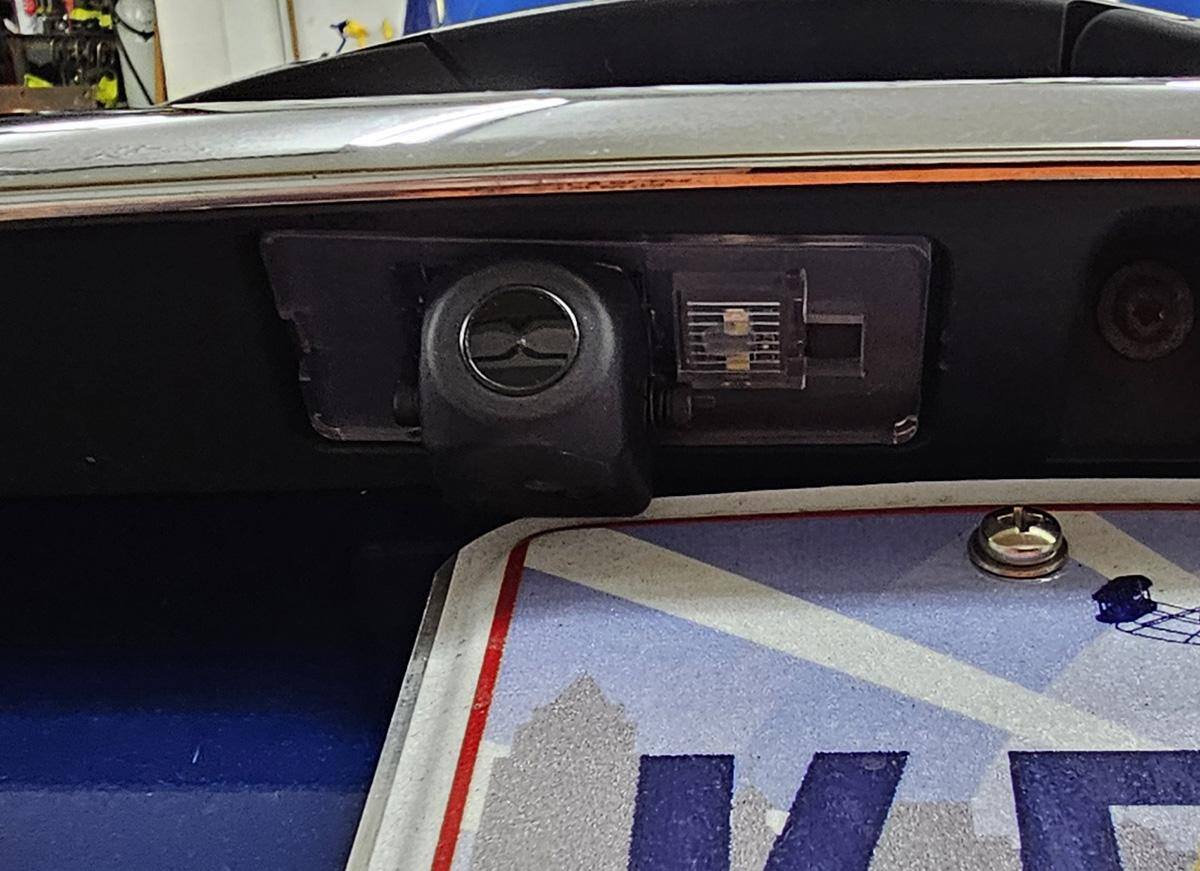

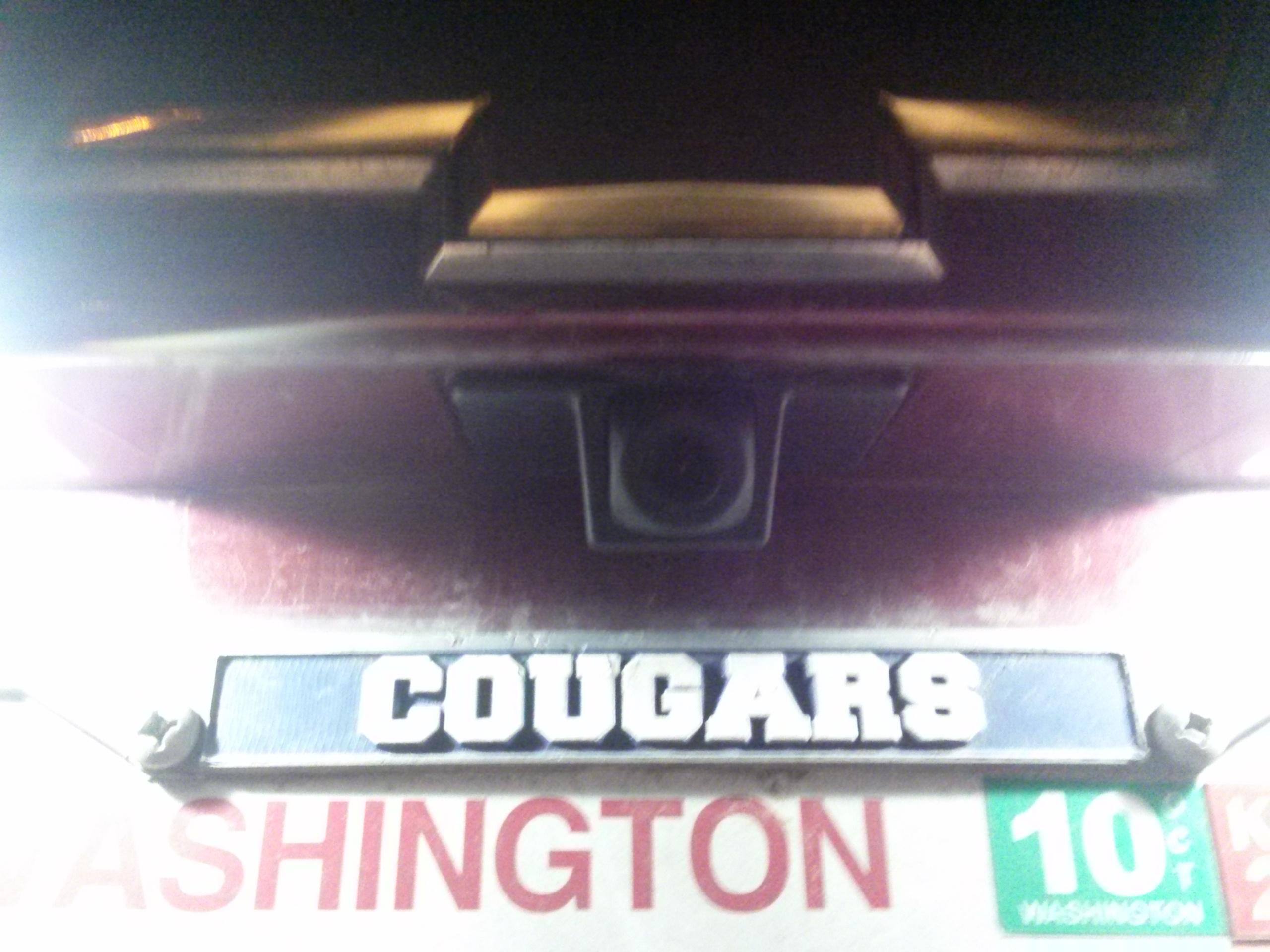

A: The tech created a small bracket to mount above the lis. plate. This is a wide angle lens and does not how lines for distance. Consider if this is for you.
A: Yes. It will wire into the brown RCA on the back of the nex head unit. Most commonly, you will tap the power supply of the camera into the reverse wire that powers your reverse lights.
