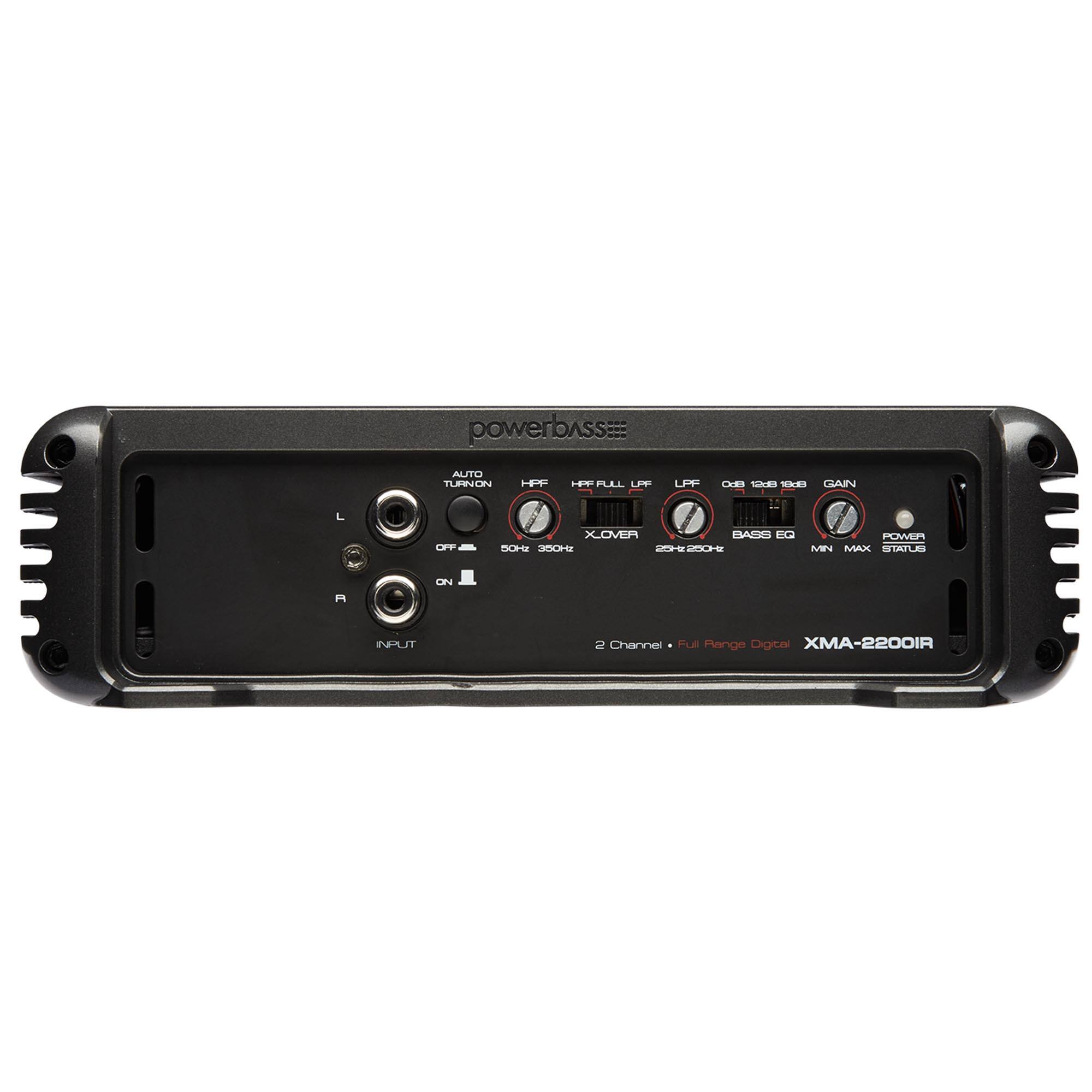

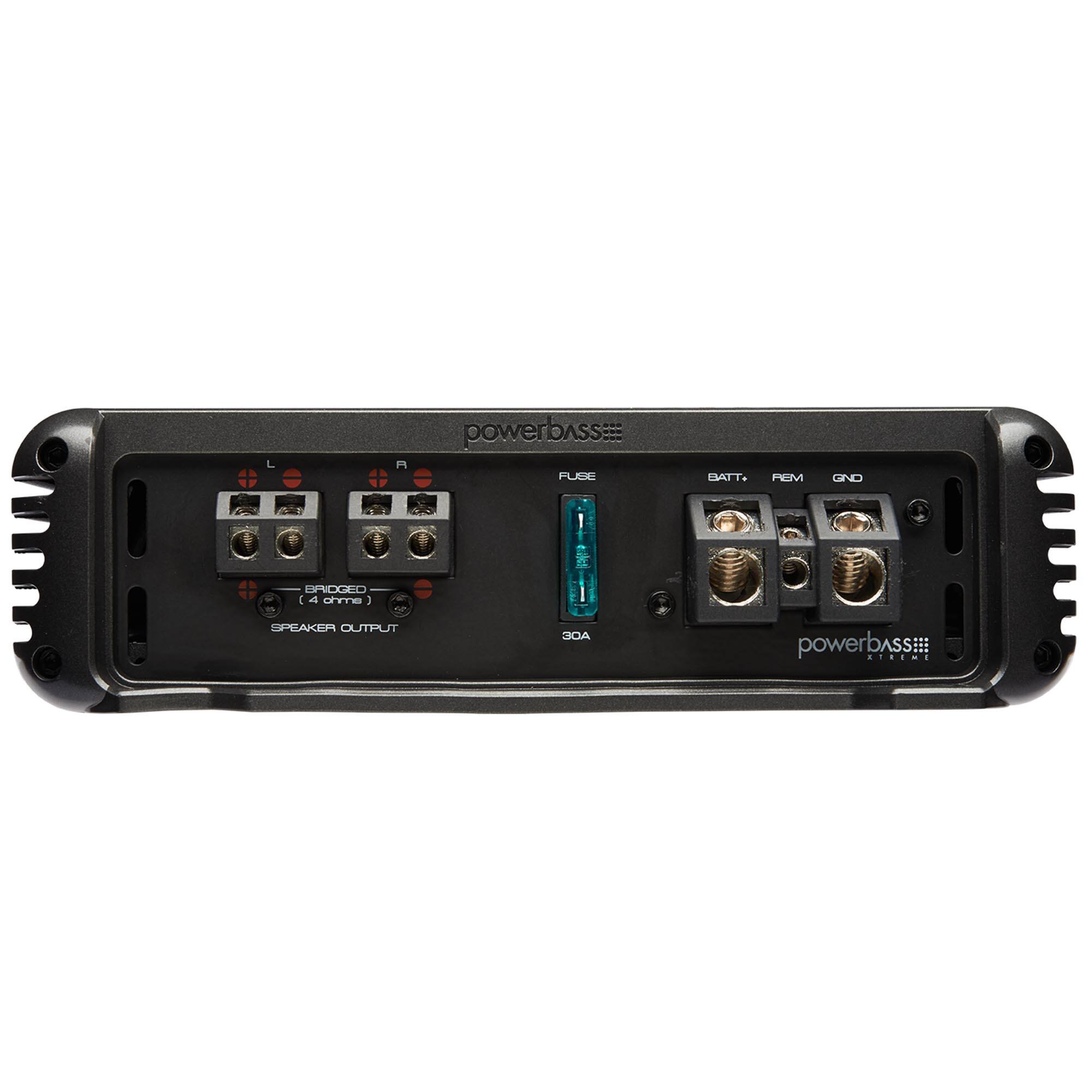

Powerbass - XMA-2200IR - 200 Watt x 2 @ 2-Ohm Full Range Digital Amplifier - Black/Gray
Specifications
- Amplifier ClassDNumber Of Channels2Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 2
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Powerbass
- Model Number: XMA-2200IR
- Product Name: PowerBass XMA-2200IR - 200 Watt x 2 @ 2-Ohm Full Range Digital Amplifier
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 400 watts
- Total Power Handling Maximum: 800 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 2
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 3.100 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.200 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9.800 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.7 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 823871006328
PowerBass XMA-2200IR 2ch 400 Watt Compact Amplifier The XMA amplifiers carry on the tradition of looking good and sounding great while taking up less space than any other amplifier we have ever offered – and smaller than most amps available from the majority of our competitors’ at the same output levels. High efficiency FRD (Full Range Digital) technology allows these amplifiers to operate at well over 85% efficiency. Limited space no longer means sacrificing great sound with the new PowerBass XMA Amplifiers. Features - • 400 Watt High Efficiency Full-Range Class D Design • 2-OHM Stable Stereo Amplifier • Ultra Low Current Draw • Double Sided Copper Plated PCB • PWM MOSFET Power Supply • Digital Sound Optimization Circuitry • High Damping Control Circuit • Variable Subsonic Filter • High Current Voltage Ripple Rejection Circuitry • Balanced RCA Inputs • Auto Turn On/Off • Remote Soft Delay Turn On/Off Circuit • 40 Click Variable Detente High/Low Pass Electronic Crossover • Switchable 0/12/18 dB Bass Boost @ 45 Hz • Variable Gain Control • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output Specifications - • Inputs: RCA (speaker level compatible) • Subwoofer Frequency Range: 10 Hz - 250 Hz • Switchable Subwoofer EQ: 0 / +12 / +18dB @ 45 Hz • 4-ohm Mono Power: 400 watts x 1 • 4-ohm Power: 100 watts x 2 • 2-ohm Power: 200 watts x 4 • Subwoofer EQ Frequency: 45 Hz • Low-Pass Crossover Freq: 25 Hz - 250 Hz • High-Pass Crossover Freq: 50 Hz - 350 Hz • Peak Power: 800 watts • Crossover Slope: 12 dB • Dimensions (in Inches): 7.6" x 7.1" x 2.0" • Input Sensitivity: 0.25 V - 10.0 V • S/N Ratio: >90 dB • Total Harmonic Distortion: 0.04% at Rated Power • Output Power (14.4 V) @ 4 ohm: 100 watts x 2 • Output Power (14.4 V) @ 2 ohm: 200 watts x 4 • Channels (mono): 2 • Frequency Response: 10 Hz - 40 kHz
- Key Feature: As today’s vehicles become smaller they present a challenge to find a place for a big amplifier with big power output.
- Key Feature: The XMA amplifiers are ideal for tight installations making it possible to put this series in places other amplifiers can’t go.
- Key Feature: The XMA amplifiers carry on the tradition of looking good and sounding great while taking up less space than any other amplifier PowerBass has ever offered
- Key Feature: Limited space no longer means sacrificing great sound with the new PowerBass XMA Amplifiers.
Whats Included
- PowerBass XMA-2200IR - 200 Watt x 2 @ 2-Ohm Full Range Digital Amplifier
