Pyle - 60 Watt Power Amplifier - Black
FREE shipping to
More Buying Options
Related Item
Specifications
- Continuous Watts x Channel @ Ohms4Number of Channels4Network Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 4
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): No network connectors
- General
- Brand: Pyle
- Model Number: PCM30A
- Product Name: 60 Watt Power Amplifier
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 4
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Amplifier Type: Power amplifiers
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: RCA
- Video Only Outputs: 1 x Component video (The number and type of video signal only outputs the product has.)
- Dimensions
- Product Height: 3.94 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14.69 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.43 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 12.08 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 068888896900
This 60 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. Connect up two mics using the rear terminals plus an auxiliary RCA input. Each input has an independent gain control and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.
DETAILS

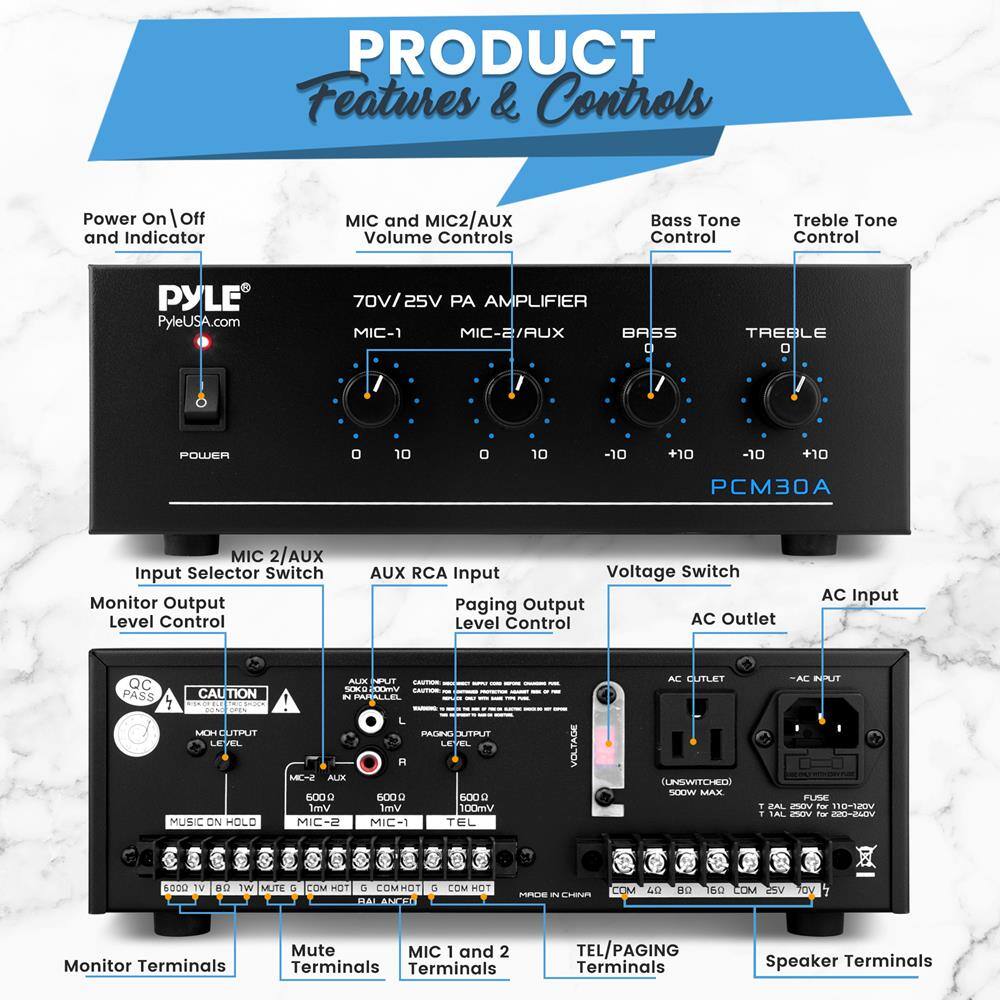

Features:
- Built-in Bluetooth for Wireless Audio Streaming
- Digital LED Display with FM Radio
- USB Flash Drive & SD Memory Card Readers
- Power On/Off Switch & LED Indicator

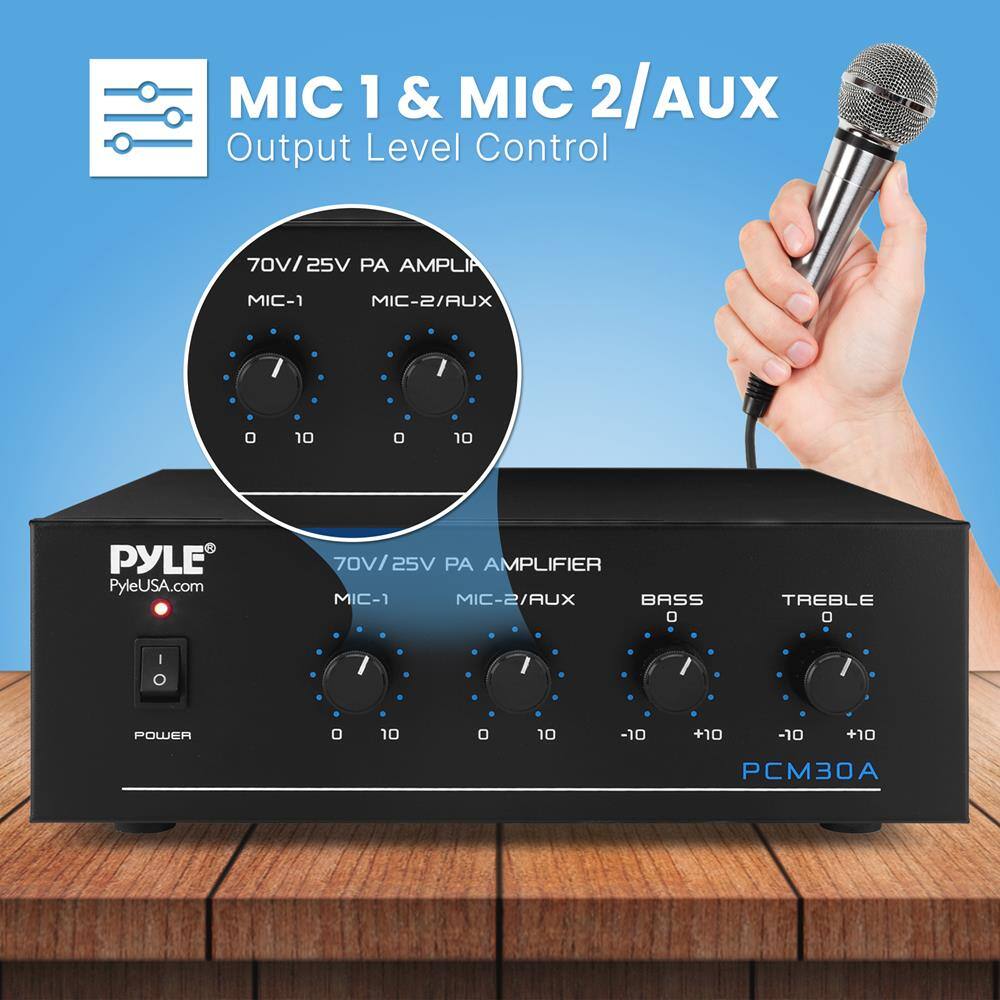

- MIC 1 Output Level Control
- MIC 2/AUX Output Level Control

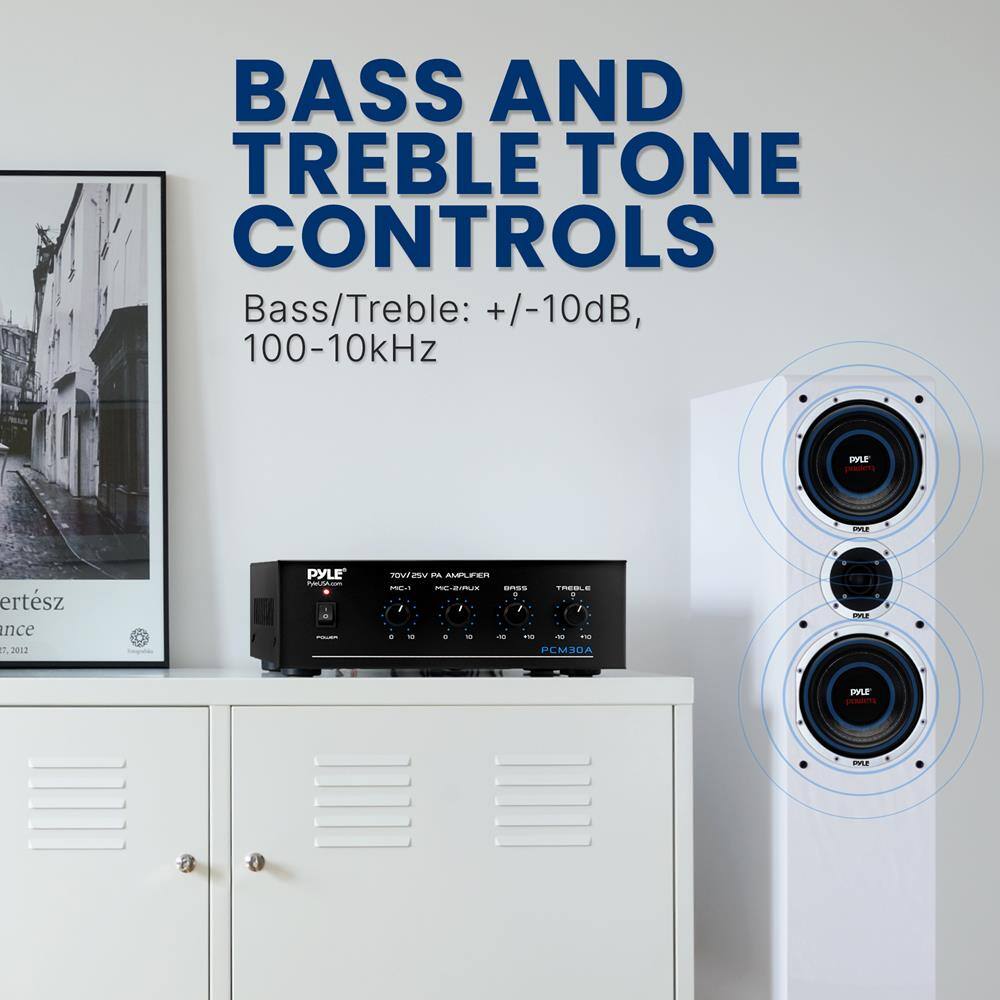

- Bass and Treble Tone Controls
- AUX RCA Input
- MIC 2/AUX Input Selector Switch
- MIC 1/MIC 2 Terminals (MIC 1 Auto Talkover)
- Mute Terminals
- Detachable AC Power Input
- Replaceable Fuse
- Monitor 600-Ohm 1V Terminals (Music On Hold)
- Monitor 1W 8-Ohm Terminals (Music On Hold)
- Monitor Output Level Control (Music On Hold)
- TEL/PAGING Terminals
- Paging Output Level Control
- MIC/TEL VOX Level Control (Internal)

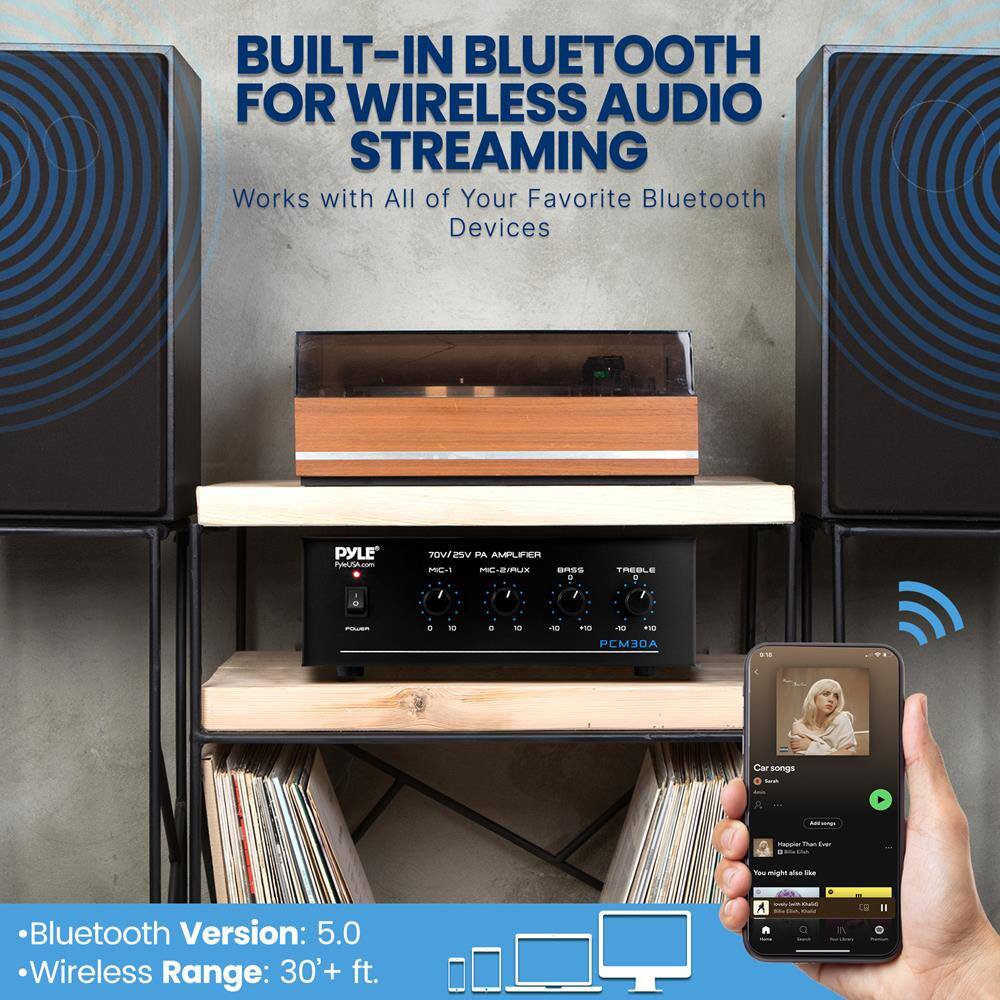

Bluetooth Connectivity:
- Works with All of Your Favorite Bluetooth Devices
- (iPhones Androids Smartphones iPad Tablet PC etc.)
- Bluetooth Network Name: ‘PYLEUSA’
- Bluetooth Version: 5.0
- Wireless Range up to 30’+ ft.
What’s In The Box:
- PA Amplifier
- FM Antenna
- Remote Control
Technical Specs:
- MAX Power Output: 500 Watt AC Outlet
- Construction Material: Iron
- Bass/Treble: +/-10dB 100-10kHz
- Frequency Response: 50-15kHz
- Attenuation (Mic): 61dB
- T.H.D.: <1%
- Speaker Terminals (COM/4-ohm/8-Ohm/16-Ohm/25V/70V)
- Battery Operated Remote Requires (1) x CR-2025 Button Cell Battery Included
- Power: 120/240 Voltage Selector
- Dimensions (W x H x D): 10.7 x 8.9 x 3.46 inches
Whats In The Box
Specification
This 60 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. Connect up two mics using the rear terminals plus an auxiliary RCA input. Each input has an independent gain control and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.- Built-in Bluetooth for Wireless Audio Streaming: Digital LED Display with FM Radio
- USB Flash Drive & SD Memory Card Readers: Power On/Off Switch & LED Indicator
- MIC 1 Output Level Control: MIC 2/AUX Output Level Control
- Bass and Treble Tone Controls: AUX RCA Input
- MIC 2/AUX Input Selector Switch: MIC 1/MIC 2 Terminals (MIC 1 Auto Talkover)
Whats Included
- 1
Compare similar products
This 60 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. Connect up two mics using the rear terminals plus an auxiliary RCA input. Each input has an independent gain control and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V. DETAILSFeatures: Built-in Bluetooth for Wireless Audio Streaming Digital LED Display with FM Radio USB Flash Drive & SD Memory Card Readers Power On/Off Switch & LED Indicator MIC 1 Output Level Control MIC 2/AUX Output Level Control Bass and Treble Tone Controls AUX RCA Input MIC 2/AUX Input Selector Switch MIC 1/MIC 2 Terminals (MIC 1 Auto Talkover) Mute Terminals Detachable AC Power Input Replaceable Fuse Monitor 600-Ohm 1V Terminals (Music On Hold) Monitor 1W 8-Ohm Terminals (Music On Hold) Monitor Output Level Control (Music On Hold) TEL/PAGING Terminals Paging Output Level Control MIC/TEL VOX Level Control (Internal) Bluetooth Connectivity: Works with All of Your Favorite Bluetooth Devices (iPhones Androids Smartphones iPad Tablet PC etc.) Bluetooth Network Name: ‘PYLEUSA’ Bluetooth Version: 5.0 Wireless Range up to 30’+ ft. What’s In The Box: PA Amplifier FM Antenna Remote Control Technical Specs: MAX Power Output: 500 Watt AC Outlet Construction Material: Iron Bass/Treble: +/-10dB 100-10kHz Frequency Response: 50-15kHz Attenuation (Mic): 61dB T.H.D.: Speaker Terminals (COM/4-ohm/8-Ohm/16-Ohm/25V/70V) Battery Operated Remote Requires (1) x CR-2025 Button Cell Battery Included Power: 120/240 Voltage Selector Dimensions (W x H x D): 10.7 x 8.9 x 3.46 inchesWhats In The BoxPA Amplifier FM Antenna Remote ControlSpecificationThis 60 watt power amplifier provides the juice you need for your 25 V or 70 V PA speaker. Connect up two mics using the rear terminals plus an auxiliary RCA input. Each input has an independent gain control and you can also adjust the tone of the sound using the rotary treble and bass faders. Connect your speakers using the rear terminals. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Also capable of music-on-hold. Includes a replaceable fuse and detachable AC power input. Runs on 110 or 220 V.
DETAILSFeatures: 7.1 Channel Receiver System AV (Audio/Video) Stereo Amplifier Hi-Fi Home Theater Surround Sound Built-in Bluetooth Wireless Audio Streaming Next-Gen Audio DSP Sound Processing Technology 3D Video & Blue-Ray Video Pass-Through Support Digital Dynamic VFD Display with AM/FM Radio Connect & Stream Audio from External Devices MP3 Digital Audio Support USB Flash Drive Reader Connection Interface: (3 IN+1 OUT) x HDMI RCA (L/R) Speaker Binding Posts Optical/COAX Digital Audio HDMI Output + Dedicated RCA Subwoofer Output (2) 1/4’’ -inch Microphone Inputs Independent Input Source Selection Digital Graphic Audio Output Level Display Mic Echo Bass Treble Volume Control Adjustment Over Current Short Circuit and Over Voltage Protection None Compatible with Apple TV and Dish Network None Compliant with (HDCP) High-bandwidth Digital Copyright Protection Wireless Bluetooth Connectivity: Simple & Hassle-Free Pairing Instantly Receives Wireless Music Streaming Works with all of Today’s Latest Devices Smartphones Tablets Laptops Computers etc.) Bluetooth Version: 5.0 Bluetooth Network Name: ‘PYLE PRO’ Wireless Range: 30’+ ft. What’s in the Box: AV Receiver Remote Control Power Cable Technical Specs: Power Output: 2000 Watt MAX Amplifier Receiver Type: 7.1-Channel Speaker Impedance: 4-16 Ohm S/N Ratio: >80dB T.H.D.: Radio Station Memory: 30 Presets Digital Audio File Support: MP3 / WMA/APE/FLAC Maximum USB Flash Support: Up to 1TB Battery Operated Remote Control Requires (2) x ‘AAA’ Batteries Not Included Power Cable Length: 3.9’ ft. Power Supply: 115V/230V switchable Total Unit Dimensions (L x W x H): 16.9’’ x 13.8’’ x 5.5 ’’ -inchesWhats In The BoxWhat’s in the Box: AV Receiver Remote Control Power Cable
The Pyle Home Audio Power Amplifier System offers high-quality audio performance with 2X75W output, making it perfect for home audio setups, small venues, and entertainment spaces. Designed for optimal sound delivery, this amplifier ensures crisp, clear sound with minimal distortion, allowing you to enjoy your music, movies, and audio experiences to the fullest. The 2X75W power output delivers ample power to drive your speakers with rich, dynamic sound. This amplifier is equipped with a variety of inputs, including RCA, for easy connection to a wide range of audio sources such as TVs, DVD players, and MP3 players. It also features adjustable tone controls, allowing you to fine-tune the sound to suit your preferences. The sleek, compact design makes it easy to integrate into any home theater or music system, and its durable construction ensures reliable performance. Whether you’re using it for personal listening or hosting small gatherings, this amplifier system offers powerful sound and excellent value.
DETAILSFeatures: 5.1 Genuine Channel Amplifier System Big VFD screen display with Frequency level light Built-in Bluetooth for Wireless Audio Streaming Auto Scan Memory Radio Station PREVIOUS/NEXT Control MP3 Digital Audio File Playback SD Memory Card & USB Flash Drive Readers (2) 1/4’’ Audio Input Jacks (Mic1 Mic2) Microphone ECHO/Volume/Treble/Bass Control Music Treble/Bass/Balance Rotary Control Central and Surround Volume Control Light-on General Music Rotary Volume Control Loudness On/Off Button (2) AUX Input Jack (1) Line Output (1) Subwoofer Signal Output Main Speaker Banana Binding Post Connector Surround and Center Speaker Press-type Connector 115/230V Switchable Power Supply What’s in the Box: (1) Amplifier Unit (1) Remote Control (1) FM Antenna Bluetooth Connectivity: Built-in Bluetooth for Wireless Music Streaming Compatible with All of Today’s Latest Bluetooth Devices and NAS (iPhone Androids Smartphones iPad Tablets etc.) Bluetooth Version: 5.0 Bluetooth Network Name: ‘BT” Bluetooth Network Password: No Wireless Range: Up to 40Ft Technical Specs: RMS Power Output: 35W*2+20W+15W*2 RMS Frequency Response: +/-3dB 100Hz-20kHz Impedance: 4/8/16 Ohm T.H.D.: S/N Ratio: >90dB Mic 80dB Microphone sensitivity: 10mV USB/SD Flash Memory Support: Up to 32GB Digital File-type Playback Support: MP3 WMA WAV Remote Control Battery: (1) x 3V Lithium Button Cell CR2025 (Included) Power Supply: 115V/230V Switchable Dimensions (L x W x H): 16.9’’ x 9.4’’ x 2.76’’ –inchesWhats In The BoxWhat’s in the Box: (1) Amplifier Unit (1) Remote Control (1) FM Antenna
Specs
Reviews
This product doesn't have any reviews yet.
