Rotel - RMB-1585MKII 340W 5-Ch Multi-Channel Amplifier - Black
Color
BlackRelated Item
Specifications
- Continuous Watts x Channel @ Ohms210 Watts x 5 @ 8 OhmsNumber of Channels5Number of Audio Zones1Network Connector(s)No network connectorsPreamp OutputsNo
- Key Specs
- Continuous Watts x Channel @ Ohms: 210 Watts x 5 @ 8 Ohms
- Number of Channels: 5 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Network Connector(s): No network connectors
- Preamp Outputs: false
- General
- Brand: Rotel
- Model Number: RMB-1585MKII Black
- Product Name: RMB-1585MKII 340W 5-Ch Multi-Channel Amplifier
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 210 Watts x 5 @ 8 Ohms
- Maximum Watts x Channel @ Ohms: 340 Watts x 5 @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 1200 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 5 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.03 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 100 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Power amplifiers
- Signal-to-Noise Ratio (SNR): 120 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Preamp Outputs: false
- Speaker Connection Type: RCA, XLR
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Fan Cooled: true
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Dimensions
- Product Height: 10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 82 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 672563287114
Introducing Rotel's RMB-1585MKII, a 5-channel amplifier that upholds our legacy of crafting high-power, audiophile performance amplifiers for multi-channel systems. With a commanding 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms, it's your ticket to an immersive home theater experience that captures the essence of your audio and movies like never before.
- Class AB Amplification: Experience the power and precision of the RMB-1585MKII 5 channel amplifier. It offers impressive Class AB amplification with 210W per channel at 8 ohms and a robust 340W per channel at 4 ohms, ensuring a cinematic home theater experience that exceeds your expectations.
- Exceptional Build Quality and Reliability: Globally respected for over 60-years, Rotel is recognized as an industry leader for robust build quality and reliability. The RMB-1585MKII follows this proud tradition manufactured by our in-house skilled technicians using high-quality components assembled in a sturdy chassis.

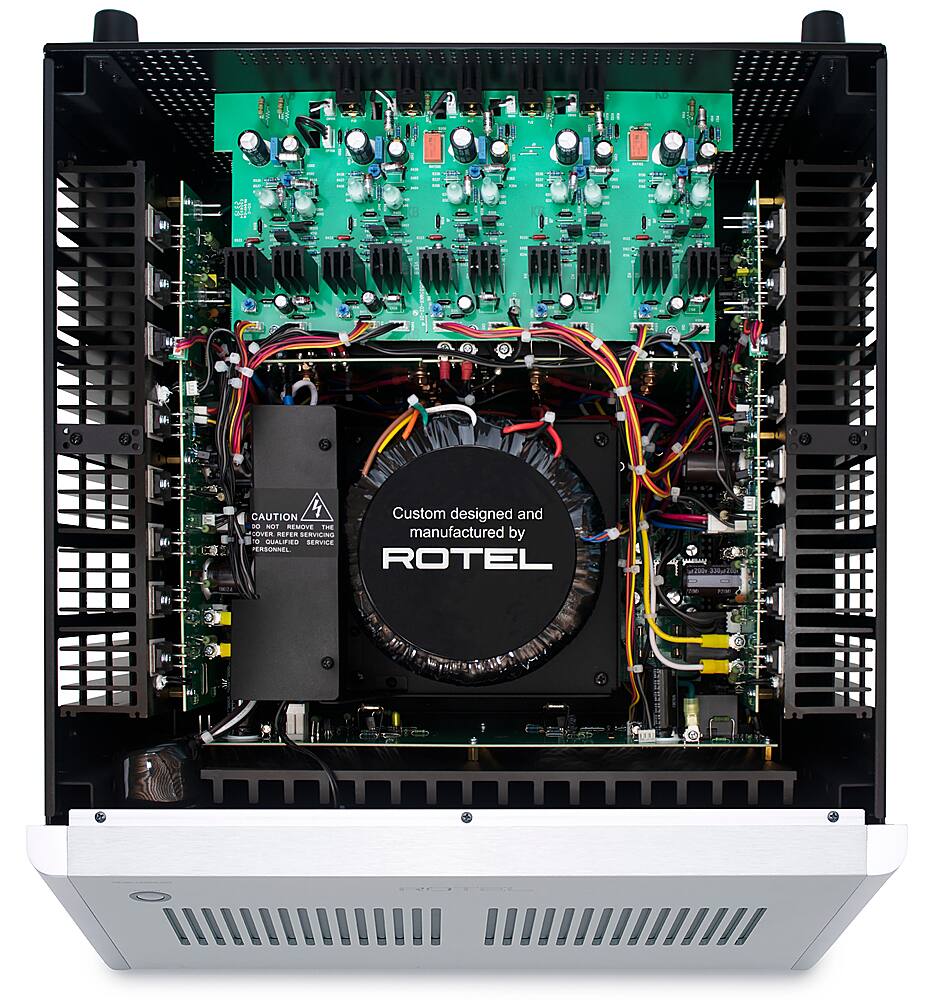

- Dual High Current Toroidal Transformers: Two in-house manufactured toroidal transformer delivers high efficiency, low noise, ultra-stable power with reduced electromagnetic interference to critical amplifier circuits lowering the noise floor and reducing distortion.
- Bi-Amp Configuring Delivers Higher Power Outputs: User selectable Bi-Amp mode allows the RMB-1585MKII to operate as a 3-Channel amplifier which is most effective driving the Front Right, Front Left and Center channels (LCR Amplifier). When Bi-Amp mode is enabled, the amplifier powers 2 amplifier channels for the Left and 2 for the Right channels separating the High Frequency and Low Frequency amplification and cabling for an even higher level of efficiency and output drive to the speakers.

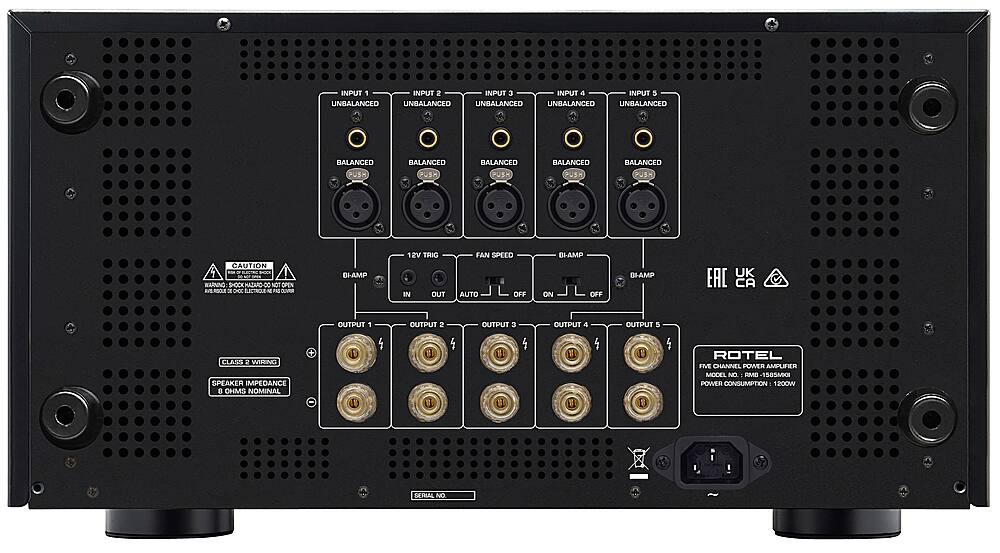

- Customizable Input and Output Options: The RMB-1585MKII supports both XLR Balanced and RCA inputs automatically detecting and switching to the attached cabling method ensuring ultimate installation flexibility. Sturdy 5-way speaker binding posts support up to #10AWG (2.58mm) wire ensuring secure connections with minimal signal loss for optimal audio performance.
- Class AB Amplification: Experience the power and precision of the RMB-1585MKII 5 channel amplifier. It offers impressive Class AB amplification with 210W per channel at 8 ohms and a robust 340W per channel at 4 ohms, ensuring a cinematic home theater experience that exceeds your expectations.
- Exceptional Build Quality and Reliability: Globally respected for over 60-years, Rotel is recognized as an industry leader for robust build quality and reliability. The RMB-1585MKII follows this proud tradition manufactured by our in-house skilled technicians using high-quality components assembled in a sturdy chassis.
- Dual High Current Toroidal Transformers: Two in-house manufactured toroidal transformer delivers high efficiency, low noise, ultra-stable power with reduced electromagnetic interference to critical amplifier circuits lowering the noise floor and reducing distortion.
- Bi-Amp Configuring Delivers Higher Power Outputs: User selectable Bi-Amp mode allows the RMB-1585MKII to operate as a 3-Channel amplifier which is most effective driving the Front Right, Front Left and Center channels (LCR Amplifier). When Bi-Amp mode is enabled, the amplifier powers 2 amplifier channels for the Left and 2 for the Right channels separating the High Frequency and Low Frequency amplification and cabling for an even higher level of efficiency and output drive to the speakers.
- Customizable Input and Output Options: The RMB-1585MKII supports both XLR Balanced and RCA inputs automatically detecting and switching to the attached cabling method ensuring ultimate installation flexibility. Sturdy 5-way speaker binding posts support up to #10AWG (2.58mm) wire ensuring secure connections with minimal signal loss for optimal audio performance.
Whats Included
- Rotel RMB-1585MKII Amplifier
- Power Cord
- Manual
- Rotel RMB-1585MKII Amplifier
- Power Cord
- Manual
Q: What is the maximum power output per channel at 4 ohms?
A: The maximum power output per channel at 4 ohms is an impressive 340 Watts.
Q: What is the warranty period for parts?
A: The manufacturer's warranty for parts is 5 years.
A: The product weight is 82 pounds.
Q: How many channels does the amplifier have?
A: The amplifier has 5 channels.
Q: What is the amplifier's signal-to-noise ratio?
A: The signal-to-noise ratio (SNR) is 120 decibels.
