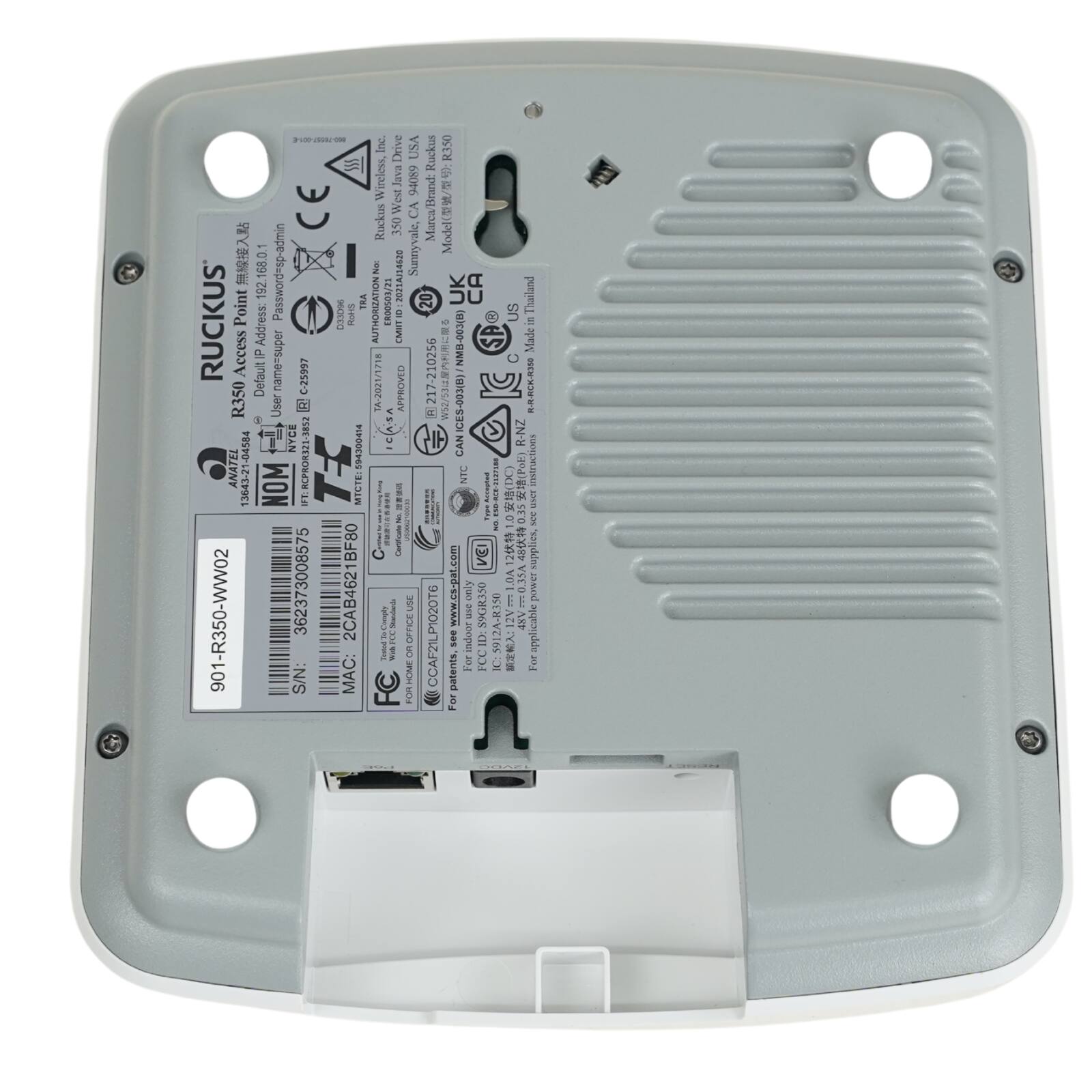

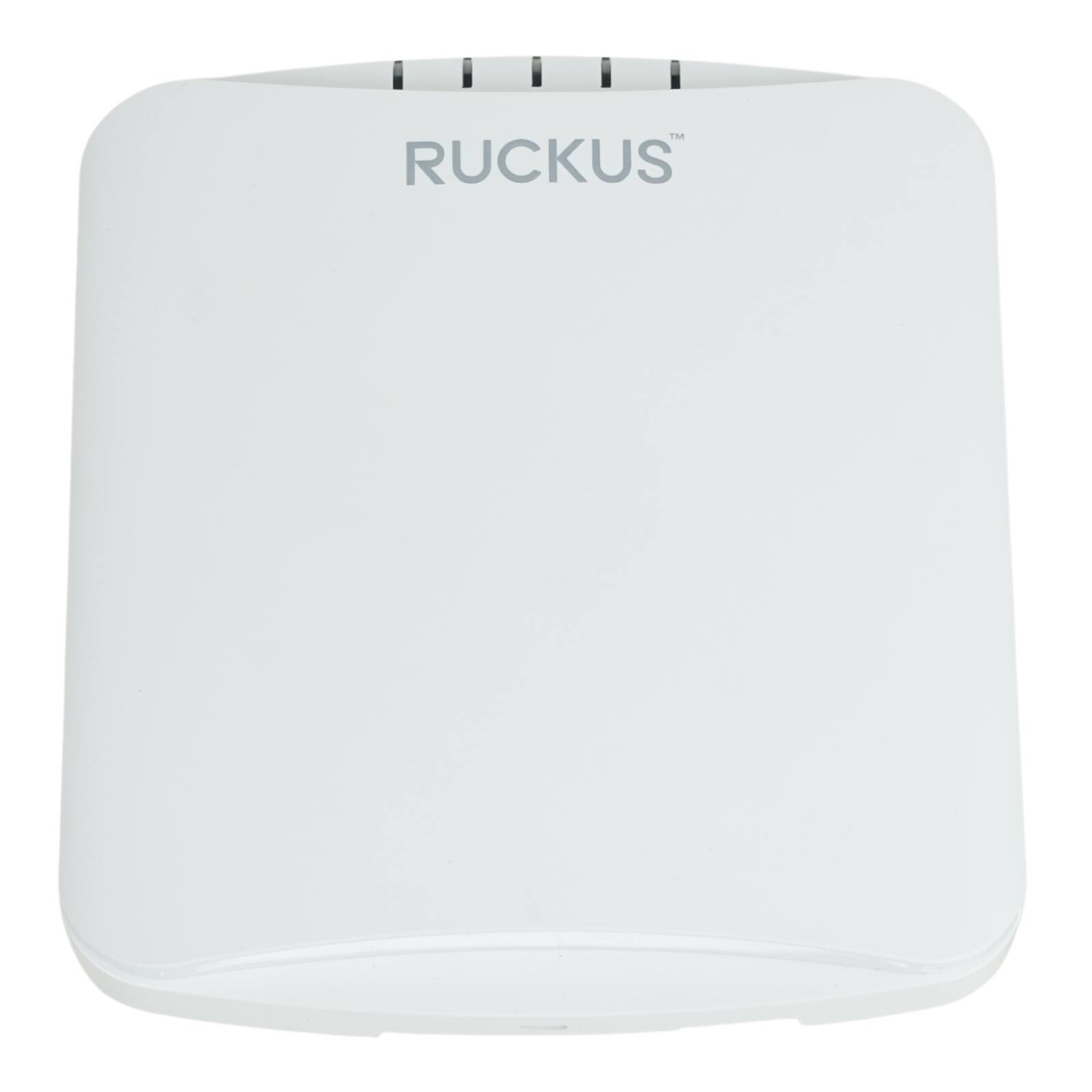

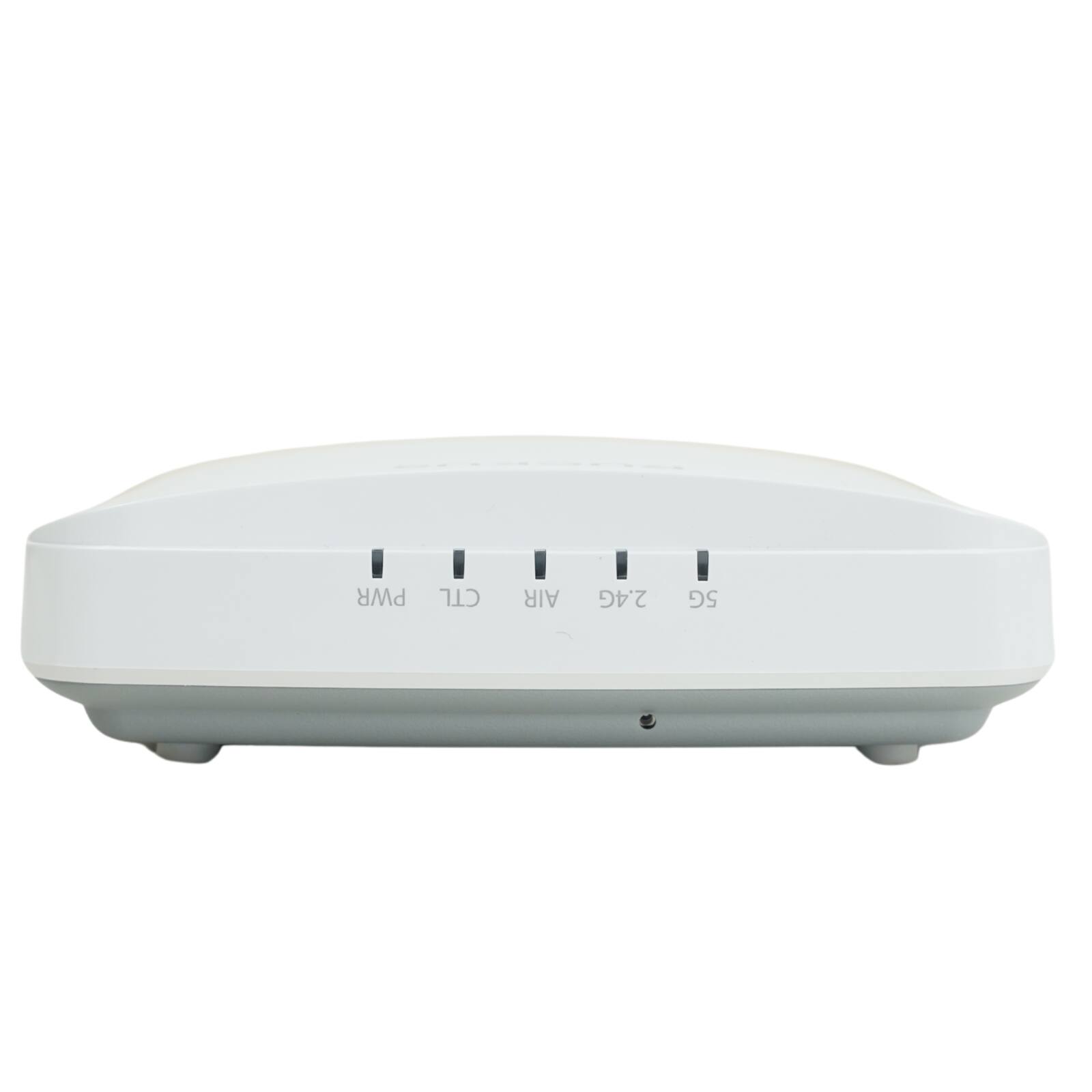

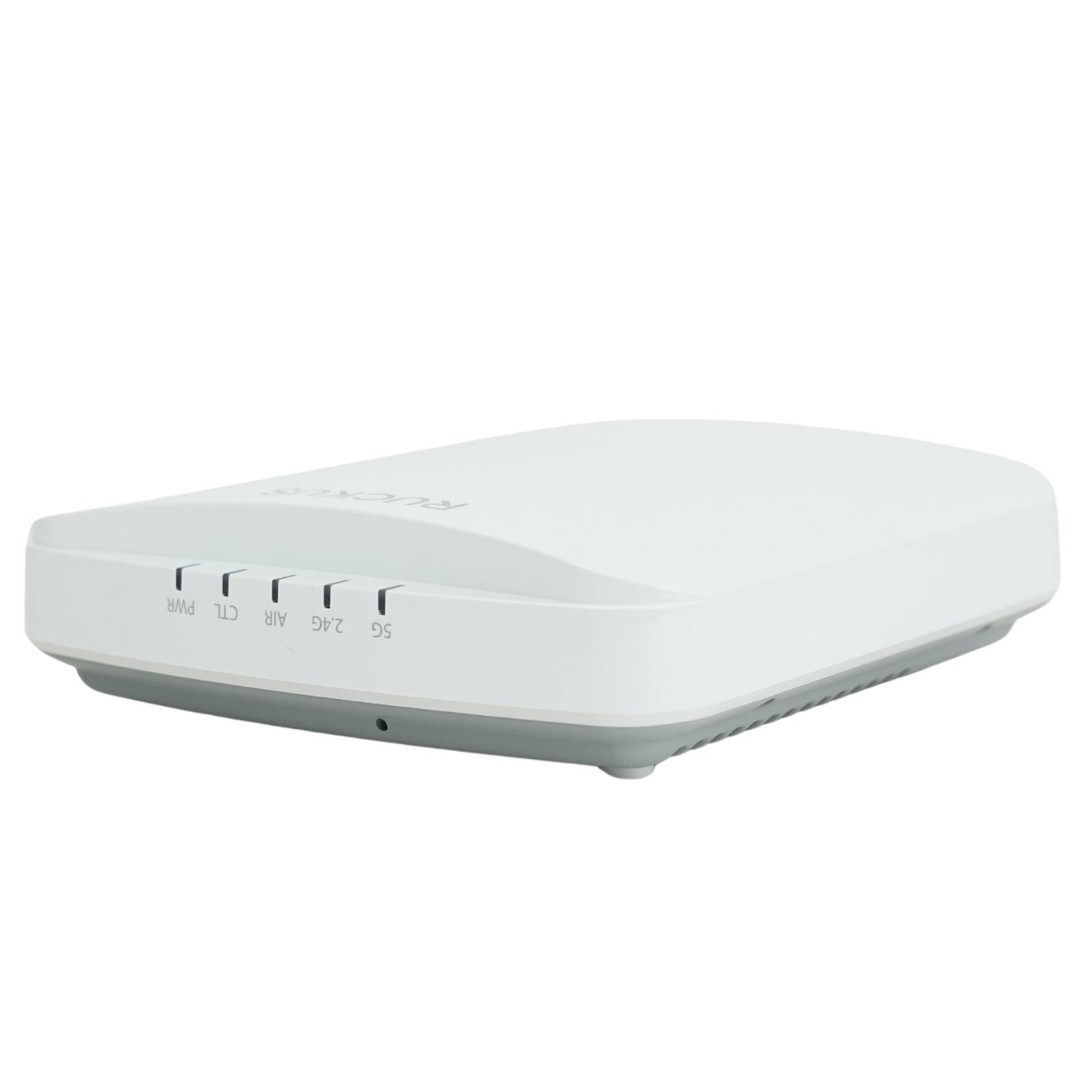

Ruckus - R350 Wi-Fi 6 Indoor Wireless Access Point 802.11ax Dual-Band 1.77Gbps PoE 256 Clients Retail Branch IoT 901-R350-US02 - White
Related Item
Specifications
- Wi-Fi Speed1.77 gigabits per secondWireless StandardAC, AX, NBand TechnologyDualFrequency Band2.4 GHz, 5.0 GHzAntenna TypeInternalNumber of LAN Ports1
- Key Specs
- Wi-Fi Speed: 1.77 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Wireless Standard: AC, AX, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Antenna Type: Internal
- Number of LAN Ports: 1 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Number of PoE (Power over Ethernet) Ports: 1 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- General
- Brand: Ruckus
- Model Number: 901-R350-US02
- Product Name: R350 Wi-Fi 6 Indoor Wireless Access Point 802.11ax Dual-Band 1.77Gbps PoE 256 Clients Retail Branch IoT 901-R350-US02
- Color: White
- Security
- Security Features: WPA3-Personal, WPA3-Enterprise, WPA2-AES, WIPS/WIDS
- Data Encryption: true
- Encryption Type: WPA2, WPA3 (The security protocols or certification programs that protect the Wi-Fi network.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Compatibility
- System Requirements: Requires PoE switch (802.3af) or PoE injector. Management via RUCKUS Cloud, SmartZone, ZoneDirector, or Unleashed mode. (The software that a product must have for it to be able to integrate with another product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Power
- Power Source: Power over Ethernet (PoE)
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 657768795626
The RUCKUS R350 (901-R350-US02) is a Wi-Fi 6 (802.11ax) dual-band indoor access point purpose-built for small and medium-size businesses, retail locations, restaurants, and branch offices. It supports up to 1.77 Gbps combined (574 Mbps on 2.4 GHz + 1.2 Gbps on 5 GHz) using 2x2:2 MU-MIMO and OFDMA on both bands. The R350 features patented RUCKUS adaptive antenna technology that dynamically selects among multiple antenna patterns in real time, directing RF signals per-device on a packet-by-packet basis to maximize coverage and minimize interference. ChannelFly channel management continuously identifies less congested Wi-Fi channels for optimal throughput. The AP supports up to 256 client connections and 16 SSIDs per AP. A USB 2.0 port supports optional IoT integration via BLE and Zigbee modules. Powered by 802.3af PoE over existing CAT 5e cabling, the R350 requires no dedicated power infrastructure. Security includes WPA3-Personal, WPA3-Enterprise, WPA2-AES, and WIPS/WIDS. Manage via RUCKUS Cloud, SmartZone, ZoneDirector, Unleashed, or standalone modes. Includes a limited lifetime warranty, subject to manufacturer terms.
- Wi-Fi 6 (802.11ax) — Up to 1.77 Gbps Dual-Band: The R350 supports up to 1.77 Gbps of combined Wi-Fi 6 (802.11ax) wireless throughput — 574 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz. OFDMA and MU-MIMO on both bands allow simultaneous service to multiple clients, improving efficiency in dense environments such as retail floors, open offices, and classrooms.
- Adaptive Antenna Technology for Extended Coverage: Patented RUCKUS adaptive antennas dynamically select among multiple antenna patterns in real time, directing RF energy toward each client device on a packet-by-packet basis. This reduces co-channel interference, extends effective coverage range, and delivers more consistent signal quality compared to fixed omni-directional antennas — even for legacy Wi-Fi devices.

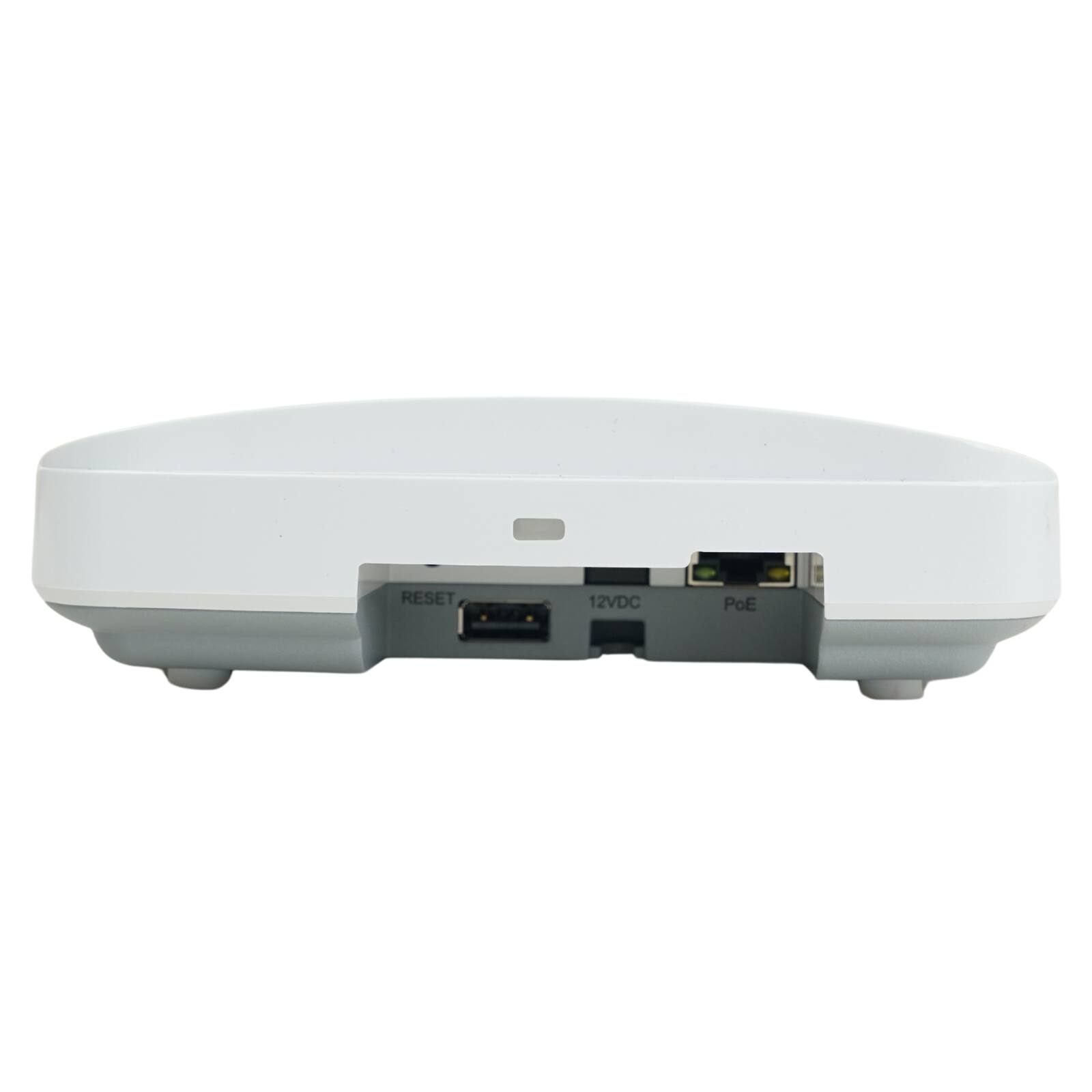

- Supports Up to 256 Clients | 16 SSIDs | IoT Ready: The R350 supports up to 256 client connections and 16 SSIDs per AP, making it well-suited for SMB, hospitality, and multi-tenant deployments. The built-in USB 2.0 port supports optional IoT integration via BLE and Zigbee USB modules, allowing Wi-Fi and IoT devices to share a single unified network infrastructure.
- 802.3af PoE | WPA3 Security | CAT 5e Compatible: Powered by IEEE 802.3af Power over Ethernet — a single CAT 5e cable delivers both data and power, eliminating the need for electrical outlets or new power infrastructure. Security features include WPA3-Personal, WPA3-Enterprise, WPA2-AES encryption, and WIPS/WIDS wireless intrusion prevention and detection.
- Cloud, Controller & Standalone Management Options: Manage the R350 via RUCKUS Cloud, SmartZone, ZoneDirector, or in Unleashed controller-less mode. SmartMesh enables self-forming, self-healing wireless mesh networks to reduce cabling. ChannelFly dynamically selects the least congested Wi-Fi channels. Includes a limited lifetime warranty, subject to manufacturer terms. Measures 6.1 x 5.7 x 1.5 in.
- Wi-Fi 6 (802.11ax) — Up to 1.77 Gbps Dual-Band: The R350 supports up to 1.77 Gbps of combined Wi-Fi 6 (802.11ax) wireless throughput — 574 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz. OFDMA and MU-MIMO on both bands allow simultaneous service to multiple clients, improving efficiency in dense environments such as retail floors, open offices, and classrooms.
- Adaptive Antenna Technology for Extended Coverage: Patented RUCKUS adaptive antennas dynamically select among multiple antenna patterns in real time, directing RF energy toward each client device on a packet-by-packet basis. This reduces co-channel interference, extends effective coverage range, and delivers more consistent signal quality compared to fixed omni-directional antennas — even for legacy Wi-Fi devices.
- Supports Up to 256 Clients | 16 SSIDs | IoT Ready: The R350 supports up to 256 client connections and 16 SSIDs per AP, making it well-suited for SMB, hospitality, and multi-tenant deployments. The built-in USB 2.0 port supports optional IoT integration via BLE and Zigbee USB modules, allowing Wi-Fi and IoT devices to share a single unified network infrastructure.
- 802.3af PoE | WPA3 Security | CAT 5e Compatible: Powered by IEEE 802.3af Power over Ethernet — a single CAT 5e cable delivers both data and power, eliminating the need for electrical outlets or new power infrastructure. Security features include WPA3-Personal, WPA3-Enterprise, WPA2-AES encryption, and WIPS/WIDS wireless intrusion prevention and detection.
- Cloud, Controller & Standalone Management Options: Manage the R350 via RUCKUS Cloud, SmartZone, ZoneDirector, or in Unleashed controller-less mode. SmartMesh enables self-forming, self-healing wireless mesh networks to reduce cabling. ChannelFly dynamically selects the least congested Wi-Fi channels. Includes a limited lifetime warranty, subject to manufacturer terms. Measures 6.1 x 5.7 x 1.5 in.
Whats Included

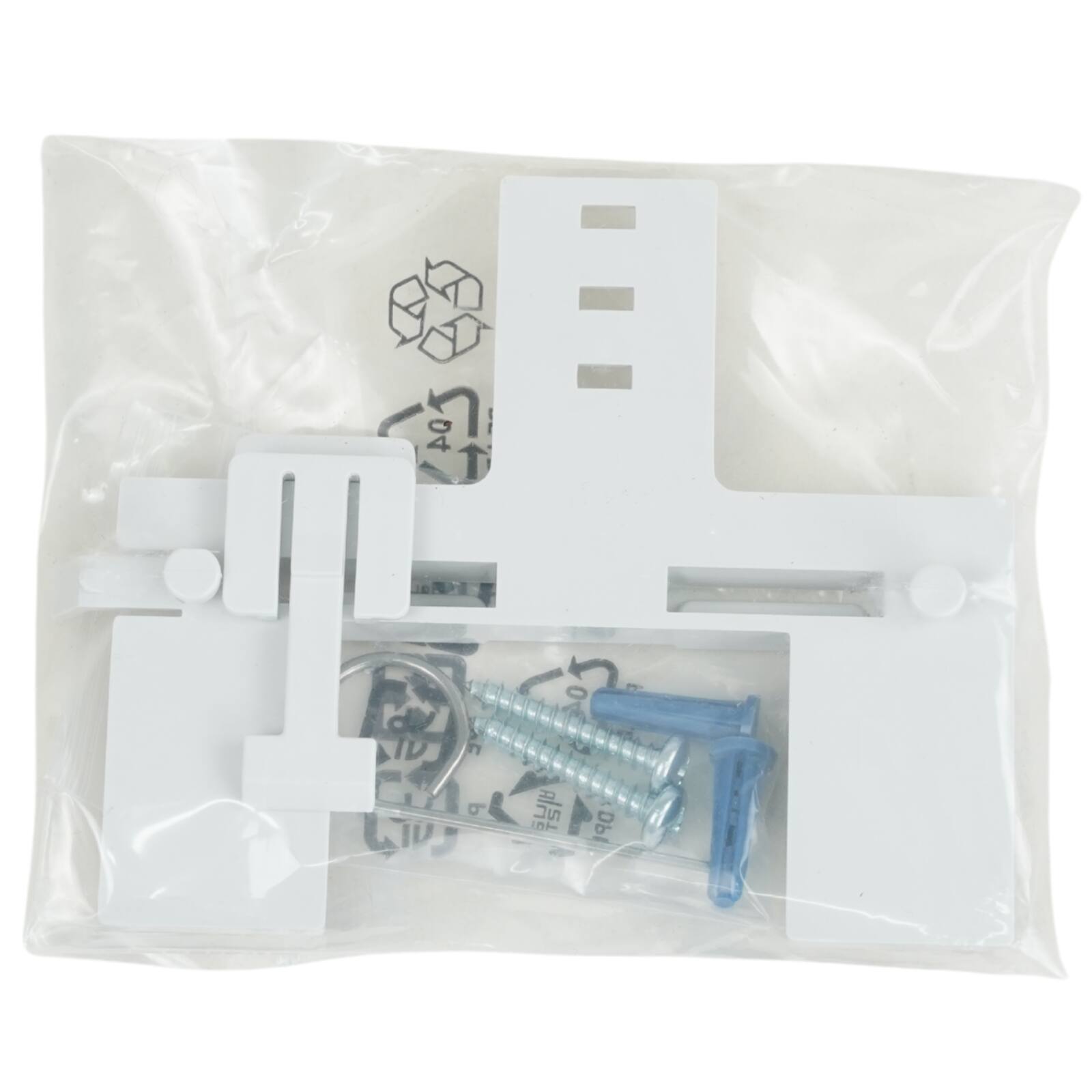

- R350 Access Point, mounting hardware
- R350 Access Point, mounting hardware
