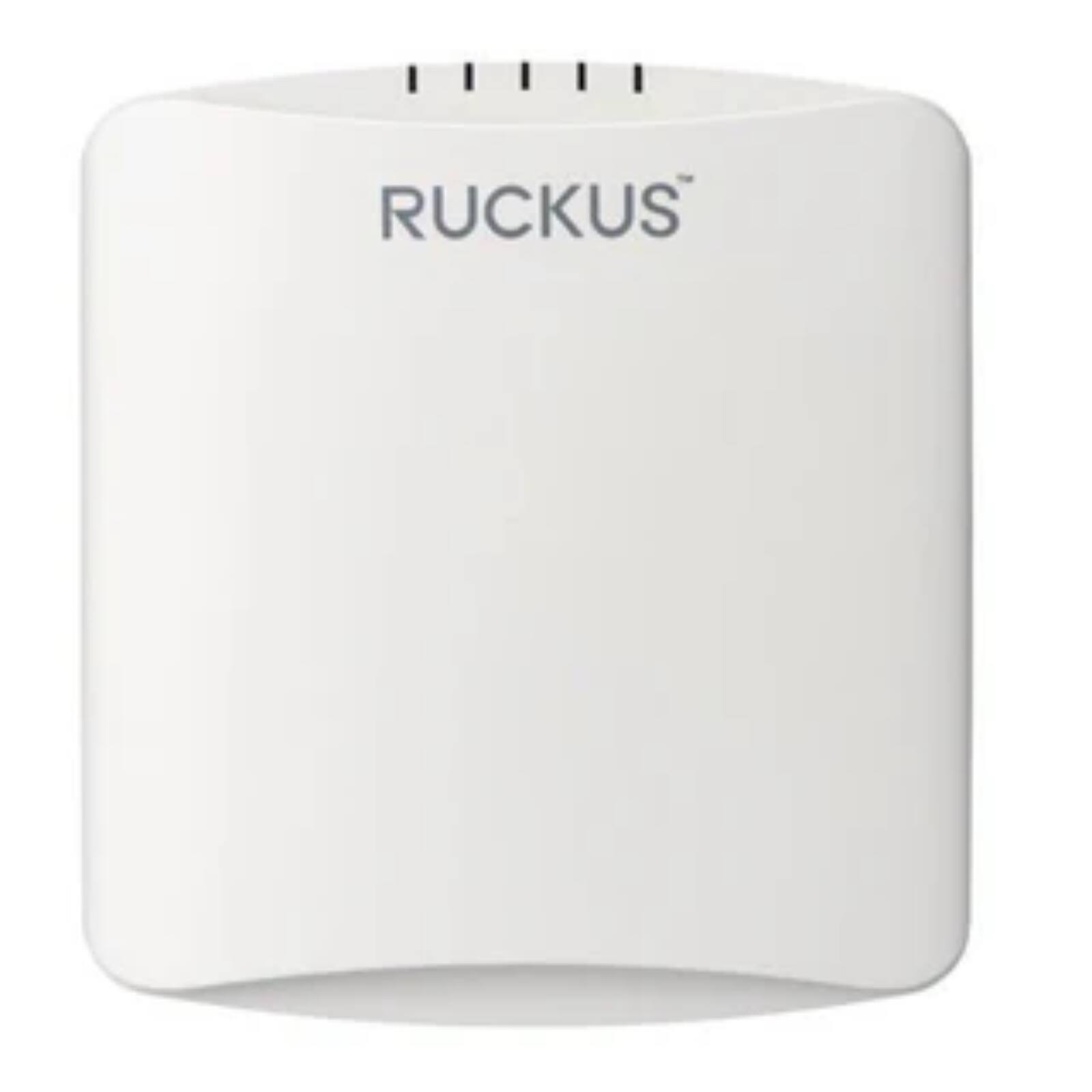

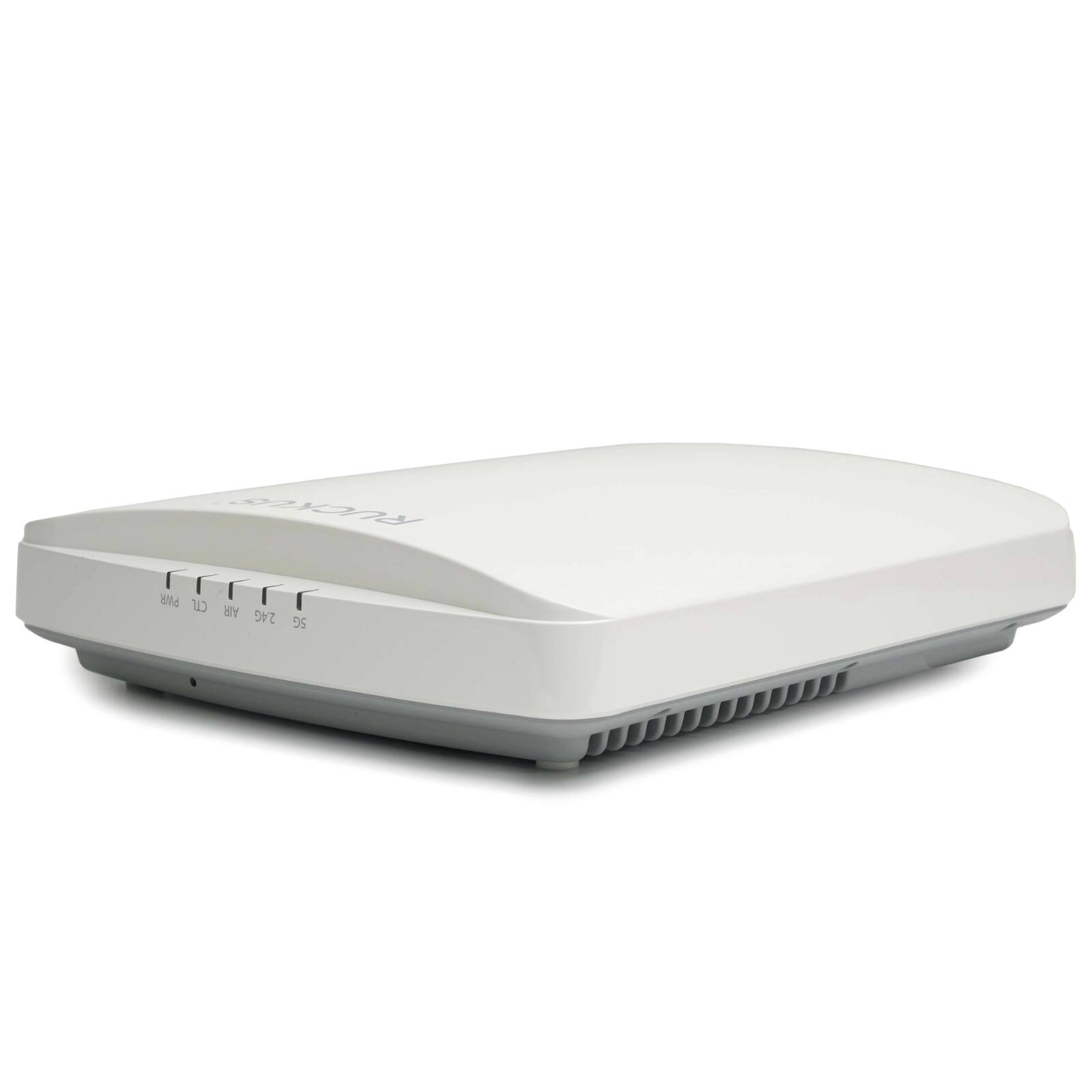

Ruckus - ZoneFlex R650 901-R650-WW00 Wi-Fi 6 802.11ax Dual-Band Indoor Access Point 2974 Mbps 2.5GbE PoE MU-MIMO BLE Zigbee Mesh - White
Specifications
- Wi-Fi Speed2.974 gigabits per secondWireless StandardN, AC, AXForm FactorMountableBand TechnologyDualFrequency Band2.4 GHz, 5.0 GHzAntenna TypeInternal
- Key Specs
- Wi-Fi Speed: 2.974 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Wireless Standard: N, AC, AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Form Factor: Mountable (The size, arrangement, and physical configuration of the product.)
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Antenna Type: Internal
- Number of LAN Ports: 2 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Number of PoE (Power over Ethernet) Ports: 1 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- General
- Brand: Ruckus
- Model Number: 901-R650-WW00
- Product Name: ZoneFlex R650 901-R650-WW00 Wi-Fi 6 802.11ax Dual-Band Indoor Access Point 2974 Mbps 2.5GbE PoE MU-MIMO BLE Zigbee Mesh
- Color: White
- Security
- Security Features: WPA3, WPA2-AES, WPA-TKIP, Dynamic PSK, WIPS/WIDS
- Data Encryption: true
- Encryption Type: WPA, WPA2, WPA3 (The security protocols or certification programs that protect the Wi-Fi network.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Compatibility
- System Requirements: Compatible with Ruckus management platforms (SmartZone, ZoneDirector, Unleashed, Cloud) (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Power
- Power Source: Power over Ethernet (PoE)
- Dimensions
- Product Height: 2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 9 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 783555282571
The Ruckus ZoneFlex R650 (901-R650-WW00) is a mid-range indoor Wi-Fi 6 (802.11ax) dual-band wireless access point built for high-density enterprise environments including offices, K-12 classrooms, libraries, and retail spaces. It supports six spatial streams — 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz — with peak data rates up to 2974 Mbps (2400 Mbps on 5 GHz, 574 Mbps on 2.4 GHz) and a client capacity of up to 512 per access point per official Ruckus specifications. The 2.5 GbE Ethernet uplink accepts PoE/PoE+ (802.3af/802.3at) for single-cable power and data; a second 1 GbE Ethernet port is also included. Ruckus patented BeamFlex+ adaptive antenna technology dynamically directs signals per device, per packet, to maximize coverage and reduce interference. ChannelFly machine-learning channel management continuously selects the least congested channels. Built-in Bluetooth Low Energy (BLE) and Zigbee radios support IoT device integration, and SmartMesh technology enables self-forming, self-healing wireless mesh deployments. Security includes WPA3, WPA2, Dynamic PSK, OWE, 802.1X, and WIPS/WIDS. Power adapter not included. Compatible with Ruckus SmartZone, ZoneDirector, Unleashed, and Ruckus Cloud management platforms.
- Wi-Fi 6 (802.11ax) — 2974 Mbps, Up to 512 Clients per AP: The R650 delivers Wi-Fi 6 (802.11ax) performance with OFDMA, MU-MIMO, and Target Wake Time (TWT) across six spatial streams: 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz. Peak data rates reach 574 Mbps on 2.4 GHz and 2400 Mbps on 5 GHz. Per official Ruckus specifications, the R650 supports up to 512 client connections per access point, making it a strong fit for offices, classrooms, retail floors, and other dense indoor environments.
- BeamFlex+ Adaptive Antennas & ChannelFly Channel Management: Ruckus patented BeamFlex+ adaptive antenna technology selects the optimal directional pattern on a per-device, per-packet basis — no client feedback required — improving coverage and reducing RF interference. ChannelFly machine-learning channel management evaluates the RF environment continuously and shifts traffic to the least congested channels automatically, helping maintain consistent throughput in busy, multi-AP deployments.

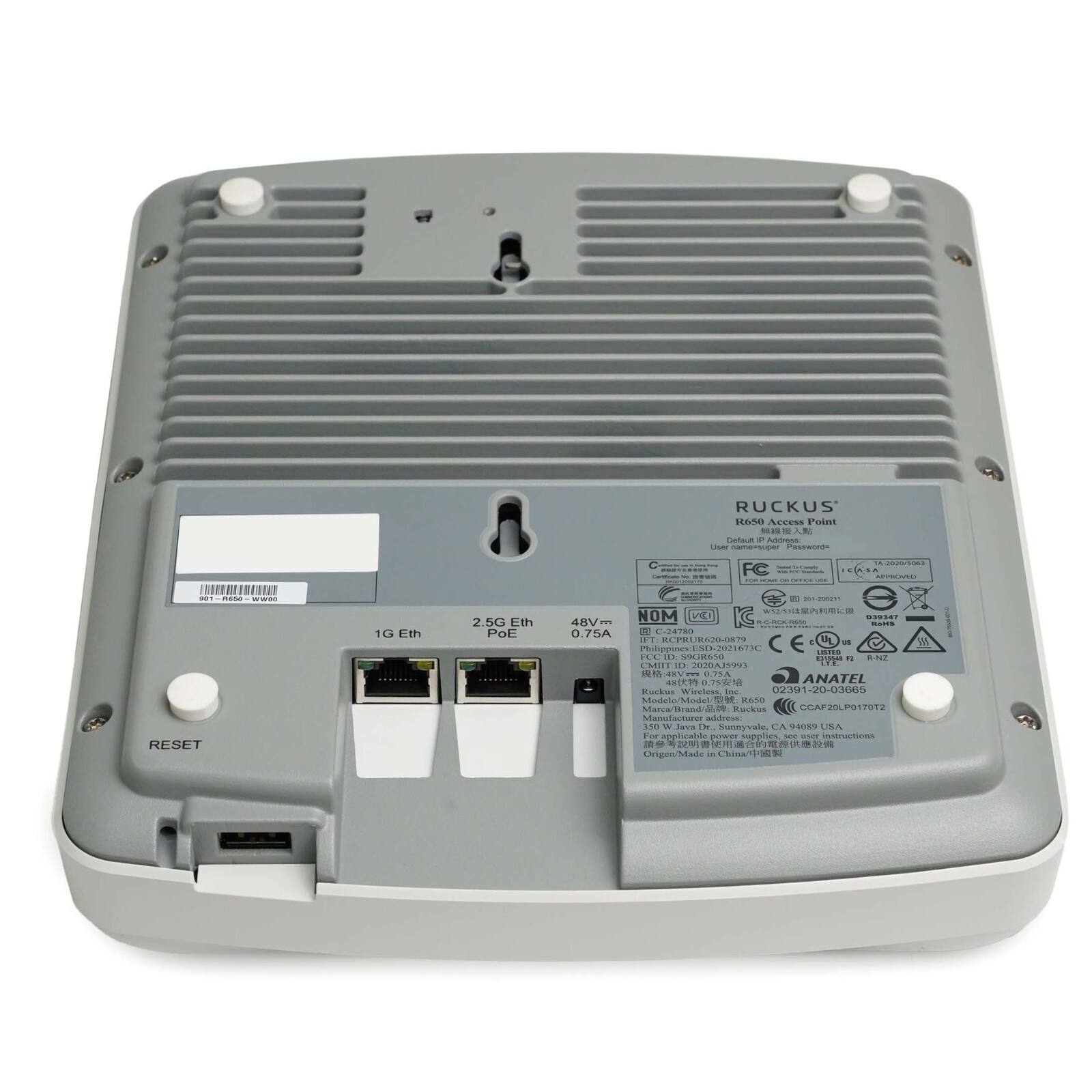

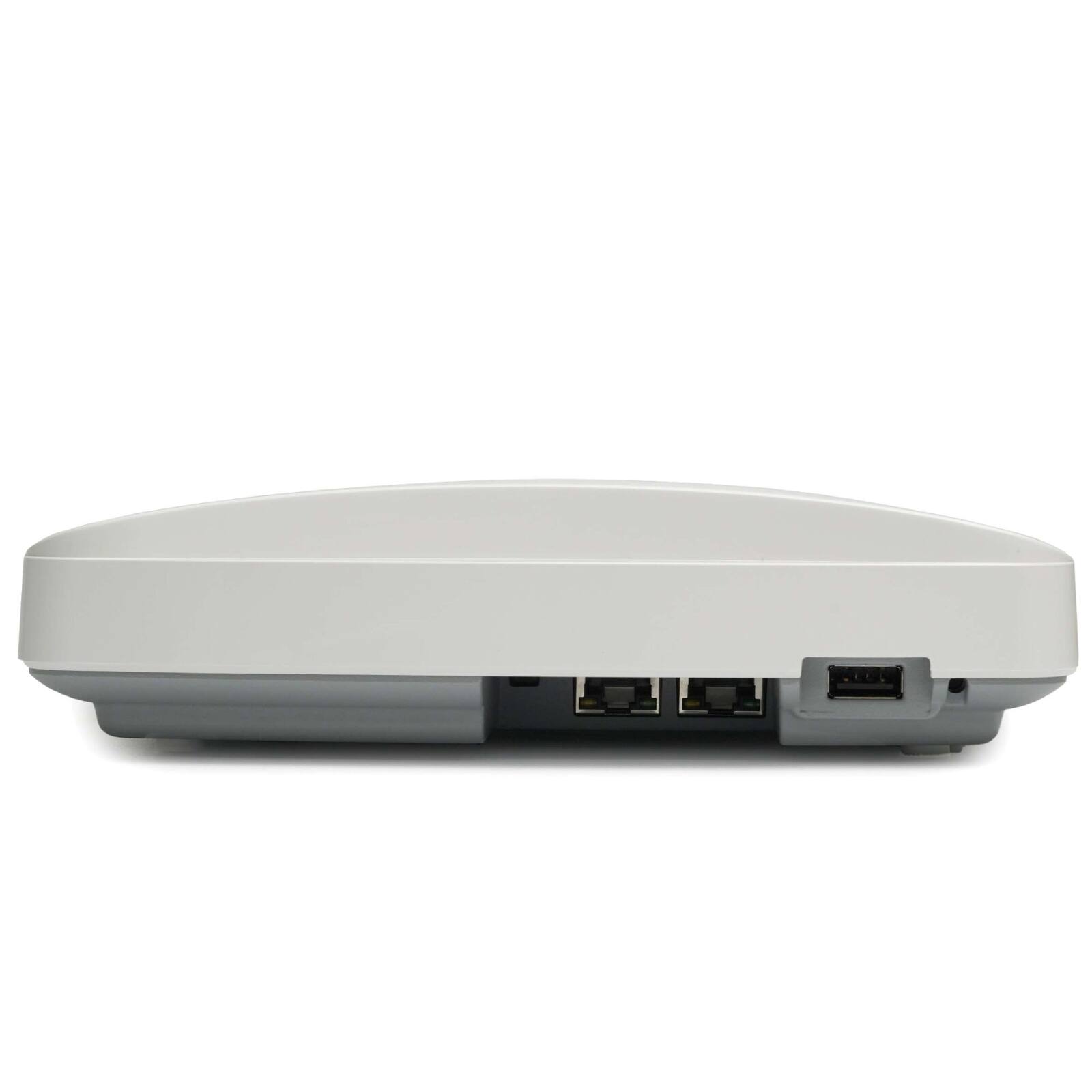

- 2.5 GbE PoE Uplink + 1 GbE Port — Single-Cable Installation: The R650 is powered via its 2.5 Gbps Ethernet uplink port, which supports Power over Ethernet (802.3af) and Power over Ethernet Plus (802.3at PoE+) with Cat5e/Cat6 cable — a single cable delivers both power and data. A second 1 GbE Ethernet port provides additional network connectivity. Power adapter not included; a compatible PoE switch or PoE injector (sold separately) is required for installation.
- Built-in BLE & Zigbee Radios + SmartMesh Wireless Networking: Integrated Bluetooth Low Energy (BLE) and Zigbee radios allow the R650 to support Wi-Fi and non-Wi-Fi IoT devices on a unified network, eliminating siloed infrastructure. An onboard USB 2.0 Type-A port accepts optional Ruckus pluggable IoT modules for future wireless technology integration. SmartMesh enables self-forming, self-healing wireless mesh networks with minimal configuration, reducing cabling needs in complex deployments.
- Enterprise Security: WPA3, WPA2, Dynamic PSK, WIPS/WIDS: The R650 supports WPA3, WPA2-AES, WPA-TKIP, Dynamic PSK, OWE (Enhanced Open), and 802.1X authentication. Integrated WIPS/WIDS provides wireless intrusion prevention and detection. The access point is compatible with Ruckus SmartZone, ZoneDirector, and Unleashed (standalone/controller-less) platforms, as well as Ruckus Cloud for centralized remote management — giving IT teams full flexibility in how they deploy and monitor the network.
Whats Included

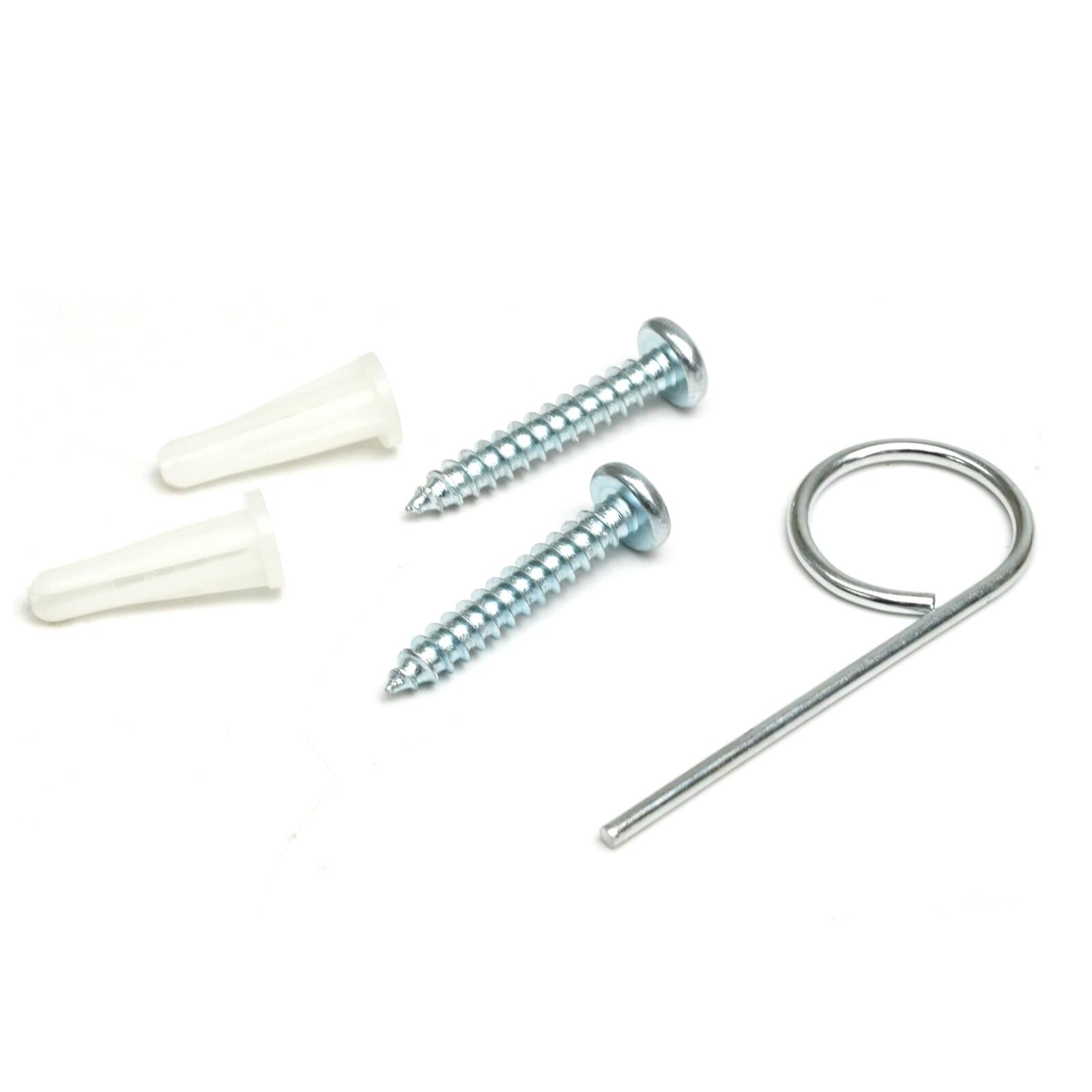

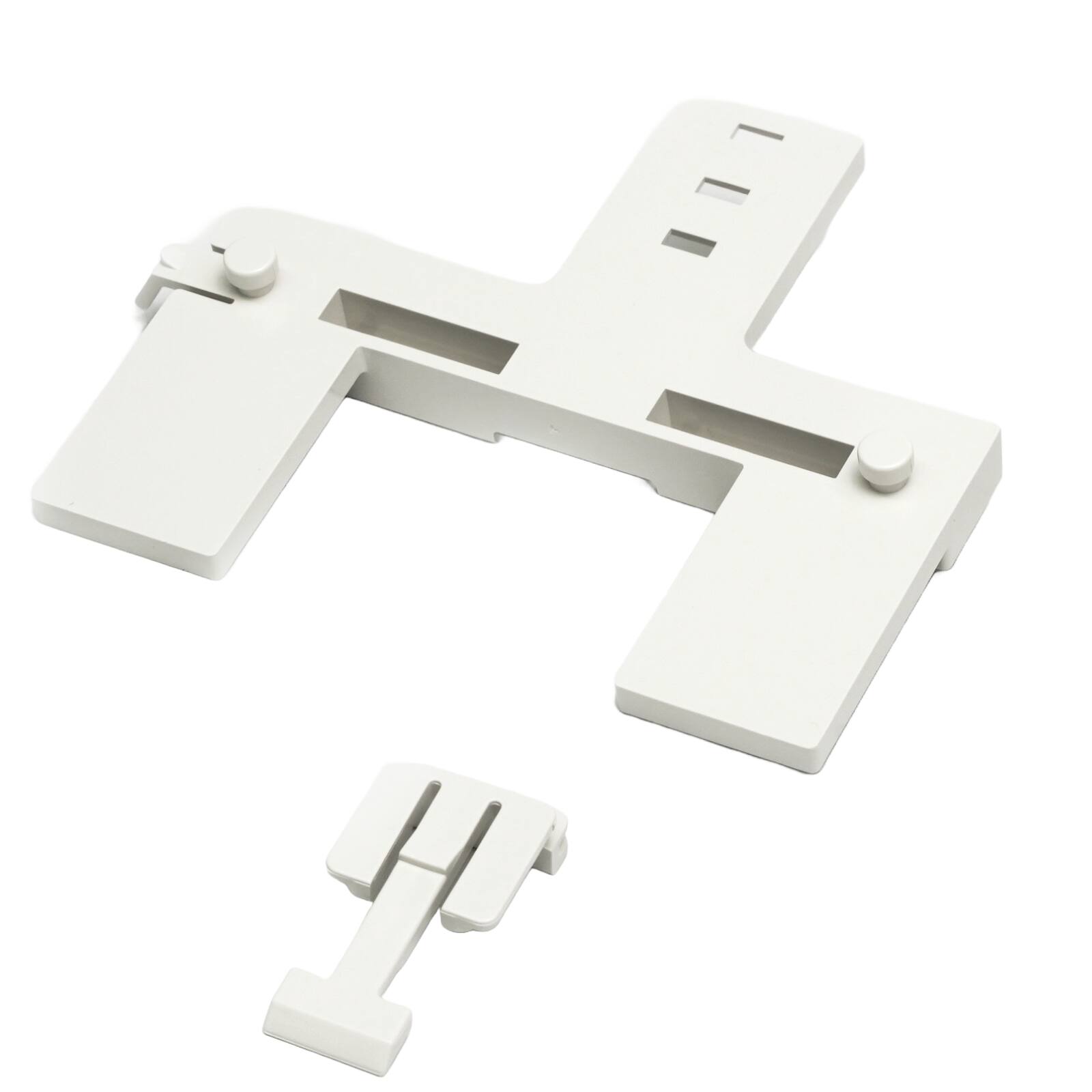

- Access Point Unit, Adjustable Acoustic Drop Ceiling Mounting Bracket
