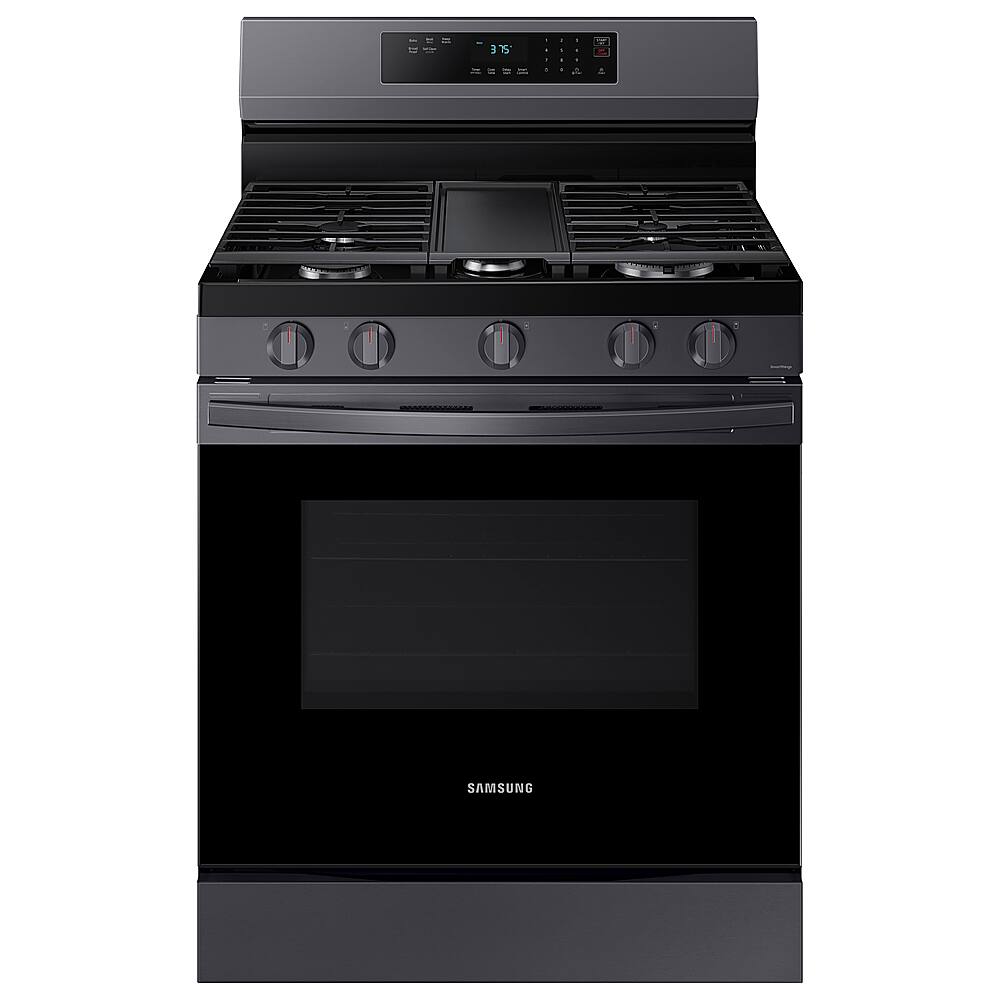

Samsung - 6.0 cu. ft. Freestanding Gas Range with 18K BTU Dual Power Burner, WiFi & Self Clean - Fingerprint Resistant Black Stainless Steel
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 47 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 5
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Samsung
- Model Number: NX60A6311SG
- Product Name: 6.0 cu. ft. Freestanding Gas Range with 18K BTU Dual Power Burner, WiFi & Self Clean
- Color: Fingerprint Resistant Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 47 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 178 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 6 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Fingerprint Resistant: false
- Control Type: Knob, Touchpad
- Oven Control Location: Rear panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: false (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Bake
- Oven Settings: Delay Bake Option, Keep Warm Setting, Variable Broil
- Oven Features
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Dual Power Burners, Simmer Burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: true
- Griddle Type: Removable (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Burner 1 Rating: 12000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 9500 british thermal units
- Burner 3 Rating: 18000 british thermal units
- Burner 4 Rating: 5000 british thermal units
- Burner 5 Rating: 10000 british thermal units
- Total Maximum BTU Rating: 54500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 887276509549
Elevate the look of your kitchen with Samsung’s Smart Freestanding Gas Range. Upgraded technology makes cooking simple and fun.
- Stainless Steel Design: An elevated design and a slim control panel give a modern look to any kitchen. Ergonomic knobs are easy to grip comfortably for precise temperature control. If that’s not enough, tinted glass on the oven door gives your range the upgrade you deserve.
- Wi-Fi and Voice Control: Monitor your cooktop and adjust time and temperature of your oven from wherever you are with your smartphone.¹ Conveniently use voice to control your oven whether it’s Alexa, Bixby or Google.²
- Large Oven Capacity: This large 6.0 cu. ft. oven can fit multiple dishes at one time and can easily accommodate big casserole dishes and large roasting pans.
- 18K BTU Dual Ring Power Burner: Boil fast with a dual ring burner that has unbelievable power. Whether it's boiling a pot of water or searing meats evenly and fast, this burner has the power you need for what you like to cook.
- Flexible 5-Burner Cooktop: This 5-burner cooktop includes 2 power burners and continuous cast iron edge-to-edge grates, allowing you to easily slide your pots and pans across more usable cooktop space and adding a more premium look to your kitchen.
- Integrated Griddle: The integrated griddle helps you conveniently prepare all your family's favorite meals.
- Self Clean: Keep your oven spotless with Self Clean which deep cleans by heating to a high temperature to burn off grease and food residue.
- Bread Proof, Keep Warm and Favorite Cook Oven Settings: Prepare a variety of foods with the aid of easy preset buttons. With a simple push of a button, you can proof bread and keep meals warm in the oven with precision.
- Storage Drawer: The Storage Drawer provides extra space to keep bakeware or oven accessories. Simply grab a bowl within easy reach to serve food in.
- SmartThings Cooking: Samsung’s SmartThings Cooking service⁴ makes meal planning a seamless process. Search, plan, purchase and prep weekly meals via the SmartThings app on your Family Hub or smartphone.
- Stainless Steel Design: An elevated design and a slim control panel give a modern look to any kitchen. Ergonomic knobs are easy to grip comfortably for precise temperature control. If that’s not enough, tinted glass on the oven door gives your range the upgrade you deserve.
- Wi-Fi and Voice Control: Monitor your cooktop and adjust time and temperature of your oven from wherever you are with your smartphone.¹ Conveniently use voice to control your oven whether it’s Alexa, Bixby or Google.²
- Large Oven Capacity: This large 6.0 cu. ft. oven can fit multiple dishes at one time and can easily accommodate big casserole dishes and large roasting pans.
- 18K BTU Dual Ring Power Burner: Boil fast with a dual ring burner that has unbelievable power. Whether it's boiling a pot of water or searing meats evenly and fast, this burner has the power you need for what you like to cook.
- Flexible 5-Burner Cooktop: This 5-burner cooktop includes 2 power burners and continuous cast iron edge-to-edge grates, allowing you to easily slide your pots and pans across more usable cooktop space and adding a more premium look to your kitchen.
- Integrated Griddle: The integrated griddle helps you conveniently prepare all your family's favorite meals.
- Self Clean: Keep your oven spotless with Self Clean which deep cleans by heating to a high temperature to burn off grease and food residue.
- Bread Proof, Keep Warm and Favorite Cook Oven Settings: Prepare a variety of foods with the aid of easy preset buttons. With a simple push of a button, you can proof bread and keep meals warm in the oven with precision.
- Storage Drawer: The Storage Drawer provides extra space to keep bakeware or oven accessories. Simply grab a bowl within easy reach to serve food in.
- SmartThings Cooking: Samsung’s SmartThings Cooking service⁴ makes meal planning a seamless process. Search, plan, purchase and prep weekly meals via the SmartThings app on your Family Hub or smartphone.
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: Measurements tofit through doorway
A: The true measurements are listed in the information about the product explanation but be sure to know that the door handle and control knobs on the front of it stick out a bit more than mentioned, I had to take the door trim off down to the casing as I misjudged the measurements given.
A: I'm happy to help with this, Carla! Changing the temperature after the oven is already heated is the same process as setting the temperature initially. You will need to press the button for the cooking mode you are using, for instance "Bake". Next, use the number pad to enter the new temperature, then press "Start". ^Jecca
Q: How do I take the handle off to bring it through the doorway when it gets here?
A: Yes, I figured it out with the old stove, I just pull up on the whole door and it comes up and off of the hinges, easy.
Q: I need to get knobs DG9403950 where do I get them at
A: Hello. Thank you for reaching out regarding your Samsung - 6.0 cu. ft. Freestanding Gas Range with 18K BTU Dual Power Burner, WiFi & Self Clean on where I can get knobs DG9403950. Regarding your concern, it would be best to contact our Samsung Parts team for them to assist you further. You can contact them at 800.627.4368 Mon - Fri 9:00 AM ~ 6:30 PM EST. I suggest you check this link for further assistance, https://www.samsungparts.com/PartsList.aspx?Catalog=Parts_and_Accessories&PartSearch=DG9403950 Should you need more assistance, please feel free to get back to us via the following options: 1. Facebook Messenger: http://m.me/samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.community.samsung.com/t5/Samsung-Community/ct-p/us Reference Ticket Number: 1144735424 Thank you for being a valued customer of Samsung. Have a great day. ^Camille
Q: I am unable to reinsert the drawer .... can anyone help?
A: Did you pull it out past the clips on the hinges? If so you need to insert both clips simultaneously while pushing the drawer into the slots, it is real troublesome feat, you have to make sure the clips on the hinge are just touching the slot, it doesn't look like it would go back in properly but with patience and repeated tries I actually got #@*!?$#@!! thing back in, the clips are on the back edge of the hinge like a little piece of metal looking thing that moves up and down and has a spring action that has to be very carefully moved, slid into the opening, both at the same time or you can't slide the drawer in, it will not go in lined up, it's very tricky. If I had pictures of it I would explain it better but to do that I would have to pull the #$@&*!#*@ drawer out and I'm not going through that again even though I know how to do it.
Q: Does this oven have an air fryer option?
A: Thanks so much for asking! This model is not listed as having the air fry feature. However, if that is a feature you are looking for, I can provide this link (https://bit.ly/3pwZuMS) to a full list of Samsung's currently available freestanding gas ranges that do have the air fry feature. ^Jecca
A: I'm happy to help with this, Bill! In order to use the Smart/Wi-Fi features, you will need to connect the range to the internet. I can also provide this link (https://bit.ly/3zzWxwQ) to the user manual for this model. Page 31 begins the section on how to connect and use the Smart features. ^Jecc
