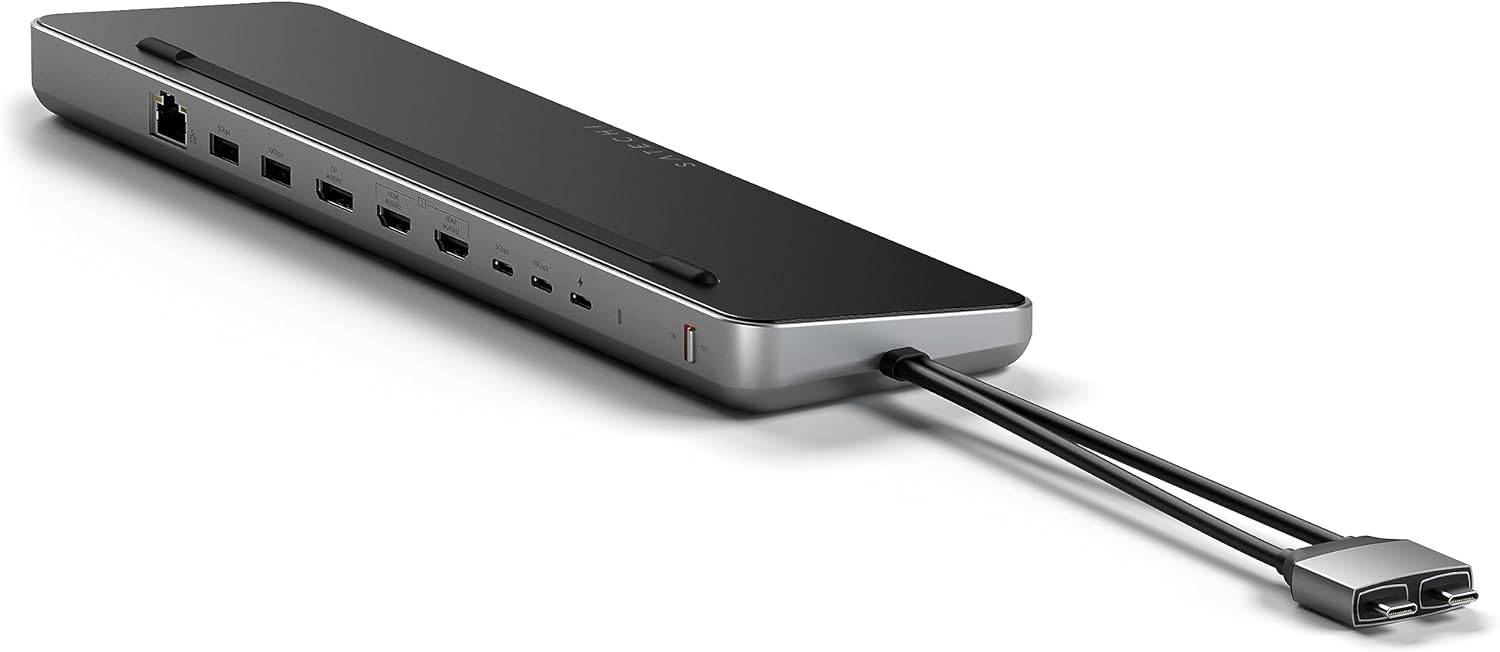

Satechi - Dual Dock with NVMe SSD enclosure – USB-C PD (75W), 2 USB-C data, 2 HDMI 2.0, 1 DisplayPort 1.4, 2 USB-A, Ethernet - Space Gray
More Buying Options from Best Buy and Marketplace sellers
About This Item
- Key Specs
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p), 4K (2160p)
- Number of DisplayPort Outputs (Total): 1
- Number of Thunderbolt Ports (Total): 0
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: Satechi
- Model Number: ST-DDSM
- Product Name: Dual Dock with NVMe SSD enclosure – USB-C PD (75W), 2 USB-C data, 2 HDMI 2.0, 1 DisplayPort 1.4, 2 USB-A, Ethernet
- Color: Space Gray
- Display
- Maximum Number of Displays Supported: 2
- Maximum Supported Resolution: 4K (2160p), 4K (2160p)
- Maximum Supported Refresh Rate: 60Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): 2 x HDMI, 1 x DisplayPort 1.4 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 1
- Number of HDMI Ports (Total): 2
- Number of Thunderbolt Ports (Total): 0
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 4
- USB Ports: 2 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Microphone Input: false (The device features an input for connecting an external microphone.)
- Memory Card Slot: false
- Power
- Powered: true
- Power Supply Included: false
- Power Supply Input: USB-C
- Maximum Input Power: 100 watts (The maximum amount of power allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: USB-C (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 75 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- Maximum Data Speed: 10000 megabits per second
- Brand Compatibility: Universal
- Model Compatibility: Universal
- Features
- Cable Lock Slot: None
- Material: Aluminum
- Indicator Light(s): true
- Dimensions
- Product Height: 0.85 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 12.06 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 14.81 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810086360987
Elevate your setup and boost your computer’s performance with the new Dual Docking Station with NVMe SSD Enclosure. Designed for both business and creative professionals, this dual dock will transform your Apple MacBook or Windows laptop into a powerful hub. Simply connect the dock via the included detachable dual USB-C connectors and power away. Both connectors must be connected simultaneously for the dock to function properly; they can be separated to expand compatibility to host devices other than MacBooks. Constructed from high-quality aluminum with a space-gray and black finish, the dual docking station fits and looks perfectly seamless underneath your MacBook. The dual dock offers an array of connectivity options including an Ethernet Port with 1 Gigabit speed, 1x DisplayPort, 2x HDMI Ports, 1x SSD Enclosure, 2x USB-A Ports at 10Gpbs and 5Gpbs, 2x USB-C Data Ports at 10Gpbs and 5Gpbs, and a USB-C Power Port with 75W power delivery to keep your device charged while you work.

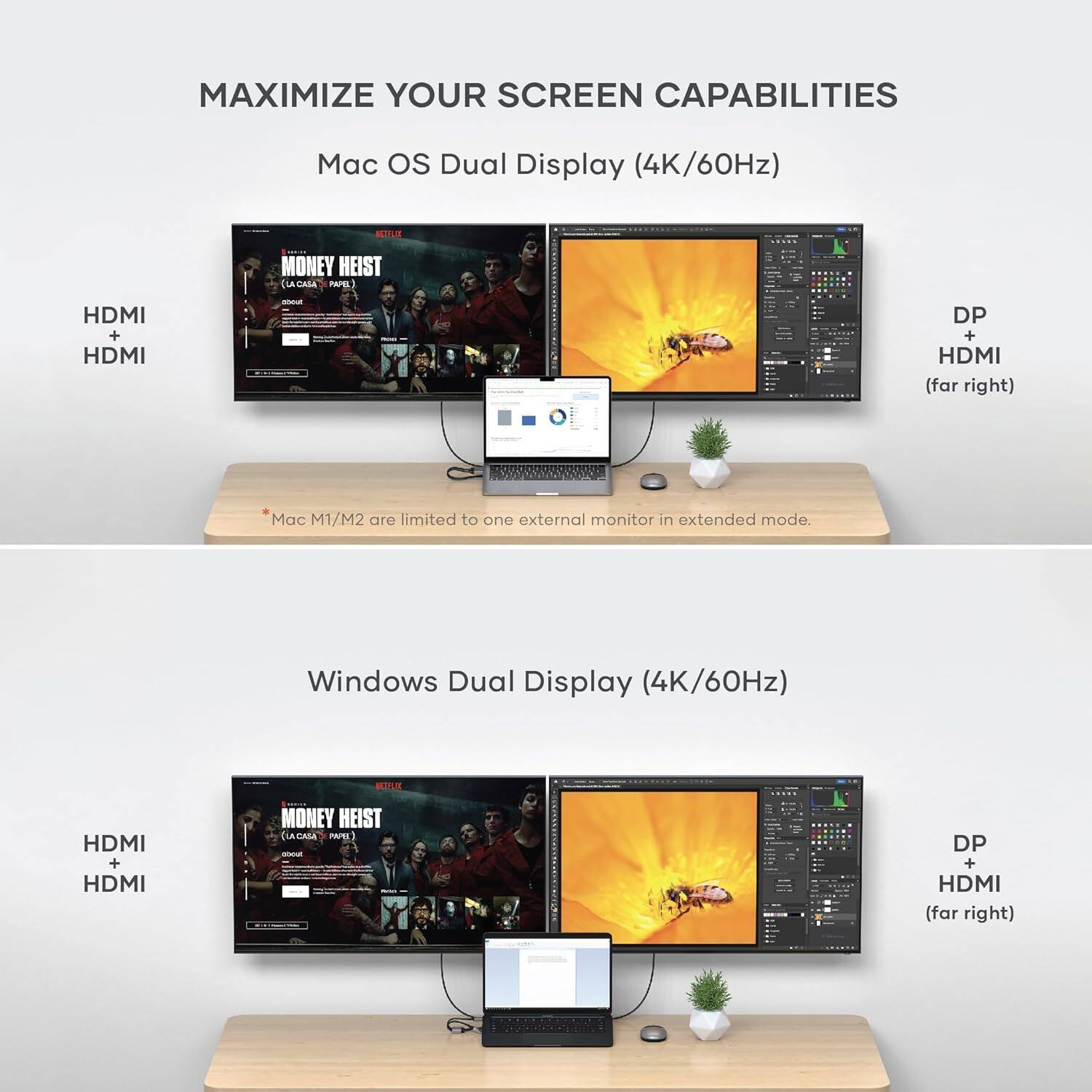

- Expand Screen Capacity: The dual docking station can connect up to two external monitors in extended mode, either through two HDMI Ports or through one DisplayPort and one HDMI (must be the two farthest from each other). Note: Mac M1/M2 are limited to one external monitor in extended mode.

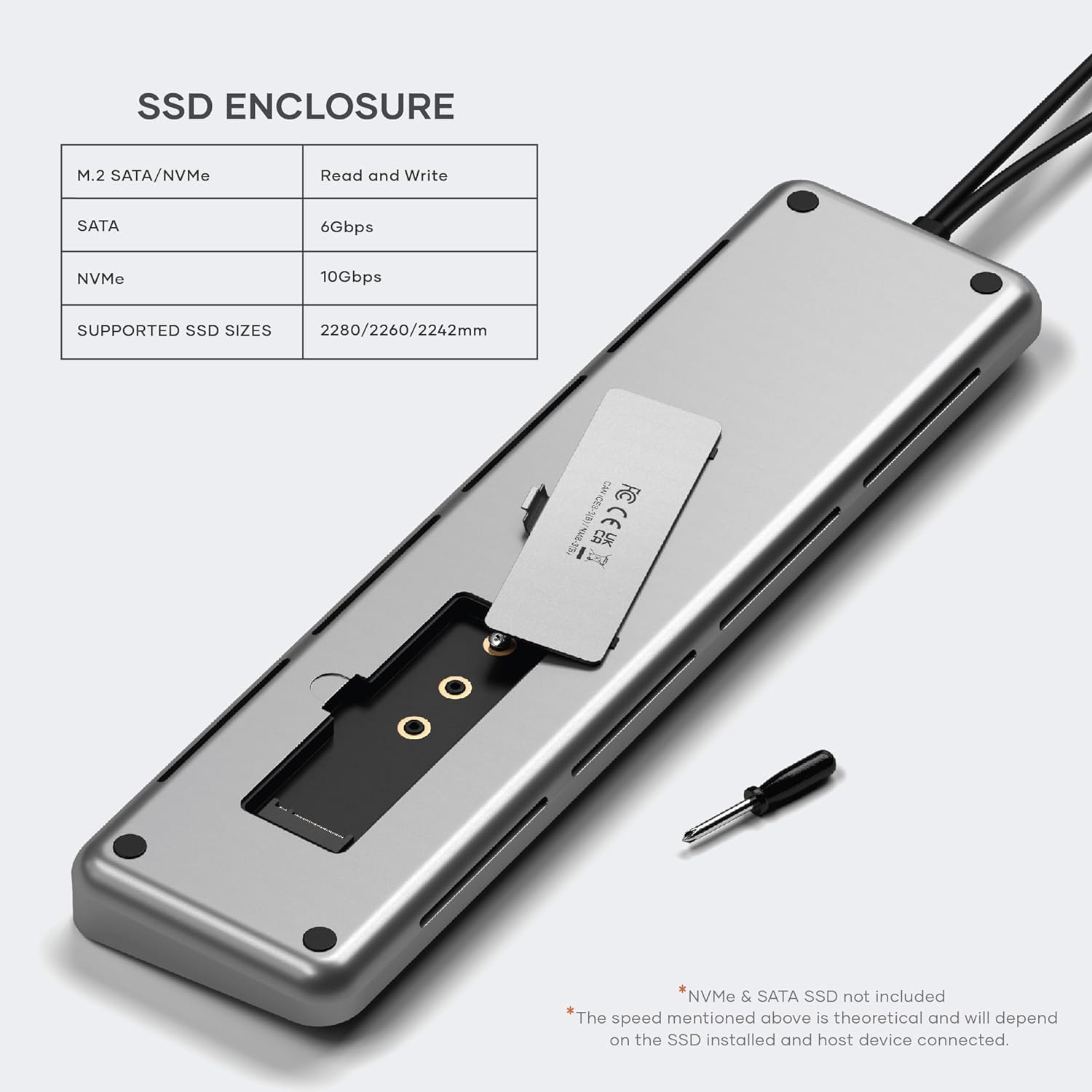

- More storage, faster transfer: Managing data has never been easier with an SSD Enclosure that supports both NVMe and SATA SSDs for fast data transfers, backups data, recovery, and external storage. NVMe SSDs support up to 10Gbps transfer speed, while SATA SSDs are limited to 6Gbps.

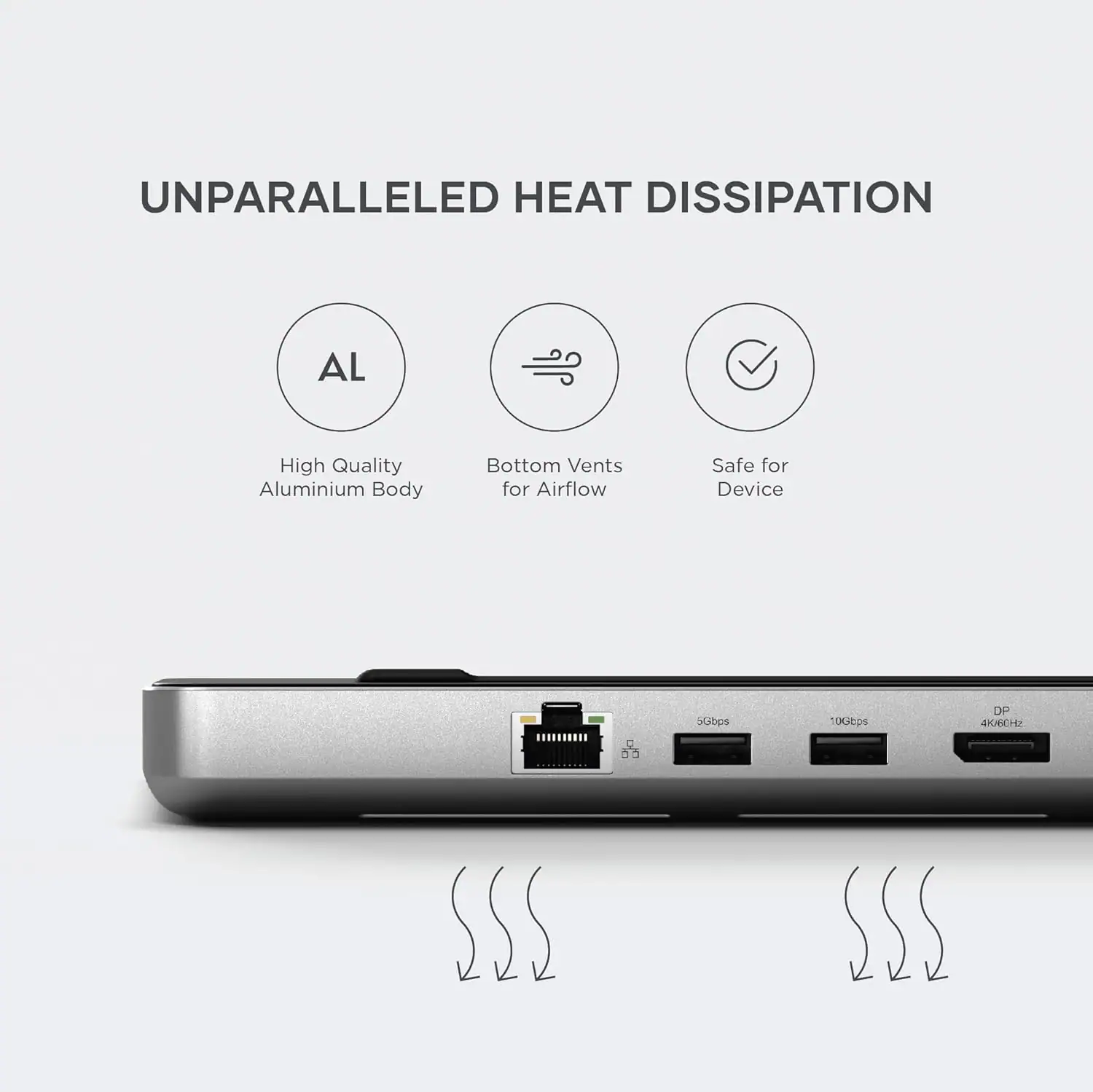

- Keeping it cool: This versatile docking station stands out with its advanced ergonomic design built for a seamless user experience. The dual dock fits effortlessly underneath MacBooks with an elevated angle that provides an inclined view of the display.

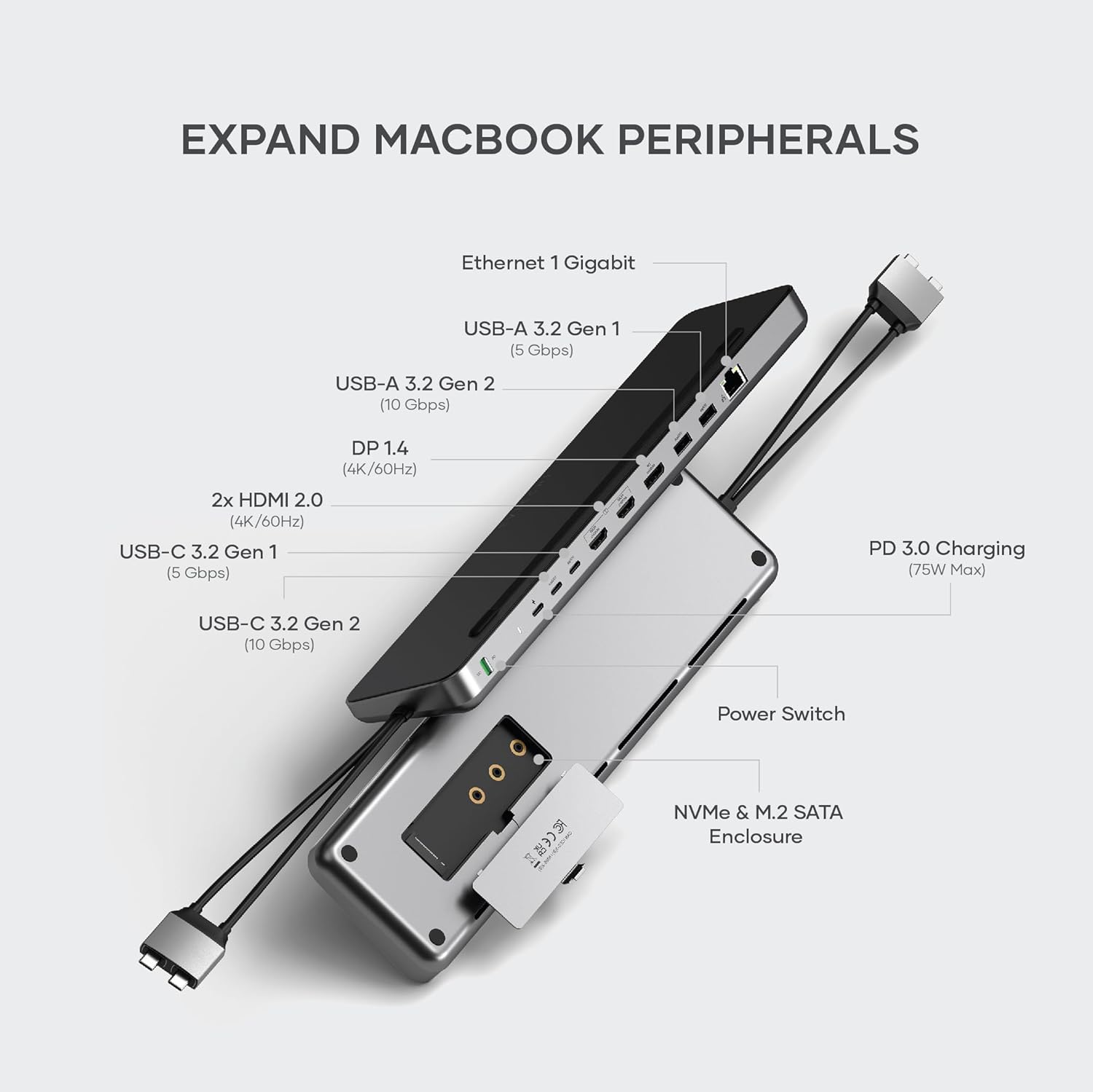

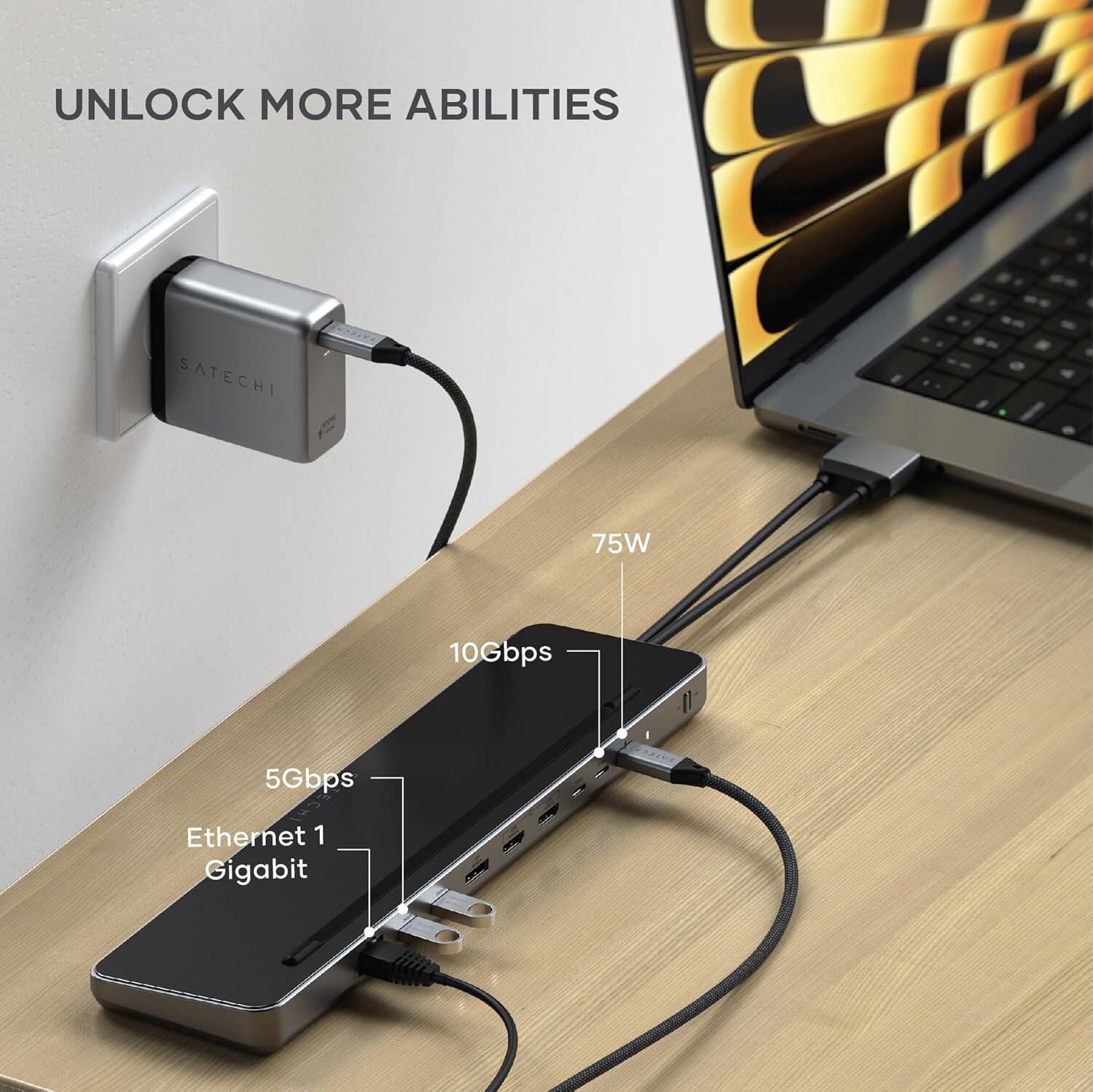

- Level up your capabilities: 1x Gigabit Ethernet Port , 1x USB-A Port 10Gbps , 1x USB-A Port 5Gbps, 1x DisplayPort at 4K/60Hz, 2x HDMI Ports at 4K/60Hz , 1x USB-C Data Port 10Gbps, 1x USB-C Data Port 5Gbps , 1x USB-C Power Port – 75W to host device , 1x V61x SSD Enclosure 10Gpbs B2
- Compatible devices: Microsoft Surface Pro 9, Microsoft Surface Laptop Studio, Lenovo Yoga 7, MacBook Pro 2016/2017/2018/2019/2020/2021, MacBook Air 2018/2020, and other standard USB-C interface notebooks.
Whats Included
- Dual Dock Stand - Docking Station with NVMe SSD Enclosure
- User Manual
- Screw and screwdriver
- Thermal Pad
Q: What is the maximum resolution supported by the HDMI ports?
A: The HDMI ports support a maximum resolution of 4K at 60Hz.
Q: What is the maximum power output of the USB-C port on this dock?
A: The USB-C Power Port on this dock supports up to 75W power delivery.
Q: How many external monitors can I connect to this docking station?
A: You can connect up to two external monitors in extended mode. You can use either two HDMI ports or one DisplayPort and one HDMI (the two farthest from each other).
Q: Does this docking station have an Ethernet port?
A: Yes, it has a Gigabit Ethernet port.
Q: What kind of SSDs are supported by the SSD enclosure?
A: The SSD enclosure supports both NVMe and SATA SSDs.
A: Thanks for your question! Here are the SSD compatibility details for the Dual Dock Docking Station: Maximum Supported Storage: The dock supports SSDs up to 4 TB in capacity. Supported M.2 Card Lengths / Form Factors: Compatible M.2 sizes: 2242, 2260, and 2280 Supports both M.2 SATA and NVMe SSDs: NVMe (PCIe M-key) SATA (PCIe B&M key) Performance Notes: M.2 SATA drives are limited to 6 Gbps bandwidth, which is typical for SATA performance. NVMe drives support up to 10 Gbps transfer speeds for faster throughput when connected to the station. Important Compatibility Notes: Not compatible with SSDs that have heat sinks attached. Not compatible with double-sided SSDs due to enclosure fit constraints.
A: Hello! We can confirm that the Satechi - Dual Dock with NVMe SSD enclosure can support a maximum of two external monitors at a time as long as the host computer can natively support it, this applies to both Mac and Windows computers. Note that the base M1/M2 MacBooks is limited in supporting one external monitor at a time, the Dual Dock can work with two external displays when paired with a MacBook Pro with M2 Pro or Max chips. I hope this information was helpful. For any additional questions or concerns you may email us at support@satechi.com or call us at +1(858)268-1800 (US). We look forward to hearing from you!

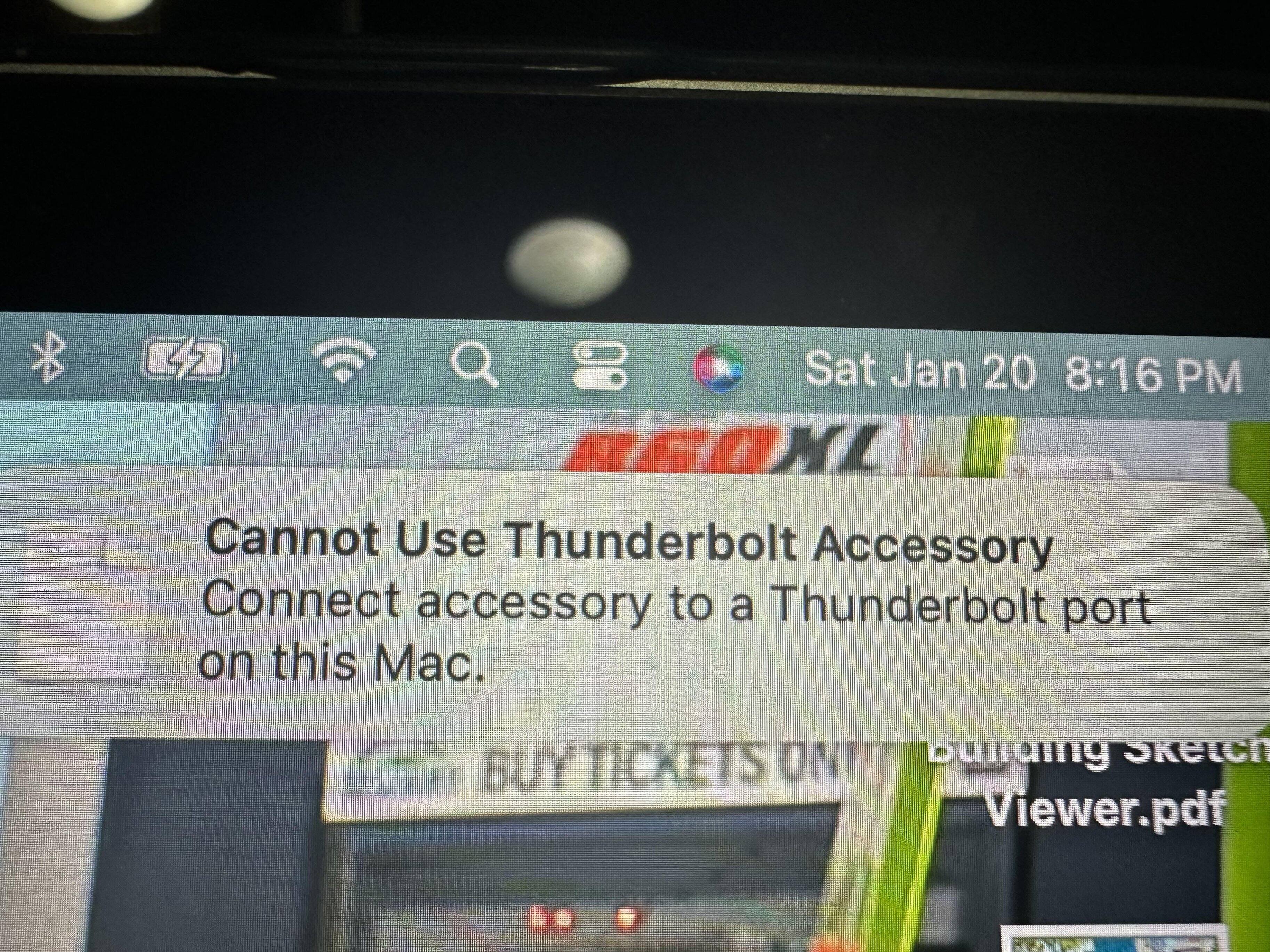

Q: Specs say "Number of Thunderbolt Ports (Total): 0" -- how old is this device?
A: Hello, Yes, we can confirm that the Dual Dock Stand is not a Thunderbolt device and offers up to 10 Gbps data transfer speeds. This product was released back in Mid-2023 last year. For any additional questions or concerns please reach out to us directly at support@satechi.com
