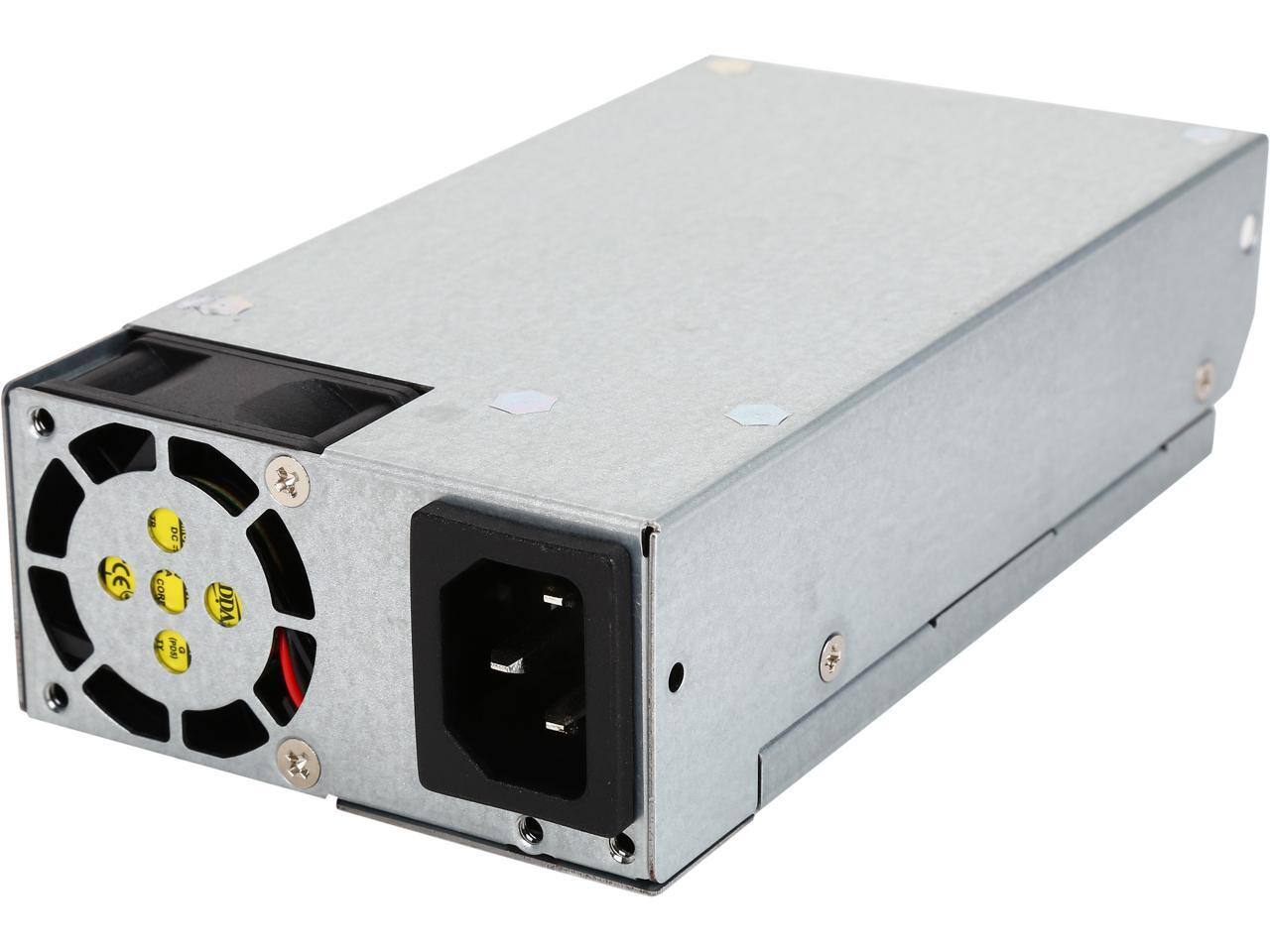

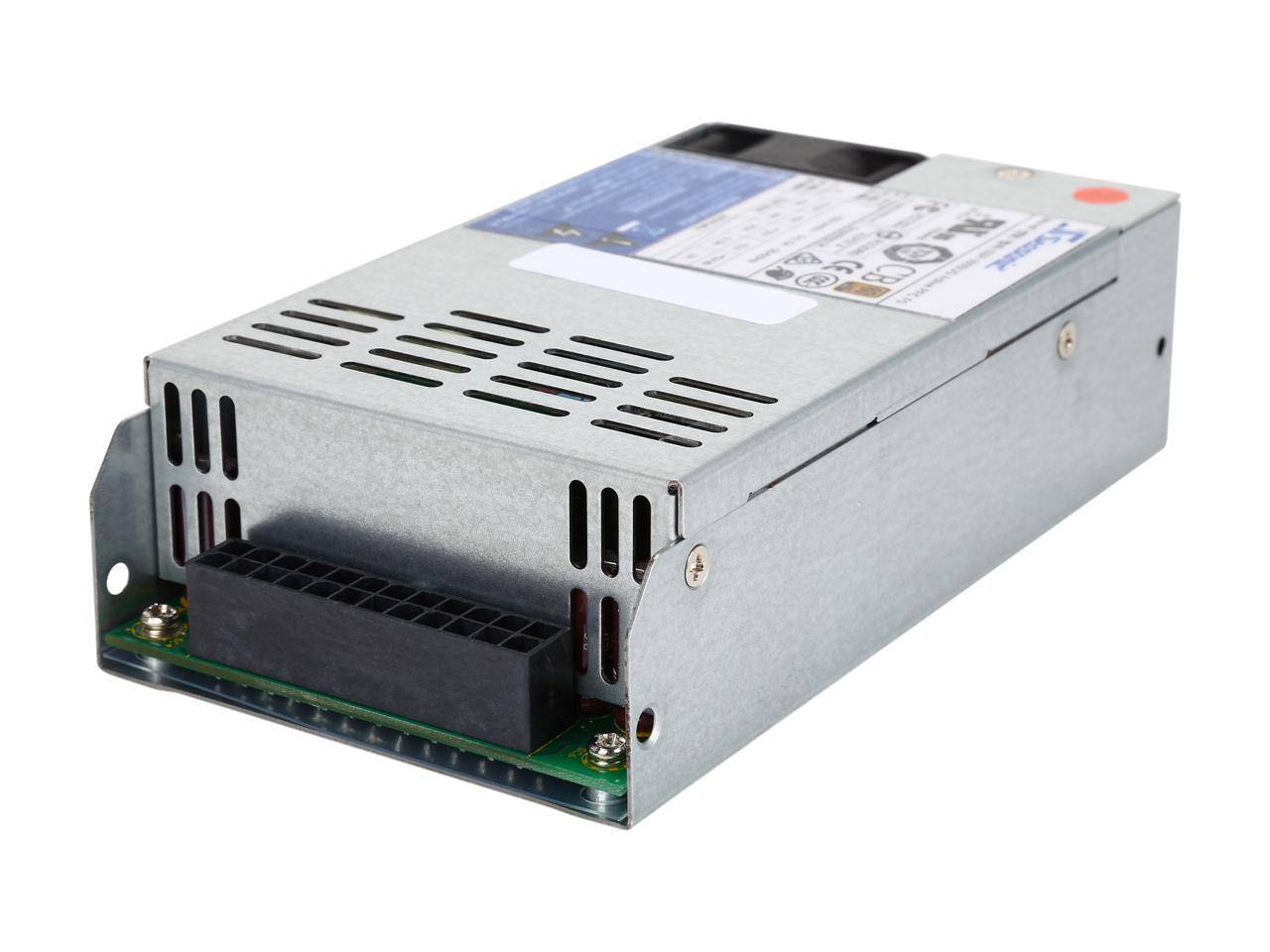

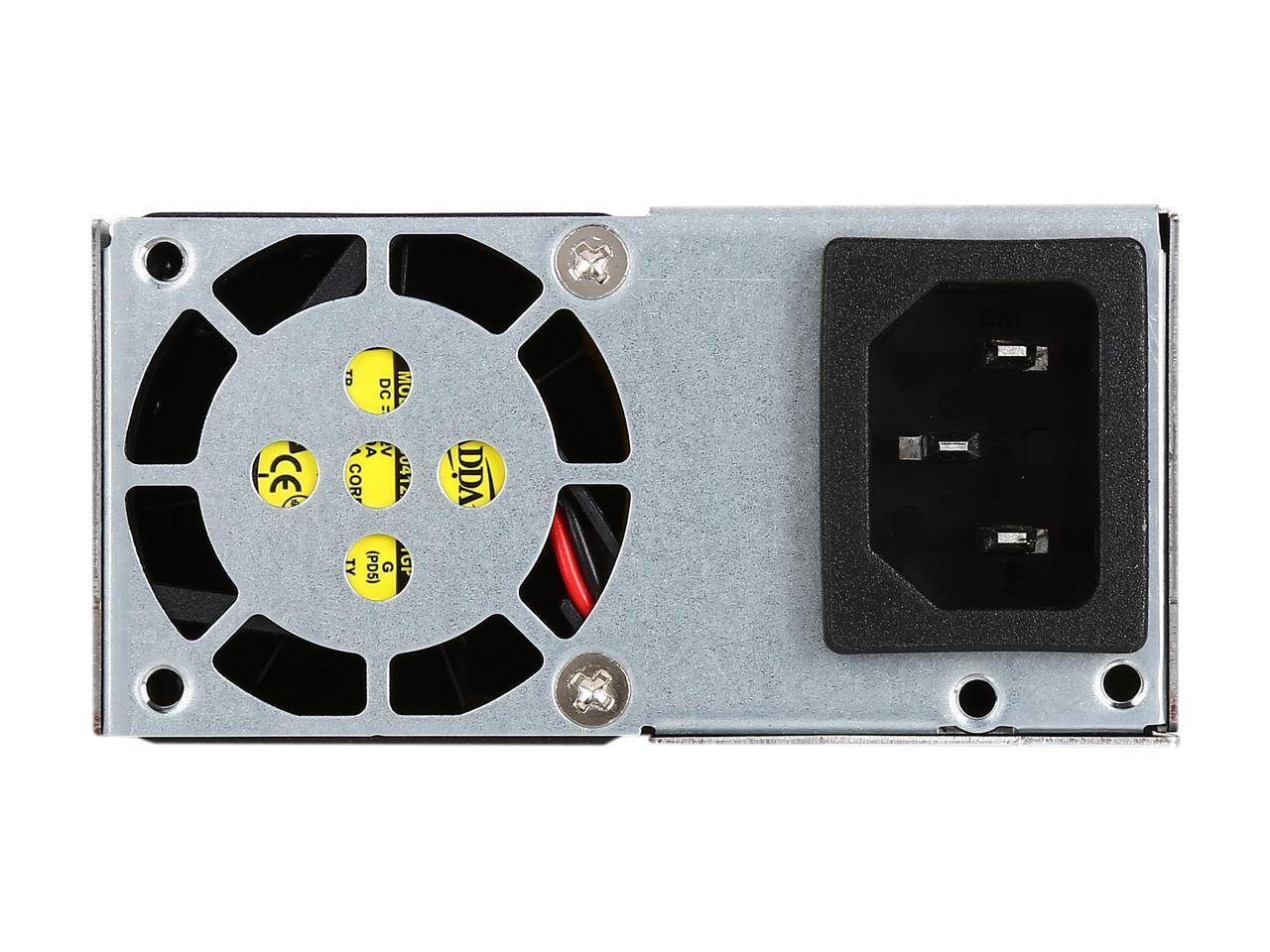

Seasonic - SSP-300SUG 300W 80+ Gold Modular PSU
Specifications
- Wattage300.0 wattsModularFully modularEnergy Efficiency80 PLUS GoldATX Connector1 x 20+4 pin ATX connectorPCIe Connector1 x PCIe 6+2 pin connectorEPS12V Connector1 x EPS12V 4+4 pin connector
- Key Specs
- Wattage: 300.0 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1 x 20+4 pin ATX connector (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 x PCIe 6+2 pin connector (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 1 x EPS12V 4+4 pin connector (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 3.0
- Form Factor: SFX (The size, arrangement, and physical configuration of the product.)
- Product Length: 158.75 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Seasonic
- Model Number: SSP-300SUG
- Product Name: Seasonic SSP-300SUG 300W 80+ Gold Modular PSU
- Power
- Wattage: 300.0 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 1 x 20+4 pin ATX connector (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 1 x PCIe 6+2 pin connector (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- EPS12V Connector: 1 x EPS12V 4+4 pin connector (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 3.0
- Form Factor: SFX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 2.54 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 101.60 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 158.75 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 32.48 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Limited Warranty period (parts): 1 year
- Warranty - Labor: Limited Warranty period (labor): 1 year
- Other
- UPC: 4711173873150
Seasonic SSP-300SUG Active PFC, 300W Flex/Mini 1U, Intel Haswell ready, Japanese capacitor, Operating temperature 0-50°C, 80+ Gold, Modular wire

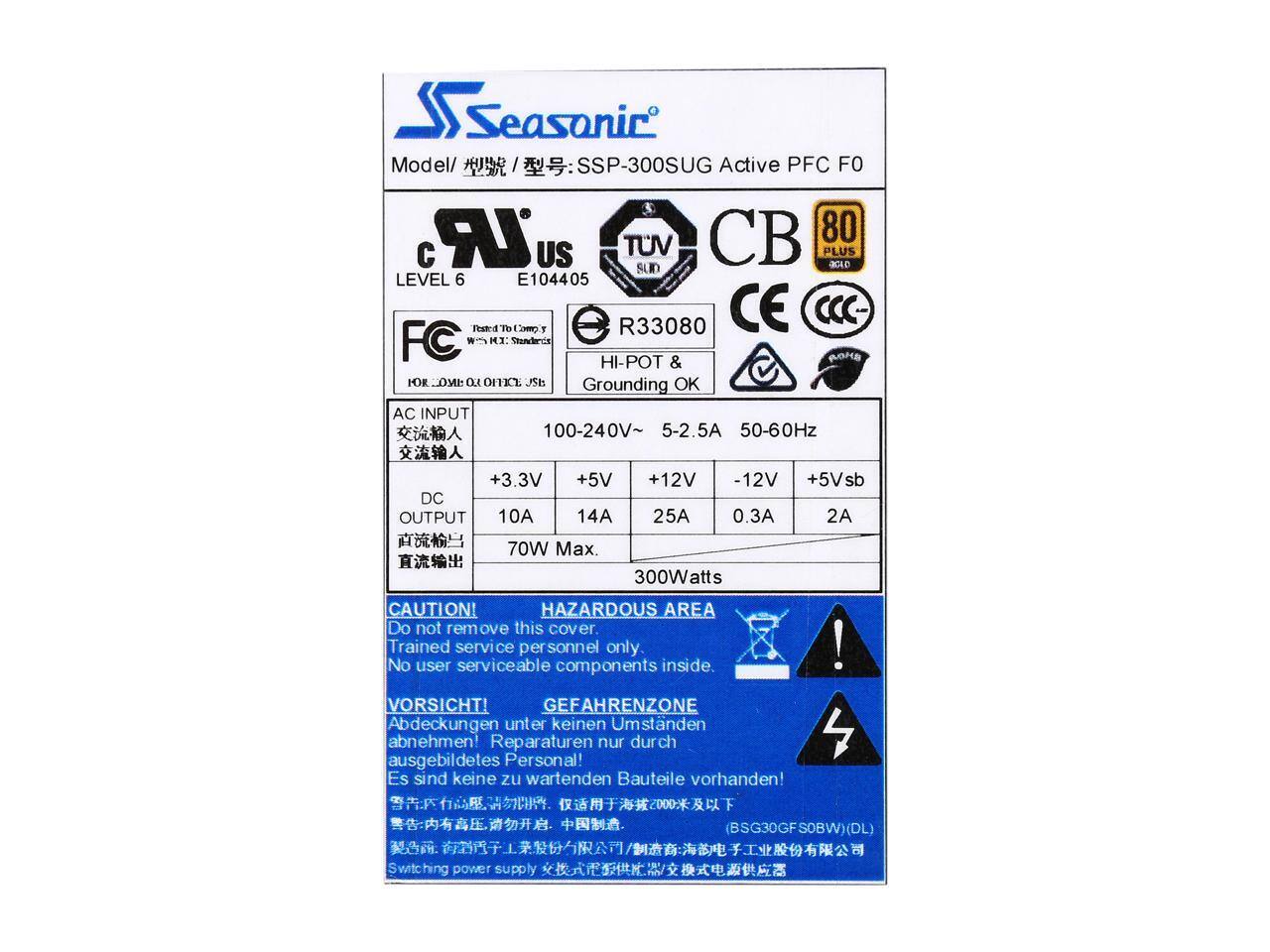

- Multiple Voltage Outputs with High Current Capacity: +3.3V@10A, +5V@14A, +12V@25A, [email protected], +5VSB@2A
- Multiple Voltage Outputs with High Current Capacity: +3.3V@10A, +5V@14A, +12V@25A, [email protected], +5VSB@2A
Whats Included
- Seasonic SSP-300SUG 300W 80+ Gold Modular PSU
- Seasonic SSP-300SUG 300W 80+ Gold Modular PSU
