Sonance - 16-50 AMP - 800W 16.0 Ch. Multi-Channel Amplifier for Home Audio & Multi Room Systems (Each) - Black
More Buying Options
Specifications
- Continuous Watts x Channel @ Ohms50 Watt x 16 @ 8 Ohm - 100 Watts x 16 @ 4 OhmsNumber of Channels16Number of Audio Zones8Network Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 50 Watt x 16 @ 8 Ohm - 100 Watts x 16 @ 4 Ohms
- Number of Channels: 16 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 8 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Network Connector(s): No network connectors
- General
- Brand: Sonance
- Model Number: 93546
- Product Name: 16-50 AMP - 800W 16.0 Ch. Multi-Channel Amplifier for Home Audio & Multi Room Systems (Each)
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 50 Watt x 16 @ 8 Ohm - 100 Watts x 16 @ 4 Ohms
- Maximum Watts x Channel @ Ohms: 200 Watts Bridged @ 8 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 800 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Number of Channels: 16 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 8 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 22 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Power amplifiers
- Audio
- Impedance: 8-ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Antenna Input: No antenna inputs
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: Banana Jack/Screw Terminals
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- Fan Cooled: false
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 2.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 13.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 041093935466
Power more zones with elegant simplicity. The Sonance 16-50 Amp delivers the same clean, efficient amplification as its 8-channel counterpart, with double the zone coverage and speaker flexibility for expansive whole house audio amplifier systems. With 16 channels across 8 stereo zones, the Sonance 16-50 Amp is purpose-built for multi room audio systems, driving consistent, high-fidelity sound throughout the home. It delivers 50 watts per channel into 8 ohms (100W @ 4 ohms) and can be bridged to produce up to 200 watts per channel where higher output is needed. Designed for seamless integration into any distributed audio amplifier configuration, the Sonance 16-50 Amp features selectable crossover settings for the subwoofer output and independent zone level controls. Auto signal sensing and advanced protection circuitry ensure safe, reliable operation. Rack-mountable in a 1U chassis or shelf-friendly with included feet, this multi zone amplifier fits beautifully into custom installs, from luxury homes to boutique retail stores, and multi zone distributed audio systems for any home.
- 16-Channel Multi Zone Amplifier for Whole House Audio: Powers 8 stereo zones with 50W per channel into 8 ohms, ideal for expansive multi room audio systems and large whole home sound system configurations.
- Distributed Audio Amplifier with Bridged Output Options: Bridge adjacent channels to deliver 200 watts @ 8Ω, perfect for passive subwoofers or high-powered audio zones.
- Compatible with Sonos, Bluesound, and Denon HEOS: Seamlessly integrates with popular wireless audio ecosystems for effortless control and multi-room outdoor sound.
- Home Audio Amplifier with Rack or Shelf Flexibility: Compact 1U chassis mounts cleanly in an AV rack or on a shelf using included feet for flexible, professional installs.
- Selectable Crossovers and Subwoofer Outputs: Switchable 80Hz/120Hz crossovers with low-pass filter support for clear, defined bass management in distributed systems.
- 16-Channel Multi Zone Amplifier for Whole House Audio: Powers 8 stereo zones with 50W per channel into 8 ohms, ideal for expansive multi room audio systems and large whole home sound system configurations.
- Distributed Audio Amplifier with Bridged Output Options: Bridge adjacent channels to deliver 200 watts @ 8Ω, perfect for passive subwoofers or high-powered audio zones.
- Compatible with Sonos, Bluesound, and Denon HEOS: Seamlessly integrates with popular wireless audio ecosystems for effortless control and multi-room outdoor sound.
- Home Audio Amplifier with Rack or Shelf Flexibility: Compact 1U chassis mounts cleanly in an AV rack or on a shelf using included feet for flexible, professional installs.
- Selectable Crossovers and Subwoofer Outputs: Switchable 80Hz/120Hz crossovers with low-pass filter support for clear, defined bass management in distributed systems.

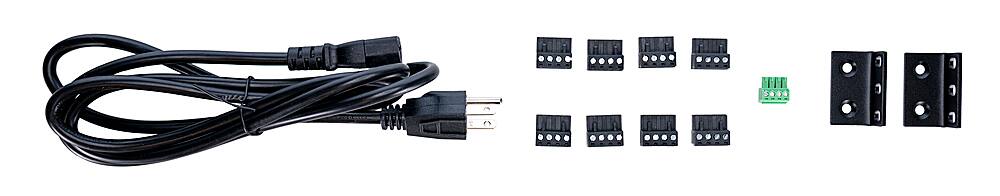

Whats Included
- (1) Sonance 800W 16.0-Ch. Digital Power Amplifier
- (1) AC power cord
- (4) Removable Feet
- (2) Rack ears
- (1) Instruction manual
- (8) Speaker block connectors
- (1) Voltage trigger block connector
- (1) Sonance 800W 16.0-Ch. Digital Power Amplifier
- (1) AC power cord
- (4) Removable Feet
- (2) Rack ears
- (1) Instruction manual
- (8) Speaker block connectors
- (1) Voltage trigger block connector
Q: How many channels does this Sonance amplifier have?
A: This Sonance amplifier has 16 channels.
Q: Why are there so many inputs and outputs on this amplifier?
A: The multiple inputs and outputs on this amplifier allow for flexible configuration and use with a variety of audio sources and speakers.
Q: Does this amplifier have a fan for cooling?
A: Yes, this amplifier has a built-in fan for active cooling.
Q: What is the impedance of this amplifier?
A: This amplifier has an impedance of 8 ohms.
Q: What is the total power output of this amplifier?
A: This amplifier has a total power output of 800 watts RMS.
Q: Can I connect more than one speaker per channel on this amplifier?
A: Yes, this amplifier is 8- and 4-ohm certified stable, allowing you to connect more than one speaker per channel.
A: Hi, Thank you for your question. Yes, you have a couple of options when using this amplifier. First, a Sonos Port is what you would need to stream music via the Sonos app or use AirPlay and control the volume. This amplifier comes with a BUSS input, meaning you can connect one Sonos Port to the amplifier and play the same music across all speaker channels. You could also connect a Sonos Port to any or all (8) local inputs on the amplifier. This would give you independent volume control for each local input. As an example, let's say you have (8) different areas/rooms in your home where you want to put a pair of speakers (for example, Kitchen, Dining Room, Primary Bedroom, Primary Bathroom, Office, Kids Bedroom, Guest Bedroom, Patio.) You could give each local input its own Sonos Port and have the ability to independently control volume in each room as well as play different music in every room. Using the Sonos app, you could also group areas and play the same music in those grouped rooms. This amplifier is very flexible and works great with Sonos Port. I hope you found this information helpful. If you have additional questions, please feel free to call our California-based support team at 949-492-7777 and ask for Tech Support. We are available Monday - Friday, 8 AM to 5 PM PST. We'd love to help you out. - Sonance Customer Support Team
Q: IT IS FLASHING RED IN THE BACK IS THERE A RESET BUTTON
A: HI, I'll need a little more information to properly answer your question. Please call our California-based support team at 949-492-7777 and ask for Tech support. Our team is available Monday through Friday, 6 a.m. to 5 p.m. We will be happy to help you out. - Sonance Tech Support Team
