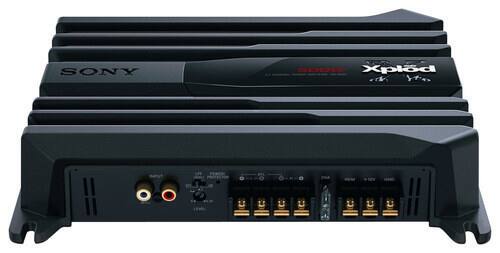

Sony - 500W 2-Channel Amplifier with Low Pass Filter Crossover - Black
Model: XMN502
SKU: 6950067
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 85 x 2 x 2 ohms
- Maximum Watts x Channel @ Ohms: Handles up to 65W x 2 RMS @ 4 ohms or 85W x 2 RMS @ 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 2
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Fixed (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- General
- Brand: Sony
- Model Number: XMN502
- Product Name: 500W 2-Channel Amplifier with Low Pass Filter Crossover
- Color: Black
- Mounting Hardware Included: false
- Audio Power
- Continuous Watts x Channel @ Ohms: 85 x 2 x 2 ohms
- Maximum Watts x Channel @ Ohms: Handles up to 65W x 2 RMS @ 4 ohms or 85W x 2 RMS @ 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 2
- Minimum Frequency Response: 5 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 50 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.05 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Fixed (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Dimensions
- Product Height: 10.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.44 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.2 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 027242867222
Deliver a more intense audio experience with this Sony XMN502 amplifier that features 500W of maximum power for superior sound. The automatic thermal control prevents the amplifier from shutting down when it gets too hot.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 65W x 2 RMS @ 4 ohms or 85W x 2 RMS @ 2 ohms: For powerful sound. Up to 500W maximum power.
- LPF (Low Pass Filter) crossover: Ensures that only deep bass gets sent to the subwoofers.
- 2 - 8 ohms impedance (stereo) and 4 - 8 ohms impedance (mono): Conducts power to keep speakers working at optimal levels.
- Automatic thermal control: Lowers the output levels to reduce amplifier temperature, instead of shutting down, so your music keeps going.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 65W x 2 RMS @ 4 ohms or 85W x 2 RMS @ 2 ohms: For powerful sound. Up to 500W maximum power.
- LPF (Low Pass Filter) crossover: Ensures that only deep bass gets sent to the subwoofers.
- 2 - 8 ohms impedance (stereo) and 4 - 8 ohms impedance (mono): Conducts power to keep speakers working at optimal levels.
- Automatic thermal control: Lowers the output levels to reduce amplifier temperature, instead of shutting down, so your music keeps going.
Whats Included
- Sony 500W 2-Channel Amplifier with Low Pass Filter Crossover
- Owner's manual
- Sony 500W 2-Channel Amplifier with Low Pass Filter Crossover
- Owner's manual
A: This is a Car amplifier. You need a Home amplifier. You'll either need a 10 channel amplifier or a speaker distribution system on a 2 channel (Home) amp so that the amplifier won't become overloaded. Most home amps can't go below 4 Ohms. If your speakers are 8 Ohms which most home speakers are then you can run up to two pairs on one amp putting them in parallel two each R and L. Putting two speakers in parallel makes the impedance (Ohms) 4 Ohms.
