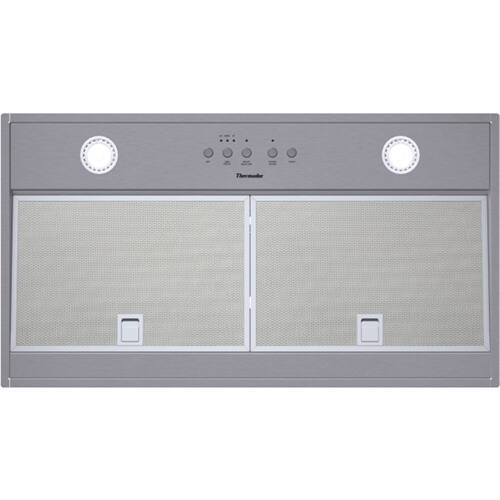

Thermador Masterpiece - 36 inches - Convertible - Range Hood Insert - Stainless Steel
Model: VCI236DS
SKU: 7696082
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 10 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 33 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Thermador
- Model Number: VCI236DS
- Product Name: 36" Masterpiece Series Range Hood Custom Insert
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 10 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 33 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 27 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 33 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 17 3/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 20 watts
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 825225850533
Create a custom air-cleaning system with this Thermador Professional Series custom ventilation insert. Designed to work with both wall and island hood setups, this insert is easy to operate with stainless steel buttons. The 10-inch round duct size on this Thermador Professional Series custom ventilation insert offers ample ventilation in your busy kitchen.
- Suitable for wall or island applications: Ability to chose your variant.
- Delayed shut off tackles lingering odors: For up to 10 minutes.
- Built-in 'Clean Filter' reminder: Illuminates after 40 hours of operation.
- Stainless steel button controls: Three fan speeds and Halogen lighting spotlights.
- Dishwasher safe aluminum mesh filters: Filter systems are highly efficient at capturing grease.
- Deep capture area: Allows for efficient capture of smoke and steam.
- 10" Round duct size: Vertical ducting direction.
- Accessories included: Liner, Remote Control and Stainless Steel Baffle Filters.
- Suitable for wall or island applications: Ability to chose your variant.
- Delayed shut off tackles lingering odors: For up to 10 minutes.
- Built-in 'Clean Filter' reminder: Illuminates after 40 hours of operation.
- Stainless steel button controls: Three fan speeds and Halogen lighting spotlights.
- Dishwasher safe aluminum mesh filters: Filter systems are highly efficient at capturing grease.
- Deep capture area: Allows for efficient capture of smoke and steam.
- 10" Round duct size: Vertical ducting direction.
- Accessories included: Liner, Remote Control and Stainless Steel Baffle Filters.
Whats Included
- 36-inch Masterpiece Series Range Hood Custom Insert
- Liner
- Owner's Manual
- Remote Control
- Stainless Steel Baffle Filters
- 36-inch Masterpiece Series Range Hood Custom Insert
- Liner
- Owner's Manual
- Remote Control
- Stainless Steel Baffle Filters
Q: Does this ventilation insert have a delayed shut off feature?
A: Yes, this ventilation insert offers a delayed shut off for up to 10 minutes to tackle lingering odors.
Q: Are the filters on this ventilation insert dishwasher safe?
A: Yes, this ventilation insert uses dishwasher safe aluminum mesh filters.
Q: Can this ventilation insert be used with both a wall and island mount setup?
A: Yes, this ventilation insert is suitable for both wall and island applications.
Q: How is this ventilation insert controlled?
A: This ventilation insert is controlled by stainless steel button controls.
Q: What is the duct size of this ventilation insert?
A: The duct size of this ventilation insert is 10 inches round.
A: undefined
Q: What diameter ducting is required for venting to exterior?
A: Hello Deborah, thank you for your question and interest in model # VCI236DS. Please review the specifications sheet for ducting details. Here is a link: https://media3.bsh-group.com/Documents/MCDOC01771194_VCI236DS-36-INCH-CUSTOM-INSERT-Specifications.pdf.
