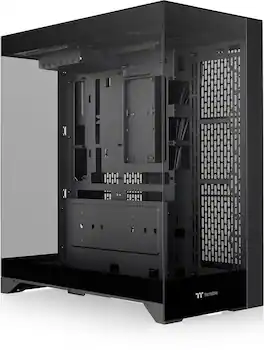

Thermaltake - CTE E550 TG Mid Tower ATX PC Case - Black
Thermaltake - CTE E550 TG Mid Tower ATX PC Case - Black
Color
Black- Thermaltake - Riing 12 LED 120mm Radiator Cooling Fan - Blue$16.99
More Buying Options
Related Item
Specifications
- Motherboard Form FactorATX, EATX, microATX, Mini-ITXMaximum GPU Length415 millimetersProduct Height20 inchesProduct Width10 inchesProduct Depth22 inchesWindow Panel(s)Front, Left side, Side
- Key Specs
- Motherboard Form Factor: ATX, EATX, microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 415 millimeters
- Product Height: 20 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Front, Left side, Side
- Case Material: Steel
- General
- Brand: Thermaltake
- Model Number: CA-1Z8-00M1WN-00
- Product Name: CTE E550 TG Mid Tower ATX PC Case
- Color: Black
- Case Material: Steel
- Assembly Required: Yes
- Compatibility
- Motherboard Form Factor: ATX, EATX, microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 220 millimeters
- Maximum GPU Length: 415 millimeters
- Number of Expansion Slots: 7
- Ports

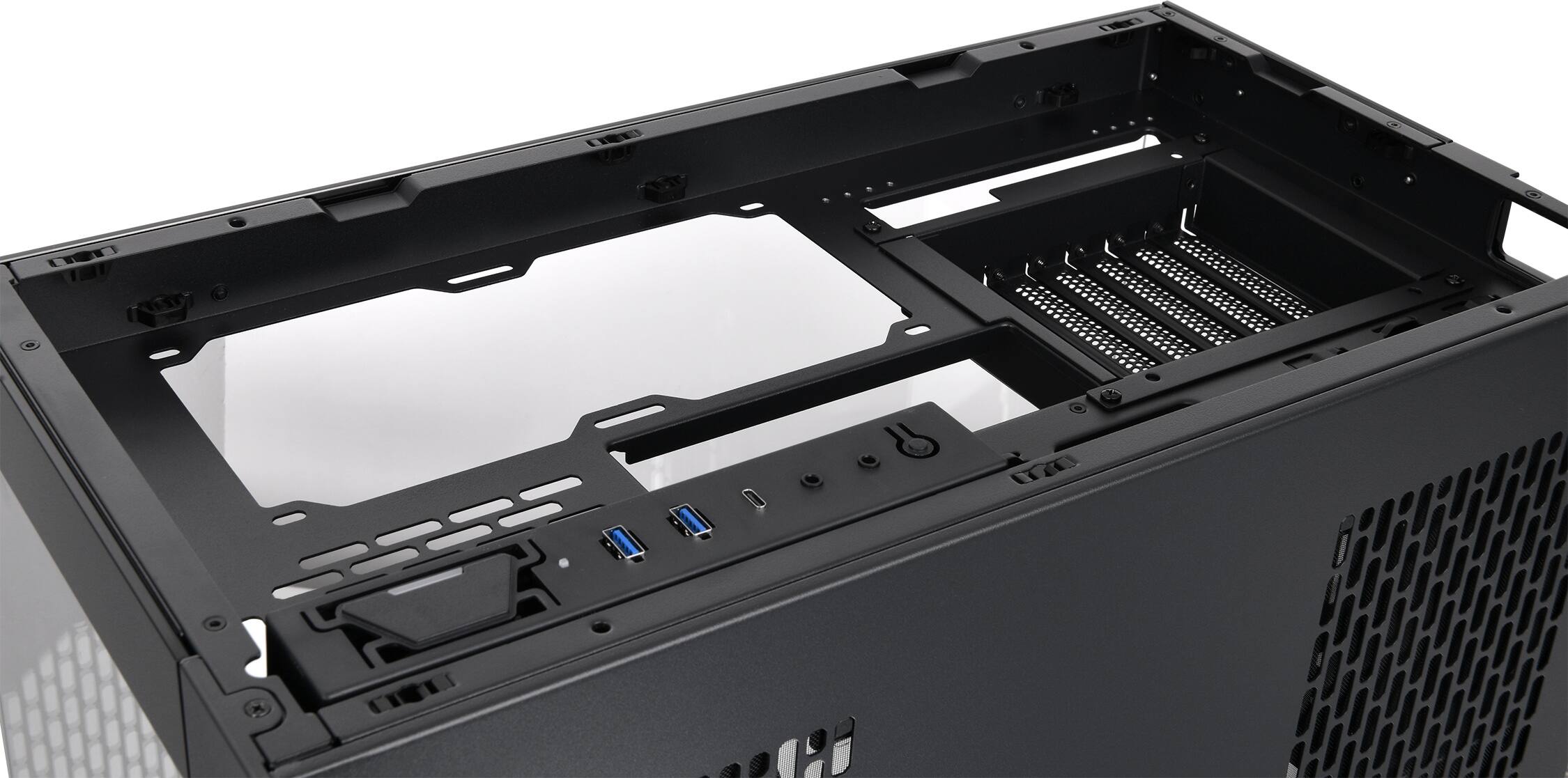

- USB Port Location: Top
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.0, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of USB-A Charging Ports: 2
- Number of USB-C Charging Ports: 1
- Number of Thunderbolt Ports (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays

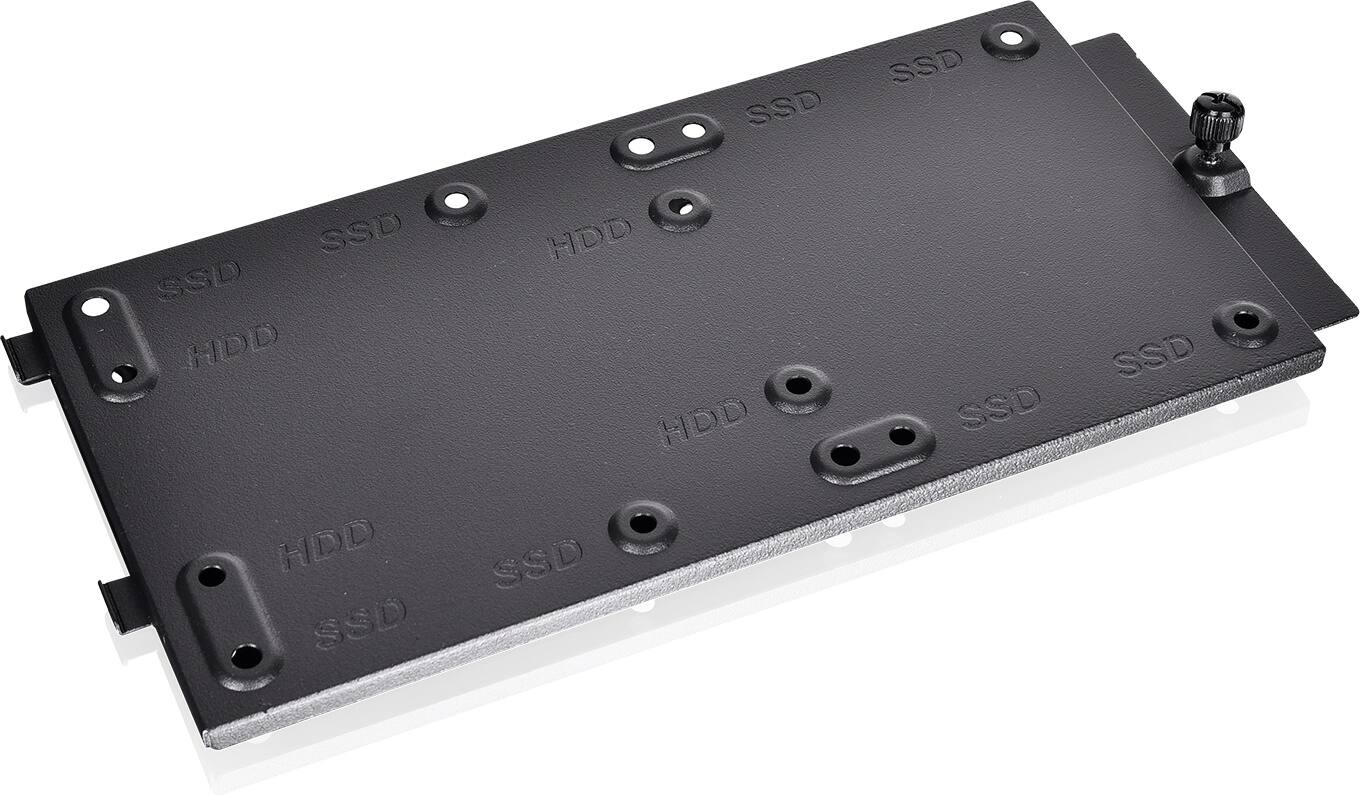

- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 2
- Dimensions
- Product Height: 20 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 512 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Front, Left side, Side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 166 millimeters
- Number of Fans Supported: 11
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 0
- Liquid Cooling Ready: true
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 841163097076

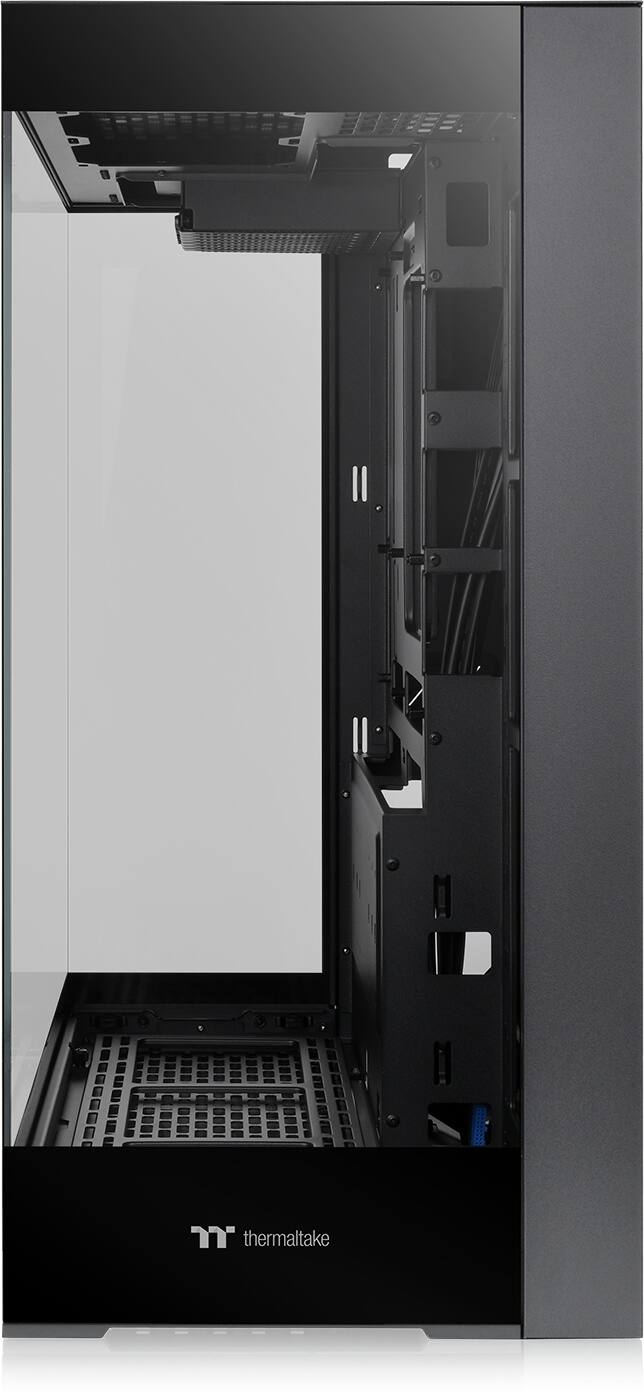

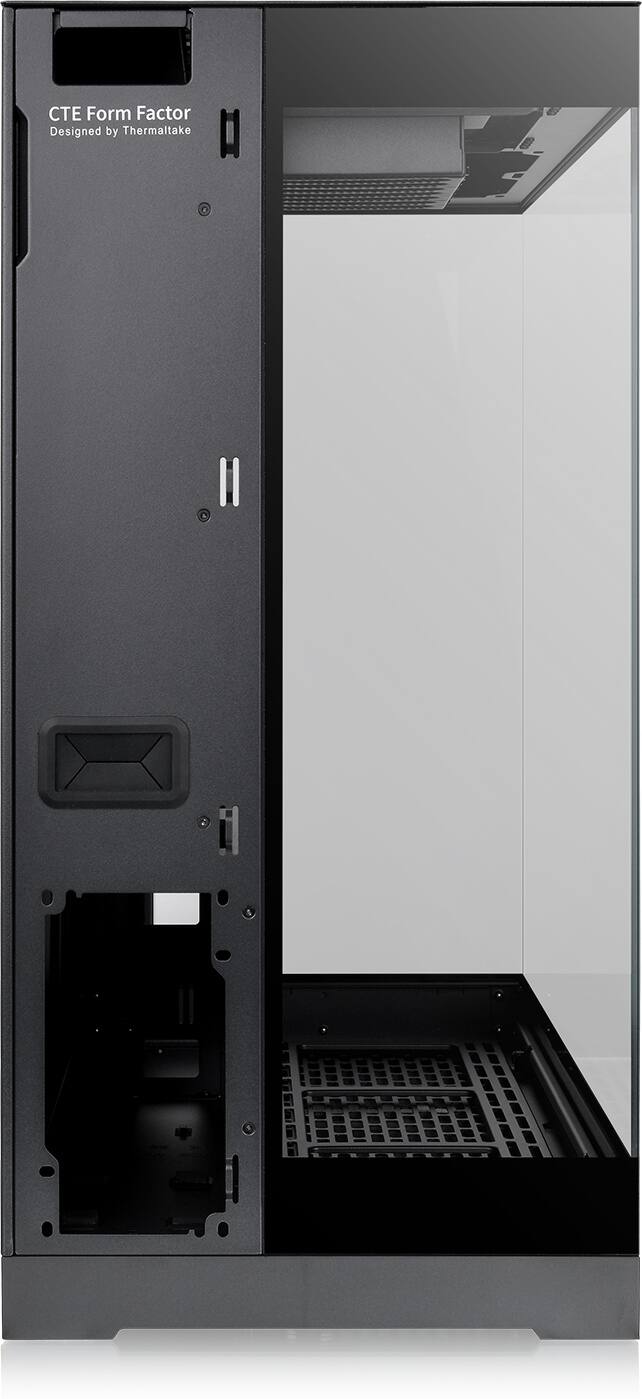

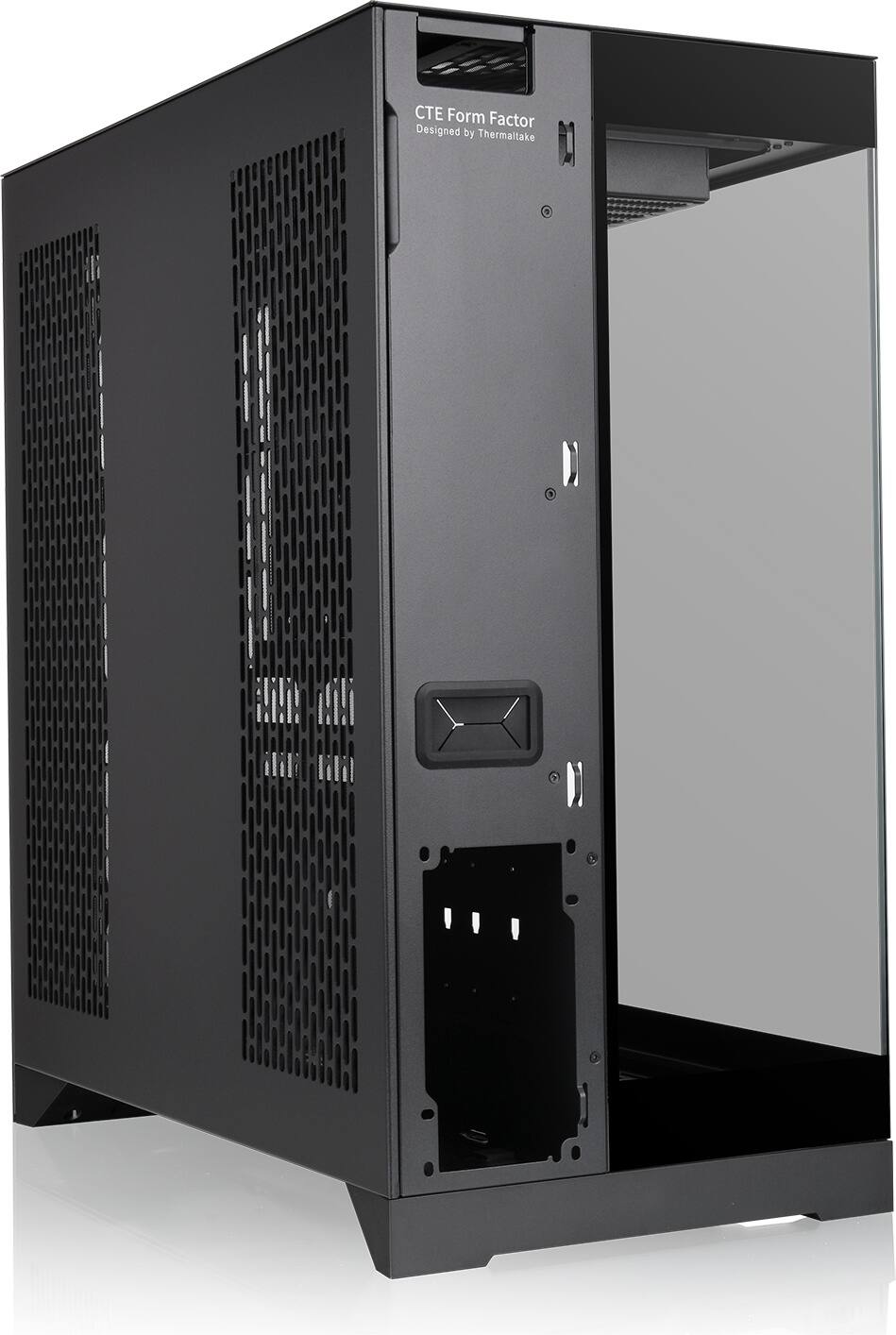

CTE E550 TG focuses on the theatrics of fish tank style PC case. With the 90 degree rotated motherboard, we are able to replace the rear metal panel with tempered glass, creating ultra wide viewing angle that is almost identical with open frame chassis. CTE E550 TG also offers three different ways to install graphic cards, and is compatible with hidden connector motherboard from ASUS, MSI, and GIGABYTE.

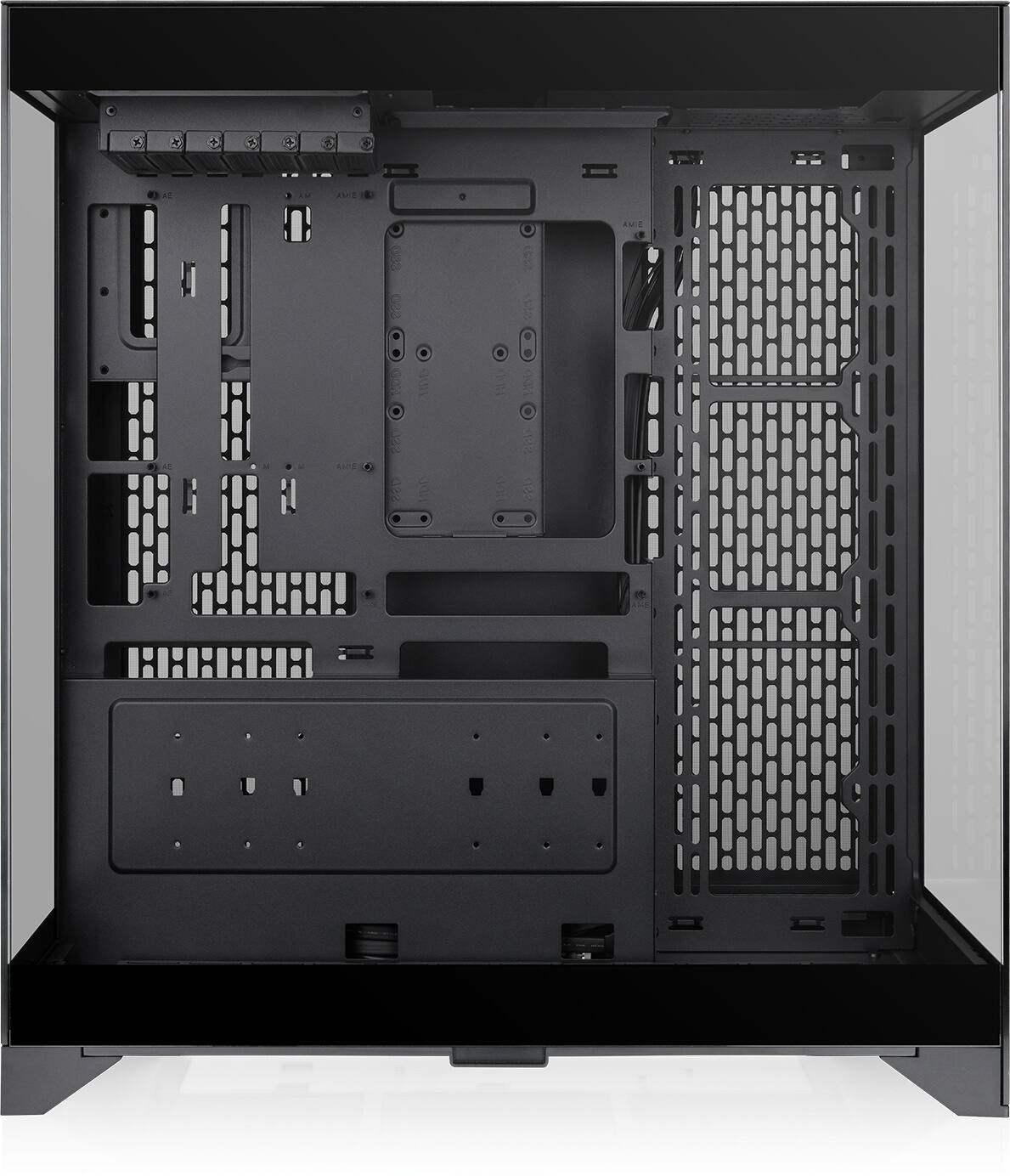

- Aesthetic and dual chamber design: Enjoy an ultra-wide viewing angle with three tempered glass panels and enhanced airflow and cable management with a dual chamber design.
- Hidden-connector motherboard support: Compatible with ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH motherboards.

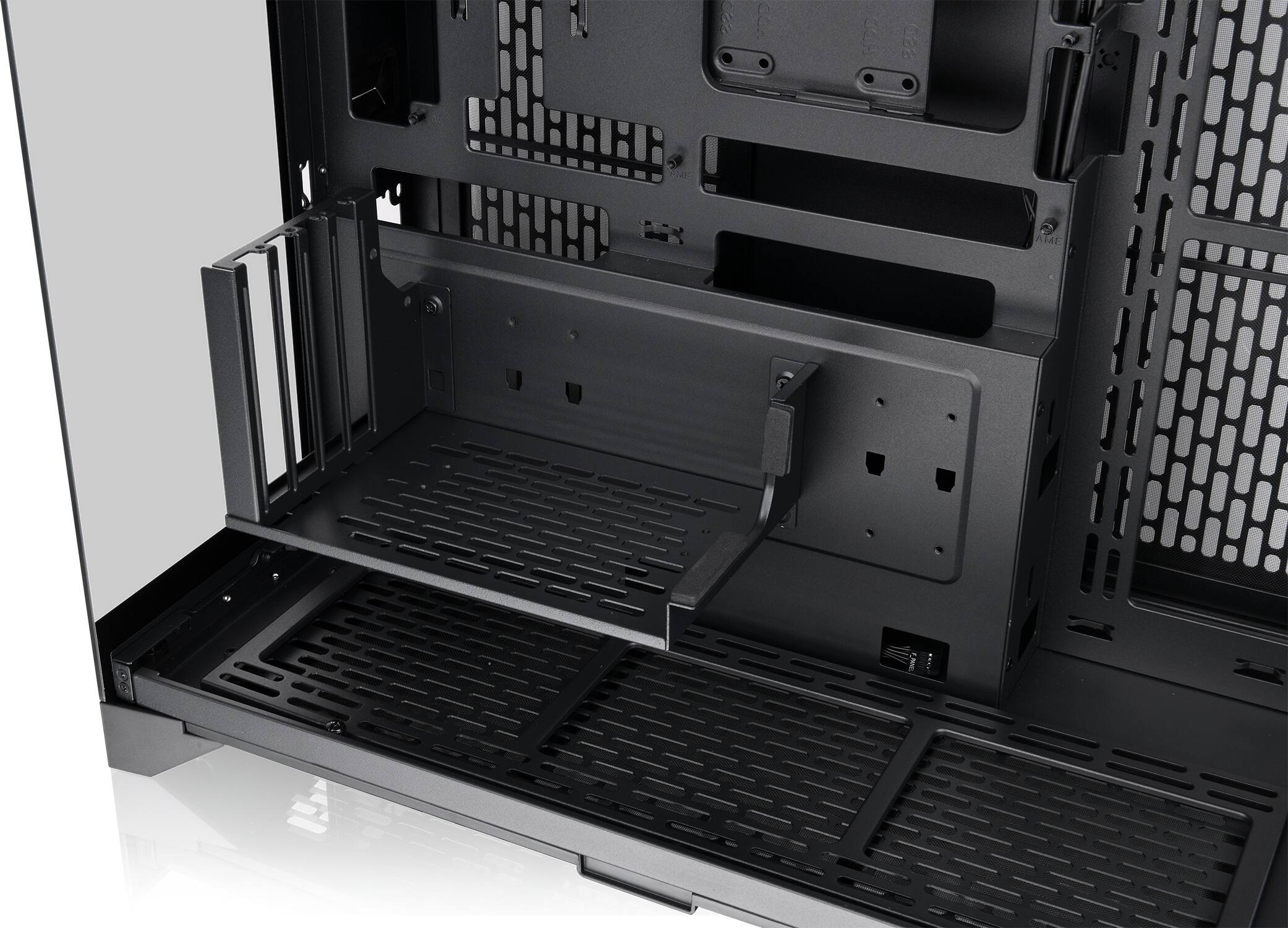

- Flexible Three-Way VGA Installations: Offers versatile VGA installation options with rotational PCIe slots and a floating VGA bracket for flexible setup.

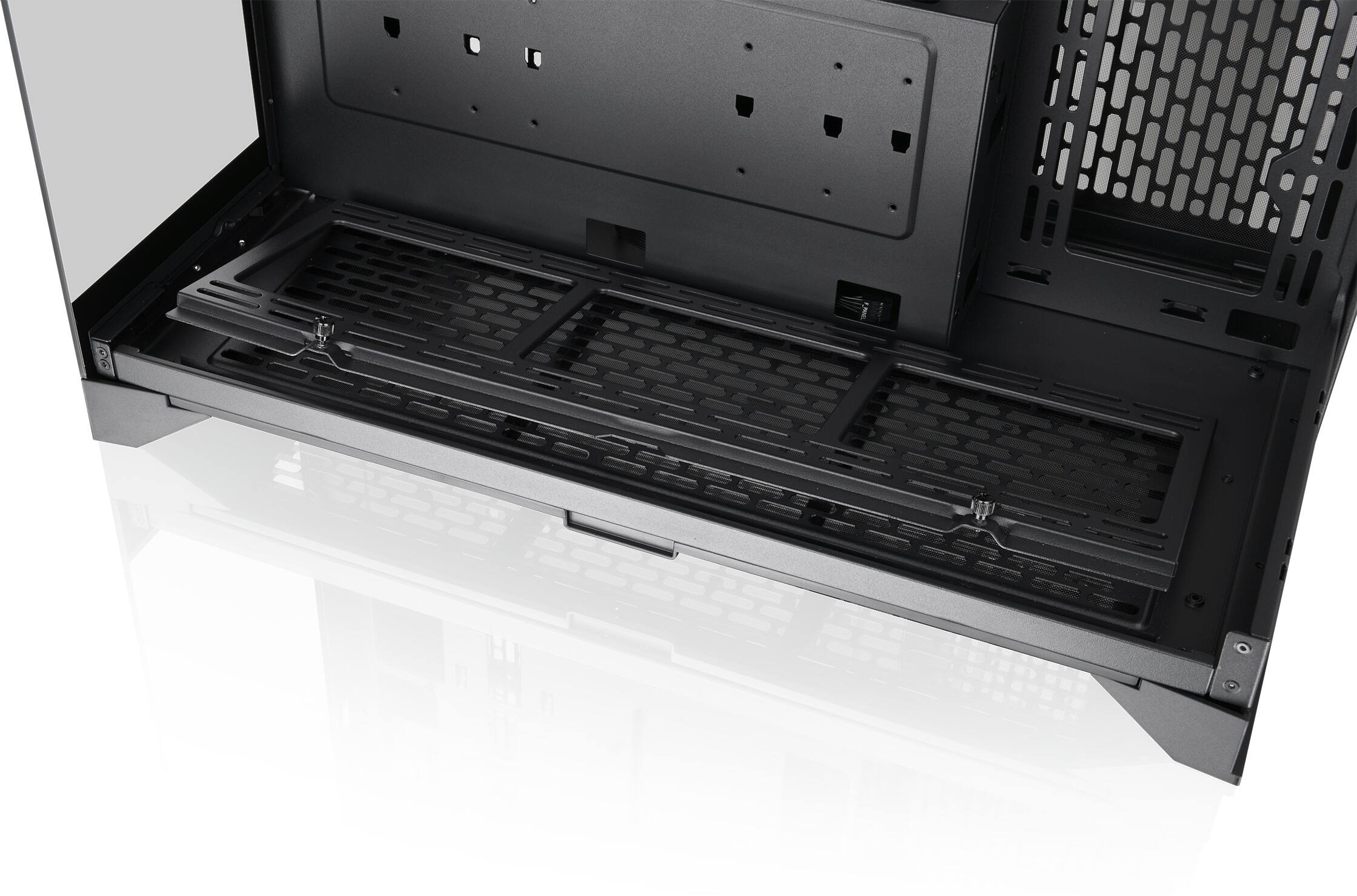

- Comprehensive cooling support: Supports up to six 140mm fans and three 120mm fans, with space for radiators up to 420mm for optimal thermal management.

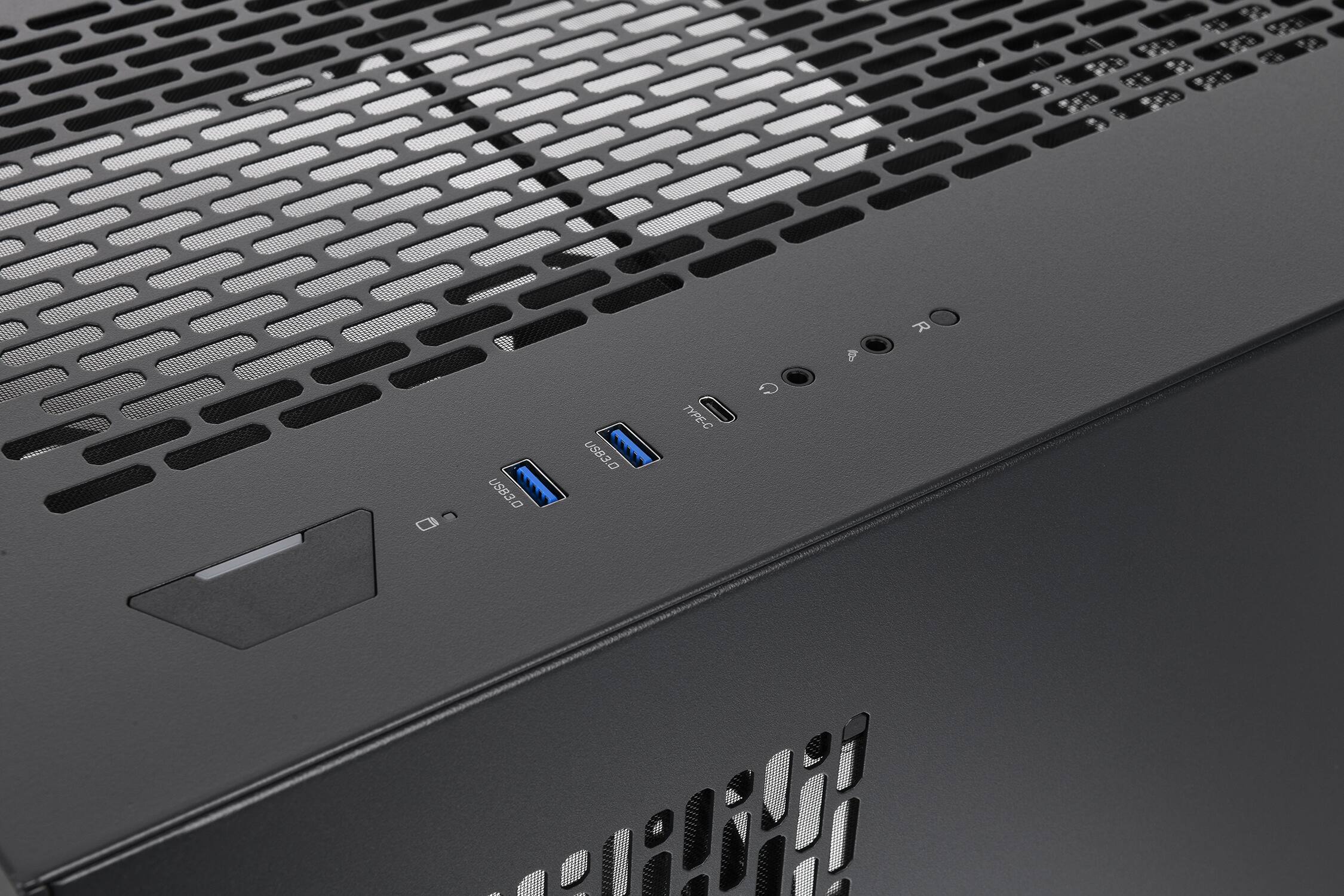

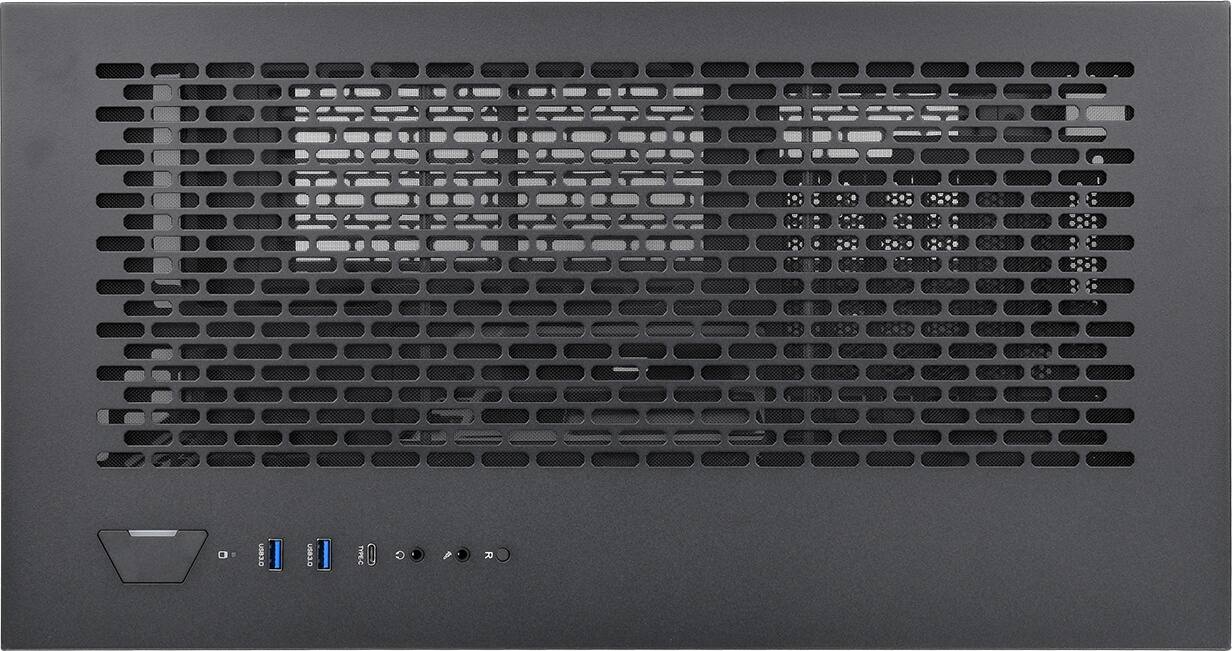

- Convenient I/O ports: Includes USB 3.0 Type-A x 2, USB 3.2 Gen 2 Type-C x 1, HD audio.
- Aesthetic and dual chamber design: Enjoy an ultra-wide viewing angle with three tempered glass panels and enhanced airflow and cable management with a dual chamber design.
- Hidden-connector motherboard support: Compatible with ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH motherboards.
- Flexible Three-Way VGA Installations: Offers versatile VGA installation options with rotational PCIe slots and a floating VGA bracket for flexible setup.
- Comprehensive cooling support: Supports up to six 140mm fans and three 120mm fans, with space for radiators up to 420mm for optimal thermal management.
- Convenient I/O ports: Includes USB 3.0 Type-A x 2, USB 3.2 Gen 2 Type-C x 1, HD audio.
Whats Included
- 1x Thermaltake CTE E550 TG Mid Tower ATX PC Case - Black
- 1x Thermaltake CTE E550 TG Mid Tower ATX PC Case - Black
Product Manuals
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum height of a CPU cooler that can be installed is 166 millimeters.
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 415 millimeters.
Q: How many internal 3.5-inch bays does the case have?
A: The case has two internal 3.5-inch bays.
Q: Does the case have any built-in fans?
A: The case does not come with any fans included.
Q: What is the warranty period for the case?
A: The manufacturer's warranty for both parts and labor is 3 years.
Q: Can the case support liquid cooling?
A: This case is liquid cooling ready.
Compare similar products
CTE E550 TG focuses on the theatrics of fish tank style PC case. With the 90 degree rotated motherboard, we are able to replace the rear metal panel with tempered glass, creating ultra wide viewing angle that is almost identical with open frame chassis. CTE E550 TG also offers three different ways to install graphic cards, and is compatible with hidden connector motherboard from ASUS, MSI, and GIGABYTE.
The CORSAIR iCUE 7000X RGB full-tower ATX case puts your build on display behind three tempered glass panels. CORSAIR RapidRoute cable management easily keeps your cables hidden from sight, while a massive interior enables a multitude of cooling options, including room for up to three simultaneous 360mm radiators. Four included CORSAIR SP140 RGB ELITE fans deliver amazing lighting and concentrated airflow.
The MSI PANO 130R MLG Edition is a premium mid-tower PC case designed for gamers and PC enthusiasts who value both performance and style. Featuring a sleek panoramic glass design, it provides a stunning view of your components while ensuring excellent airflow for optimal cooling. With support for multiple radiator and fan configurations, the PANO 130R offers versatile cooling options to handle high-end gaming rigs and overclocked systems. It includes tool-less panels for easy installation, ample space for cable management, and compatibility with the latest GPUs and motherboards. Equipped with vibrant ARGB lighting and a clean, modern layout, this case is perfect for building a powerful and visually striking system.
Create a true centerpiece with the View 600 TG, with a triple tempered glass front panel reminiscent of a large bay window for that perfect view. With plenty of room for components like up to 480mm GPU clearance, 420mm radiator support, up to E-ATX standard motherboards as well as ATX or mATX hidden connector motherboards, 220mm PSU clearance and up to 175mm in air cooler height clearance. For cooling up to ten fan of either 120mm or 140mm are supported by removable trays for easy installation.
