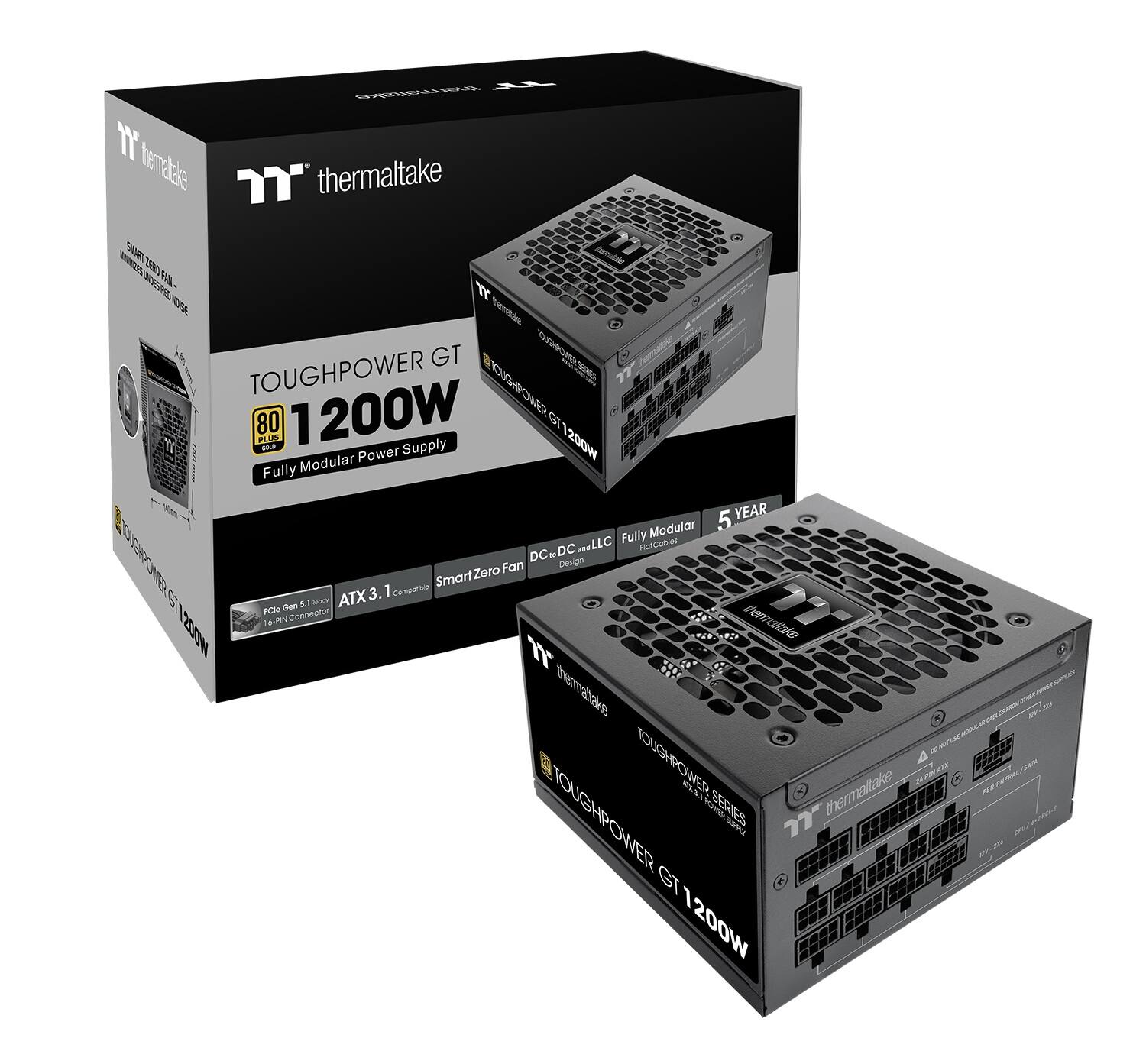

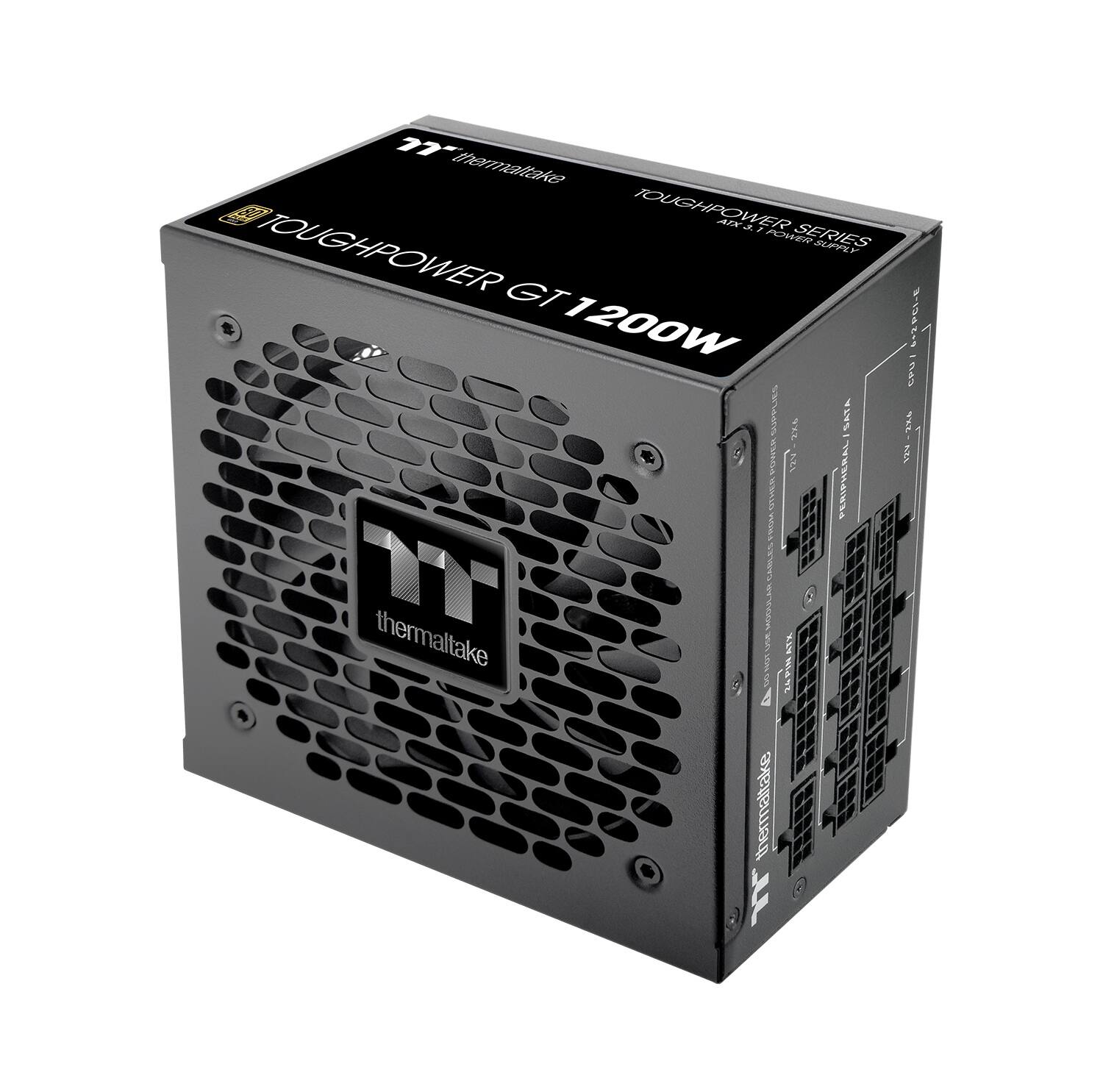

Thermaltake - Toughpower GT 1200W 80+ Gold ATX 3.1 Power Supply - Black
Wattage
1200 wattsFREE shipping to
Intel - Core Ultra 9 285K 24-Cores 24-Threads - 4.6GHz (5.7 GHz Turbo) Socket LGA 1851 Unlocked Desktop Processor - Multi$509.99$619.99
More Buying Options
Specifications
- Wattage1200 wattsModularFully modularEnergy Efficiency80 PLUS GoldATX Connector24pin Main connector (550mm) x 1PCIe Connector2 x PCI-E 12+4Pin connectors (600mm) x 1. 5 x PCI-E 6+2Pin connectors (600mm + 150mm) x 2 (600mm) x 1Peripheral Connector4 x Peripheral connectors (400mm + 150mm + 150mm + 150mm) x 1
- Key Specs
- Wattage: 1200 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 24pin Main connector (550mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 x PCI-E 12+4Pin connectors (600mm) x 1. 5 x PCI-E 6+2Pin connectors (600mm + 150mm) x 2 (600mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (400mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 6 x SATA connectors (450mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (700mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Thermaltake
- Model Number: PS-TPT-1200FNFAGU-3
- Product Name: Toughpower GT 1200W 80+ Gold ATX 3.1 Power Supply
- Color: Black
- Power
- Wattage: 1200 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 24pin Main connector (550mm) x 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 x PCI-E 12+4Pin connectors (600mm) x 1. 5 x PCI-E 6+2Pin connectors (600mm + 150mm) x 2 (600mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 x Peripheral connectors (400mm + 150mm + 150mm + 150mm) x 1 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 6 x SATA connectors (450mm + 150mm + 150mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 x ATX 12V 4+4Pin (700mm) x 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 140 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 84.8 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 12cm Hydraulic bearing fan
- Number of Fans Included: 1
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 840480304133
Designed to deliver the power you need in a smaller package, the Toughpower GT 1200W Black delivers 80 Plus Gold efficiency while meeting ATX 3.1 spec demands. Equipped with two Native PCIe 5.1 12V-2x6 connectors for best performance with modern GPUs. Coming in at 140mm in length, plus utilizing full modular color matched flat cables and connectors, fitment and cable routing is a breeze
- ATX 3.1: Built to ATX 3.1 specifications means the Toughpower GT 1200W is capable of handling up to 3x GPU power excursions and up to 2x total power excursions, while maintaining low load efficiency as well.
- Native 5.1 12V-2x6: Featuring two native PCIe 12V-2x6 cables capable of delivering up to 600W to meet future needs and demands for power.
- Perfect Fit: Great for systems that are low on space but not necessarily SFF in size the Toughpower GT is ideal thanks to its 140mm length and full modular cable set.
- Stylish Flexiblity: The included Full Modular cable set now features flat cables with color matched connectors to provide an improvement in flexibility for routing and management.

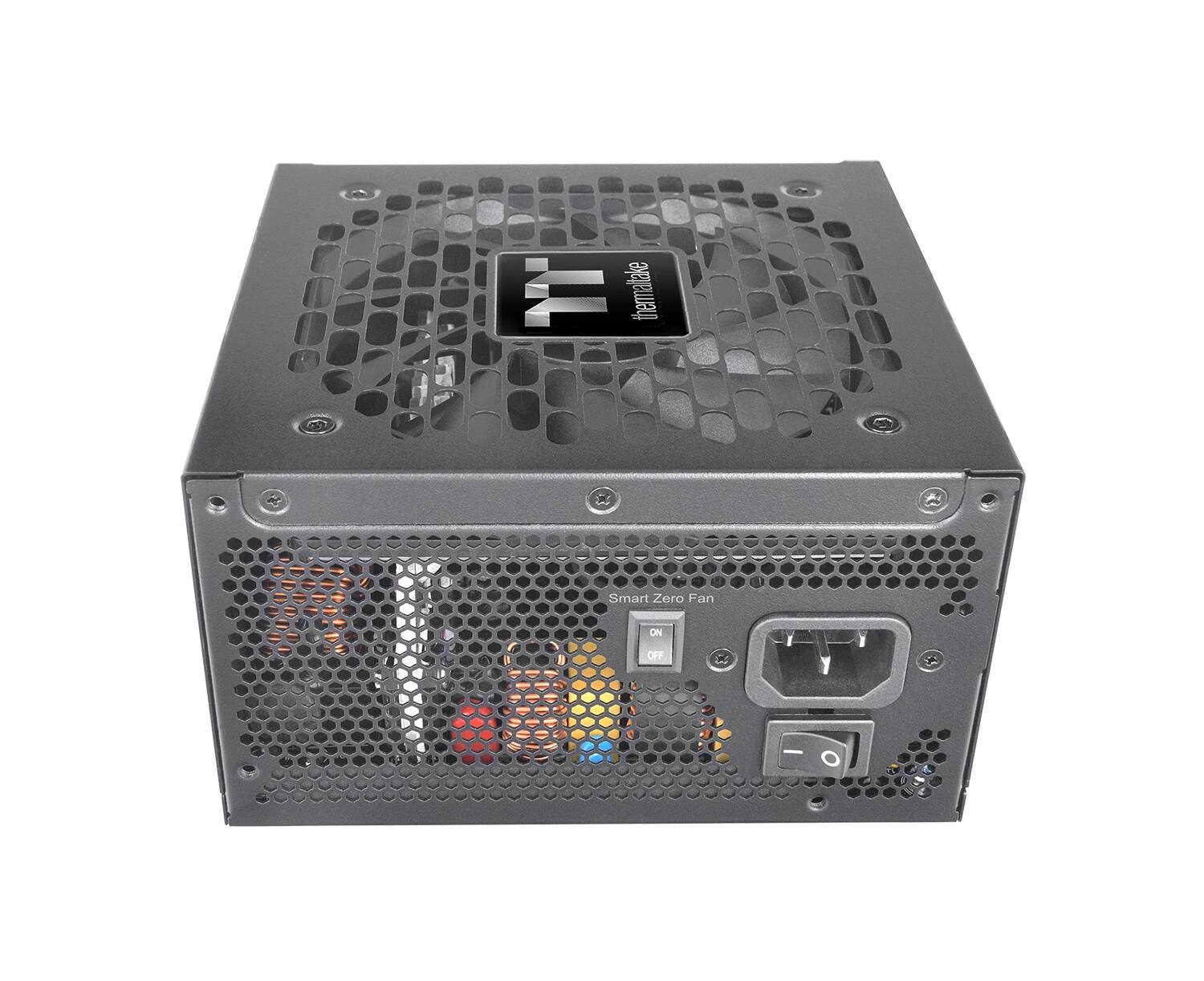

- Cool and Quiet: Providing cooling is a hydraulic bearing 120mm fan tuned to provide good airflow and low noise, and for even less noise utilize the Smart Zero Fan mode.
- ATX 3.1: Built to ATX 3.1 specifications means the Toughpower GT 1200W is capable of handling up to 3x GPU power excursions and up to 2x total power excursions, while maintaining low load efficiency as well.
- Native 5.1 12V-2x6: Featuring two native PCIe 12V-2x6 cables capable of delivering up to 600W to meet future needs and demands for power.
- Perfect Fit: Great for systems that are low on space but not necessarily SFF in size the Toughpower GT is ideal thanks to its 140mm length and full modular cable set.
- Stylish Flexiblity: The included Full Modular cable set now features flat cables with color matched connectors to provide an improvement in flexibility for routing and management.
- Cool and Quiet: Providing cooling is a hydraulic bearing 120mm fan tuned to provide good airflow and low noise, and for even less noise utilize the Smart Zero Fan mode.
Compare similar products
Designed to deliver the power you need in a smaller package, the Toughpower GT 1200W Black delivers 80 Plus Gold efficiency while meeting ATX 3.1 spec demands. Equipped with two Native PCIe 5.1 12V-2x6 connectors for best performance with modern GPUs. Coming in at 140mm in length, plus utilizing full modular color matched flat cables and connectors, fitment and cable routing is a breeze
Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
Designed to deliver the power you need in a smaller package, the Toughpower GT 1000W Black delivers 80 Plus Gold efficiency while meeting ATX 3.1 spec demands. Equipped with a Native PCIe 5.1 12V-2x6 connector for best performance with modern GPUs. Coming in at 140mm in length, plus utilizing full modular color matched flat cables and connectors, fitment and cable routing is a breeze.
CORSAIR RMx Series Fully Modular Low-Noise Power Supplies deliver quiet, dependable power with Cybenetics Gold efficiency to your PC. Fully modular, ultra-flexible embossed cables make PC builds easy, as you connect only the cables your system requires. Compliant with the ATX 3.1 power standard from Intel, RMx PSUs have the connections needed to power today’s demanding PC hardware including a native 12V-2x6 connector. 100% Japanese 105°C-rated electrolytic capacitors deliver fantastic electrical performance, while a 140mm FDB fan provides low noise cooling. Backed by a ten-year warranty, RMx PSUs are the gold standard for many years to come.
| Pros for Thermaltake - Toughpower GT 1200W 80+ Gold ATX 3.1 Power Supply - Black | |||
|---|---|---|---|
| There were no pros for this product— | Power Capacity, Noise Level, Overall Performance, Cable Management, Installation Ease | There were no pros for this product— | Overall Performance, Power Capacity, Noise Level, Cable Management, Fan Control |
| Cons for Thermaltake - Toughpower GT 1200W 80+ Gold ATX 3.1 Power Supply - Black | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Coil Whine |
