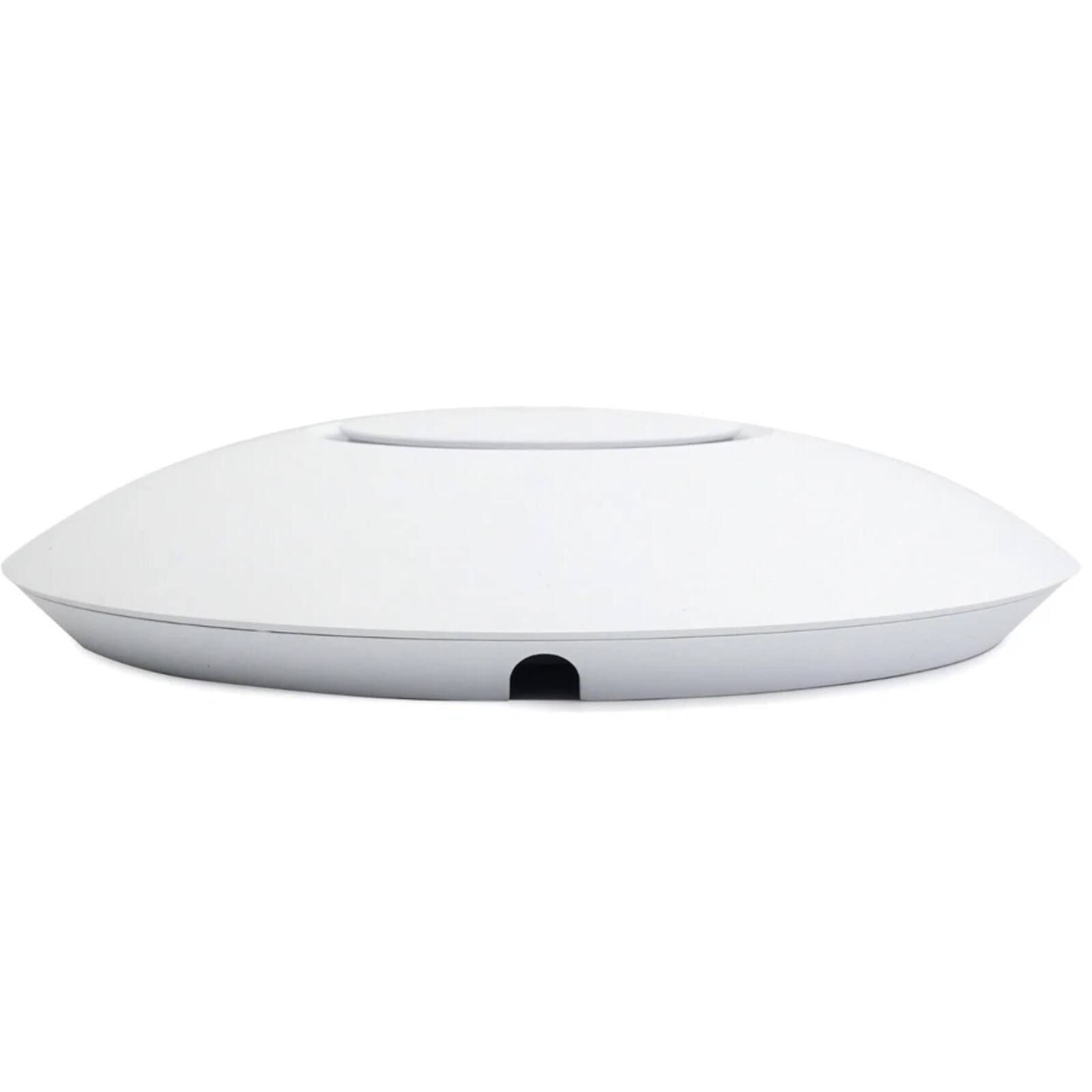

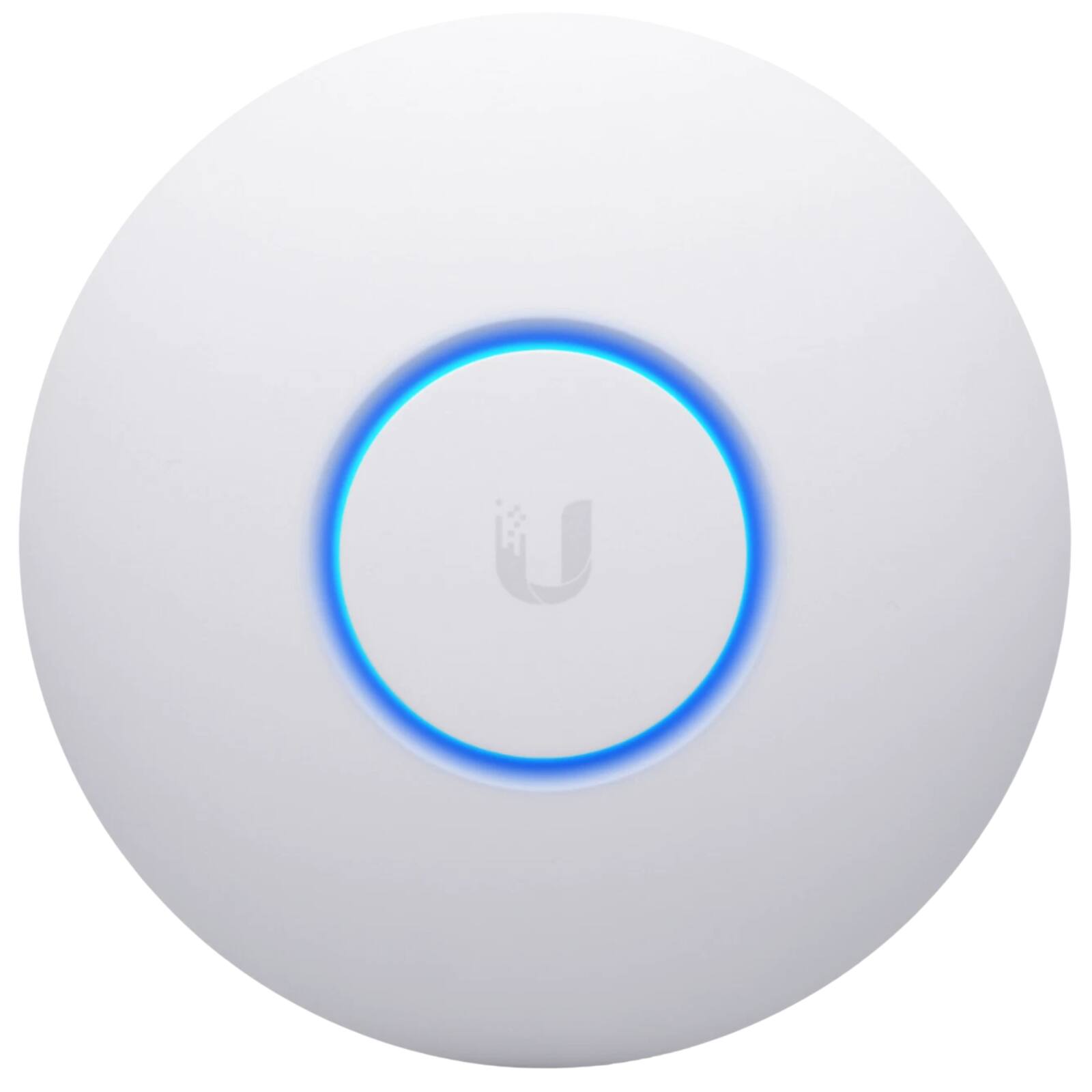

Ubiquiti - UniFi nanoHD Indoor Dual-Band 802.11ac Wave 2 MU-MIMO PoE Access Point (UAP-nanoHD) - White
FREE shipping to
Specifications
- Wi-Fi Speed2033 gigabits per secondWireless StandardAC, NMaximum Throughput0.25 gigabytes per secondForm FactorMountableBand TechnologyDualFrequency Band2.4 GHz, 5.0 GHz
- Key Specs
- Wi-Fi Speed: 2033 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Maximum Throughput: 0.25 gigabytes per second (The maximum rate of data that is successfully delivered over a communication channel.)
- Form Factor: Mountable (The size, arrangement, and physical configuration of the product.)
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Antenna Type: Internal
- Number of Antennas: 4
- Number of LAN Ports: 1 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Number of PoE (Power over Ethernet) Ports: 1 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- General
- Brand: Ubiquiti
- Model Number: UAP-nanoHD
- Product Name: UniFi nanoHD Indoor Dual-Band 802.11ac Wave 2 MU-MIMO PoE Access Point (UAP-nanoHD)
- Color: White
- Security
- Security Features: WEP; WPA/WPA2 (TKIP/AES); WPA-PSK; WPA-Enterprise; 802.11w/PMF
- Data Encryption: true
- Encryption Type: WEP, WPA, WPA2 (The security protocols or certification programs that protect the Wi-Fi network.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: UniFi App
- Auto Detecting: true
- Ports
- Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Compatibility
- System Requirements: UniFi Network Application v5.7 or higher (Windows 7/8/10, Mac OS X, Linux; Java 1.8+; Chrome browser) (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Power
- Power Source: Power over Ethernet (PoE)
- Dimensions
- Product Height: 1.29 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.66 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 817882024228
Deploy high-density enterprise Wi-Fi with the nanoHD indoor access point featuring 802.11ac Wave 2 and 4x4 MU-MIMO on 5 GHz for efficient multi-user performance. Supports 200+ concurrent clients, dual-band operation (up to 1733 Mbps on 5 GHz and 300 Mbps on 2.4 GHz), and fast Gigabit Ethernet backhaul. Power it via 802.3af PoE and manage at scale with UniFi Controller and mobile app, including advanced RF tools (band steering, airtime fairness, spectral insights), guest portal/hotspot options, VLAN 802.1Q, and per-user rate limiting for traffic control. Compact, low-profile design with included wall/ceiling mounting kits fits offices, hotels, classrooms, and other high-client environments.

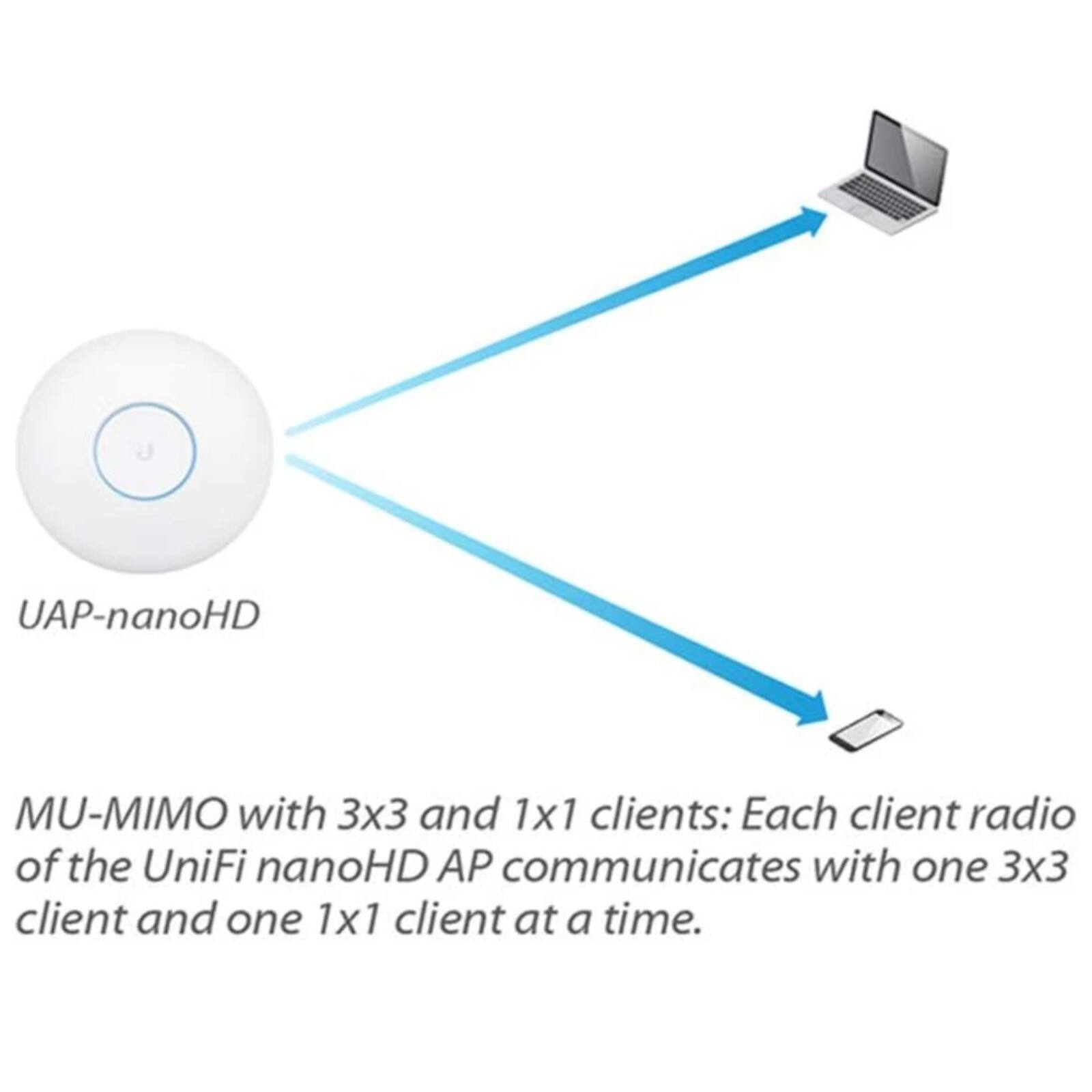

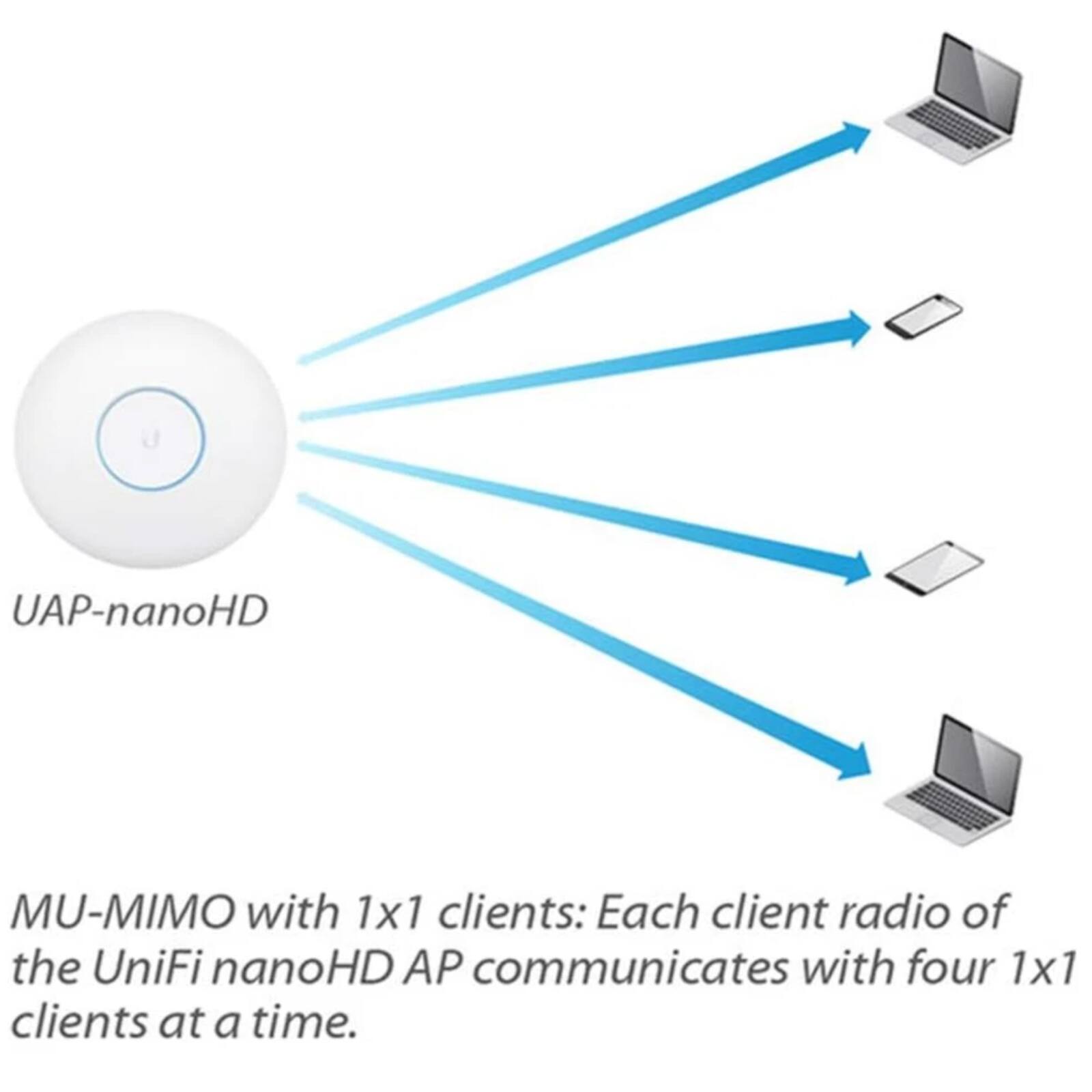

- High-Density Wi-Fi 5 Wave 2 4x4 MU-MIMO: Indoor 802.11ac Wave 2 access point with four spatial streams (4x4 MU-MIMO) engineered for high-density deployments that need strong multi-user performance and a minimal footprint.
- Dual-Band Speeds: 1733 Mbps + 300 Mbps: Simultaneous dual-band radios: up to 1733 Mbps on 5 GHz (4x4) and up to 300 Mbps on 2.4 GHz (2x2), with beamforming support for improved signal efficiency.
- 802.3af PoE + Gigabit Ethernet Backhaul: Single-cable install with 802.3af PoE power and a 10/100/1000 Gigabit Ethernet port. Max power consumption 10.5W; power save supported.

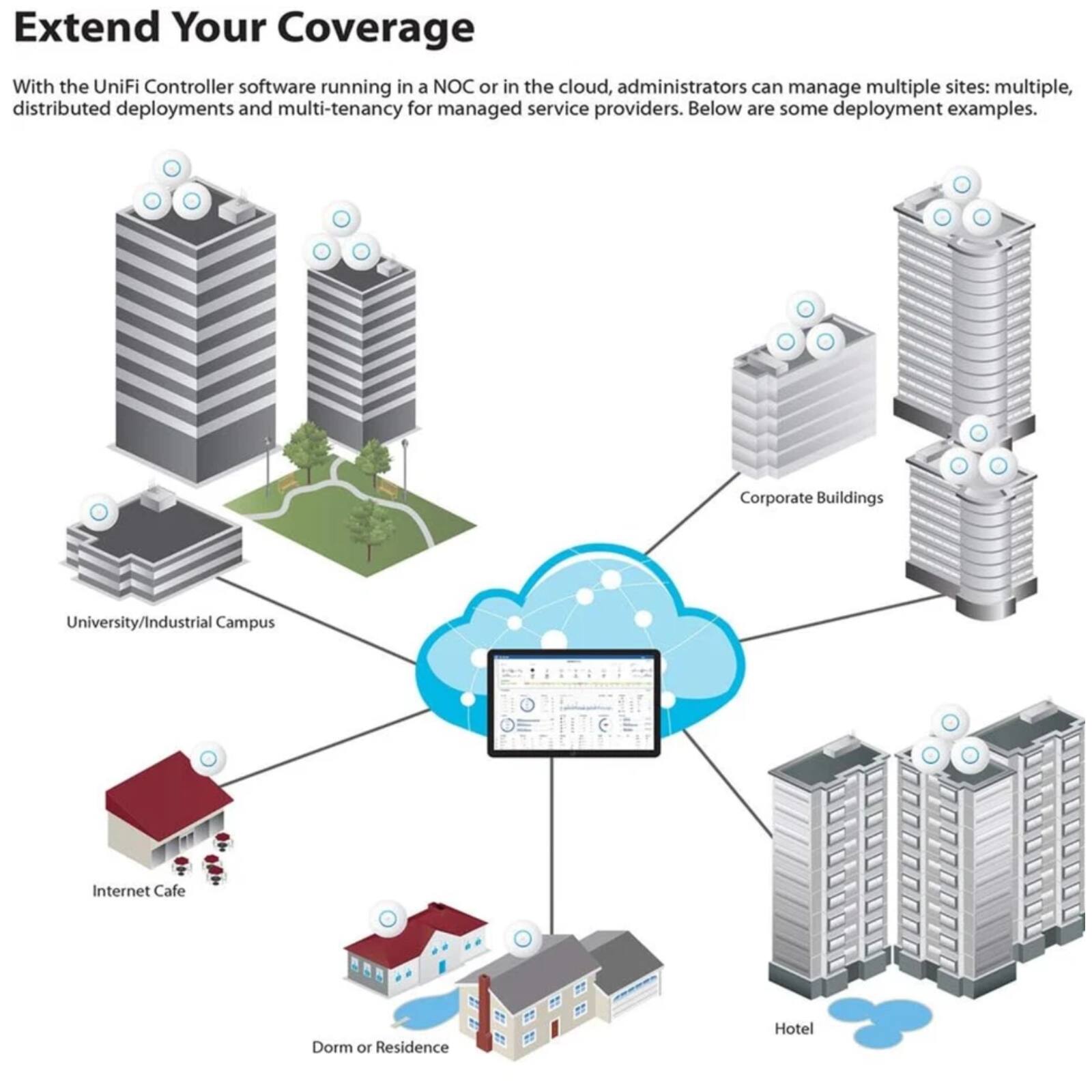

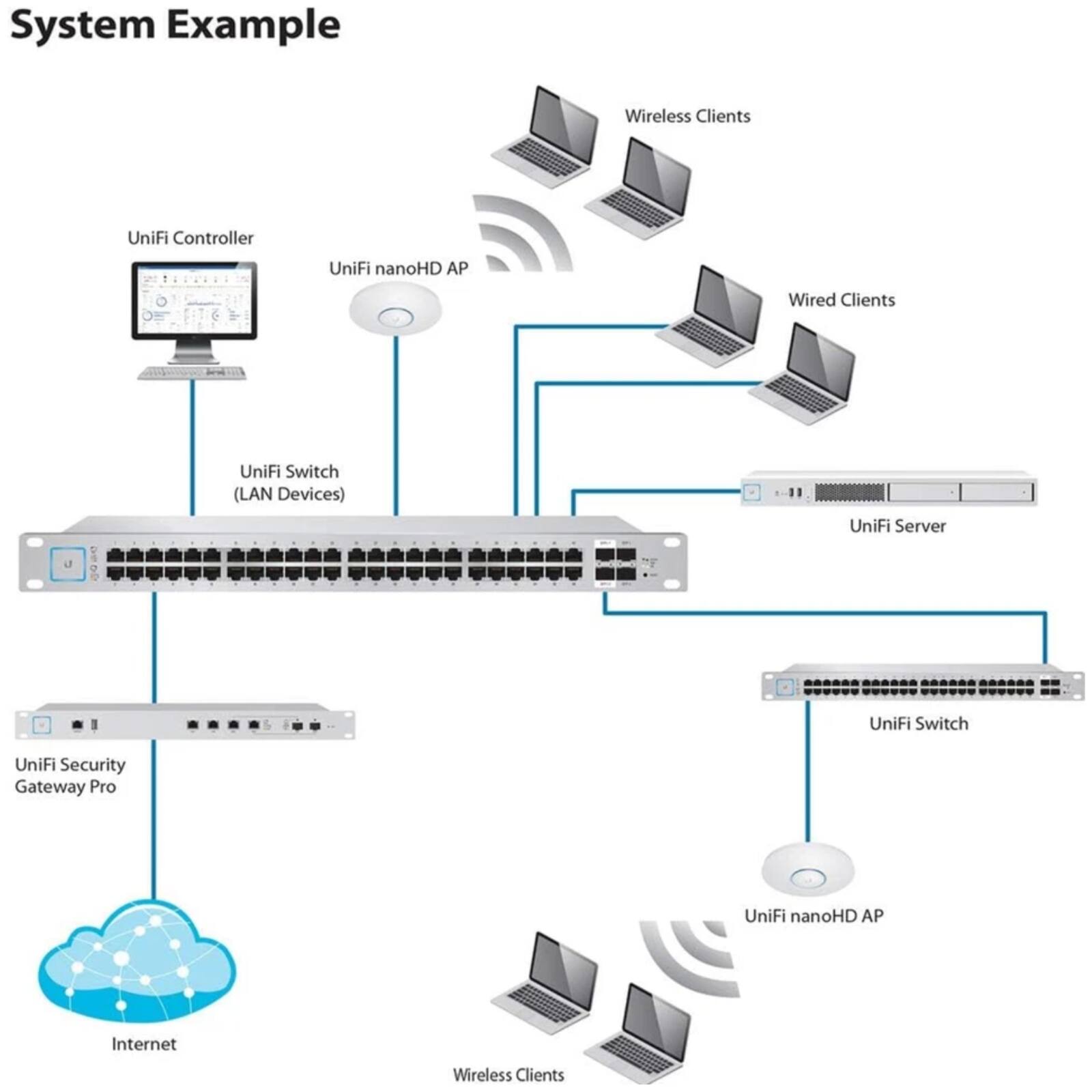

- UniFi Controller Management + RF Optimization Tools: UniFi Controller provides centralized provisioning and scalable management, plus RF tools to map the RF environment and optimize performance—including airtime fairness and band steering.
- Enterprise Security, VLAN/QoS & Guest Controls: Traffic and security features include VLAN 802.1Q, per-user rate limiting, guest traffic isolation and WMM. Supports WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) and 802.11w/PMF.
Whats Included

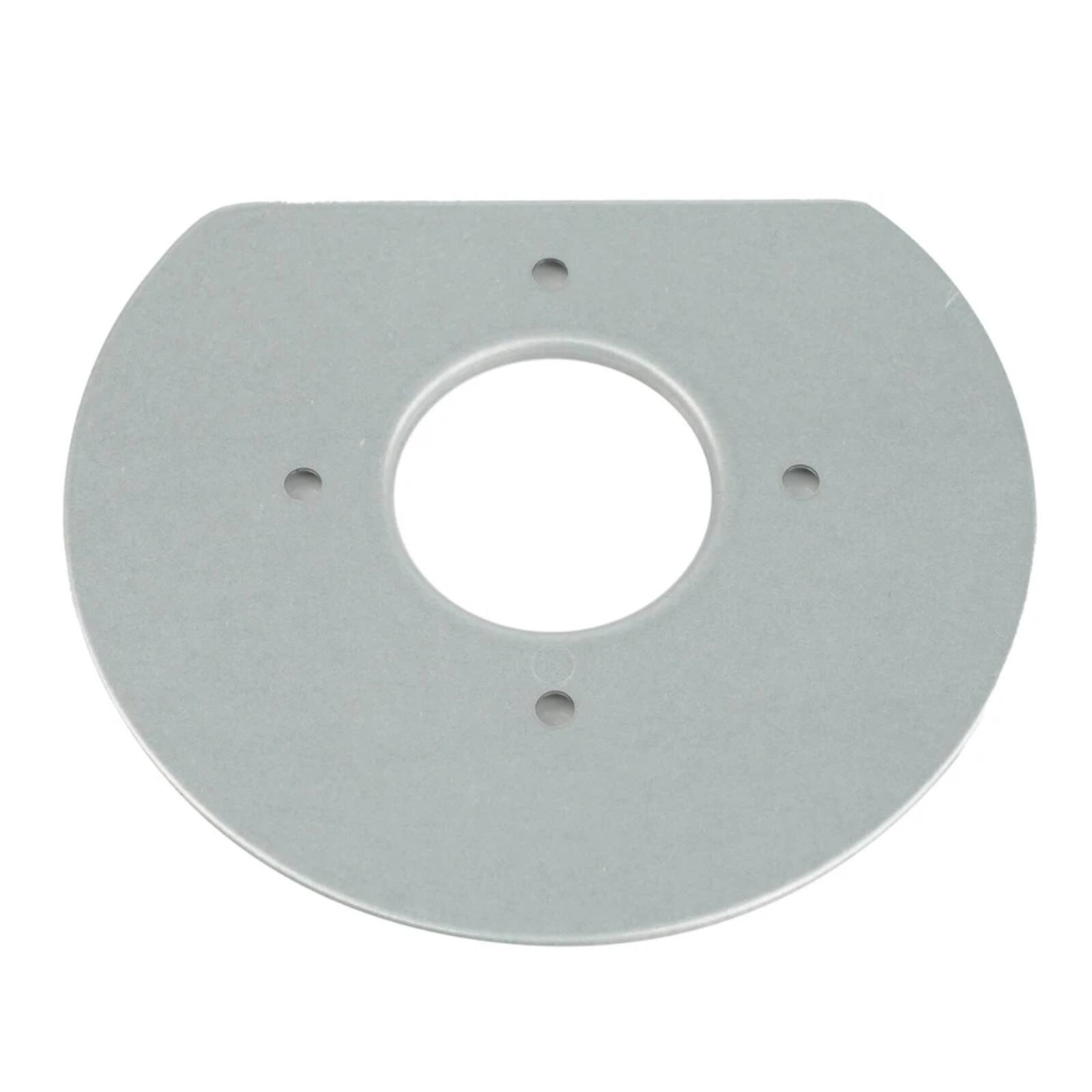

- Access point; mounting kit
