Ubiquiti - US-48-500W 48-Port Gigabit PoE+ Managed Switch with 2x 10G SFP+ and 2x 1G SFP Uplinks
Ubiquiti - US-48-500W 48-Port Gigabit PoE+ Managed Switch with 2x 10G SFP+ and 2x 1G SFP Uplinks
FREE shipping to
Related Item
Specifications
- Number of PoE (Power over Ethernet) Ports48Form FactorRack mountable (mount kit included)Maximum Data Speed10000 megabits per secondSwitch Management TypeFully managedNumber of LAN Ports48
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 48 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Form Factor: Rack mountable (mount kit included)
- Maximum Data Speed: 10000 megabits per second
- Switch Management Type: Fully managed (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 48 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Ubiquiti
- Model Number: US-48-500W
- Product Name: US-48-500W 48-Port Gigabit PoE+ Managed Switch with 2x 10G SFP+ and 2x 1G SFP Uplinks
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Routing Protocol: Layer 2 switching (IPv4 ACLs supported) (The protocol used for communicating and distributing information in a computer network.)
- Uplinking Capability: true (Devices with an uplink port are capable of connecting to other networking devices, such as switches and hubs, to expand the network. For example, two switches may be connected together in a larger network using a daisy-chain setup.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Features
- Auto Detecting: true
- Auto Speed Sensing: true
- Ports
- Auto Sending Ports: true (Automatically send incoming signals to the correct destination.)
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: UniFi Controller software (The software that a product must have for it to be able to integrate with another product.)
- Additional Dimensions
- Height (Rack Units): 1U
- Dimensions

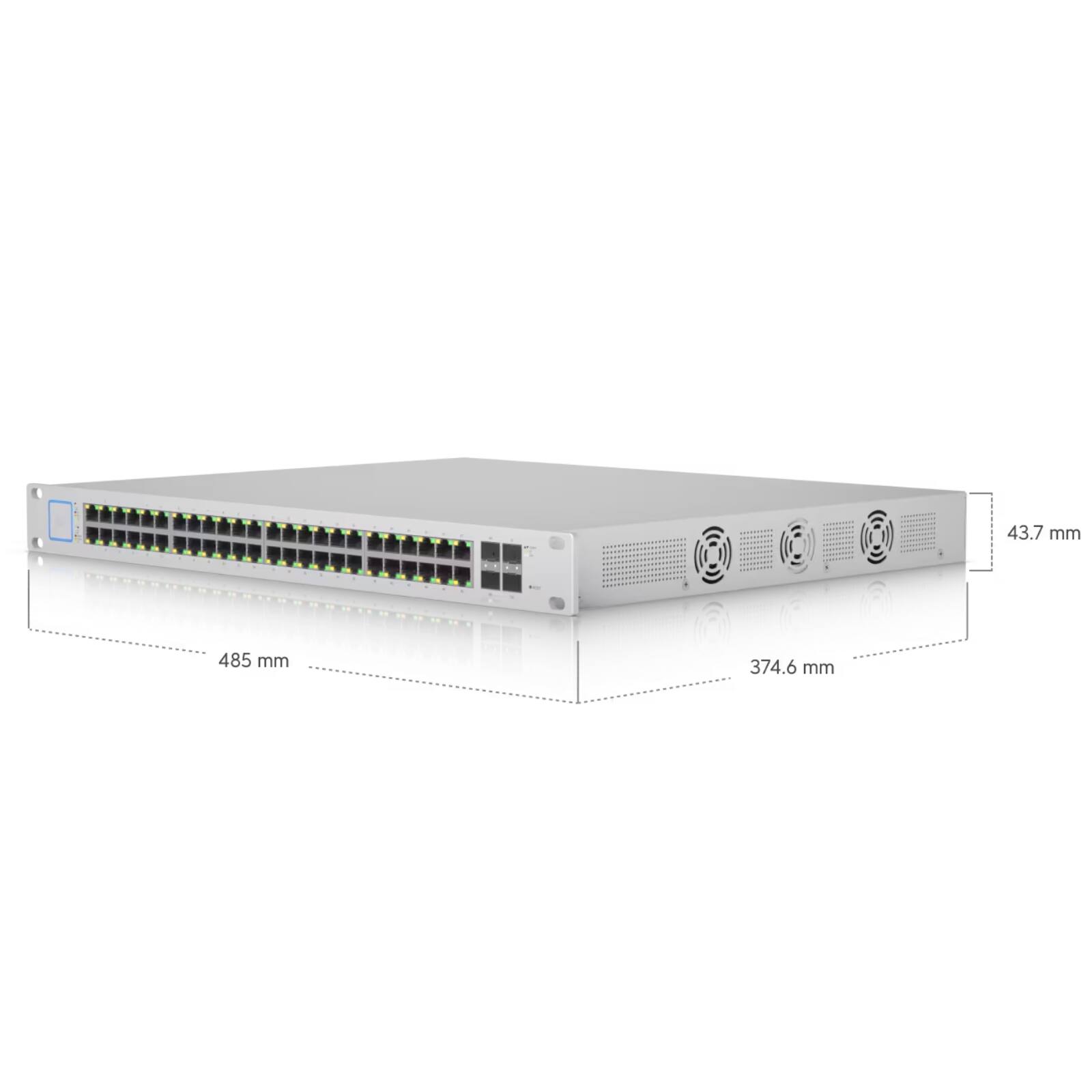

- Product Height: 1.72 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 14.75 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 19.09 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 13.45 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 810354020780
US-48-500W is a fully managed PoE+ gigabit switch designed for scalable business networks, enterprise wiring closets, and high-density UniFi deployments. It provides 48 gigabit RJ45 ports for wired clients and powered devices, plus fiber uplink flexibility with two 1/10 Gbps SFP+ ports and two 1 Gbps SFP ports for high-capacity aggregation and network expansion. The switch supports IEEE 802.3af/at PoE+ for powering compatible access points, cameras, and VoIP endpoints through standard Ethernet cabling. Built for high performance, it delivers 70 Gbps non-blocking throughput, 140 Gbps switching capacity, and a 104.16 Mpps forwarding rate to process traffic at line rate without packet loss. Configuration and monitoring are handled through the UniFi Controller software, enabling centralized switch management, VLAN configuration, port aggregation, port mirroring, spanning tree features, jumbo frame support up to 9216 bytes, storm control, SNMP monitoring, and per-port PoE settings. The rack-mountable chassis and internal power supply are designed for continuous operation in professional IT environments where reliability, manageability, and uplink performance are required.
- 48 Gigabit PoE+ Ports for Powered Devices: Provides 48 10/100/1000 Mbps RJ45 Ethernet ports with IEEE 802.3af/at PoE+ support for powering compatible access points, IP cameras, VoIP phones, and other PoE devices through standard Ethernet cabling. Designed for high-density deployments in business and enterprise networks.
- 10G SFP+ Uplinks Plus Additional SFP Ports: Includes two 1/10 Gbps SFP+ ports and two 1 Gbps SFP ports to support high-speed fiber uplinks, switch-to-switch aggregation, and network expansion. Ideal for connecting to core switches, servers, or network storage while keeping bandwidth available for heavy traffic environments.
- High-Performance Non-Blocking Switching: Built for line-rate forwarding with 70 Gbps non-blocking throughput, 140 Gbps switching capacity, and a 104.16 Mpps forwarding rate to handle simultaneous traffic across all ports with no packet loss. Supports reliable performance for growing networks with many connected endpoints.
- UniFi Controller Managed and Centrally Monitored: Fully managed using UniFi Controller software for centralized configuration and monitoring. Supports VLANs, port aggregation (LACP), spanning tree, port mirroring, jumbo frames up to 9216 bytes, storm control, SNMP, and per-port PoE settings, giving administrators complete control from a single interface.
- Rack-Mountable Design with Internal Power Supply: Rack-mountable metal chassis designed for professional network closets and server racks. Uses an internal AC/DC power supply with universal 100–240VAC input. Built for continuous operation with enterprise-ready reliability and management features for commercial and IT environments.
Whats Included
- UniFi Switch US-48-500W | Power Cord | (4) Mounting Screws | (4) Cage Nuts
