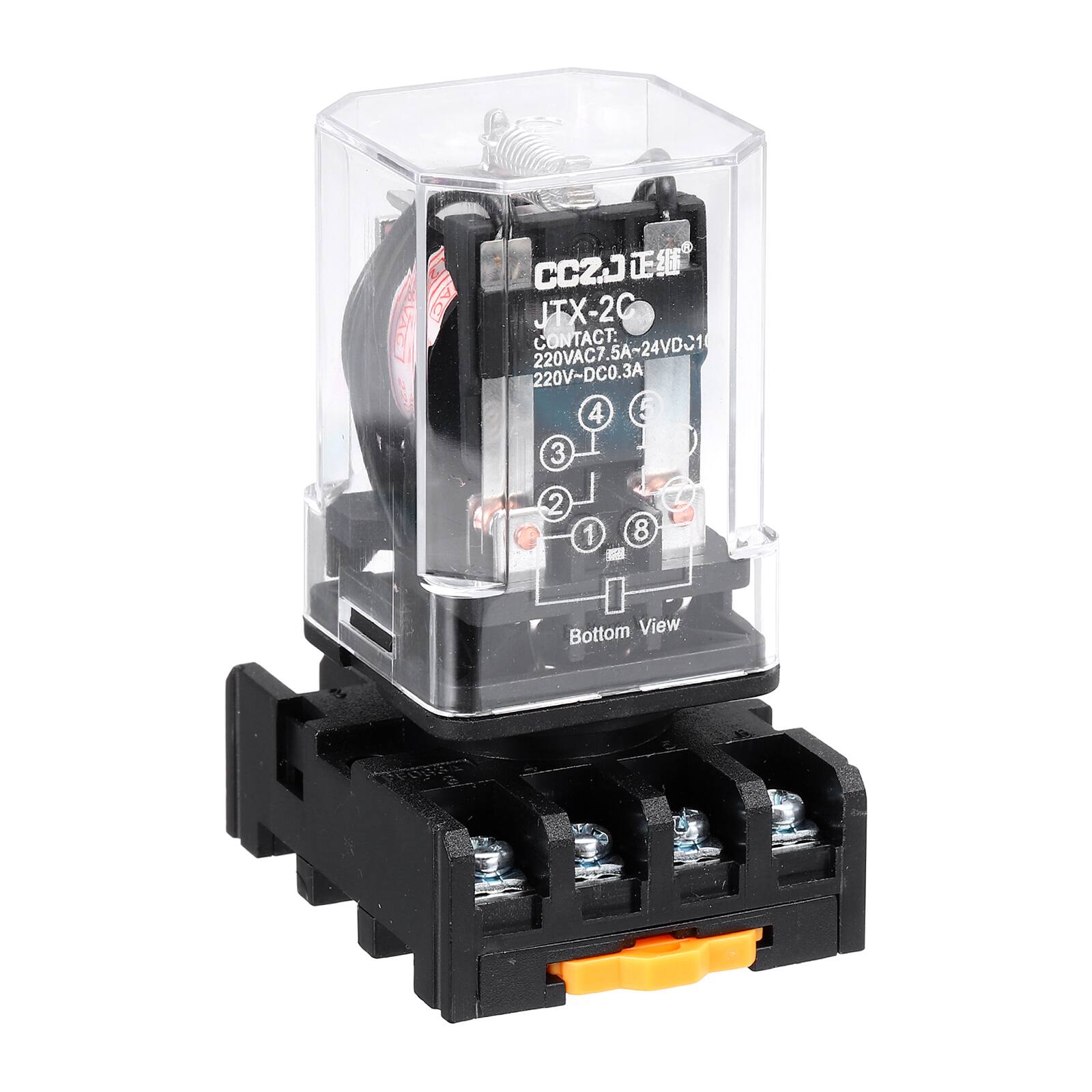

Unique Bargains - DPDT Electromagnetic Power Relay, DC 24V Coil 10A, 8 Pin MK2P-I Small Relay with Socket Base, 2NO/2NC JTX-2C - Black

DPDT Relay DC24V 10A 8Pin 2NO2NC MK2P-I

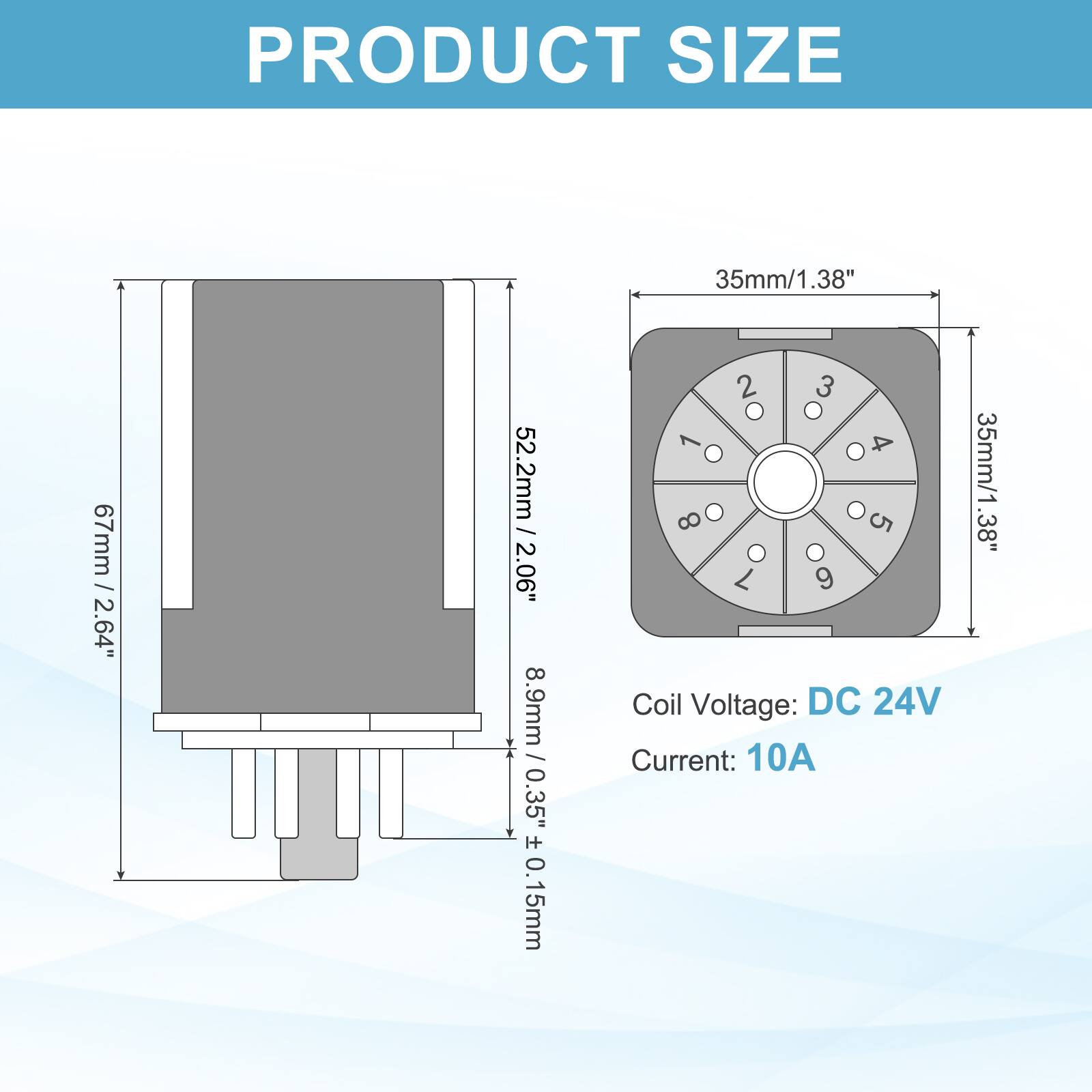

Electromagnetic Power Relay Style JTX-2C features DC 24V coil voltage and 10A current capacity. With 8 pin round terminals and 2NO+2NC contact configuration, it handles 220V AC 7.5A~24V DC 10A/220V~DC 0.3A loads. Relay dimensions: 67x52.2mm/2.64x2.06in. Includes mounting base (35x35mm/1.38x1.38in) with 8.9mm/0.35in pins (±0.15mm). Package: 1 Set (relay + socket base).

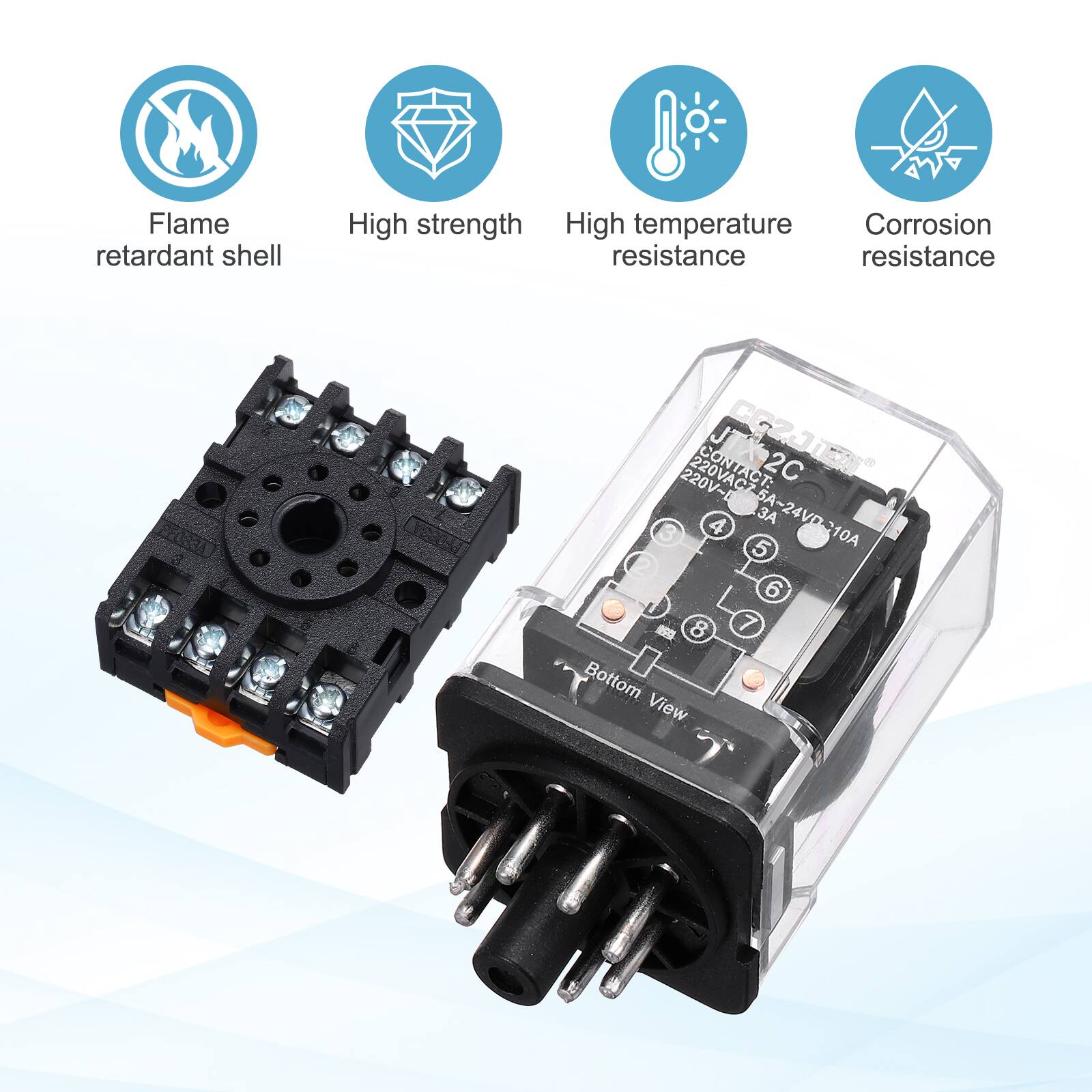

The shell of the small electromagnetic relay is made of selected good materials. It is transparent, moisture-proof, wear-resistant and high-temperature resistant, making it easy to observe the internal reasons.

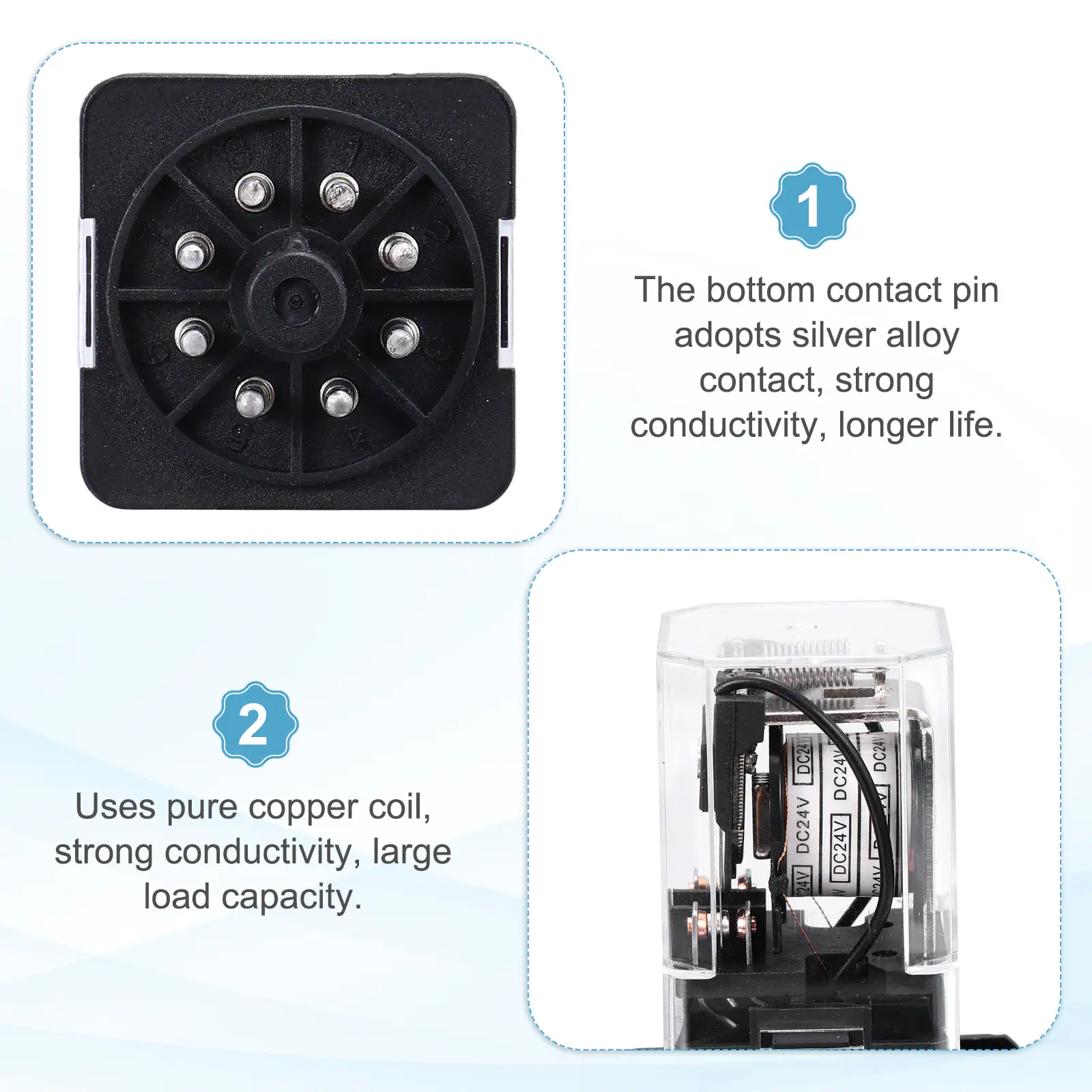

The all-copper coil and the electromagnetic coil with sufficient turns have reliable suction force, stable and efficient operation, and silver alloy contacts, which greatly enhance the conductivity of the product. It has a large load capacity and multiple specifications to meet your needs

Align the pins at the bottom of the relay with the base slots, and press vertically until the buckle locks

For optimal heat dissipation, maintain 5mm clearance between relays
