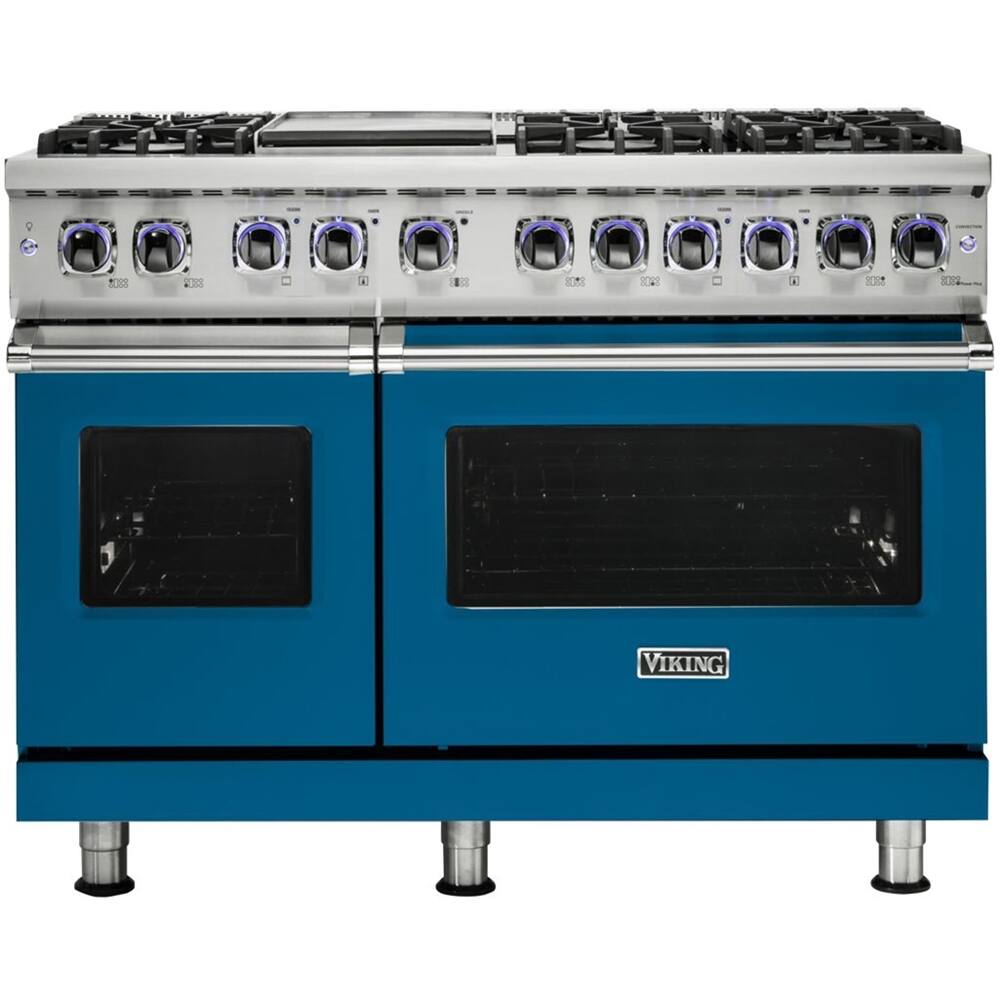

Viking - 48"W 7-Series Dual Fuel Self-Clean Range-6 Burners + Griddle - Alluvial Blue
Model: VDR74826GAB
SKU: 6390985
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Blue
- Product Height: 37 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 27 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VDR74826GAB
- Product Name: 48"W 7-Series Dual Fuel Self-Clean Range-6 Burners + Griddle
- Color: Alluvial Blue
- Color Finish: Blue
- Dimensions
- Product Height: 37 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 27 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 692 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 4.7 cubic feet
- Oven 2 Capacity: 2.6 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true
- Control Type: Backlit knob
- Oven Control Location: Front panel
- Oven Light: true
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: Convert to LP with Kit LPKVGR., LP conversion by experienced servicer.
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection, Bake, Broil, Dehydrate, Defrost
- Oven Settings: Time Bake
- Oven Features
- Convection Type: Single-fan (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Oven 1
- Oven 1 Location: Right
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Racks: 3
- Number of Oven 1 Rack Positions: 6
- Oven 2
- Oven 2 Location: Left
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Racks: 2
- Number of Oven 2 Rack Positions: 6
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Burners: 6
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Elevation, griddle (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: true
- Griddle Type: Reversible (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Burner 1 Rating: 23000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 23000 british thermal units
- Burner 3 Rating: 23000 british thermal units
- Burner 4 Rating: 15000 british thermal units
- Burner 5 Rating: 15000 british thermal units
- Burner 6 Rating: 8000 british thermal units
- Total Maximum BTU Rating: 122000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical
- Amperage: 37.3 amperes (Strength of electrical current.)
- Voltage: 208 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: false
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: NA (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284030164
Handle weeknight meal prep with this Alluvial Blue Viking Professional 7 Series dual-fuel range. The six sealed burners let you prepare multiple dishes simultaneously, while the continuous grate supports easy movement of cookware across the cooktop. This Viking Professional 7 Series dual-fuel range features two ovens so you can bake and roast at the same time.
- 6 cooktop burners: Provide between 8,000 and 23,000 BTUs to meet various cooking requirements.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- Accommodates multiple courses simultaneously: 4.7 cu. ft. oven lets you cook for a large group in less time.
- Cook pancakes, eggs, grilled sandwiches and other foods: The reversible griddle/grill lets you prepare a variety of foods and can be removed for easy cleanup.
- Interior oven light: Lets you keep an eye on food being cooked without opening the oven door and letting heat escape.
- Alluvial blue color: Match your existing décor with this color.
- Safety features: Include SureSpark reignition system.
- 6 cooktop burners: Provide between 8,000 and 23,000 BTUs to meet various cooking requirements.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Self-cleaning oven: Conveniently eliminates the need to scrub by doing the cleaning for you.
- Accommodates multiple courses simultaneously: 4.7 cu. ft. oven lets you cook for a large group in less time.
- Cook pancakes, eggs, grilled sandwiches and other foods: The reversible griddle/grill lets you prepare a variety of foods and can be removed for easy cleanup.
- Interior oven light: Lets you keep an eye on food being cooked without opening the oven door and letting heat escape.
- Alluvial blue color: Match your existing décor with this color.
- Safety features: Include SureSpark reignition system.
Whats Included
- Viking Professional 7 Series VDR74826GAB
- 3 Tru-Glide Racks
- Island Trim
- Viking Professional 7 Series VDR74826GAB
- 3 Tru-Glide Racks
- Island Trim
Product Manuals
Q: What type of cooktop surface does this range have?
A: The cooktop surface of this Viking range is made of Porcelain. The context mentions "Cooktop Surface Material: Porcelain".
Q: Does this range come with a griddle?
A: Yes, this Viking range comes with a reversible griddle/grill. The griddle can be removed for easy cleanup. The context mentions "reversible griddle/grill" and "Griddle burner rating".
Q: What is the amperage required for this range?
A: The maximum amperage required for this Viking range is 43.0 amps at 240V. This information can be found in the "Electrical requirements" section of the product description.
Q: What is the product weight of this range?
A: The product weight of the 48"W 7-Series Dual Fuel Self-Clean Range-6 Burners + Griddle by Viking is 692 pounds.
Q: What is the depth of this range with the handle?
A: The depth of the range with the handle is 30 inches (76.2 cm). This measurement is taken from the rear of the range to the end of the door handle.
Q: What is the width of this range?
A: The width of the 48"W 7-Series Dual Fuel Self-Clean Range-6 Burners + Griddle by Viking is 47-7/8” (121.6 cm).
A: Yes, the griddle is reversible. The context states that "The reversible griddle/grill lets you prepare a variety of foods and can be removed for easy cleanup."
Q: What is the frequency required for this range?
A: The electrical requirement for this Viking range is 120 VAC/60 Hz.
