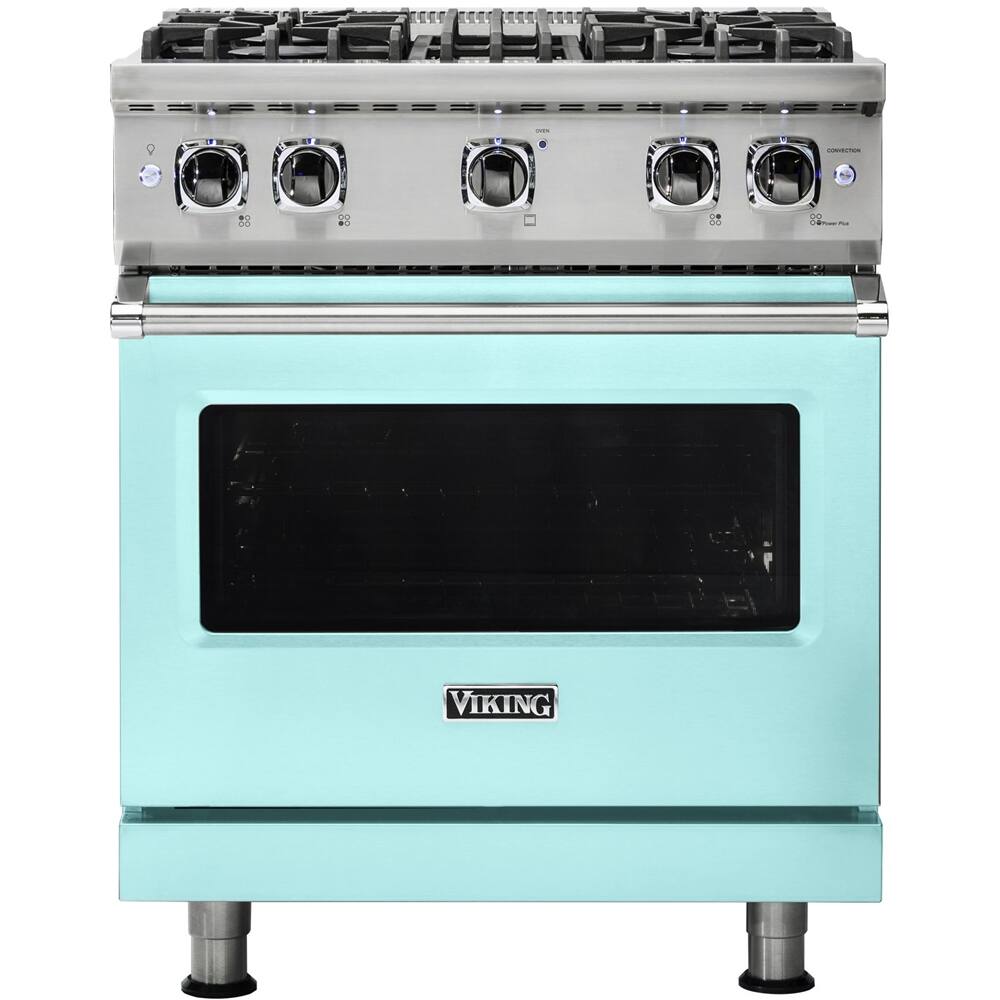

Viking - Professional 5 Series 4.0 Cu. Ft. Freestanding Gas Convection Range - Bywater Blue
- Key Specs
- Color Finish: Blue
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VGR5304BBW
- Product Name: Professional 5 Series 4.0 Cu. Ft. Freestanding Gas Convection Range
- Color: Bywater Blue
- Color Finish: Blue
- Vendor Collection: Viking 5 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 410 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 4 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Soft Close Door: true
- Control Type: Knob
- Oven Control Location: Front panel
- Oven Light: true
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: Convert to LP with Kit LPKPDR., LP conversion by experienced servicer.
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection
- Oven Settings: Time Bake, Broil, Convection
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): VSH Pro sealed (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Burner Rating
- Burner 1 Rating: 15000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 15000 british thermal units
- Burner 3 Rating: 15000 british thermal units
- Burner 4 Rating: 15000 british thermal units
- Broiler Burner Rating: 18084 british thermal units
- Total Maximum BTU Rating: 108500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: false
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: 0 (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284024835
Prepare meals quickly with this Viking Professional 5 Series 30-inch gas range. The porcelainized cooking surface has raised edges that contain spills making cleaning easy, while the ProFlow Convection baffle feature ensures even distribution of heat for perfect baking results. This Viking Professional 5 Series 30-inch gas range has a SureSpark system that ignites the burners in case they go out when cooking.
- 4 cooktop burners: To meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Prevents spills from spreading: Sealed burner eliminates the space between the burner and the cooktop.
- Accommodates multiple courses simultaneously: 4.0 cu. ft. oven lets you cook for a large group in less time.
- Safety features: Include SureSpark reignition system.
- 4 cooktop burners: To meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Prevents spills from spreading: Sealed burner eliminates the space between the burner and the cooktop.
- Accommodates multiple courses simultaneously: 4.0 cu. ft. oven lets you cook for a large group in less time.
- Safety features: Include SureSpark reignition system.
Whats Included
- Viking Professional 5 Series VGR5304BBW
- Regular Rack
- 2 Tru-Glide Racks
- Island Trim
- Viking Professional 5 Series VGR5304BBW
- Regular Rack
- 2 Tru-Glide Racks
- Island Trim
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: Does this range have a digital display or traditional knob controls?
A: This Viking Professional 5 Series gas range features traditional BlackChrome knobs for precise temperature adjustments, rather than a digital display. The product description mentions "This Viking 5 Series gas range has BlackChrome knobs that let you make precise temperature adjustments." Therefore, the range has traditional knob controls.
A: The sealed burner design prevents spills from spreading by eliminating the gap between the burner and the cooktop, containing spills for easy cleanup. This design enhances the overall cooking experience by providing a safer and more efficient cooking surface, reducing the risk of spills and making cleanup more convenient.
Q: What is the oven capacity of this range compared to other models in its class?
A: The Viking Professional 5 Series 4.0 Cu. Ft. Freestanding Gas Convection Range has a larger oven capacity compared to other models in its class. It offers a spacious 4.0 cubic feet of oven space, allowing users to cook large meals and accommodate multiple dishes simultaneously. This increased capacity is particularly useful for preparing family-sized meals or entertaining guests.
Q: How many burners does this range have, and what are their respective heat outputs?
A: This Viking Professional 5 Series range features four burners with varying heat outputs. The left front, left rear, and right rear burners each deliver 15,000 BTUs of heat, while the right front burner is a powerful 18,500 BTU burner.
Q: What safety features does this Viking range include?
A: The Viking range includes several safety features such as the SureSpark reignition system for consistent ignition, automatic re-ignition for all burners, and a porcelain-enamel cooktop surface for durability. Additionally, it has an anti-tip device to prevent the range from tipping over, ensuring user safety.
Q: Does this range require manual cleaning, or does it have a self-cleaning function?
A: The Viking Professional 5 Series 4.0 Cu. Ft. Freestanding Gas Convection Range requires manual cleaning. While it has a porcelain-enamel cooktop surface for easy cleaning, the oven cleaning method is specified as "Manual cleaning" in the product specifications.
Q: What type of gas is required for this range, and can it be converted to use propane?
A: This Viking Professional 5 Series range is designed to use natural gas. However, it can be converted to use propane with the purchase and installation of the optional Propane Kit Model LPKPDR.
Q: Can this range accommodate multiple dishes at once, and if so, how many?
A: Yes, this Viking range can accommodate multiple dishes at once. It has a 4.0 cu. ft. oven with six rack positions, allowing you to cook several dishes simultaneously.
