Vortex - 15x56 Diamondback HD Binocular DB-218 - Green
FREE shipping to
- General
- Brand: Vortex
- Model Number: DB-218
- Product Name: Vortex 15x56 Diamondback HD Binocular DB-218 (Green)
- Color: Green
- Imaging
- Magnification: 15 times
- Objective Lens Diameter: 56 millimeters (Generally, the larger the diameter of the objective lens, the greater the light-collecting power and the brighter images will appear.)
- Field of View at 1000 yards: 230 feet (The area of a target, measured horizontally from the location of viewing, that can be observed.)
- Angular Field Of View (Real/degree): 63 degrees (Measurement of the angle of the visible field seen through the lens (without magnification). The greater the number, the wider the area that can be viewed.)
- Features
- Size: Full Size
- Prism Type: Roof (Prisms ensure the proper horizontal and vertical orientation of the view. There are two main types: roof and Porro. Roof prisms, typically more expensive than the alternative, have a more streamlined design due to their glass elements being in line with one another. Porro prisms, though they contribute to a larger form factor, typically provide a wider field of view than roof prisms.)
- Lens Coating: Fully Coated (Chemical coatings on a lens reduce reflective light loss and improve light transmission. The different coating levels indicate the number of anti-reflective layers and the lens surfaces to which they're applied, ranging from coated (the most basic) to fully multi-coated (typical of high-end optics).)
- Focus System: Center (The most common binocular focusing system is center focus, which features a centered wheel or lever (InstaFocus) between the barrels, and usually additional diopter adjustment. Individual focus binoculars allows each eyepiece to be adjusted independently.)
- Dimensions
- Product Height: 4.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 Year Manufacturer Warranty
- Warranty - Labor: 1 Year Manufacturer Warranty
- Other
- UPC: 875874007420
Vortex 15x56 Diamondback HD Binoculars. The Vortex 15x56 Diamondback HD Binoculars are engineered for superior long-range and low-light performance, ideal for open, expansive terrain. Featuring oversized 56mm extra-low dispersion (ED) high-definition (HD) lenses, dielectric-coated and phase-corrected roof prisms, and proprietary multicoatings, these binoculars deliver exceptionally bright, crisp, and true-color images across the entire field of view with minimal distortion or color fringing. The ArmorTek exterior lens coating repels water, oil, and dirt to maintain optical clarity and prevent scratches. The lightweight magnesium alloy chassis, wrapped in protective rubber armor, offers a slip-resistant grip and excellent durability. Ergonomic enhancements, such as raised palm pads and thumb indents, ensure stable, comfortable handling during extended observation sessions. Argon-filled and O-ring sealed, the binoculars are fully waterproof and fog-proof, ensuring reliable performance in extreme environments. Given their powerful 15x magnification and 56mm objectives, Vortex recommends tripod mounting to eliminate hand shake and arm fatigue; a Uni-Daptor tripod adapter is included. A GlassPak harness system distributes weight evenly across the shoulders for comfortable all-day carry, while the included case provides added protection. Optical Performance includes 15x magnification for detailed distant observation, large 56mm objective lenses for bright, clear images, roof prism design for compact durability, dielectric and phase-correcting coatings for enhanced color fidelity and contrast, ED HD glass to minimize chromatic aberrations and improve sharpness, fully multicoated optics to boost light transmission, ArmorTek coatings to protect against scratches, oils, and debris, wide 65.4° apparent angle of view to reduce image vibration effects, and 230 ft. field of view at 1000 yards. Use & Handling features a short bridge design for stability, large textured focus wheel for easy adjustments, interpupillary distance 59–76mm, twist-up soft rubber eyecups for comfort with or without glasses, 15.6mm eye relief to reduce eyestrain, and 3.7mm exit pupil. Construction Details include a magnesium alloy body that is lightweight yet rugged, rubber armor for secure grip, waterproof and fog-proof design with argon gas and O-ring seals, slim Uni-Daptor tripod adapter, GlassPak harness and case for comfortable field carry, and tethered lens caps with Rainguard to protect lenses. MPN: DB-218 UPC: 875874007420
- Wide 64.5° Apparent Angle of View: Wide 64.5° Apparent Angle of View – Expands the scene for detailed wide-angle shots.
- Powerful 15x Magnification for Distant Detail: Powerful 15x magnification, allowing detailed observation and identification of distant subjects
- Scratch-Resistant ArmorTek Lens Coating: Scratch-resistant ArmorTek exterior lens coatings repel oils and corrosive materials from lenses to keep views clear without residue
- Adjustable 59-76mm Interpupillary Distance: 59-76mm interpupillary distance range accommodates users of all sizes
- Waterproof & Fogproof with Argon Fill and O-Ring Seals: Argon filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperatures and environmental conditions
Whats Included

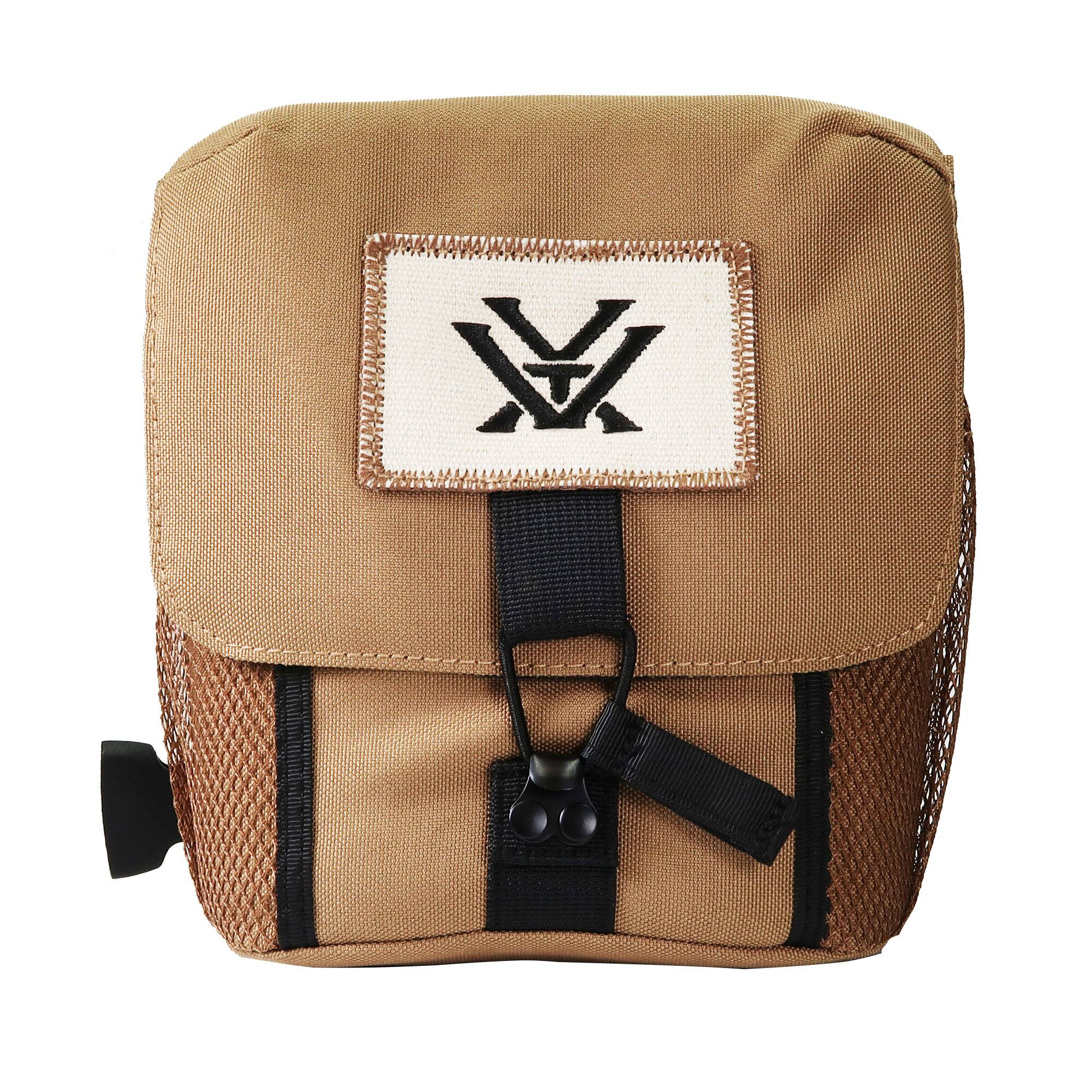

- Binoculars, Rainguard Eyepiece Covers, Objective Lens Covers, Deluxe Carry Case, Case Strap, Neck Strap and Paperwork
