Wavtech - link300.4mini - 300 Watt 4-Channel Amplifier - Black/Gray
Wavtech - link300.4mini - 300 Watt 4-Channel Amplifier - Black/Gray
Reviews coming soon
FREE shipping to
Specifications
- Amplifier ClassDNumber Of Channels4Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Wavtech
- Model Number: link300.4mini
- Product Name: Wavtech link300.4mini - 300 Watt 4-Channel Amplifier
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 300 watts
- Total Power Handling Maximum: 600 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 3.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.000 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.300 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.2 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 700987201468

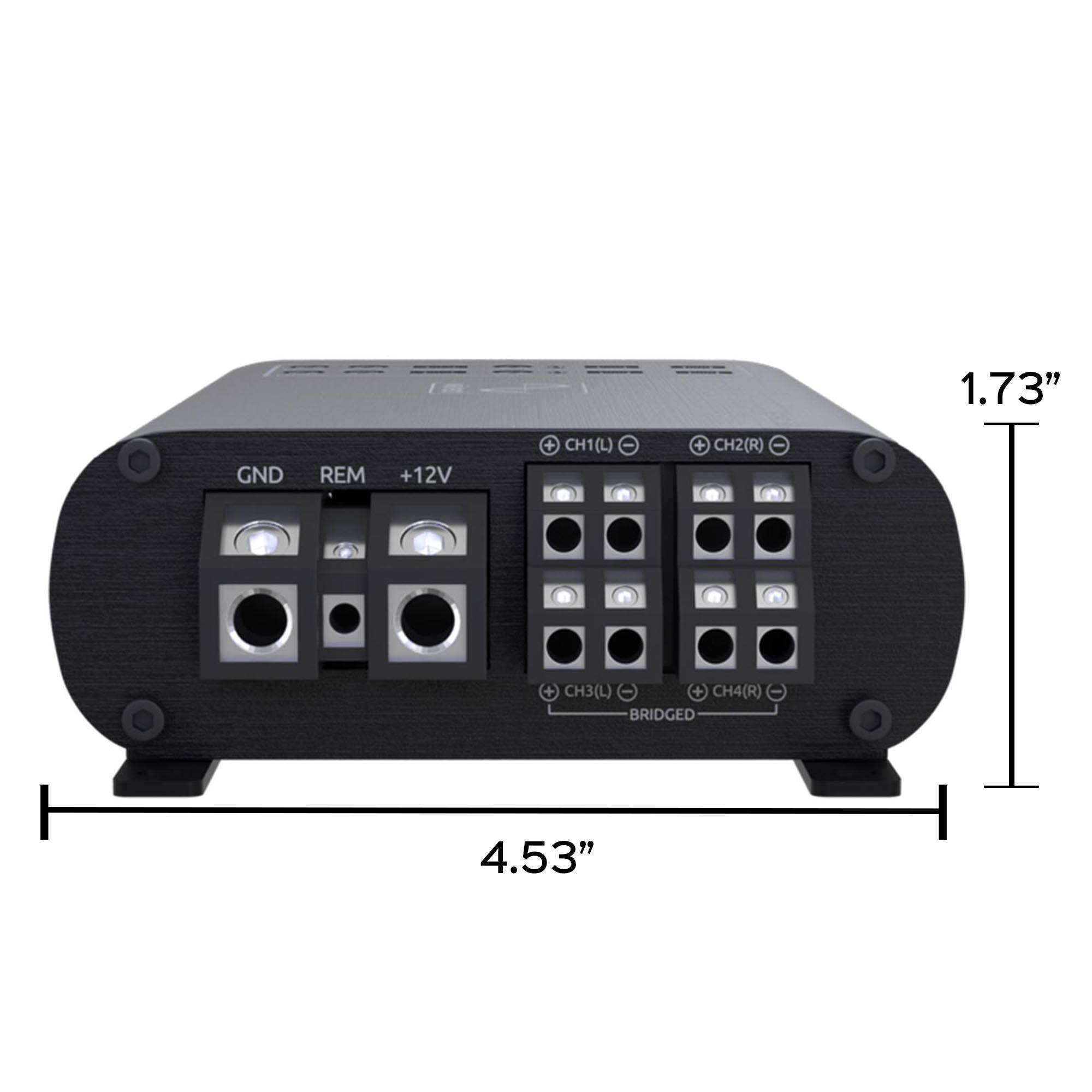

The link300.4mini is in a class by itself. The most obvious thing is its extremely small size, but don’t Iet that fool you. Unlike most small footprint amplifiers, the link300.4mini is bridgeable. It can easily drive a nice set of components as well as a subwoofer. The link300.4mini has Wāvtech’s best in class LOC, with built-in loading and the ability to handle up to 40V of hi-level input. Perhaps the most unique feature is the built-in summing. For factory audio systems that don’t have a full range signal, the link300.4mini can handle that internally, so no additional processor is required. The level trim adjustment allows for fine tuning the output of each pair of channels. As if all of that isn’t enough, the link300.4mini is compatible with OEM start/stop systems as well. link300.4mini Features 300 Watt 4-Channel Amplifier 50 watts x 4 @ 4 ohms 75 watts x 4 @ 2 ohms 150 watts x 2 @ 4 ohms BTL Small Footprint Only 6.4”x4.5”x1.65” Variable Hi/Low Pass Crossover (-12dB/oct) Built-In Summing w/Level Trim Adjustment Start/Stop Sytem Compatible Differential Balanced Inputs Variable Gain Adjustment w/Clip LED Auto Turn-On via DC-Offset or Audio Signal Detect Adaptive OEM Load Technology Locking Detachable Hi-Level Speaker Terminals Professional Grade Panel Mount RCA’s Compact Aluminum Chassis w/Detachable Mounting tabs link300.4mini Specifications Input Sensitivity SPK: 1-20Vrms, 2-40Vrms RCA: 0.2V-5Vrms, 0.4V-10Vrms Max Input Voltage (SPK): 40Vrms Frequency Response: 45kHz (+0/-3dB) THD+N: <1% at rated power S/N: >80dBA (1W, 4Ω)
- Key Feature: The link300.4mini is a compact 300 Watt 4-channel amplifier, measuring only 6.4”x4.5”x1.65”, making it ideal for tight spaces.
- Key Feature: It features bridgeable output, delivering up to 150 watts at 4 ohms BTL, perfect for driving components and a subwoofer simultaneously.
- Key Feature: Equipped with built-in summing and level trim adjustment, this amplifier can manage factory audio systems without requiring additional processors.
- Key Feature: The link300.4mini is compatible with OEM start/stop systems and includes features like auto turn-on and differential balanced inputs for ease of use.
- Key Feature: Its professional-grade aluminum chassis features detachable mounting tabs and locking detachable hi-level speaker terminals for secure installation.
Whats Included
- Wavtech link300.4mini - 300 Watt 4-Channel Amplifier
