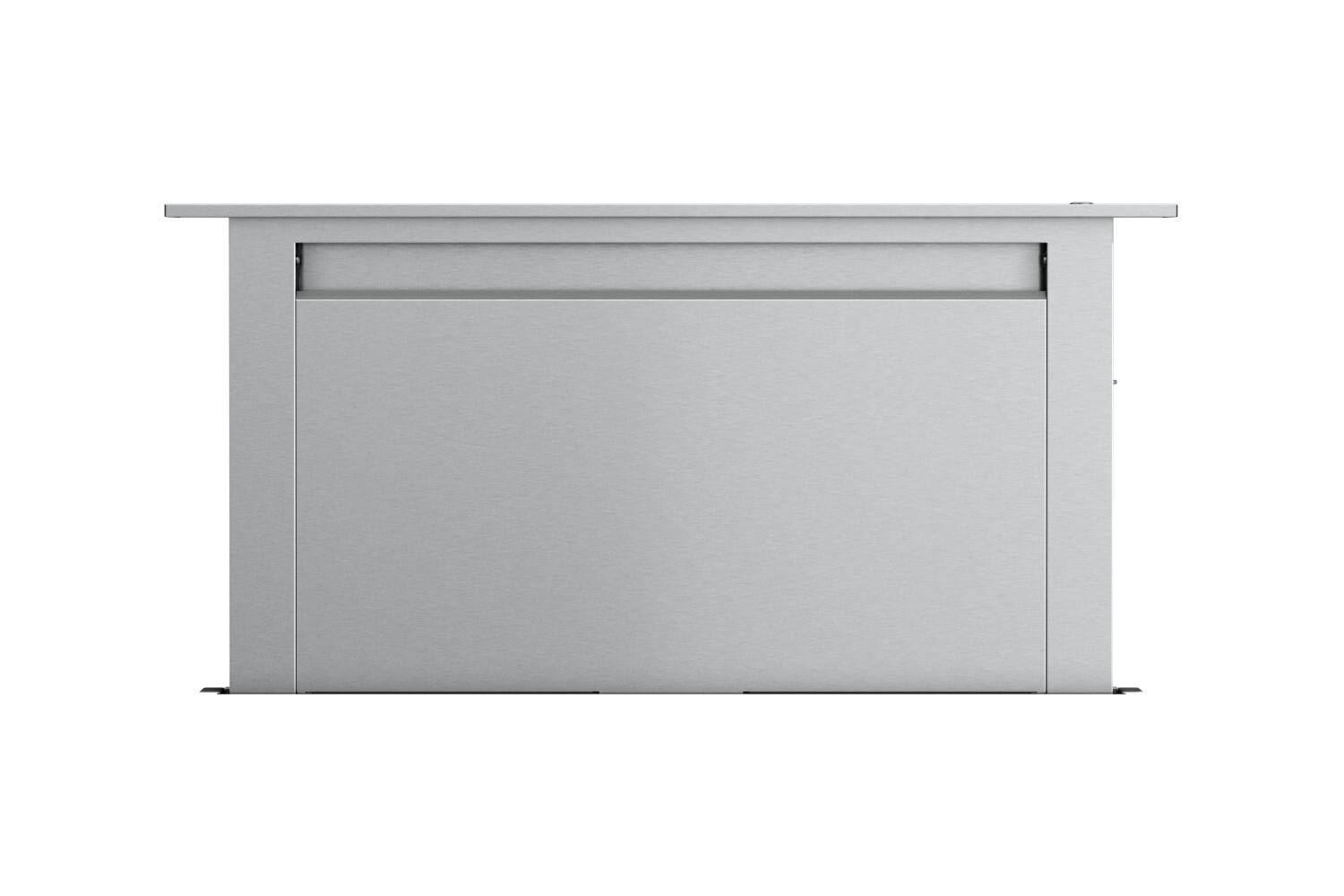

Zephyr - 30 inches - Convertible - Downdraft Range Hood - Stainless Steel
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Specifications
- Product Height14 inchesProduct Width30 inchesProduct Depth2.5 inchesExhaust Vent LocationRearVent TypeDuctedVent StyleConvertible
- Key Specs
- Product Height: 14 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: ZTV-E30AS
- Product Name: Treviso 30 in. 600 CFM Telescopic Downdraft System with Single Blower
- Color: Stainless Steel
- Dimensions
- Product Height: 14 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 54.7 pounds (The out of box weight of the item.)
- Features
- Exhaust Vent Location: Rear
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Downdraft
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Damper Included: false
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 2 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Electrical Specification
- Amperage: 3.2 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328012693
The Treviso Downdraft is chic, simple, and simply spectacular. Out of sight when not in use for those coveted open kitchen sightlines, this one-and-done hidden downdraft has everything you need, and nothing you dont. A sleek, efficient louver makes this a very visually pleasing solution for nearly any kitchen.
- 14" Chimney Rise: Sleek and unobtrusive 14-inch chimney rise with stainless steel body.
- 3-Way Ducting: Gives you the flexibility to vent left, right, and down to accommodate your ducting needs.
- Reversible Blower Housing: Enables blower installation on the back of the downdraft to accommodate multiple cooking appliance configurations.
- Mechanical Slide Controls: 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- Auto On/Off Feature: Automatically turns on or off when raising or lowering the air vent if control knob is turned on.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional ADA-Compliant Remote Up/Down Remote Control: Optional up/down remote control. The convenient, accessible up/down remote control should be used when your cooktop has a burner that is within 4 inches of the up/down button on the downdraft chimney or can be used for general operation of the downdraft.
- 14" Chimney Rise: Sleek and unobtrusive 14-inch chimney rise with stainless steel body.
- 3-Way Ducting: Gives you the flexibility to vent left, right, and down to accommodate your ducting needs.
- Reversible Blower Housing: Enables blower installation on the back of the downdraft to accommodate multiple cooking appliance configurations.
- Mechanical Slide Controls: 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- Auto On/Off Feature: Automatically turns on or off when raising or lowering the air vent if control knob is turned on.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Optional Ductless Recirculating Kit: Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional ADA-Compliant Remote Up/Down Remote Control: Optional up/down remote control. The convenient, accessible up/down remote control should be used when your cooktop has a burner that is within 4 inches of the up/down button on the downdraft chimney or can be used for general operation of the downdraft.
Whats Included
- Treviso 30 in. 600 CFM Telescopic Downdraft System with Single Blower in Stainless Steel
- Treviso 30 in. 600 CFM Telescopic Downdraft System with Single Blower in Stainless Steel
Q: How many fan speeds does the downdraft system have?
A: The downdraft system has 3 fan speeds.
Q: Does the Zephyr Treviso downdraft system come with a ductless recirculating kit?
A: The ductless recirculating kit is optional and can be used if venting air outside is not possible.
Q: Does this Zephyr downdraft system have a delay shut-off feature?
A: No, the Zephyr downdraft system does not have a delay shut-off feature.
Q: What is the maximum airflow capacity of this downdraft system?
A: This downdraft system has a maximum airflow capacity of 600 cubic feet per minute.
Q: Can the blower on this downdraft system be reversed?
A: Yes, the blower housing is reversible and can be installed on the back to accommodate different appliance configurations.
Q: What type of ducting options are available for this downdraft system?
A: This downdraft system offers 3-way ducting, allowing you to vent left, right, or down.
Q: can this downdraft be used with a slide in range
A: Hello, The ZTV-E30AS would work with a slide in range, as the blower motor is able to be located on the "front" or the "back" of the unit. Please reach out directly to Zephyr Product Support: [email protected] or call 888-880-8368 for further help. Thank you for your inquiry! -Zephyr
