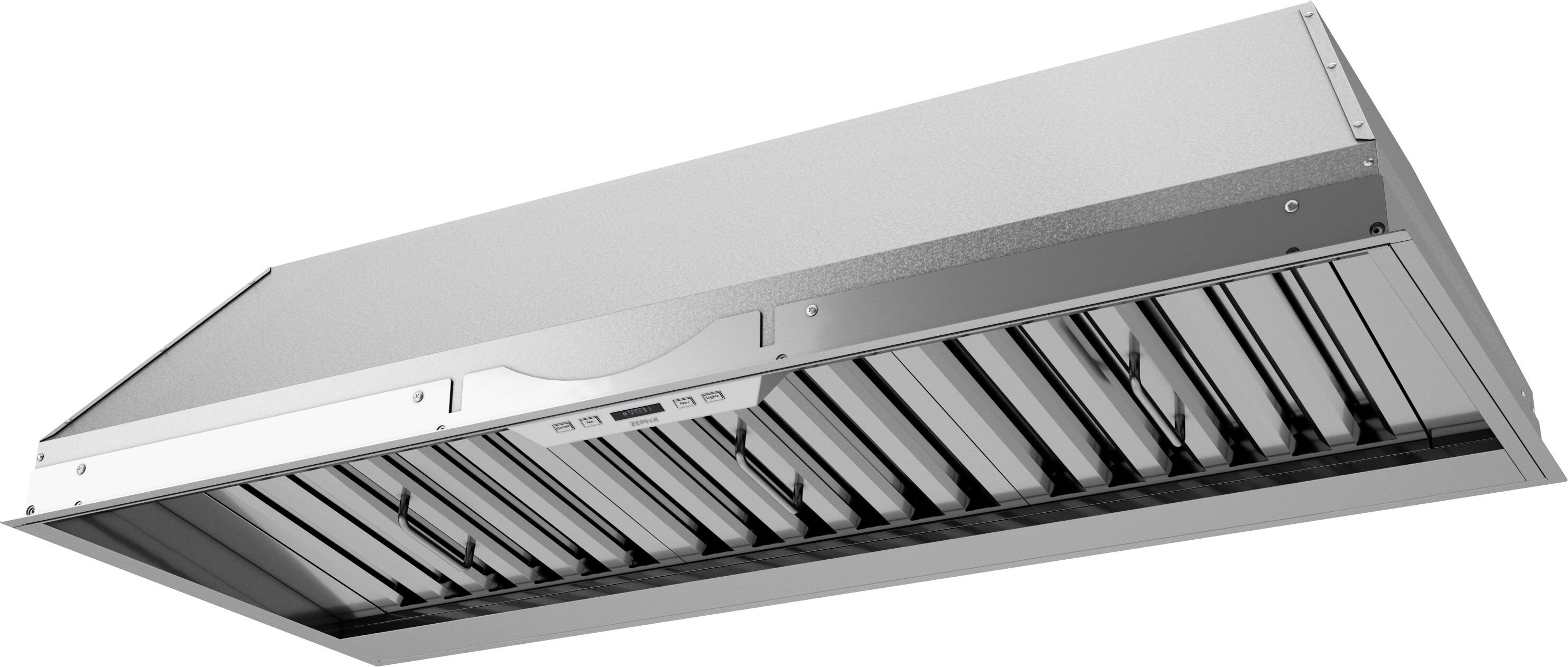

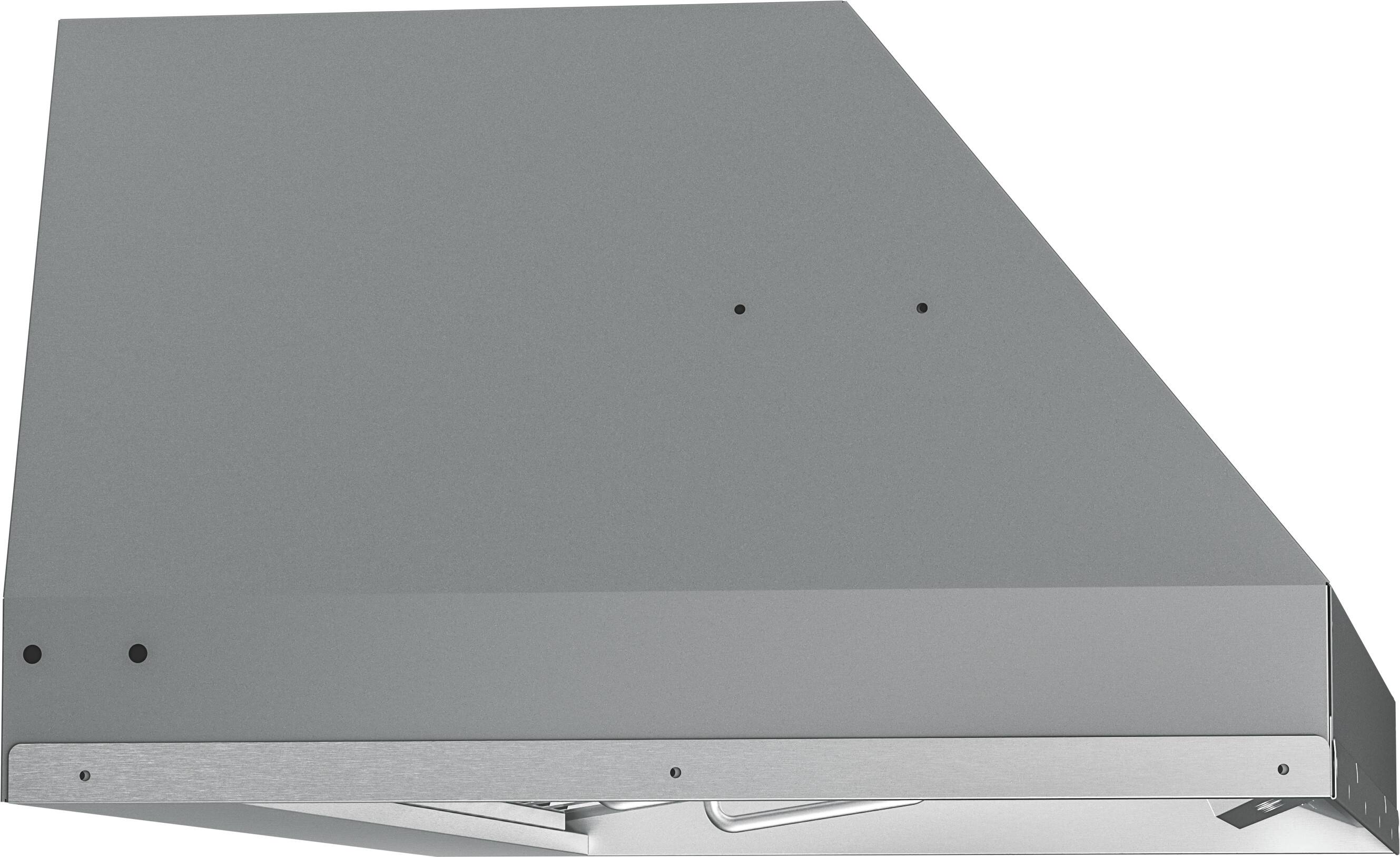

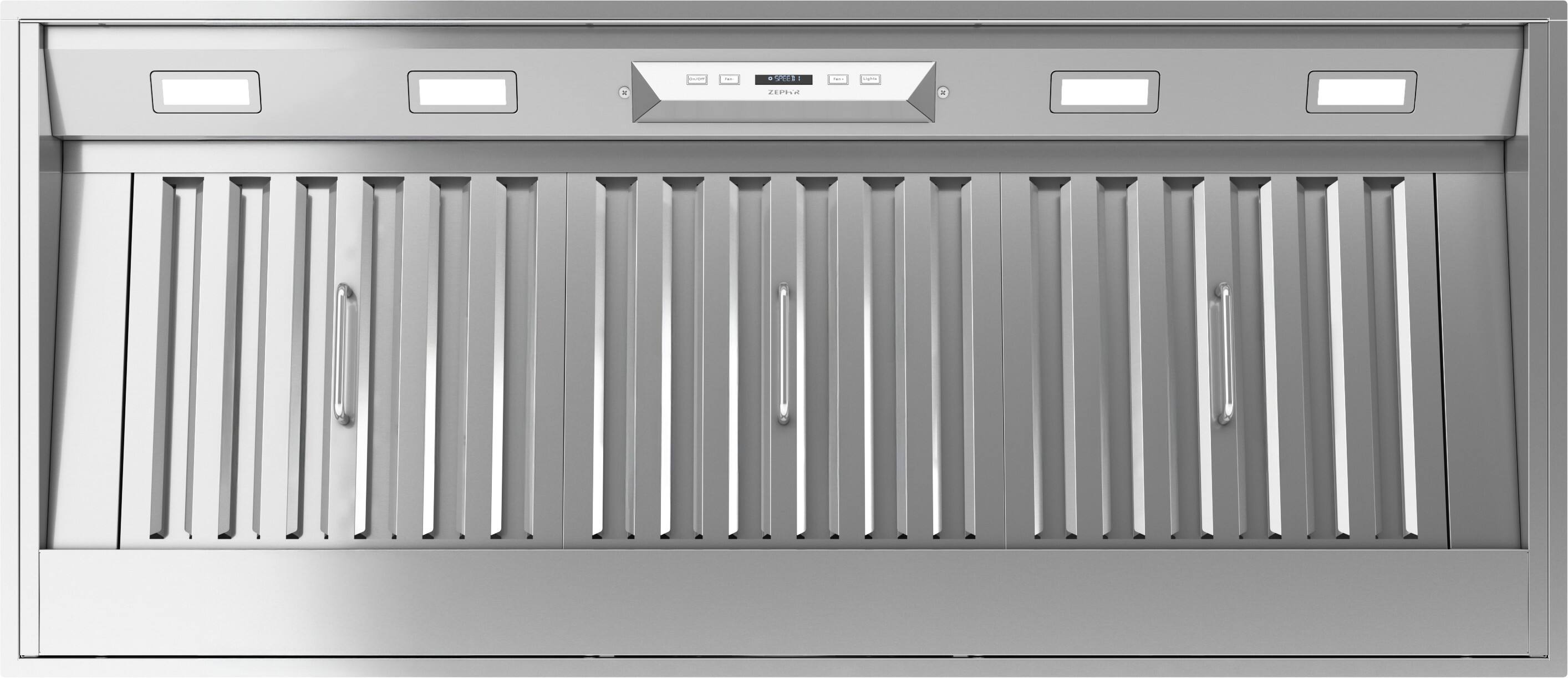

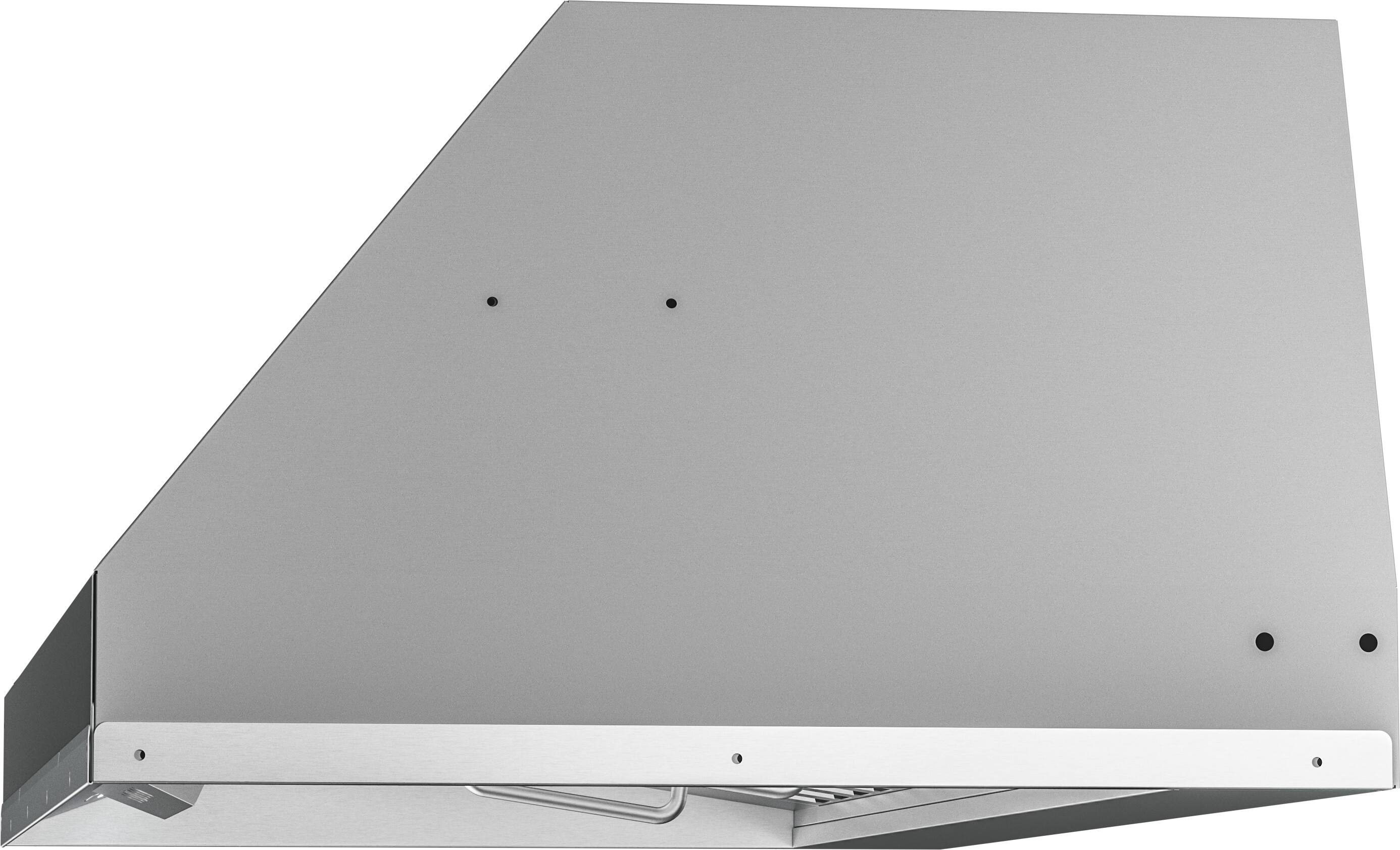

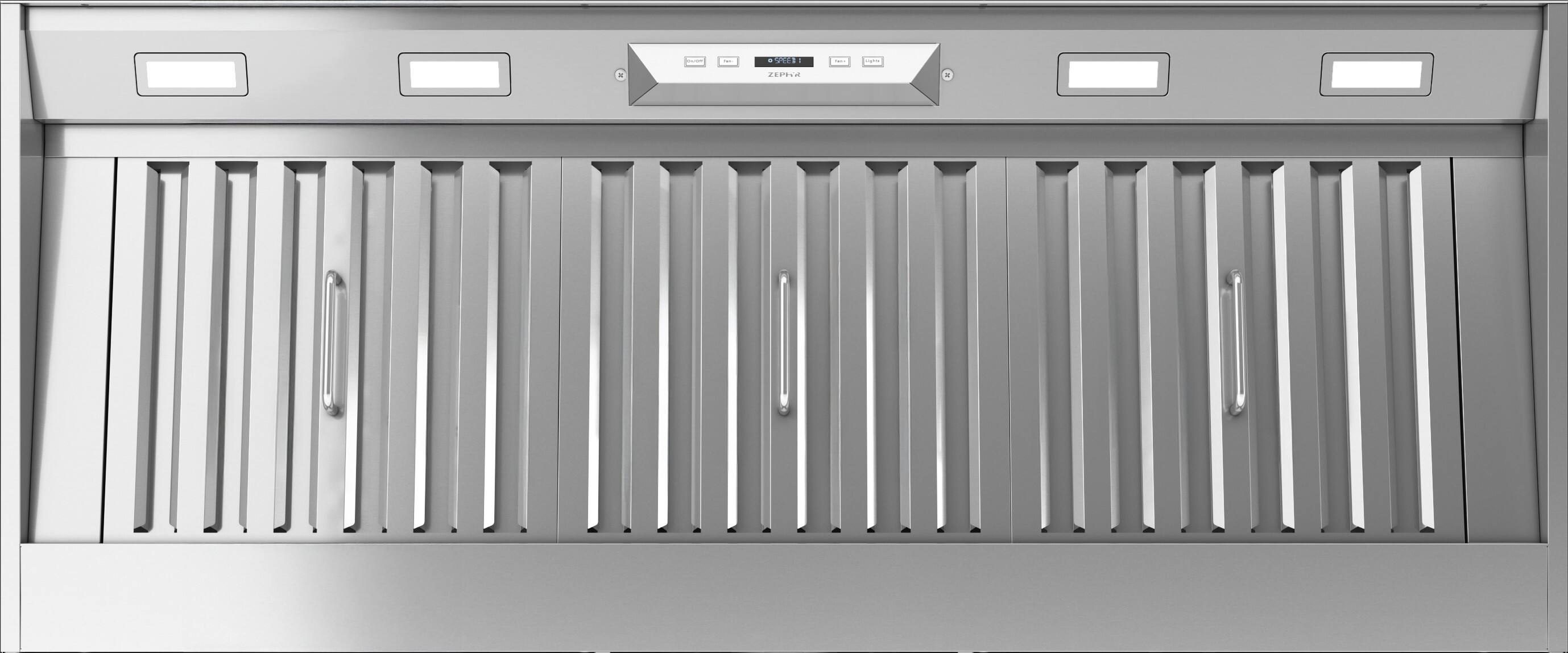

Zephyr - 48 inches - Externally Vented & Externally Vented - Range Hood Insert - Stainless Steel
Zephyr - 48 inches - Externally Vented & Externally Vented - Range Hood Insert - Stainless Steel
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Product Height12 inchesProduct Width46.3125 inchesProduct Depth19.3125 inchesExhaust Vent LocationTop/RearVent TypeDuctedVent StyleExternal, External
- Key Specs
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46.3125 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.3125 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External, External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK9246CS
- Product Name: Monsoon I 48 in. 650 CFM Insert Mount Range Hood with LED Light
- Color: Stainless Steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 24 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46.3125 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.3125 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 52.8 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Cut-Out Dimensions
- Cut-Out Width: 46.625 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19.5 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External, External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 5
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: LCD
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: true
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 650 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 8 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical
- Amperage: 5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 1 year
- Other
- UPC: 646328013560
Monsoon I has taken the one-piece liner to the next level. Featuring dual-level LumiLight LED lighting with TruHue that lets you customize the ambiance from warm to cool (2700K to 5000K) with just a touch. An ADA-compliant wireless remote allows you to easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with new 5-speed electronic LCD controls, pro baffle filters, our exclusive ACT technology and either a powerful 600-CFM blower (30 and 36 models) or a 1,200-CFM blower (42 and 48 models).
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting with TruHue: A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.
- Optional Dual Internal Blower Kit Available: Optional dual internal blower kit available to fit your application. (PBD-1200B)
- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Optional Wireless Remote Control (RC-0002): ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- TempGuard: TempGuard is a built-in safety feature that turns on the fan if excessive heat is detected.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting with TruHue: A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.
- Optional Dual Internal Blower Kit Available: Optional dual internal blower kit available to fit your application. (PBD-1200B)
- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Optional Wireless Remote Control (RC-0002): ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- TempGuard: TempGuard is a built-in safety feature that turns on the fan if excessive heat is detected.
- Airflow Control Technology (ACT): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- LumiLight LED Lighting with TruHue: A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K.
- Optional Dual Internal Blower Kit Available: Optional dual internal blower kit available to fit your application. (PBD-1200B)
- Electronic Touch Controls: Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Optional Wireless Remote Control (RC-0002): ADA-compliant, wireless RF remote control with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface. Maximum remote control communication distance is 15 feet from the hood. Please check your Zephyr range hoods specification sheet to ensure compatibility.
- Dual-Level Lighting: The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- TempGuard: TempGuard is a built-in safety feature that turns on the fan if excessive heat is detected.
Whats Included
- Monsoon I 48 in. 650 CFM Insert Mount Range Hood with LED Light in Stainless Steel
- Monsoon I 48 in. 650 CFM Insert Mount Range Hood with LED Light in Stainless Steel
- Monsoon I 48 in. 650 CFM Insert Mount Range Hood with LED Light in Stainless Steel
Q: What is the maximum airflow capacity of this range hood?
A: The maximum airflow capacity is 650 cubic feet per minute.
Q: Does this range hood have lights included?
A: Yes, this range hood has integrated lights included.
Q: What is the maximum wattage for the bulbs in this range hood?
A: The maximum bulb wattage is 6 watts.
Q: Can I control this range hood with a remote?
A: Yes, this range hood can be controlled with a remote.
Q: Are the grease filters removable for this range hood?
A: Yes, the grease filters are removable.
Q: How many filters does this range hood have?
A: This range hood has three filters.
Q: Does this range hood have a delay shut-off feature?
A: Yes, this range hood has a delay shut-off feature.
