Specifications
- Color FinishStainless steelProduct Height4 1/8 inchesProduct Width30 inchesProduct Depth21 inchesCooktop Surface TypeGrateNumber of Burners4
- Key Specs
- Color Finish: Stainless steel
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 4
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Amana
- Model Number: AGC6540KFS
- Product Name: 30" Built-In Gas Cooktop
- Color: Stainless Steel
- Color Finish: Stainless steel

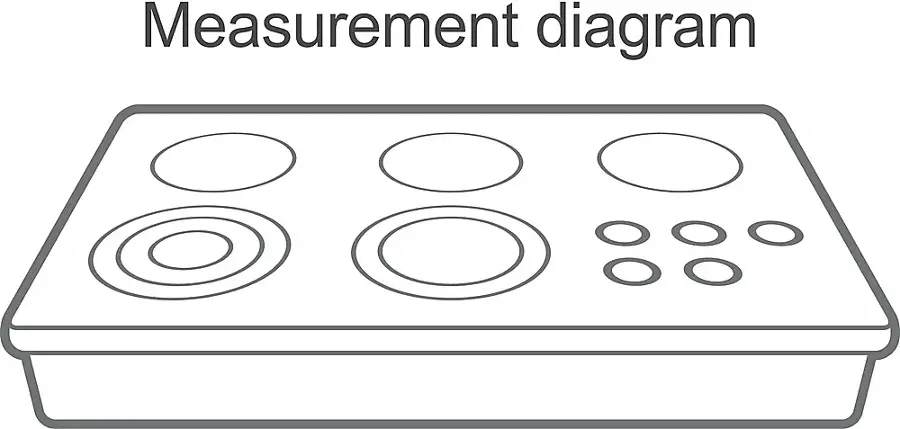

- Dimensions
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 34 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 29 3/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Fingerprint Resistant: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain, Stainless steel
- Number of Cooking Zones: 4
- Number of Burners: 4
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Simmer, SpeedHeat (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 5000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 12000 british thermal units
- Burner 3 Rating: 9100 british thermal units
- Burner 4 Rating: 12000 british thermal units
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.amana.com/regulatory.html. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.amana.com/regulatory.html.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049401843

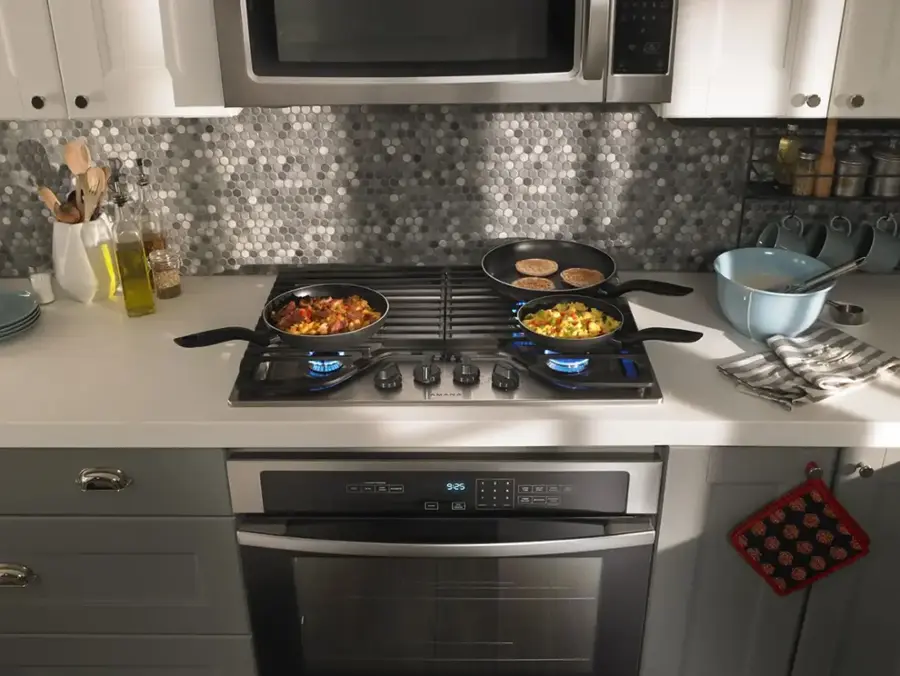

Get a seamless look with this 30-inch Amana® Gas Cooktop that installs over your Wall Oven. With 4 Burners providing up to 12,000 BTUs, you can melt, boil and simmer at the same time, and turn up the heat how you like with easily accessible Front Controls. Plus, cleaning is a breeze with Sealed Burners that keep spills from spreading.

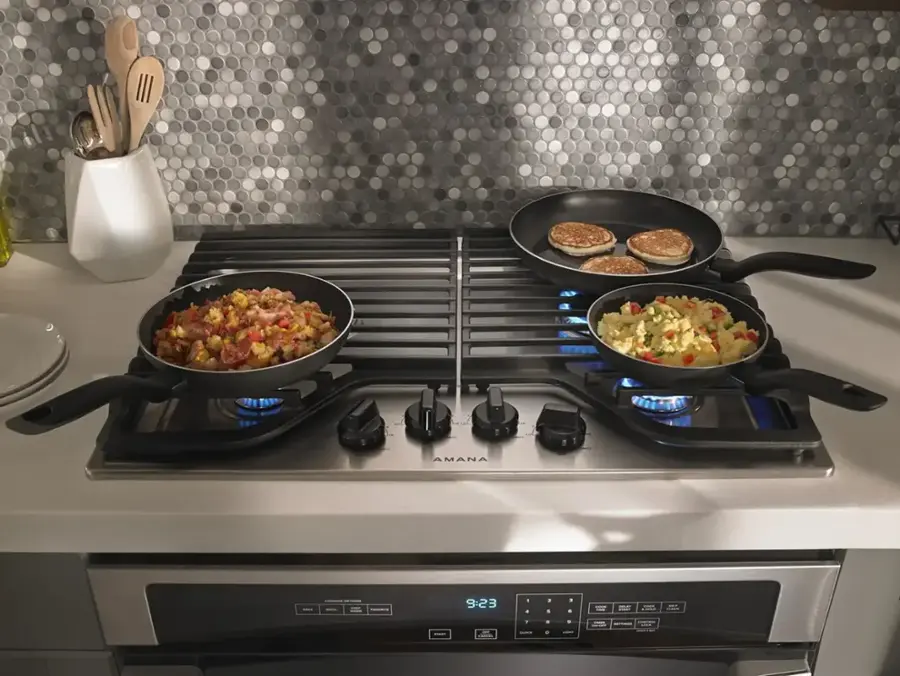

- 4 Burners: Now dinner's a one and done deal. 4 burners with up to 12,000 BTUs help you fry, boil, simmer and melt all your dishes at the same time.

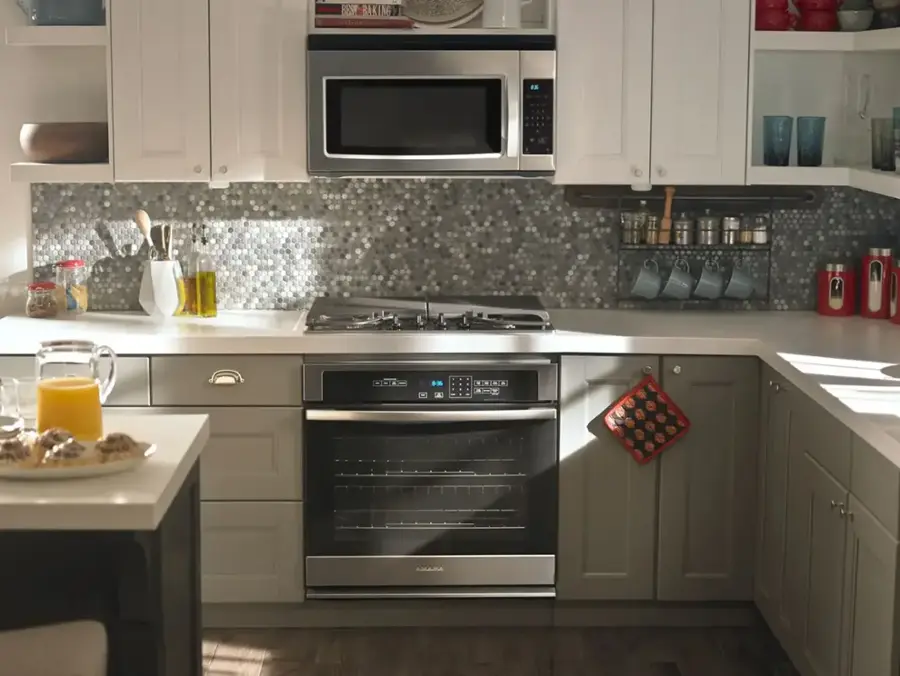

- Installs Over the Wall Oven: This cooktop Installs Over the Wall Oven with ease, creating a complementary look for your kitchen.
- Front Controls: Easily accessible Front Controls let you turn up the heat just how you like it.
- Sealed Burners: Don't sweat the small spills. Sealed Burners make cleanup easy by limiting spills from dripping beneath the cooktop.
- Dishwasher-Safe Grates and Knobs: Put away the sponge. These Dishwasher-Safe Grates and Knobs let the dishwasher do the dirty work.
- LP Conversion Kit: This LP conversion kit converts your cooktop for use with propane gas.
- ADA Compliant: Models with this feature meet standards set by the Americans with Disabilities Act when installed in compliance with current ADA standards.
Whats Included
- Amana 30" Built-In Gas Cooktop
- LP gas conversion kit
A: Hello, we have attached the Installation Guide down below. https://s3.amazonaws.com/sm-backend-production-attachments/installation-instructions-W10597144-RevB.pdf
A: Hello. Please visit https://tinyurl.com/yybtd2k7 and refer to page 6 for location requirements for this cooktop. We hope this helps.
Q: Is the cut out dimensions for AGC6540KFS the same as my old Amana cook top model 335AKS3040BSS?
A: SmithtownJ, model 335AKS3040BSS is not showing as a USA Amana appliance. We apologize we are unable to assist you at this time with your question.
A: Hello Stacy, no the grates are not hinged. We hope this helps.
Q: what are the dimensions of the CUT OUT? I am replacing an existing cooktop. THanks!!!
A: Hello joemama, the cutout depth is 19-1/2 inches and the cutout width is 28-7/8 inches. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Amana appliances!
A: Power cord was included.
Q: Is this a cast grate or is it punched steel?
A: Hello JW! The grates are: Cast Iron Grates. Thank you for your inquiry on our Amana appliances.
Amana - 30" Built-In Gas Cooktop - Stainless Steel
Have everything you need?
See other appliances that work well with this one
- Plus
- Plus
- Plus
Compare similar products
$327.99
Get a seamless look with this 30-inch Amana® Gas Cooktop that installs over your Wall Oven. With 4 Burners providing up to 12,000 BTUs, you can melt, boil and simmer at the same time, and turn up the heat how you like with easily accessible Front Controls. Plus, cleaning is a breeze with Sealed Burners that keep spills from spreading.
$679.99
Get dinner on the table fast with greater Cooking Flexibility thanks to various burner sizes and power levels. Use the SpeedHeat Burner as a quick boil burner and the 5K BTU Simmer Burner for low, even heat. The 9.1K-12K BTU Multi-Purpose Burners are perfect for daily cooking.
$599.99
Cleanup is quick and easy with a cooktop designed to cut down on messes. Dishwasher-safe, EZ-2-Lift cast iron grates are hinged so there's no need to remove them to wipe underneath and the raised edges of the Upswept SpillGuard cooktop help contain spills. For added flexibility, you can install this cooktop over a wall oven or on its own.
$799.99
The Frigidaire Gallery 30" Gas Cooktop allows you to get meals on the table faster with the Quick Boil 18,000 BTU burner. Enjoy ultimate cooking flexibility with powerful burners designed to meet all your cooking needs, from the 5,000 BTU simmer burner to the Quick Boil Burner. These cooktops feature new design elements like Backlit LED Knobs and Dishwasher Safe Burner Caps to make cooking and cleaning easier.
| Pros for Amana - 30" Built-In Gas Cooktop - Stainless Steel | |||
|---|---|---|---|
| Looks good, Easy to use, American made | There were no pros for this product— | Price, Easy to clean, Cleaning, Looks, Design | Price, 5th burner, Even heat, Lighted controls, New |
| Cons for Amana - 30" Built-In Gas Cooktop - Stainless Steel | |||
| Burners, Cost, Needs daily cleaning | There were no cons for this product— | Burner placement, Installation, Material, Not received, Scratch resistance | Grates, Scratch easy, Heavy gates |
Specs
Innovate your everyday Sponsored
Reviews
Customers are saying
Customers are delighted by the 30" Built-In Gas Cooktop's appearance and user-friendly design. Many customers complimented its stylish design, noting that it looks great in their kitchens. The cooktop is also praised for its ease of use and maintenance, with several customers mentioning that it is very easy to clean. While some customers wished the burners were larger, the overall sentiment towards the cooktop is positive.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products or points for an honest, helpful review.
- Rated 5 out of 5 stars
Good buy
We like it. Especially like it the fact that Best Buy price + delivery for this item is at least $100 less than any other sellers. This Amana Cooktop is american made good quality.
Posted by HHasi
- Rated 5 out of 5 stars
A great stove top.
A stove top that doesn't break the budget that does the job. Also looks great.
Posted by Monkeyforce
- Rated 4 out of 5 stars
Good cooktop
This is a nice basic cooktop. The only complaint I would have is that due to the K shaped, it is difficult to get liners for the burners to protect it. The cooktop needs to be cleaned every day. From a cooking perspective it fits the bill.
Posted by Unplugged
