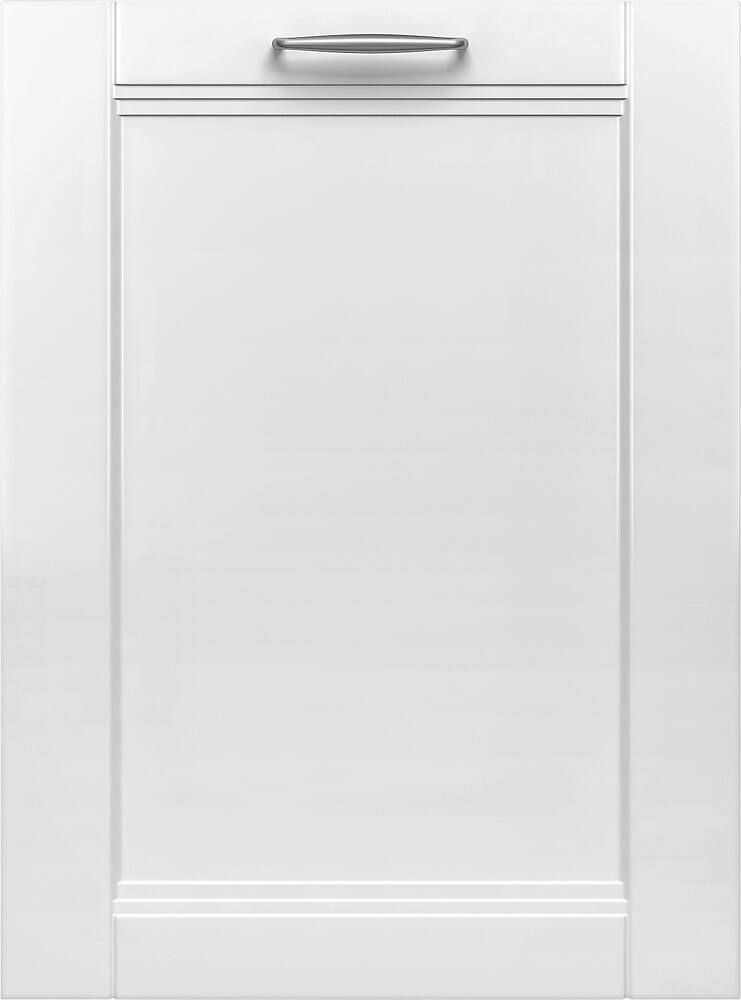

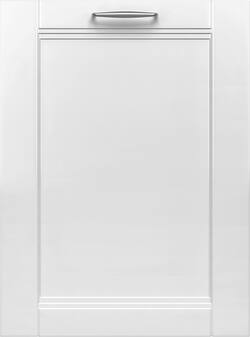

Bosch - 800 Series 24" Custom Panel Dishwasher with Stainless Steel Tub
Model: SHVM98W73N
SKU: 5710316
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 1/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Color Finish: White
- General
- Product Name: 800 Series 24" Custom Panel Dishwasher with Stainless Steel Tub
- Brand: Bosch
- Model Number: SHVM98W73N
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Color Finish: White
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 1/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cut-Out Dimensions
- Cut-Out Height: 33 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Options and Programs: 6
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 2.9 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Adjustable tines, Cup shelf, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Design
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Location: Top control
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 25 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Other
- UPC: 825225923930
With its custom-panel exterior, this Bosch dishwasher blends into your cabinets and counters for a seamless look. And you can fit more dishes into every load by changing the positions of the racks in up to 9 ways, or adding a 3rd rack for even more possibilities.
- 24” width: There’s room for up to 16 place settings. Plus, choose from 6 wash cycles including five-level wash, 6 options like Extra Dry, and more.
- Custom Panel design: Get a built-in look. The custom panel design blends with your cabinets for a seamless kitchen style without the remodel.
- MyWay™ rack: Enjoy the ultra-capacity. Adding this 3rd rack can create extra space for large or deep items, giving you more room for pots and pans below.
- EasyGlide™ rack: Load and unload smoothly. It’s easy to adjust and move the racks, even while they’re full of dishes.
- RackMatic®: Fit it all, every time. With 3 different height levels and up to 9 possible rack positions, you can customize each load for your needs.
- 24/7 Aquastop®: Protect your floors. This 4-part leak prevention system uses sensors to detect and stop leaks, and can even turn on by itself.
- 40-dBA noise level rating: Wash dishes in peace. Bosch dishwashers are so quiet, you have to check the exterior Infolight® to know they’re on.
- Touch Control: Program a cycle quickly. The integrated controls make it easy with simple touch technology.
Whats Included
- 24" Custom Panel Dishwasher with Stainless Steel Tub
- Owner's Manual
Documents
- Energy_Guide_PDF
A: The dishwasher is panel ready. The idea is that you may put a panel of your choice on it to match your cabinets. It is just grey steel on the front, not the white cabinet front that is pictured. This is just an example. Instructions and a template are provided. There are also YouTube videos of how it is done.
Q: Was this supposed to come with screws and a template or do I purchase that separately??
A: undefined
Q: What are dims I need for the custom panel?
A: Hi Scooter. Thank you for your question. Here are the Custom Panel Requirements: Do not exceed 30 1/8” (765mm) for the overall front panel length Needs to be at least 3/4” thick Minimum weight is 9 lbs. and maximum weight is 18 lbs.
Q: How many spray arms for this model?
A: Looks like 2, one on bottom and one in middle. Dishes get clean.
Q: Does the dishwasher come with a template to install custom panel?
A: dishwasher came with the instructions/template on installing the panel.
Q: This dishwasher does not come with a panel, correct.
A: That is correct. CUSTOM panel would be made by your cabinet person to match your cabinets.
A: No. The installation cost does not include installation of the panel. I had a custom panel made for our Bosch. The installation wasn't difficult (a drill to make some pilot holes and a screwdrive).r. Your panel made for the GE dishwasher might match the Bosch, so a drill wouldntt be necassy. The panel install (including triple checking my measurements) took less than 40 minutes. Good Luck.
