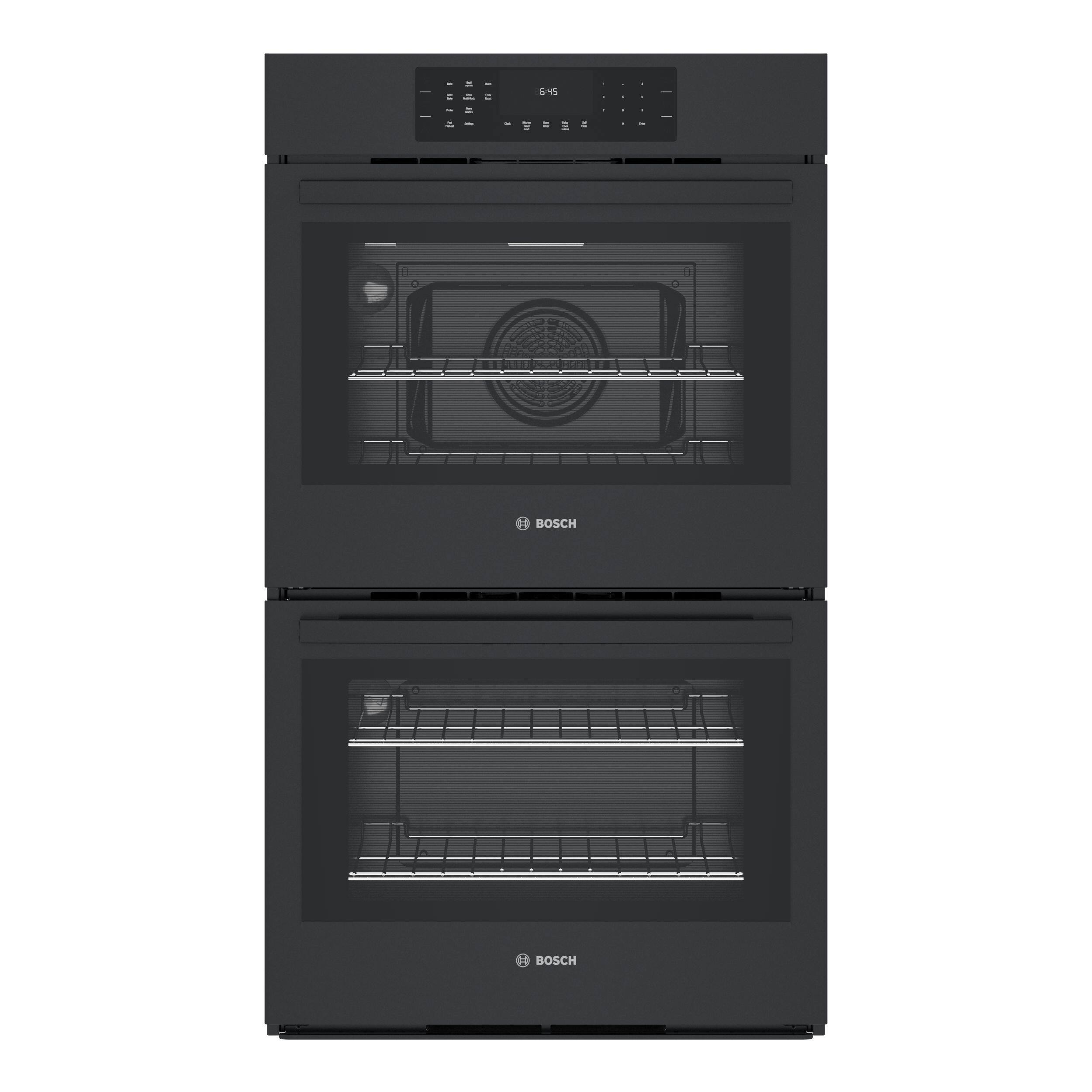

Bosch - 800 Series 30" Built-In Double Electric Convection Wall Oven
- Key Specs
- Product Height: 52 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 26 5/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Color Finish: Black
- General
- Product Name: 800 Series 30" Built-In Double Electric Convection Wall Oven
- Brand: Bosch
- Model Number: HBL8661UC
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Color Finish: Black
- Dimensions
- Product Height: 52 1/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Handle: 26 5/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 45 7/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 261 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 49 3/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 4.6 cubic feet
- Oven 2 Capacity: 4.6 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: false (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 7
- Number of Oven 1 Racks: 2
- Oven 1 Bake Element: 2400 watts
- Oven 1 Broil Element: 3800 watts
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 7
- Number of Oven 2 Racks: 3
- Oven 2 Bake Element: 2400 watts
- Oven 2 Broil Element: 3800 watts
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 8495 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 825225906940
Easily prepare a meal for a group with this Bosch 800 Series HBL8661UC built-in double electric wall oven, which features European convection technology that delivers even heating for flavorful results. SteelTouch digital controls allow simple operation.
- SteelTouch digital controls: Make operation easy.
- 4.6 cu. ft. capacity in the upper and lower ovens: Provides plenty of space to cook dinner and dessert for family and guests.
- 5 oven racks (3 upper and 2 lower): Accommodate large cookware, so you can cook multiple courses simultaneously in both ovens.
- European convection technology: Helps ensure thorough heating for delicious results.
- Roast, variable broil, warm, proof dough and pizza modes: Along with convection bake, broil and roast modes accommodate a wide range of needs. Temperature probe helps you easily monitor cooking progress.
- Sabbath mode: Safely maintains a temperature for an extended period of time in order to comply with kosher cooking practices.
- Self-cleaning capability: Helps make cleanup simple.
- Incandescent lights: Located in the upper and lower ovens provide bright illumination to help you easily view cooking food.
- SmoothClose door: Along with dampened hinges allows smooth, quiet opening and closing action.
- Flush-to-cabinet installation: Creates a sleek, built-in appearance.
Whats Included
- Bosch 800 Series 30" Built-In Double Electric Convection Wall Oven
- Owner's manual
Product Manuals
Q: HOW LONG DOES IT TAKE TO PREHEAT TO 350 FARENEHEIT
A: it takes 30 min to get to 400 deg . the cooling fan is so loud,I call the store to take it back
Q: What are the electrical requirements for this double unit. And is it one plug for both units
A: Hi Robert! Thank you for your question. Yes, there is only one power cord for both ovens and it is a fixed (hard-wired) connection. The electrical requirements for this unit are 240/208 Volts and it requires a 40 Amp circuit breaker.
A: Hi ElectricD, thanks for your question and interest in model HBL8651UC. We can only recommend using the parts located in the installation manual.
Q: What are the cut out dimensions for installation?
A: You will need 3 to 4 inches more at the top than what the Bosch website says. We ran into this problem when the installer came with the ovens. We had the correct dimensions as per the website but the top panel with the controls goes on the outside of the cut out. We had to have a cabinet maker come and make adjustments before the ovens could be installed.
Q: Does the unit have two timers: one each for the upper and lower ovens?
A: Yes, select the upper/lower oven and then select “oven timer”. It’s pretty finger sensitive. I hope this helps.
A: Hello, thank you for your question. This unit does not have a dedicated air fry function.
Q: What's the difference between the 500 series and 800 series?
A: Hi Jo, thank you for your interest. The 800 series models offer some additional cooking modes to give you more functionality. For a full breakdown, you may see the product spec sheets on the Bosch website. Thank you!
A: Hi steve, thanks for your interest in model HBL8651UC. The cutout height allows room depending on your installation space. For further information, please refer to the installation guide located on the Bosch website or your local Best Buy dealer.
