Specifications
- Motherboard Form FactorATXMaximum GPU Length430 millimetersProduct Height19.13 inchesProduct Width9.41 inchesProduct Depth19.7 inchesWindow Panel(s)Right side
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 430 millimeters
- Product Height: 19.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.41 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Right side
- Case Material: Steel, Tempered glass
- General
- Brand: CORSAIR
- Model Number: CC-9011296-WW
- Product Name: FRAME 4000D RS ARGB ATX Mid-Tower PC Case
- Color: Black
- Case Material: Steel, Tempered glass
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 220 millimeters
- Maximum GPU Length: 430 millimeters
- Ports
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 4
- Number Of Internal 3.5" Bays: 2
- Dimensions
- Product Height: 19.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.41 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 289.6 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Right side
- Customizable Case Lighting: true
- Lighting Type: RGB
- Cooling
- Maximum CPU Cooler Height: 170 millimeters
- Number of Fans Supported: 12
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 3
- Radiator Support: Top 360mm, 280mm, 240mm; Side 360mm, 280mm, 240mm; Front 360mm, 280mm, 240mm; Rear 140mm, 120mm
- Warranty
- Warranty - Parts: 2 Years
- Warranty - Labor: 2 Years
- Other
- UPC: 840440487715

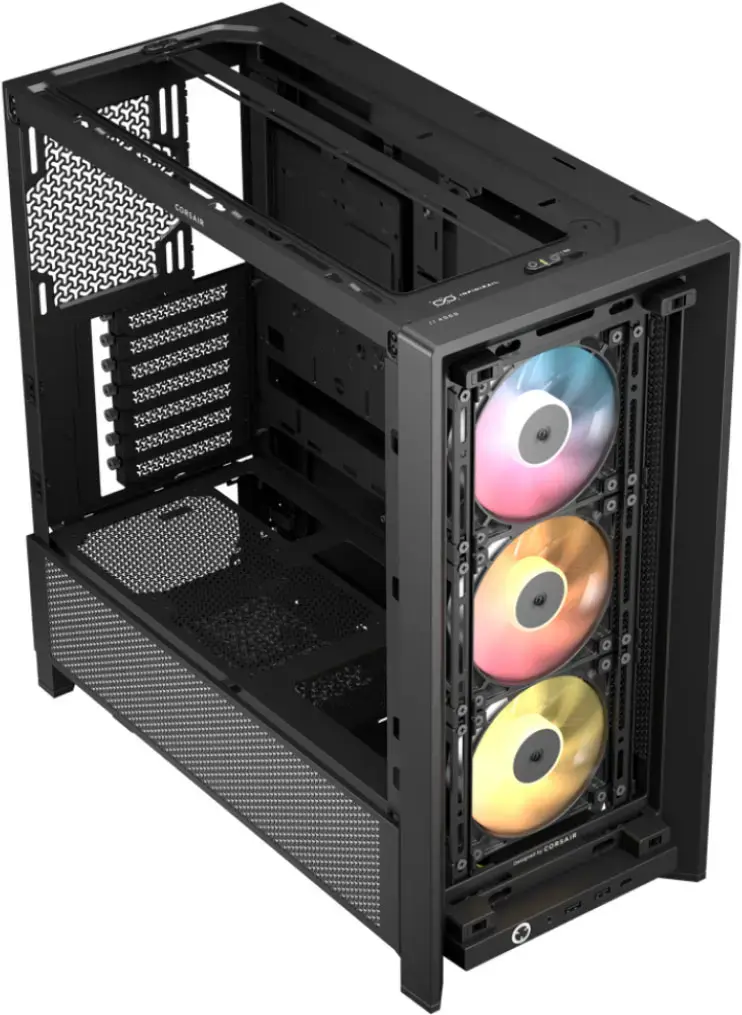

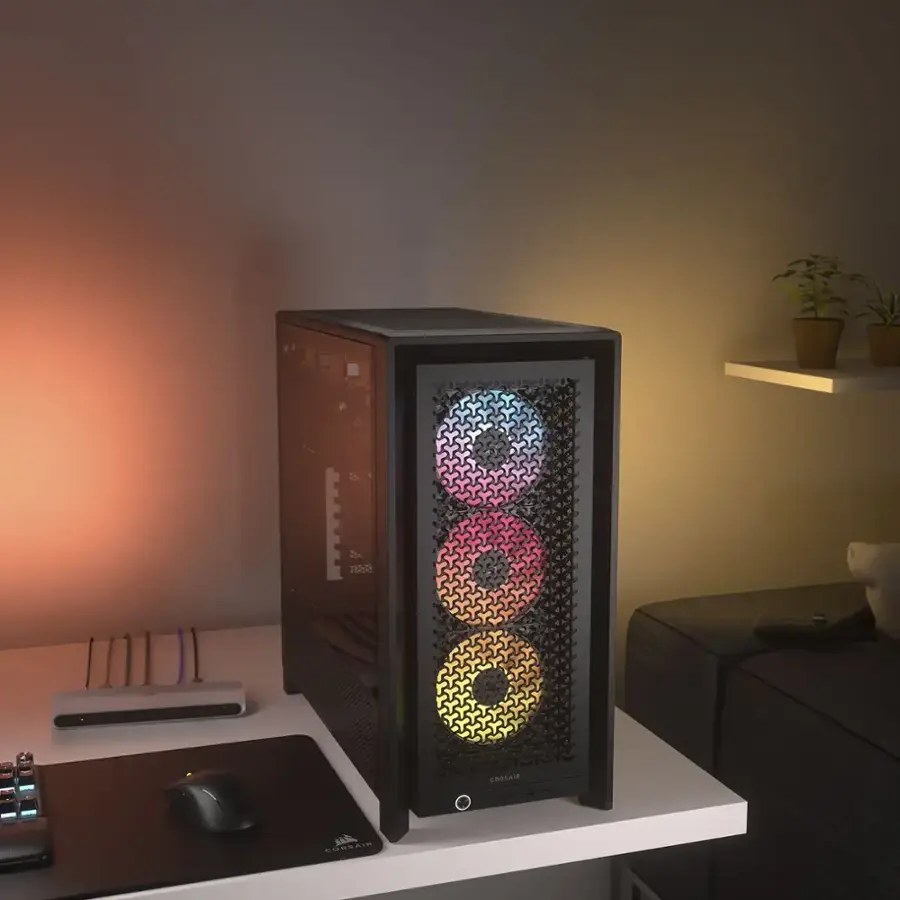

Free yourself from the constraints of traditional PC building with the CORSAIR FRAME 4000D RS ARGB, featuring the innovative FRAME Modular Case System to perfectly customize your build. Includes 3x CORSAIR RS ARGB PWM Fans with daisy-chainable 4-pin connectors, eight LEDs per fan, and +5V ARGB motherboard control. The InfiniRail Mounting System simplifies fan installation, supporting dual 360mm radiators and a 3D Y-Pattern Airflow front panel for optimal cooling. The increased width and length ensure compatibility with powerful graphics cards and cooling options, with support for reverse connection motherboards. We provide the frame. You create the art.
- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. Want to upgrade the motherboard tray to billet aluminum? Want to swap out your front I/O panel for more USB ports? Now you can. A case that can change and grow with your needs (or just your mood). The options are nearly limitless.
- 3x CORSAIR RS ARGB PWM Fans: High-performance fans pre-installed in the front of case. Support daisy-chainable 4-pin PWM connections and Zero RPM mode for near-silent operation at low loads. Each Fan has eight LEDs and easily controllable with your motherboard’s +5V ARGB connector.

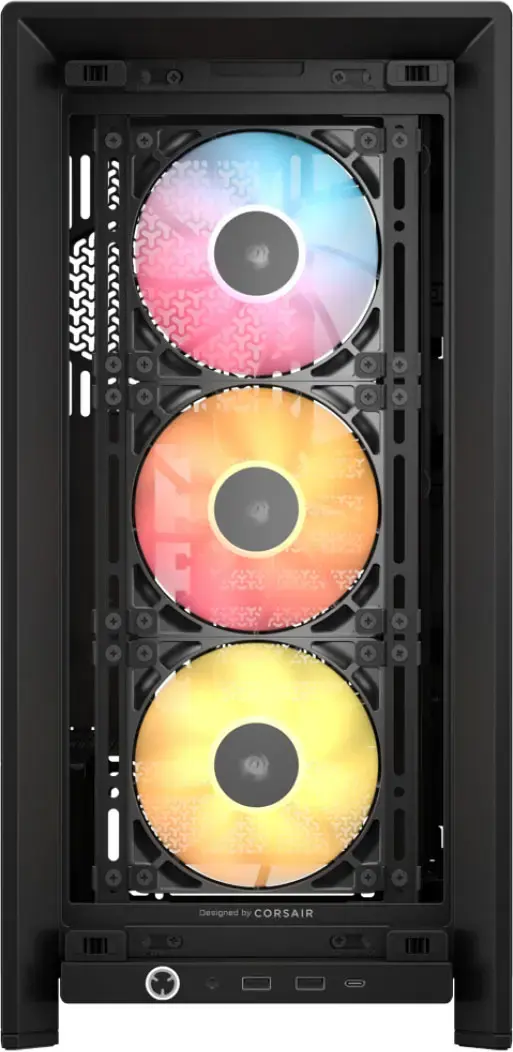

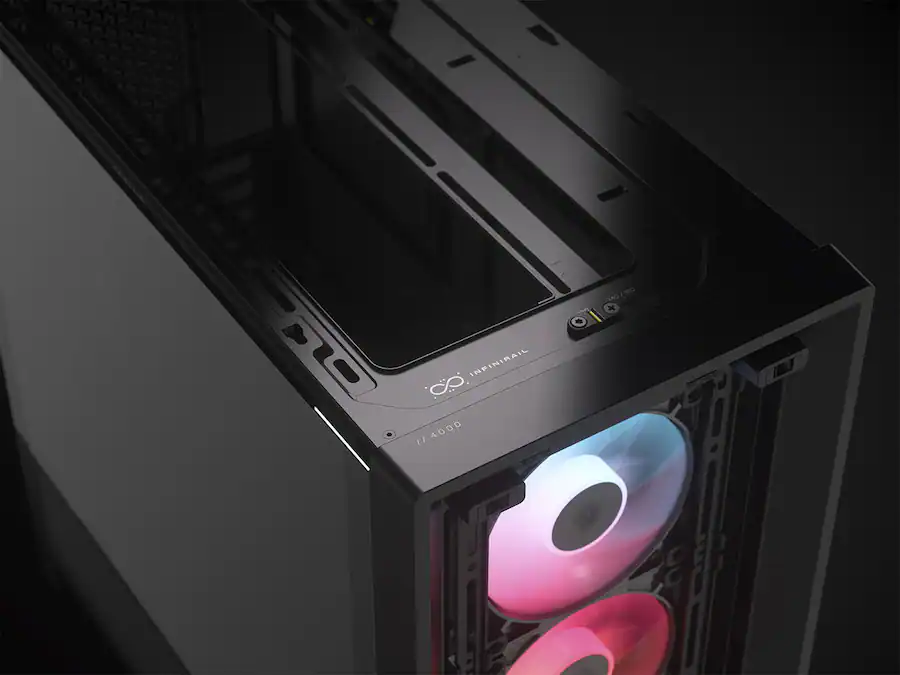

- CORSAIR InfiniRail Fan Mounting System: This steel multi-point mounting system offers unmatched flexibility in front and roof fan configuration. Simply slide the rail to mount fans up to 200mm (140mm in the roof) wherever you like, ensuring targeted airflow without fixed mounting constraints.
- Clean Lines or Turbo Cooled: The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.

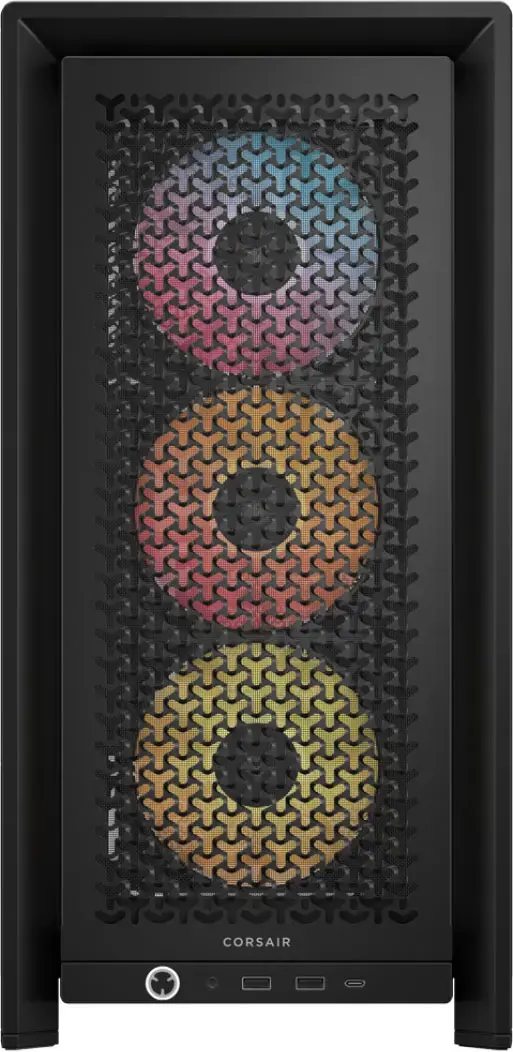

- 3D Y-Pattern Airflow: Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.

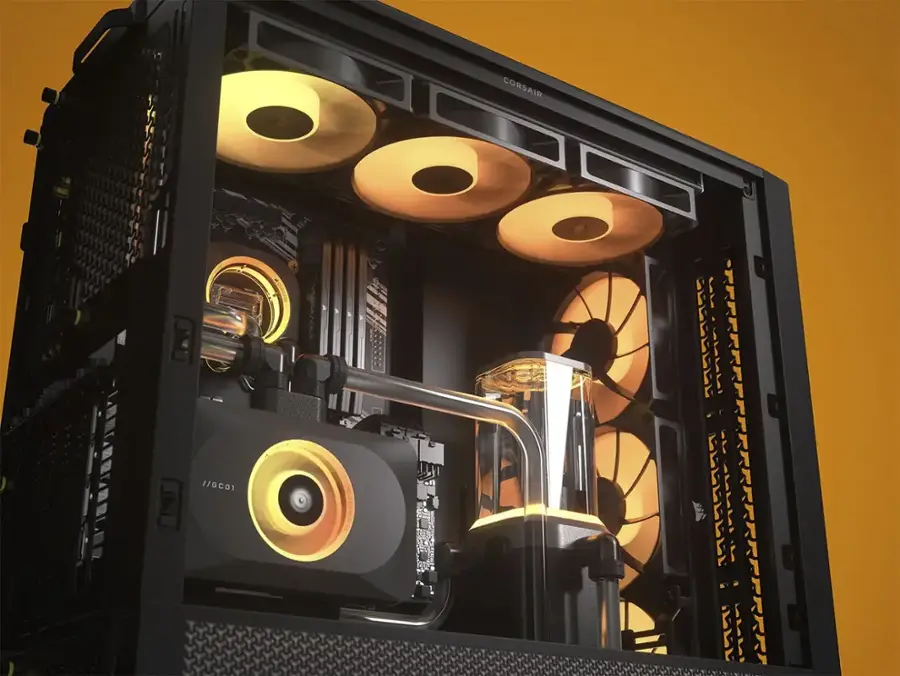

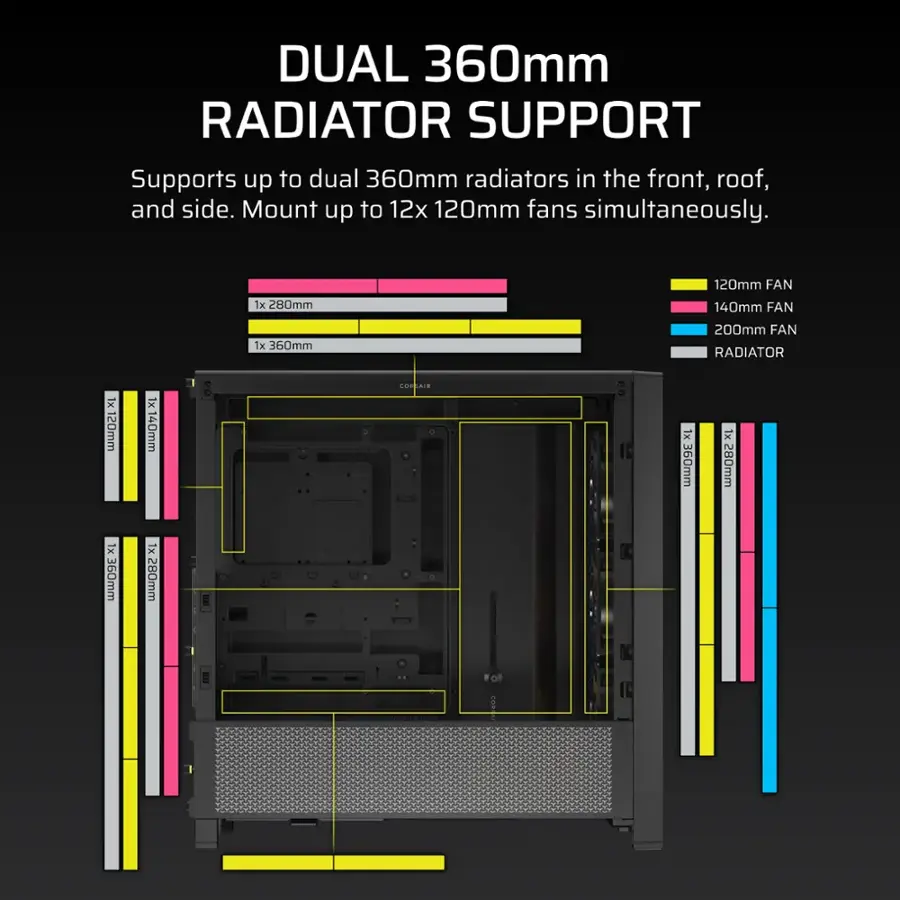

- Dual 360mm Radiator Support: Take your cooling to the next level with three mounting locations for 360mm radiators (front, roof, and side). Mount up to twelve 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently.

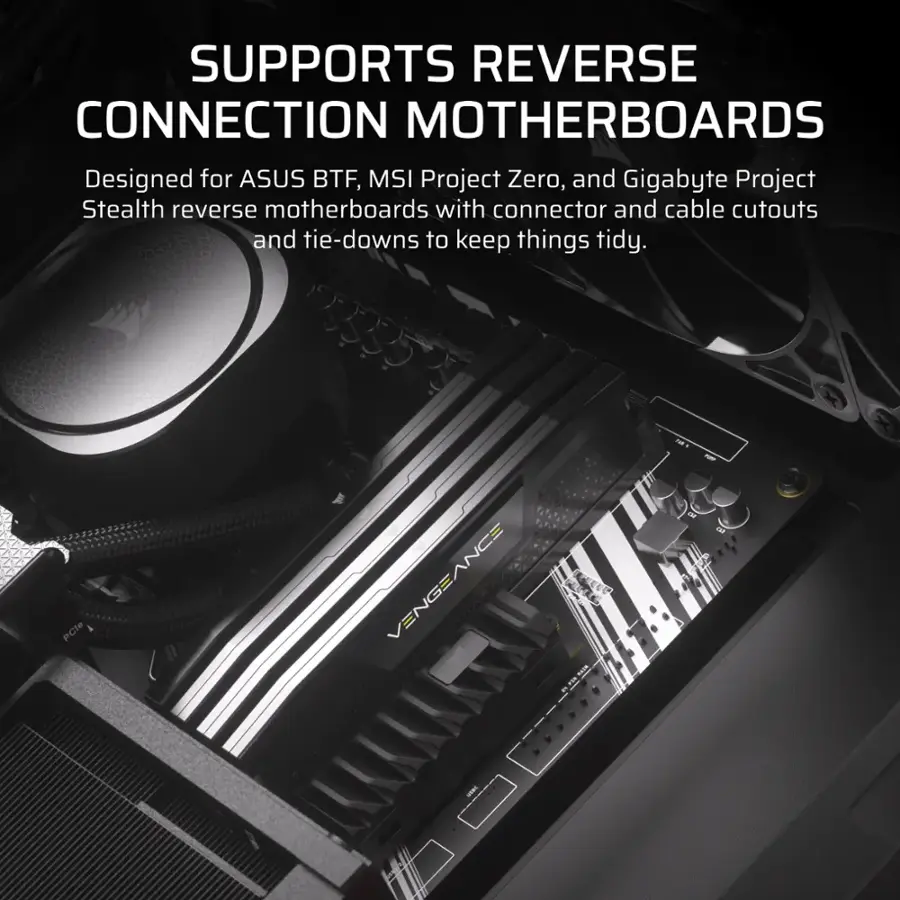

- Designed With Reverse Connection Motherboards in Mind: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.

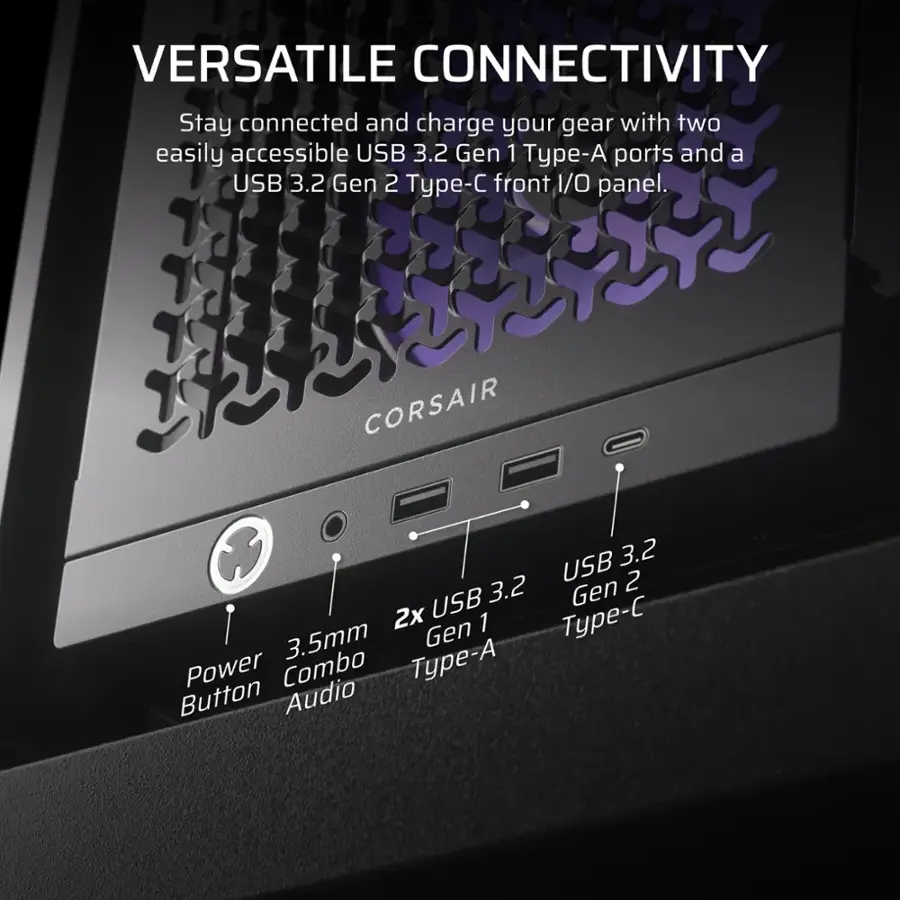

- Versatile Connectivity: Stay connected and charge your gear with two easily accessible USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. Want different connections? Better speed? Different layout? The I/O panel is easily swappable with upgrades available on corsair.com.
- Drives, Drives, Drives: Included drive trays for dual 3.5” hard drives or four 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cables.

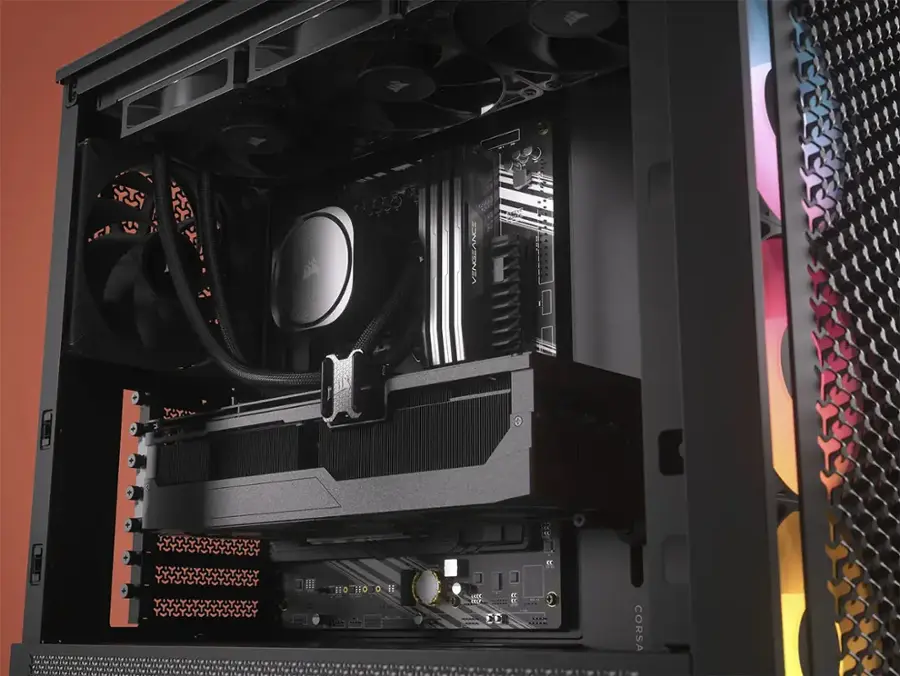

- Solid GPU Support (Literally): Modern graphics cards are bigger and heavier than ever, which is why every 4000D comes with an included GPU Antisag stabilization arm. Because nothing is sadder than a sagging GPU.

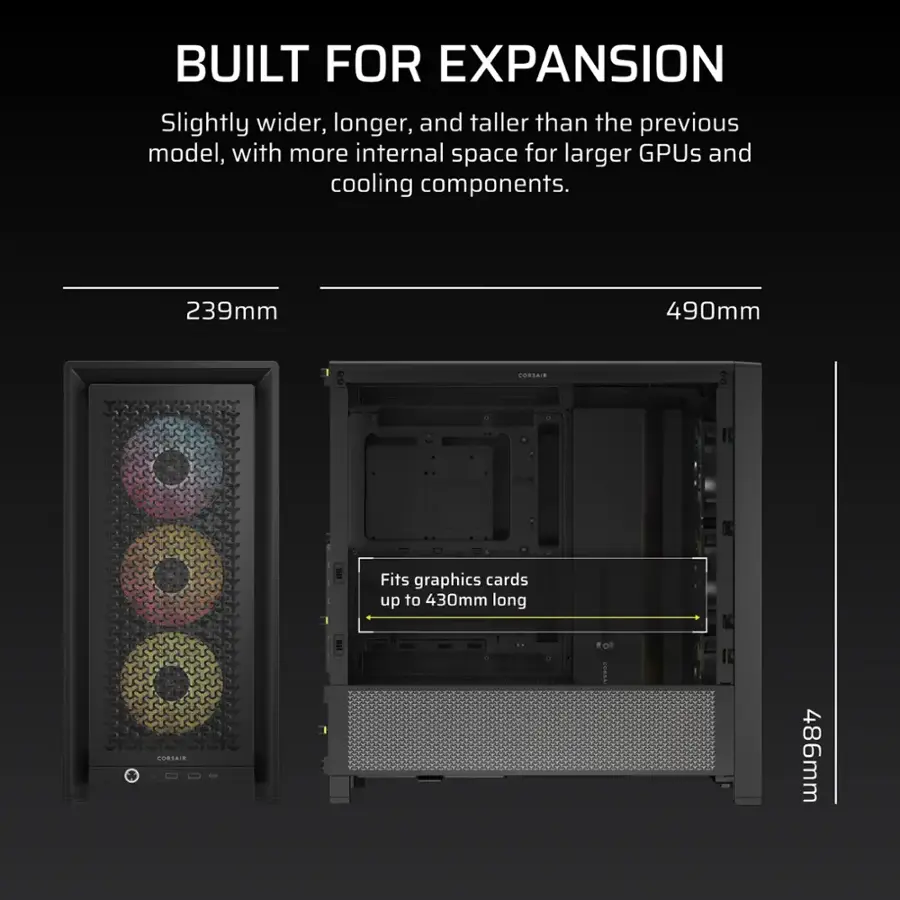

- Just a Bit Bigger: The FRAME 4000D is just a touch wider, longer, and taller than the previous 4000D to make room for more powerful GPUs and cooling components, but not so big as to hog your desktop space.
- Built for iCUE LINK: Designed from the ground up for easy iCUE LINK integration, the FRAME 4000D has cable hooks, increased tie downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
Whats Included
- FRAME 4000D Case
- 3x RS120 Performance Fans
- Case Accessory Box
A: Hello, This should fit without issues. -Art
A: Hello, The panel is as light as shown in the images/renders. A for complementing the front fans, then you'd go with RS ARGB fans, too, the RS140 ARGB. -Art
Q: Are the fans that come with this case a 3 pin?
A: Hello, They are PWM (4 pin). -Art
CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - Black
Compare similar products
$109.99
Free yourself from the constraints of traditional PC building with the CORSAIR FRAME 4000D RS ARGB, featuring the innovative FRAME Modular Case System to perfectly customize your build. Includes 3x CORSAIR RS ARGB PWM Fans with daisy-chainable 4-pin connectors, eight LEDs per fan, and +5V ARGB motherboard control. The InfiniRail Mounting System simplifies fan installation, supporting dual 360mm radiators and a 3D Y-Pattern Airflow front panel for optimal cooling. The increased width and length ensure compatibility with powerful graphics cards and cooling options, with support for reverse connection motherboards. We provide the frame. You create the art.
$99.99
Free yourself from the constraints of traditional PC building with the CORSAIR FRAME 4000D RS, featuring the innovative FRAME Modular Case System to perfectly customize your build. Includes 3x CORSAIR RS120 PWM Fans with daisy-chainable 4-pin connectors. The InfiniRail Mounting System simplifies fan installation, supporting dual 360mm radiators and a 3D Y-Pattern Airflow front panel for optimal cooling. The increased width and length ensure compatibility with powerful graphics cards and cooling options, with support for reverse connection motherboards. We provide the frame. You create the art.
$149.99
The CORSAIR 4000D RGB AIRFLOW is a mid-tower ATX case with high-airflow design and exceptional cooling. A steel front panel and three included CORSAIR AF120 RGB ELITE fans with AirGuide technology provide maximum airflow through the case. With two additional 120mm fan mounts on the PSU shroud, you can finally cool your full-size graphics card sufficiently. Control RGB on up to six PC fans with the included Lighting Node PRO controller and powerful CORSAIR iCUE software. Build your next PC with ample space for radiators in sizes up to 360mm and four storage drives. Complete with a modern front I/O panel, the 4000D RGB AIRFLOW case is ready to keep your next amazing build cool.
$109.99
The CORSAIR 3500X ARGB Mid-Tower Glass PC Case is your gateway to a superior PC build with easy lighting, combining builder-friendly features with a stunning wraparound tempered glass aesthetic. Three pre-installed RS120 ARGB fans deliver high cooling performance and simple motherboard lighting control. Multiple side, roof, and bottom fan mounting options ensure that even high-performance components stay cool. The 3500X ARGB’s spacious interior will fit most large graphics cards and CPU coolers, with multiple radiators up to 360mm to support liquid-cooled builds. Compatibility with ASUS BTF and MSI Project Zero reverse connection motherboards give you a cable-free view of your PC.
| Pros for CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Airflow, Cable management, Rgb, Easy to build, Space | Cable management, Airflow, Spacious, Design, Easy to build in |
| Cons for CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - Black | |||
| There were no cons for this product— | There were no cons for this product— | Size, Glass, Aio conflict, Dark, Large case | Loud fans, Defective, Nightmare, Rgb control |
Specs
Explore tech essentials Sponsored
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products or points for an honest, helpful review.
- Rated 5 out of 5 stars
Wow — Corsair Did It Again!
I love this case! I build a lot of computers since I work in IT, and I’ve always been a fan of the Corsair 4000D/5000D series. This updated version looks even better and feels more functional all around. The improvements are noticeable — both in design and usability. Corsair really nailed it with this one. Great job!
This review is from CORSAIR - FRAME 4000D RS ARGB ATX Mid-Tower PC Case - White
Posted by RickyVonRicky
- Rated 4 out of 5 stars
“Great Airflow, Flimsy Side Panel – Be Careful”
This Corsair case (model CC-9011296-WW) is a beast when it comes to airflow and space — exactly what I needed. I’m no hardcore PC builder, but the instructions were straightforward, and everything came together smoother than I expected. It’s got that clean, aggressive look and infinity rails that are just straight-up sick. The pre-installed fans? They move air like champs. Yeah, they get a little loud when I’m running Black Ops 6, but I’ll take some fan noise over watching my CPU melt down. Speaking of heat, my CPU was pushing 180°F (about 82°C) before this case. Now I’m cruising around 130°F (about 55°C) — way better. I didn’t even need to fill every fan slot. I skipped the side fan mount and it still runs cool. The anti-sag GPU support is a nice touch too — keeps that graphics card sitting like a king. Also, the tool-less design makes it super easy to open up the case and tweak things without digging around for a screwdriver. Now for the cons: • The side panel’s a bit flimsy — it bends easy, so don’t manhandle it or you’ll regret it. • Thumb screws can strip if you’re not lined up right, especially going through those second-layer panels. Take your time, do it right the first time. • Wish the fans were a little quieter, but again — performance over silence any day. Bottom line: this case brings the airflow and looks while keeping your build cool and clean. Just be gentle with the panels and watch those screws. For the price? Boss hog status. Would buy again.
Posted by Bryan55
- Rated 5 out of 5 stars
Supports BTF and other reverse motherboards
If you are doing a new build, get a reverse motherboard (ASUS BTF for example) for this case. They are supported by the FRAME 4000D. All the motherboard connections are in the back on reverse motherboards so the build looks really clean. Plus this is a great case no issues with it. Corsair also sells different front panels to change the look.
Posted by Pacman
