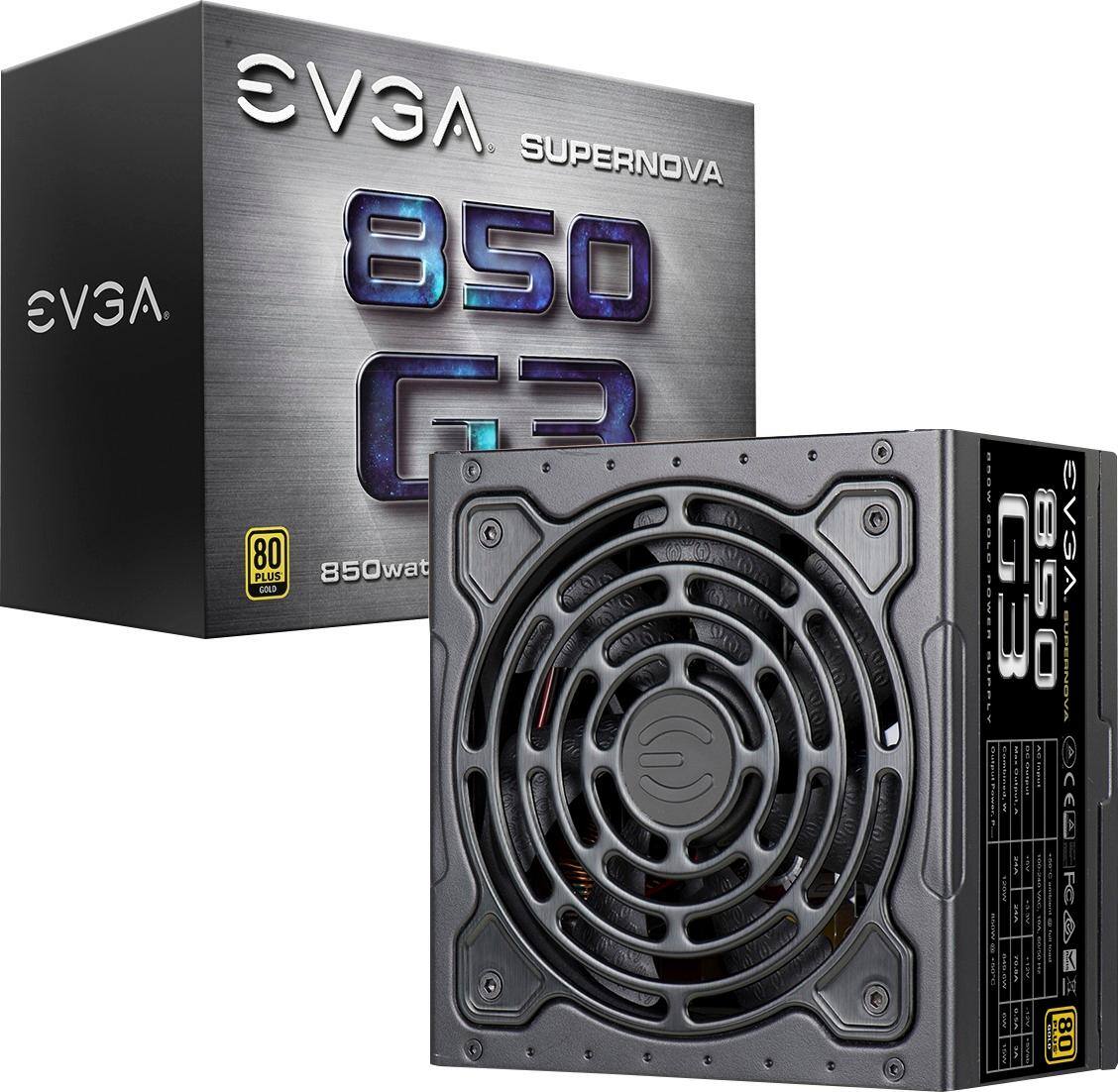

EVGA - 850W ATX12V / EPS12V Modular Power Supply - Black

Model: 220-G3-0850-X1
SKU: 5708601
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Wattage: 850 watts (Measurement of electrical power.)
    • Modular: Fully modular
    • Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
    • ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
    • PCIe Connector: 6x 8pin (6+2) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
    • Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
    • SATA Connector: 9x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
    • Product Length: 149.86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
  • General
    • Product Name: 850W ATX12V / EPS12V Modular Power Supply
    • Brand: EVGA
    • Model Number: 220-G3-0850-X1
    • Color: Black
  • Power
    • Wattage: 850 watts (Measurement of electrical power.)
    • Modular: Fully modular
    • Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
    • Specification Compliance: ATX12V / EPS12V
    • Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
    • Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
    • Cord Length: 4.92 feet
  • Connectivity
    • ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
    • Floppy Connector: true (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
    • PCIe Connector: 6x 8pin (6+2) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
    • Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
    • SATA Connector: 9x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
  • Dimensions
    • Product Height: 83.82 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Length: 149.86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Weight: 128 ounces (The out of box weight of the item.)
  • Cooling
    • Cooling Fan Type: Other
  • Other
    • UPC: 843368042660

Support your high-performance computer system with this EVGA SuperNova G3 power supply. Its hydraulic dynamic bearing fan operates quietly and provides outstanding longevity, and a fully modular design provides setup flexibility. This 80 Plus Gold-certified EVGA SuperNova G3 has an 850W power supply to handle maximum loads from multiple components efficiently.

PC Gaming Buying Guide

  • 850W power supply: Delivers the power needed to run your PC.
  • AC 100-240V input: With input 50 - 60Hz frequency for wide-ranging use.
  • ATX12V and EPS12V compliance: Meets industry standards.
  • 130mm fluid dynamic bearing cooling fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
  • Maximum safety to your critical system components: Provides overheat, overcurrent, overvoltage, overpower, undervoltage and short-circuit protection.
  • 80 PLUS Gold Certification: Delivers 90% (115VAC) / 92% (220-240VAC) energy efficiency at real world load conditions.
  • Modular cable management: Allows you to use only the cables you need.
Whats Included
  • EVGA 850W ATX12V / EPS12V Modular Power Supply
