Specifications
Product Height5 1/2 inchesProduct Width23 7/8 inchesProduct Depth20 inchesExhaust Vent LocationTop/RearVent TypeConvertibleColor FinishStainless steel
Key Specs
Product Height5 1/2 inchesProduct Width23 7/8 inchesProduct Depth20 inchesExhaust Vent LocationTop/RearVent TypeConvertibleColor FinishStainless steel
General
Product Name24" Convertible Range HoodBrandGEModel NumberJVX3240SJSSColorStainless SteelColor FinishStainless steel
Dimension
Product Height5 1/2 inchesMinimum Installation Height Above Cooktop24 inchesProduct Width23 7/8 inchesProduct Depth20 inchesStandardized Width24 inchesProduct Weight15 poundsDuct ShapeRoundRound Duct Diameter7 inches
Features
Exhaust Vent LocationTop/RearVent TypeConvertibleRange Hood TypeUnder cabinetNumber of Fan Speeds2Temperature SensorNoControl TypeRockerDelay Shut-OffNoRemote ControlNoAuto Fan Shut-OffNoDamper IncludedNoIntegrated Light(s)YesNumber of Lights2Number of Light Levels1Bulb Type RequiredOtherBulb(s) IncludedYes
Performance
Maximum Air Flow Capacity200 cubic feet per minuteMinimum Air Flow Capacity130 cubic feet per minuteMaximum Operating Sound Level6.5 sonesMinimum Operating Sound Level5 sones
Filter Info
Filter MaterialOtherDishwasher-Safe FilterYesRemovable Grease FilterYesNumber of Filters2
Electrical Specification
Amperage2.5 amperesVoltage120 volts
Warranty
Manufacturer's Warranty - Parts1 yearManufacturer's Warranty - Labor1 year
Other
UPC084691814863

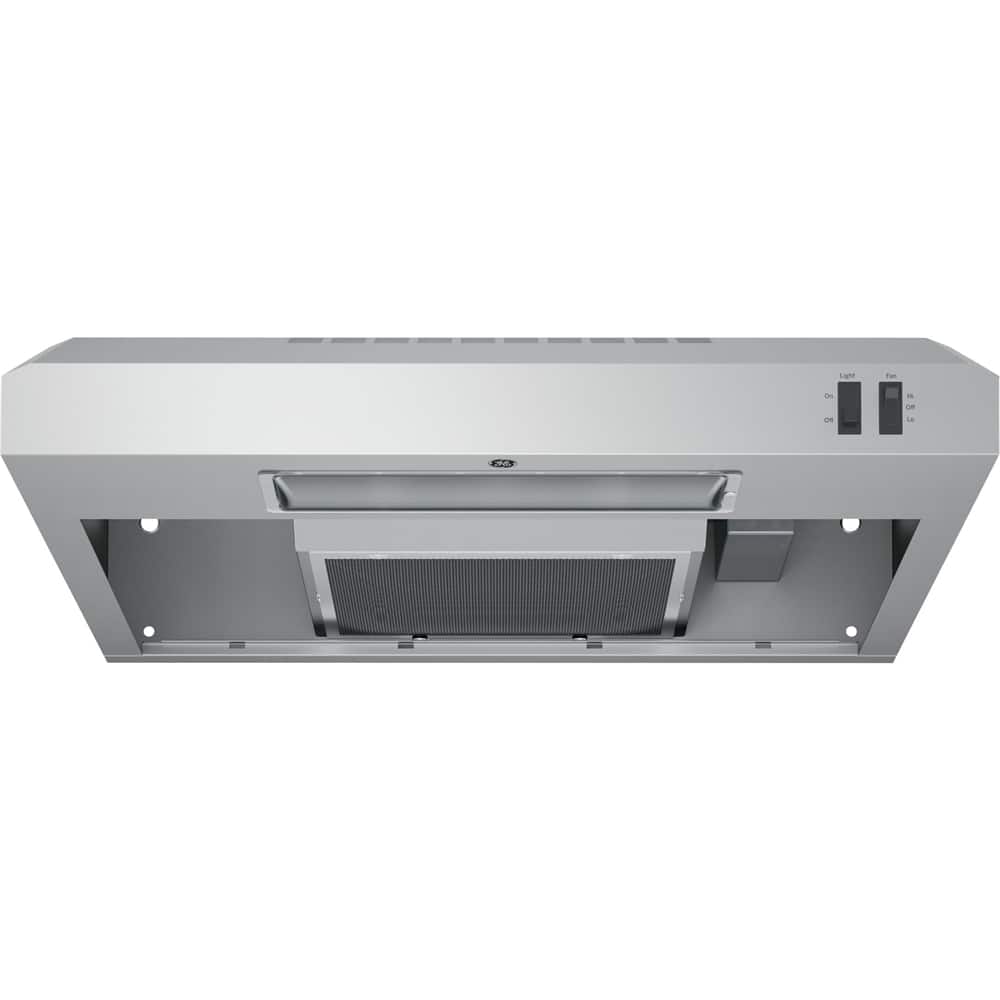

Keep smoky odors out of your kitchen with this 24-inch GE ventilation hood. This under-the-cabinet ventilation system has two speeds to effectively whisk away grease and moisture. Its cooktop lighting feature illuminates your work space, while the front controls give you quick access. This easy-to-install GE ventilation hood requires minimal setup time.
Easy installation
Ten minutes or less by one person.
Two-speed, 200-CFM venting system
Removes smoke, grease, odors and moisture.
Front controls
Enjoy easy access and a subtle appearance.
Cooktop lighting
Illuminate cooking space and surrounding surface.
Convertible venting options
Select recirculating or external venting.
Vertical and rear exhaust
Exhausts from the top or rear of the hood.
Appearance (Partially enclosed bottom)
Enjoy easy access to hood interior.
Dishwasher safe filter
Filters grease and is dishwasher-safe.
What's Included
GE 24" Convertible Range Hood
Owner's Manual
Manuals & Guides
Installation Guide (PDF)
Search
Q: QuestionWhat is the CFM of this GE 24" range hood?(1 answer)
A: AnswerHello Greg - Thank you for your interest; we are happy to help! This range hood model has a two-speed, 200-CFM venting system. Thanks for checking. OlgaAnswered by GE Answers
- A: AnswerThank you for reaching out to us! This hood uses incandescent lighting which produces heat when powered. This heat can be absorbed by the metal/stainless portion of the hood; however, the heat will depend on how long the light is left on. Additionally, when cooking on the range below, the heat rising from cooking can also affect the temperature. We hope this helps and if you have additional questions, please feel free to contact us! Best regards – Matthew@GEA
Answered by GE Answers
Q: QuestionWhat type of bulbs are used. Description just says other. Thank you!(1 answer)
A: AnswerThank you for reaching out to us! This range hood uses 40-watt bulbs. The part number is 40A15. We hope this helps and if you need any additional information, please reach out to us. Best regards – Matthew@GEAAnswered by GE Answers
Q: QuestionIs it hardwired or do you just plug it into a regular outlet?(1 answer)
A: AnswerHello Yoyo - Thank you for your interest in the GE® 24" Under The Cabinet Hood JVX3240DJWW; we are happy to help! This model comes from the factory set up for a hardwired installation. It offers an optional accessory to plug it into an outlet (JXHC1 - Power Cord Kit). We hope this information is helpful. Thanks for checking. OlgaAnswered by GE Answers
Q: QuestionSo the exhaust hole is only on top? No square hole on the back?(1 answer)
A: AnswerHi rapser- Vertical and rear exhaust exhausts from the top or rear of the hood. This hood is designed to be vented vertically using a 7" round duct or a 3 1/4” x 10” rectangular duct or horizontally using a 3 1/4” x 10” rectangular duct. See Quick Specs at this link: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=JVX3240DJ_R2_16.pdf - We also suggest to view the Installation Instructions for complete details (See page 10): http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80783-4.pdf - EASY INSTALLATION- Play Video: https://www.youtube.com/embed/nrqTMMN9feA?rel=0 - Thanks for choosing GE! SUE@GEAAnswered by GE Answers
Q: QuestionCan this fan operate without external ducting? GE 24” Convertible Range Hood jvx324OSJSS(1 answer)
A: AnswerHi Richard- Yes, the range hood features convertible venting options. It may be installed in recirculation mode and is shipped in this configuration. The charcoal filter JXCF53 is necessary for recirculation installation and included. Optional JXHC1 Power Cord Kit sold separately. We suggest to view the Installation Instructions for complete details: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80783-4.pdf - EASY INSTALLATION- 10 minutes or less by one person. Play Video: https://www.youtube.com/embed/nrqTMMN9feA?rel=0 - Our extensive line of stainless steel appliances offers infinite design possibilities. View our Stainless Steel Appliances: http://www.geappliances.com/ge/stainless-steel.htm - Thanks for choosing GE. Enjoy! SUE@GEAAnswered by GE Answers
- A: AnswerHi Jess - Thanks for viewing GE Model JVX3240SJSS! The top of the hood is 12"D (overall depth 20"D). We suggest viewing the Specifications document at the following link for all product dimensions and more: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=JVX3240SJ_R2_16.pdf - If you have any additional questions, do not hesitate to ask, we are also happy to help at GEAppliances.com! Sue
Answered by GE Answers
GE - 24" Convertible Range Hood - Stainless Steel
4 payments starting at
$56.25
with
Color:
Shipping
Have everything you need?
See other items that work well with this one.
- Plus
- Plus
- Plus
Reviews
Rating 3 out of 5 stars with 1 review
3.0The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Rated 3 out of 5 stars
GE Convertible Range Hood
I love the look and how it works, but I can't open the lightbulb latch area to change the bulb. Followed the instructions several times and it doesn't open.
Posted by Cookey
