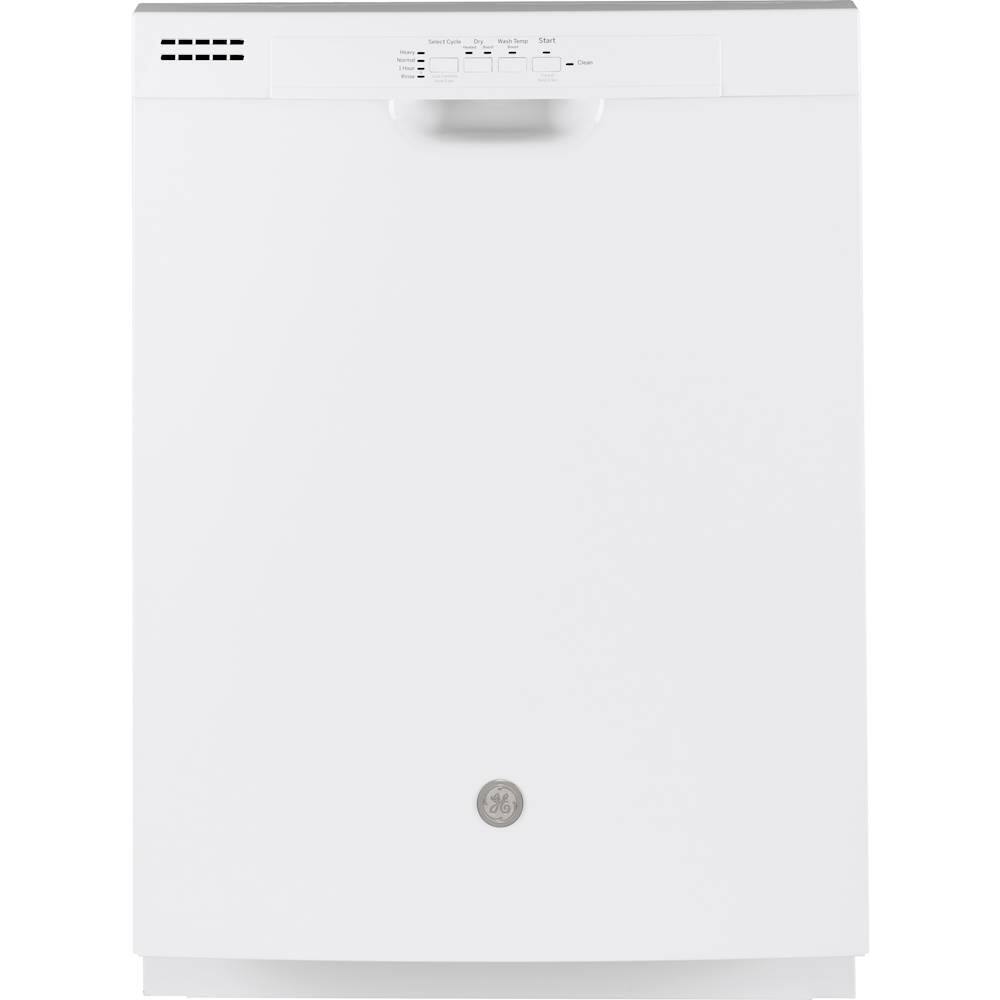

GE - 24" Front Control Built-In Plastic Tub Dishwasher with Dry Boost and 59 dBA - White
- Key Specs
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 59 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Color Finish: White
- General
- Product Name: 24" Front Control Built-In Plastic Tub Dishwasher with Dry Boost and 59 dBA
- Brand: GE
- Model Number: GDF510PGMWW
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 34 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 24 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 51 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 58 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 59 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: false (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: Wi-Fi adapter required (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 4 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: Normal, rinse, heavy wash, 1 hour, heat dry option, TempBoost option, Dry Boost option
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Ball-tipped tines, Removable (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Ball-tipped tines, Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Other
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Location: Front control
- Handle Type: Pocket handle
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Electrical Specification
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 7.1 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Compatibility
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 084691830955
Clean cookware efficiently with this 24-inch GE dishwasher. It has a one-hour wash cycle to get your dishes done faster, and the stainless steel Piranha blade grinds food at 3600 rpm to prevent clogging. The 59dBA sound level of this GE dishwasher ensures quiet operation for a relaxing kitchen experience.
- Dry Boost: Gets hard-to-dry items up to 3 times drier than standard dry cycles.
- 1 Hr wash: Enjoy a quality clean when you're short on time.
- Dedicated silverware jets: Get table-ready silverware thanks to powerful jets that focus on silverware baskets.
- Piranha hard food disposer: To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms.
- Automatic hot start: Provides optimal water temperature for dependable performance.
- Cabinet depth flush install: Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity.
- Built up floor capable: Installation over built-up floors is simple with the ability to adjust the dishwasher height to 33-3/8" - 34-5/8".
- Heavy wash: Great for heavily soiled dishes and cookware.
Whats Included
- GE 24" Front Control Tall Tub Built-In Dishwasher
Product Manuals
Documents
- Energy_Guide_PDF
Q: Does it have 3 spinners, or just a middle and bottom?
A: Hi - This dishwasher has lower and middle wash arms. Dedicated silverware jets spray highly pressurized water to provide additional coverage areas and improve cleaning results for utensils. Specifically designed to target the silverware basket regardless of placement around the outside perimeter of the lower rack. The advantage is more versatility of the basket placement since the jets are not in a fixed location. Hard food disposer with removable filter. Disposer pulverizes any food particles or cellulose solids that may bypass filtration. Thanks for viewing GE! Sue
A: Hi - GE® Dishwasher GDF510PGMBB is not equipped with an outer insulation blanket (not required). It has door insulation, quiet water valve and sealed toe kick (59 dBA). WiFi Connect requires Optional ConnectPlus Module PBX10W00Y0 (sold separately). The ConnectPlus connects select GE Appliances to the internet enabling remote, monitoring, control and notifications. The communications module plugs into the “RJ45” phone jack style connector located on some appliance products. The ConnectPlus works in conjunction with GE’s WiFi Connect software Apps. Go to geappliances.com/connect to learn more or view DISHWASHER - SET-UP BUILT-IN WIFI CONNECT: https://products.geappliances.com/appliance/gea-support-search-content?contentId=23928 - Keep in touch! Sue
A: We paid $169.00 for installation & Best Buy hauled away our old unit for no additional charge.
Q: Is the filter self cleaning or manual?
A: Hi - The dishwasher is equipped with a Piranha™ Hard Food Disposer with removable filter. Inspect and clean the filters periodically. This should be done every other month or more depending on usage. See the following link - DISHWASHER HOW TO CLEAN FINE AND ULTRA FINE FILTERS: https://products.geappliances.com/appliance/gea-support-search-content?contentId=35611 - Keep in touch! SUE@GEA
Q: Does this have a sprayer on top also or just the bottom?
A: Hi dancingwoman- This dishwasher has lower and middle wash arms. It also has dedicated silverware jets that spray highly pressurized water to provide additional coverage areas and improve cleaning results for utensils. Specifically designed to target the silverware basket regardless of placement around the outside perimeter of the lower rack. Thanks for considering GE! SUE@GEA
Q: Does this dishwasher dry plastic dishes
A: No dishwasher will dry plastic dishes. You can try heated dry and maxing out your jetdry dial but I don’t think they will ever fully dry in the dishwasher.
Q: Can the height be adjusted? And to you have other brands that the height can be adjusted?
A: Hi Omah - Yes, on model GDF510PGMBB, height with legs retracted is 33 3/8" (minimum) and height with legs extended is 34 5/8" (maximum). We suggest to view the Quick Specs at the following link for more details: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=GDF510PGM_PSM_C2_18.pdf - All built-in dishwashers are equipped with adjustable leveling legs. Check out the following links- DISHWASHER LEVELING LEGS: https://products.geappliances.com/appliance/gea-support-search-content?contentId=18640 - DISHWASHERS - 3 LEVELING LEG INSTALLATION: https://products.geappliances.com/appliance/gea-support-search-content?contentId=39582 - Thanks for choosing GE! Keep in touch - Sue
Q: Is this quiet while running?
A: Hi Quiet- The dBA rating is 59. The decibel rating on our dishwashers range from 40 dBA (Quietest) to 64 dBA. GE® Dishwasher with Front Controls GDF530PGMBB has an additional Outer Wrap Insulation Blanket and is 54 dBA. The quietest model in black with front controls is GE® Stainless Steel Interior Dishwasher with Front Controls GDF650SGJBB (46 dBA). Thanks for viewing GE! Sue
