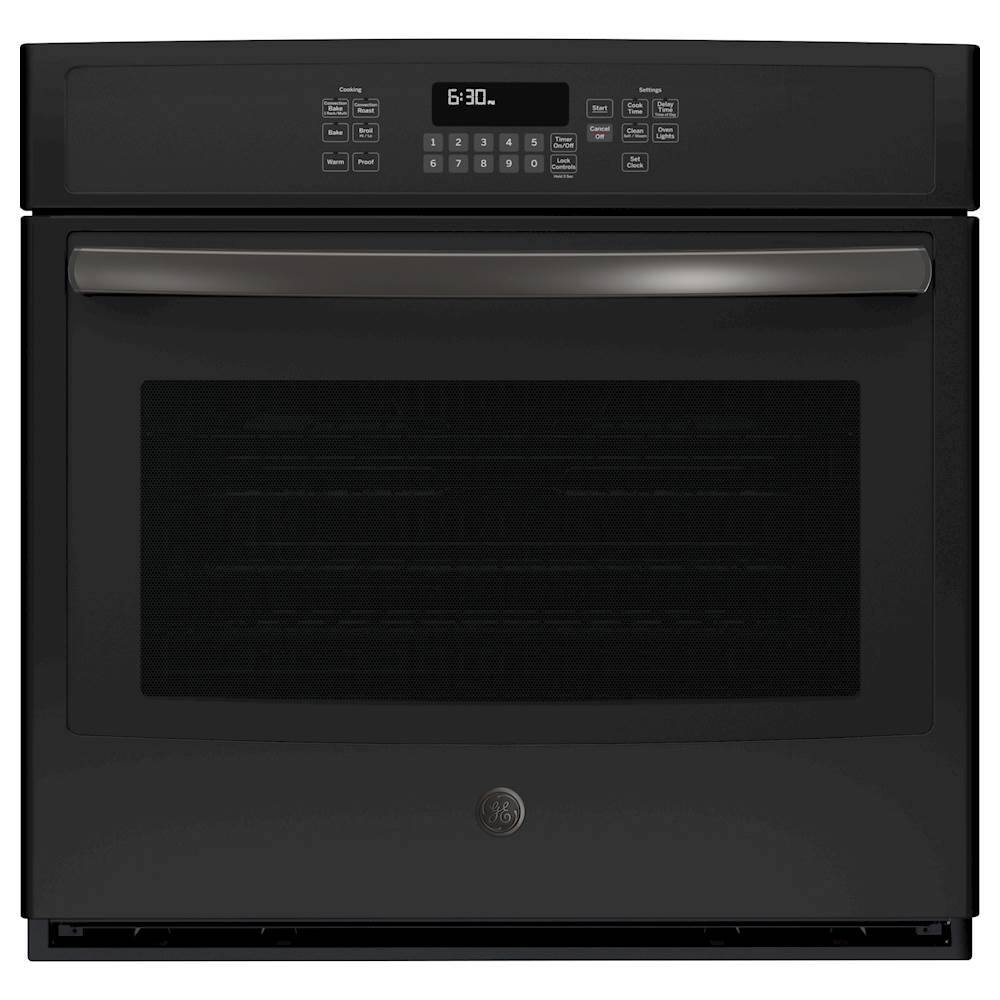

GE - 30" Built-In Single Electric Convection Wall Oven - Black Slate
- Key Specs
- Product Height: 28 3/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 4/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 26 7/10 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Black slate
- General
- Product Name: 30" Built-In Single Electric Convection Wall Oven
- Brand: GE
- Model Number: JT5000FMDS
- Color: Black Slate
- Color Finish: Black slate
- Dimensions
- Product Height: 28 3/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 4/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Handle: 26 7/10 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Interior Oven Height: 17 2/5 inches
- Interior Oven Width: 25 inches
- Interior Oven Depth: 20 1/5 inches
- Product Weight: 136.02 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 27 3/10 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 3/5 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 5 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Oven Type: Single wall oven
- Oven Power Source: Electric
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Control Type: Touchscreen
- Clock Display: true
- Oven Light: true
- Design
- Display Type: LED
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Bake Element: 2850 watts
- Broil Element: 4000 watts
- Oven Features
- Oven Convection: true (A cooking process that consistently circulates heated air to quickly and evenly cook food.)
- Convection Type: Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven Racks: 3
- Number of Rack Positions: 6
- Electrical Specification
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 230 volts (Amount of power needed to support an electrical current.)
- Wattage: 4200 watts (Measurement of electrical power.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 084691841708
Control every detail of dinner preparations with this 30-inch GE Convection wall oven. Its True European convection utilizes a third element and fan combination to create beautifully even results every time, and the eight-pass broiler enhances heat coverage and browning. This 5.0 cu. ft. built-in GE Convection wall oven lets you bake multiple recipes simultaneously.
- Fit Guarantee: Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy. See offer criteria and details: http://www.geappliances.com/ge-fits.
- True European Convection: Achieve delicious results from a third heating element and fan combination.
- Self-clean with Steam Clean option: Clean your oven the way you want.
- Self-clean, heavy-duty oven racks: Conveniently clean your oven and racks together.
- Glass touch controls: Set temperatures quickly and clean with little effort.
- Halogen oven lighting: Easily see how your food is baking.
- Ten-pass bake element: Even baking is assured with heat that covers more surface area.
- Eight-pass broil element: Get full broil coverage and even browning from edge to edge.
- 5.0 cu. ft. oven capacity: Cook more dishes at once.
- Black gloss oven interior: Enjoy a clean and sleek appearance.
- Hidden bake oven interior: Make cleanup easy by eliminating hard-to-reach areas.
Whats Included
- GE JT5000FMDS
- 3 x self-clean rack
Q: What microwave and trim kit would go with this oven?
A: Hi Sbtxx - Thanks for choosing GE! We're glad to have you in the family. We suggest GE Profile™ Series 2.2 Cu. Ft. Built-In Sensor Microwave Oven PEB7227SLSS (April model number update- PEB7227ANDD) and GE® Required 30" Built-In Trim Kit JX7230SLSS (sold separately). Check out the Quick Specs for cabinet dimensions: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=PEB7227SL_BL_R2_17.pdf - Enjoy! Sue
Q: Can I put a gas cooktop on this oven?
A: The oven is built in and separate from the cooktop. You can use any kind of cooktop you want----or none, if that's the way you roll.
Q: Is this oven finger print resistant?
A: No I’m sorry to say is not fingerprints Proof
Q: How does this model compare to the model JK5000SFSS or are they the same?
A: Hi Jason- The models are the same except for size. Model JK5000SFSS fits is a 27" wide cabinet (4.3 cu ft oven capacity) and model JT5000SFSS fits in a 30" wide cabinet (5 cu ft oven capacity). Thanks for considering GE! SUE@GEA
Q: Is this unit self cleaning?
A: Yes
Q: What are the external dimensions of this oven?
A: When you view the oven, click on the description and you will see the dimensions.
Q: What does this oven require for electrical rough-in? Thank you
A: Hello, Thank you for choosing the GE 30" Built-In Single Electric Convection wall oven model JT5000DFBB. Following are the Power Ratings. Please see the installation instructions on the GE Appliance website for all detailed dimensions, specifications and junction box location. Amp Rating at 208V: 20 Amp Rating at 240V: 20 KW Rating at 208V: 3.2 KW Rating at 240V: 4.2 I hope this helps! Donna with GE
