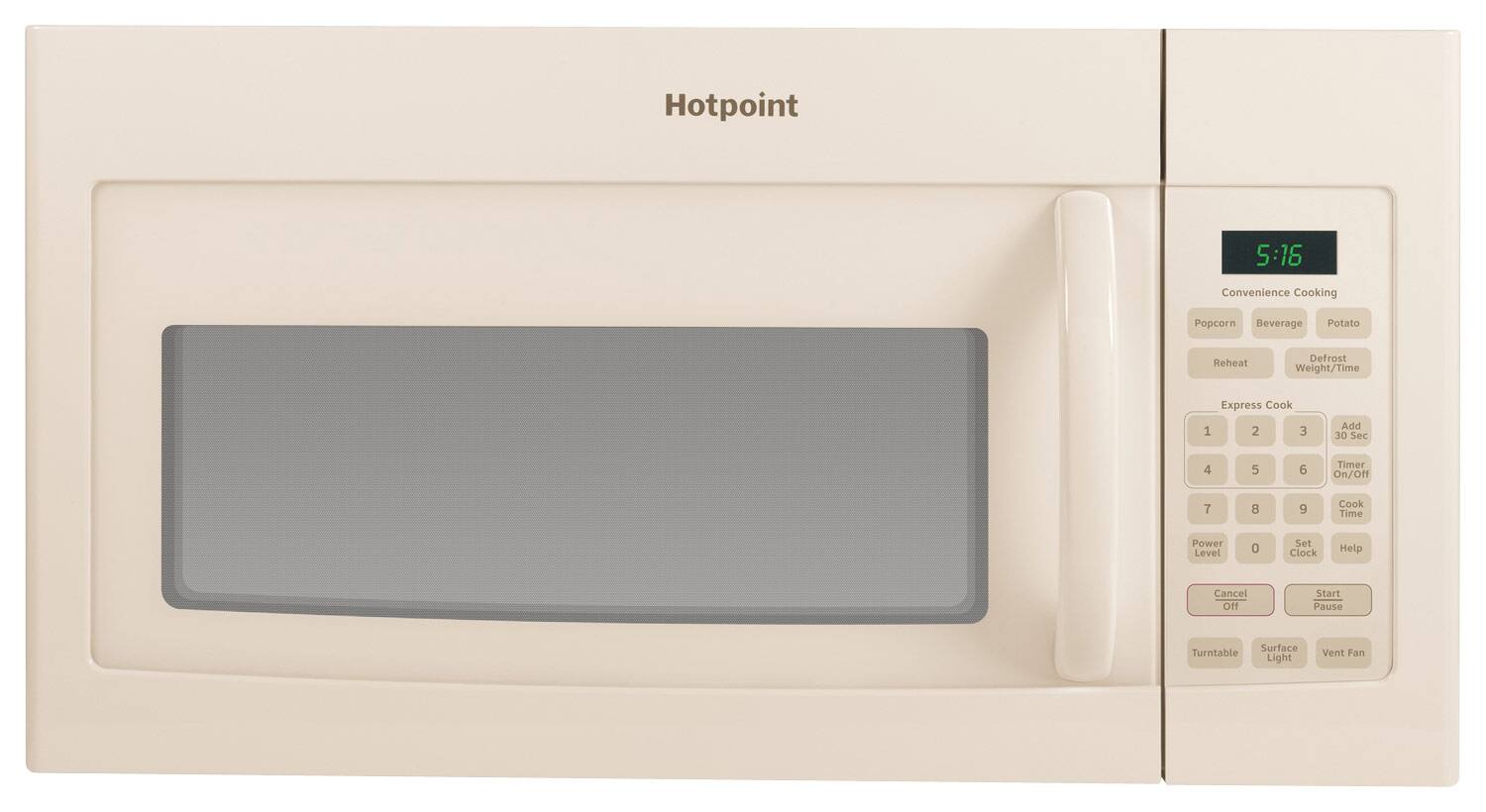

Hotpoint - 1.6 Cu. Ft. Over-the-Range Microwave
- Key Specs
- Product Height: 16 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 13 1/2 inches
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Color Finish: Bisque/Biscuit
- General
- Product Name: 1.6 Cu. Ft. Over-the-Range Microwave
- Brand: Hotpoint
- Model Number: RVM5160DHCC
- Color Finish: Bisque/Biscuit
- Dimensions
- Product Height: 16 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 63 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 16 1/2 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.6 cubic feet
- Microwave Size: Full-size
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Fingerprint Resistant: false
- Timer: true
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 13 1/2 inches
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Number of Power Levels: 10
- Turntable On/Off Option: true
- Filter Info
- Removable Filter: false
- Ventilation
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Rear, Top
- Maximum Air Flow Capacity: 200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Other
- UPC: 084691261186
Hotpoint Over-the-Range Microwave: Prepare snacks and meals in minutes with convenience cooking controls and Express Cook settings that let you cook and thaw foods in a snap. With a 2-speed, 200 cfm exhaust fan and cooktop lighting, you'll be able to place this microwave above your range while maintaining the functionality of a vent hood.
- 1000W with 10 power levels for standard microwave cooking: Quickly prepare frozen meals, and heat leftovers in no time.
- Convenience cooking controls make it easy to cook and defrost: Popcorn, potato, beverage, reheat and defrost weight/time options offer versatility. With auto and time defrost options, you can automatically or manually program the settings.
- Easily increase the cooking time: An add-30-seconds button extends the length of preparation, so you can adjust as needed. Express Cook with 1- to 6-minute options allows rapid cooking.
- 13.5" glass turntable with on/off button: Rotates food to ensure even heating.
- 2-speed, 200 cfm exhaust fan helps remove cooking odors: Easily blow smoke and steam out of your kitchen.
- Cooktop lighting with bright, night and off settings: Clearly view your cooktop while you prepare meals.
- Electronic touch controls make operation simple: So you can easily cook and thaw foods.
Whats Included
- 1.6 Cu. Ft. Over-the-Range Microwave
- Owner's manual
A: Hey there, thanks for reaching out! Yes, we're pleased to inform you that this microwave will fit your space. All 30" over-the-range microwaves are approximately the same width and are designed to fit into a 30" wide cabinet opening. Therefore, any of our 30" over-the-range models will work as a replacement for an existing 30" over-the-range model. We hope that's the answer you wanted to see! We appreciate your loyalty to us. - Guy@GEA
Q: what size or type light bulb fits under the Hotpoint microwave.
A: Your microwave uses 2 incandescent 40W bulbs. The part number is WB25X10030 if you'd like to purchase it from GE Parts. They can be reached by calling 1-877-959-8688 M-F 9:00-7:00 EST.
A: you need to select the amount of time to cook first..either express (express times have the border around them only 1-6) or time cook button which you select any amount of time- and then select the power level. default is set to 10 so you just select whatever level you want to change it to
A: Hi coupe1942, thanks for your question! We're finding that your older model is a countertop/optional built in model. An over the range microwave would not make for a good replacement as they have different installation styles. The model that would make for the best replacement would be the following: PEM31SFSS. It does look like you will need to alter your cutout space a bit. So we would recommend reaching out to a cabinet professional and showing them the cutout dimensions for this unit. Those cutout dimensions can be found in the Quick Specs of this new model. If you're wanting to build this unit into surrounding cabinetry, these are the two trim kits that are associated with this unit: JX827SFSS and JX830SFSS. We hope that this helps! Stay safe. -Michael
A: Hi coupe1942, thanks for reaching out! All 30" over-the-range microwaves are approximately the same width, and are designed to fit into a 30" wide cabinet opening. Therefore, any of our 30" over-the-range models will work as a replacement for an existing 30" over-the-range model. This makes choosing a replacement microwave easy! - NOTE: When replacing an over-the-range microwave, the mounting bracket included with the new microwave should be used since the mounting bracket is specific to each model. The new screws, bolts, and exhaust adapter should also be used. We hope that this helps! If you have any other questions or concerns, please feel free to send us an email or reach out to us via social media. All the best. -Michael
Q: Will this fit where my dead Hotpoint Countersaver Plus fits, please?
A: Google your old model and write down the dimensions and do the same on the Hotpoint. As long as the dimensions are the same or less it will fit.
Q: I need a microwave that will vent external please.
A: Hi picky - The microwave can be vented to the outside. The over-the-range microwave ovens are designed for adaptation to the following three types of ventilation to suit your installation needs: *Outside Exhaust (Vertical – Delivered from factory in vertical position). *Outside Exhaust (Horizontal). *Recirculating (Non-vented ductless). You can also view the Installation Guide online for complete details: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-40675-4.PDF - Thanks for choosing Hotpoint. Enjoy! Sue
Q: How much do you charge to instal an over rang microwave. We have one now, but it seems to be dying.
A: To better answer your question, please contact the Best Buy Customer Service team or your local retail store.
