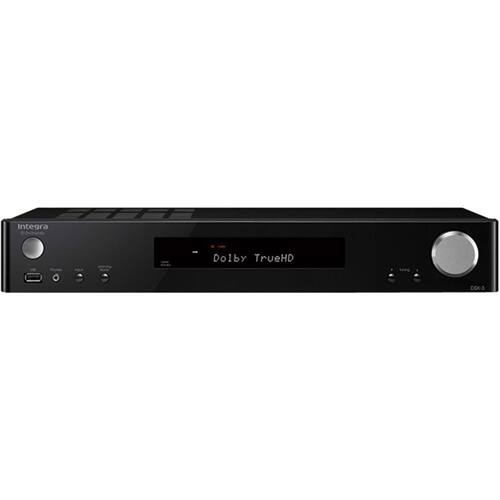

Integra - 6.1-Ch. Hi-Res Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver - Black
Model: DSX-3
SKU: 5714662
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 50 watts x 5 channels @ 4 ohms
- Number of Channels: 5.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 3 x Analog audio, 2 x 3.5mm audio, 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Phono
- Audio/Video Inputs: 1 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Product Name: 6.1-Ch. Hi-Res Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Brand: Integra
- Model Number: DSX-3
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 50 watts x 5 channels @ 4 ohms
- Number of Channels: 5.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Audio Zone Source Outputs: 1 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: DTS 96/24, DTS Neo:6, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 192 (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: WAV, AAC, AIFF, MP3, FLAC, DSD, ALAC
- DSP Modes: 11 (Available sound modes that alter how the audio is processed and played back. A common example is a mode that allows stereo audio to be played on all available surround sound speakers, creating a simulated surround sound effect.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): Satellite, FM only
- Inputs
- Audio Only Inputs: 3 x Analog audio, 2 x 3.5mm audio, 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Phono
- Audio/Video Inputs: 1 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Front Facing Inputs: USB
- Number of HDMI Inputs (Total): 4
- Number of USB Inputs: 1
- Video
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Outputs
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: Spring clip
- Number of HDMI Outputs (Total): 1
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Featured Streaming Services: Pandora, Spotify, TuneIn (Streaming services and other programs are available on this device. Keep in mind, there may be more services supported than just those shown here.)
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay, Google Cast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Dimensions
- Product Height: 2.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8.8 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 889951000518
Bring music and movies to life with this 6.1-channel Integra A/V receiver. Its fits easily in an entertainment center, and its 80W-per-channel amplifier powers your speakers to produce detailed, authentic sound. This Integra A/V receiver supports 4K Ultra HD resolution to deliver a clear, bright picture for a more enjoyable movie-watching experience. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via LAN, USB, Bluetooth.
- Smart Enabled: Get access to a world of instant entertainment with this product. Just connect to the Internet and stream movies, listen to music, and access a wide variety of other content.
- Connect to the Internet: Access a variety of online streaming services, such as DLNA, Pandora, Deezer, Spotify, TuneIn and TIDAL, as well as music and photos over your home network.
- Surround sound decoders: Include Dolby Surround, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Neo:6, DTS 96/24 and more for crystal surround sound.
- Apple AirPlay and Google Cast support: Support distributed audio playback in another room, so you can enjoy music throughout your home.
- x.v.Color and Deep Color technology: Produce vibrant hues for a lifelike picture.
- Up to 4K HDMI passthrough: Transfers 4K video and audio signals from your set-top devices to the TV via the AV receiver.
- 3D passthrough: Passes through 3D content from a variety of devices through your AV receiver to your TV or projector.
- 1% total harmonic distortion: Ensures clear audio.
- Bass and treble controls: Enable simple sonic customization, so you can tailor the sound to suit your preferences.
- Remote: Lets you control the receiver from afar.
- FM tuner: With 40 station presets lets you program your favorites for simple one-touch recall.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 4 HDMI inputs, 1 HDMI output: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Vacuum fluorescent display: Ensures optimal brightness and a high level of visibility.
- Enjoy AirPlay audio: Lets you stream music from your Apple® iPod®, iPhone® or iPad®.
- AccuEQ acoustic calibration: Ensures the sound is calibrated to your room's acoustics, including manual adjustments and presets.
- Bluetooth technology: Supports simple wireless music streaming via compatible devices. Advanced music optimizer technology promotes quality sound when streaming audio.
Whats Included
- Integra 6.1-Ch. Hi-Res Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
