Specifications
Continuous Watts x Channel @ Ohms300 Watts x 1 @ 4 OhmMaximum Watts x Channel @ Ohms800 Watts x 1 @ 1 OhmAmplifier ClassDNumber Of Channels1Bass BoostVariableLow-Pass CrossoverVariable
Key Specs
Continuous Watts x Channel @ Ohms300 Watts x 1 @ 4 OhmMaximum Watts x Channel @ Ohms800 Watts x 1 @ 1 OhmAmplifier ClassDNumber Of Channels1Bass BoostVariableLow-Pass CrossoverVariable
General
Product NameCX 800W Class D Digital Mono Amplifier with Variable Low-Pass CrossoverBrandKICKERModel Number46CXA8001SeriesCX
Audio Power
Continuous Watts x Channel @ Ohms300 Watts x 1 @ 4 OhmTotal Power Handling RMS300 wattsWatts Per Channel RMS300 wattsMaximum Watts x Channel @ Ohms800 Watts x 1 @ 1 OhmTotal Power Handling Maximum800 wattsWatts Per Channel Maximum800 wattsAmplifier ClassD
Audio
Number Of Channels1Minimum Frequency Response25 hertzMaximum Frequency Response0.2 kilohertzSignal-to-Noise Ratio (SNR)95 decibelsBass BoostVariable
Features
Low-Pass CrossoverVariableRemote Control IncludedNo
Input
Line-Level InputsYes
Output
Preamp OutputsYes
Dimension
Product Height2.3 inchesProduct Width8.1 inchesProduct Depth6.7 inches
Warranty
Manufacturer's Warranty - Parts1 yearManufacturer's Warranty - Labor1 year
Other
UPC713034088547

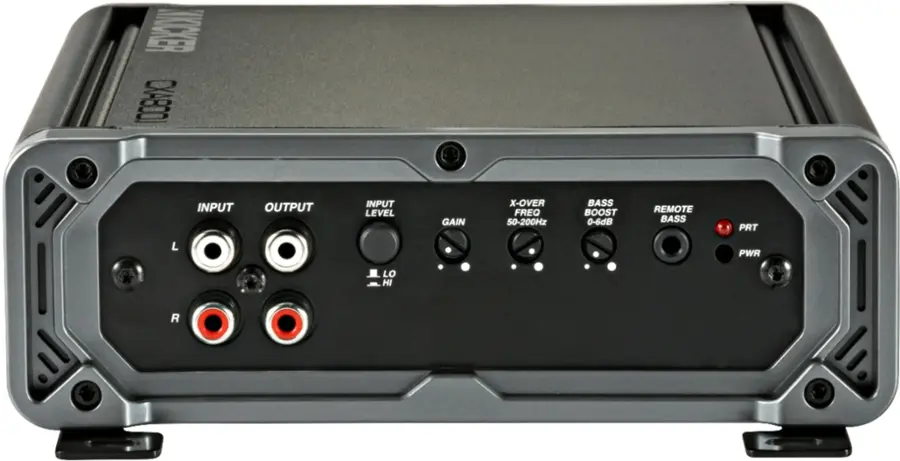

Create a custom sound experience with this KICKER CX-Series mono amplifier. The variable 12dB crossovers provide the control you need to get the exact sound you want, and the 24dB subsonic filter protects against damaging frequencies. With its small footprint and Fail-safe Integration Technology-PLUS, this KICKER CX-Series mono amplifier is easy to install and works with almost any radio.
800W total power
RMS rating of 800W x 1 @ 1 ohm, for robust audio.
Variable low-pass-filter crossover
Lets you easily adjust the audio frequency from 50Hz to 200Hz for flexible sonic customization.
4 ohms impedance
Conducts power evenly to keep the speaker at an appropriate level.
95dB signal-to-noise ratio
Offers crisp audio.
Adjustable KickEQ
Allows you to easily customize the sound.
0-6dB bass boost
Lets you add punchy bass to your music.
Class D circuitry
Ensures reliable power handling.
What's Included
KICKER CX 800W Class D Digital Mono Amplifier with Variable Low-Pass Crossover
Manuals & Guides
User Manual (PDF)
Search
- A: AnswerI originally had this paired with one Kicker Comp R 12 at 2 ohms. That was way too powerful for the Comp R because it kept blowing the sub despite Best Buy Geek Squad tech actually taking the time to ensure the output was matched and accurate to what that one Comp R 12 was supposed to be able to handle. It was explained to me that the blowing was likely due to this amp actually being more powerful than it's reported and not necessarily due to the Comp R 12 not being able to handle what it's supposed to. I recently upgraded to the Kicker Comp VX 12. Wow. I've got a bass knob installed. The bass know was previously turned all the way up when the Kicker Comp R was paired with this amp, and the gain on the amp was turned down lower to prevent the Comp R 12 from blowing. It still sounded good, but I figured I wanted to get more out of the amp by going with a better sub. The Kicker Comp VX 12 hits so much deeper and louder paired with this amp at 1 ohm (it's 1 ohm stable which is a huge deal!), AND that's wit the bass knob turned down to about 25% I want to give this sub some time to break in and am gradually turning up the bass knob. Summary is that this is perfect to pair with one Kicker Comp VX 12 with it wired at 1 ohm. I promise you won't regret it. Matthew 7:12
Answered by cinnamonroll72
- A: AnswerIf your referring to a kicker amp you do not need a loc, kicker makes a kisl which converts high level speaker input to rca. Its about 20 bucks and 4 butt connectors thats it. Your amp will sense power from from your speakers and power on and off automatically. So much easier and cheaper but yes you can also use the same power and ground on your amp to power the loc if you still decide to use it. Sound quality is better with the kisl, also with kisl you'll have the high/low input button on your amp to high. Check it out
Answered by Ryan
- A: AnswerYes it will
Answered by Rock
Q: QuestionWill this work with a 6 channel cd player, car audio?(2 answers)
A: AnswerIt will work with almost any aftermarket head unit, and will fit most stock vehicles either directly or with an adapter. Your Best Buy audio installer will be able to tell you what is needed to fit your particular vehicle.Answered by GlibRemark
- A: AnswerYou will have to purchase speaker wire to RCA adapters. Kicker sells them on their website for about $15 I think. Hook those from your speaker wires to your amp. Be sure to switch the input button on your amp to HIGH instead of low. DO NOT USE THIS PLUS A REMOTE WIRE. You dont need a remote wire with amp wired this way. It senses signal from your speakers and automatically turns on.
Answered by Broman
- A: AnswerIt will do the job for a 10 it powers my 2 10' kicker subwoofers. Have the same amp.
Answered by CALIFERO13
- A: AnswerYes it will I have it on 12” Rockford Fosgate p2d4 sub in a ported enclosure
Answered by iMac
- A: AnswerFrom what I can find, the RMS on those are 400W. So yes, I believe you would be paired well with this amp. Also depending on the Ohm on the pair you have (2 or 4), you can wire them to give the most from the amp. Parallel will half, series will double the ohms. Hope this helps.
Answered by thesouth1
KICKER - CX 800W Class D Digital Mono Amplifier with Variable Low-Pass Crossover - Black
User rating, 4.7 out of 5 stars with 591 reviews.
4.7(591 Reviews)- 65 Answered Questions
4 payments starting at
$56.25
with
You might also need
Shipping
Installation: Available at select stores
More installation info is available in checkout
Compare similar products
| Continuous Watts x Channel @ Ohms | ||||
|---|---|---|---|---|
| Continuous Watts x Channel @ Ohms | 300 Watts x 1 @ 4 Ohm | 600 Watts x 1 @ 4 Ohm | 150 Watts x 1 @ 4 Ohm | 100 W RMS x 4-Channel - 4 Ohm |
| Maximum Watts x Channel @ Ohms | ||||
| Maximum Watts x Channel @ Ohms | 800 Watts x 1 @ 1 Ohm | 1200 Watts x 1 @ 2 Ohm | 400 Watts x 1 @ 1 Ohm | 200 Watts x 4 |
| Amplifier Class | ||||
| Amplifier Class | D | D | D | D |
Reviews
Rating 4.7 out of 5 stars with 591 reviews
4.7Rating by feature
- 4.6Value
Rating 4.6 out of 5 stars
- 4.8Quality
Rating 4.8 out of 5 stars
- 4.8Ease of Use
Rating 4.8 out of 5 stars
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Rated 5 out of 5 stars
This little amp is a powerhouse.
Wonderful Amp in a small package. Haven't had any issues with it in the year+ that I've owned it. It has multiple terminals so if you want to do more than one sub you don't have to bridge them. My experienover all has been great with this amp. I would 100% recommend this to a budget audiophile.
Posted by KenyattaC
Rated 5 out of 5 stars
Small and packs a punch.
Very powerful amp. Small and compact gives you the availability to intall in various vehicles were space is limited. Would definitely recommend, I own two that were installed on my personal vehicles.
Posted by KickerL7
Rated 5 out of 5 stars
Kicker 800.1 Review
This amp was purchased to power my JL 10" subwoofers. They are wired to 2 ohms, and this amplifier is a perfect match. I have abused this amp every day for over one month, and it rarely gets hot. It is super small, so it can be mounted almost anywhere. I am blown away by the sound produced by such a small unit. If you are on the fence about buying, I can assure you that you won't regret it.
Posted by Logan
