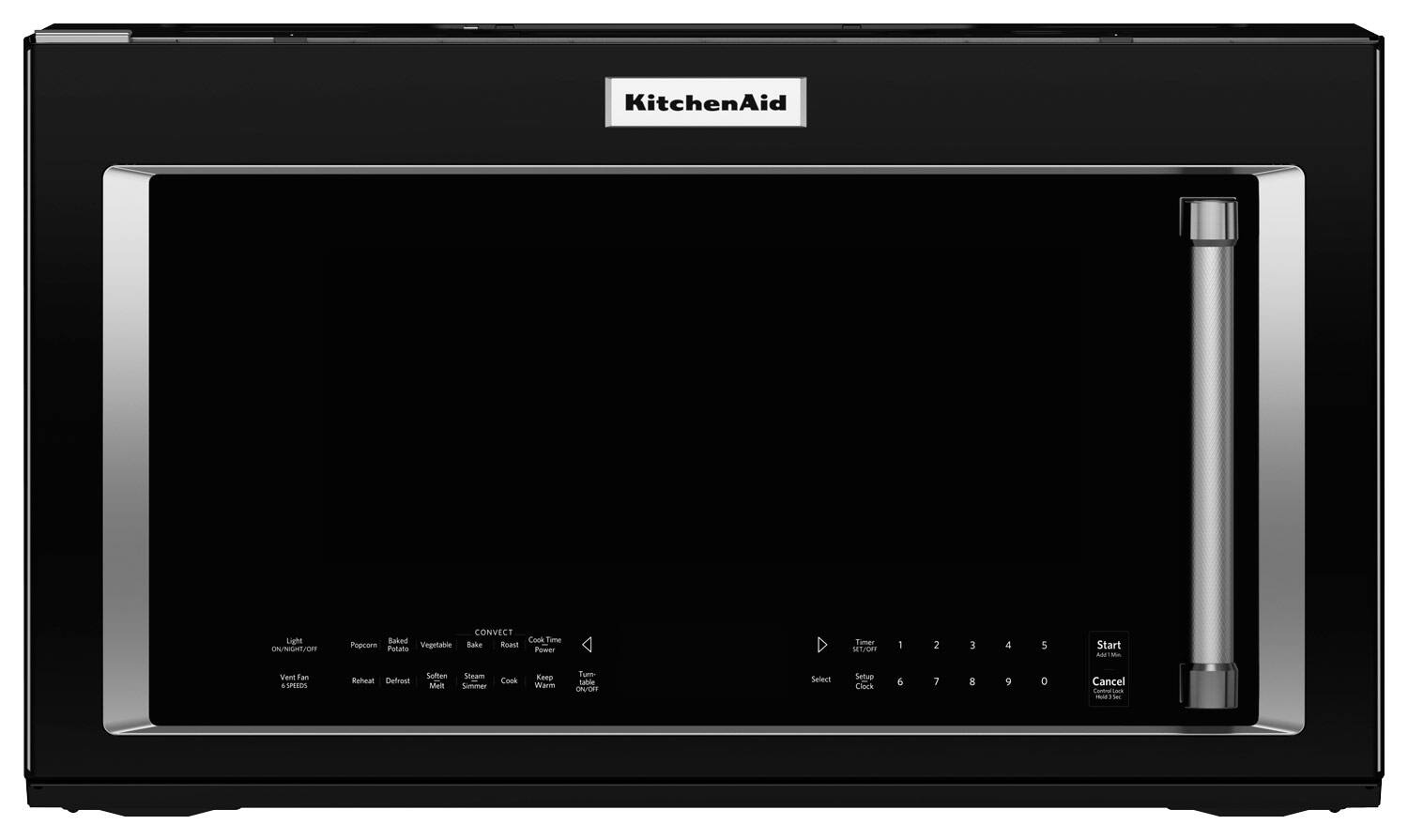

KitchenAid - 1.9 Cu. Ft. Convection Over-the-Range Microwave
- Key Specs
- Product Height: 17.12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 14 inches
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Color Finish: Black
- General
- Product Name: 1.9 Cu. Ft. Convection Over-the-Range Microwave
- Brand: KitchenAid
- Model Number: KMHC319EBL
- Color Finish: Black
- Dimensions
- Product Height: 17.12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 77 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 30 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.9 cubic feet
- Microwave Size: Full-size
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Interior Material: Stainless steel
- Fingerprint Resistant: false
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 14 inches
- Cooktop Lighting: false (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LED
- Turntable On/Off Option: true
- Filter Info
- Removable Filter: true
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year limited; 5 years limited: electric element, solid state touch control system; 10 years limited: stainless-steel oven cavity and inner door
- Manufacturer's Warranty - Labor: 1 year limited
- Other
- UPC: 883049323800
KitchenAid Over-the-Range Microwave: With 11 one-touch presets and a sensor steam/simmer cook cycle, this self-cleaning microwave makes cooking side dishes, warming up beverages and defrosting frozen dinners effortless. Use the 6-speed fan to maintain a fresh-smelling kitchen.
- 1000W for everyday microwave cooking: 10 power levels allow you to quickly defrost frozen meals or reheat your coffee.
- Enjoy tasty, thoroughly cooked dishes: Convection technology evenly circulates air throughout the microwave for fast, even heating.
- 11 one-touch settings: Make cooking a snap.
- Sensor steam/simmer cook cycle: Place your food in the steamer container and let the microwave do the cooking for you.
- Maintain a clean microwave: Steam clean does the scrubbing for you.
- 14" turntable rotates food: To ensure evenly cooked meals and sides. The turntable is removable for easy cleaning.
- Keep your kitchen smelling fresh: A 6-speed fan with a charcoal filter minimizes smoke and food odor.
- Illuminate your cooking surface: A halogen task light makes it easy to see what you're doing.
- Easily make your selection: Electronic touch controls simplify operation.
Whats Included
- 1.9 Cu. Ft. Convection Over-the-Range Microwave
- Hanging/trim kit
- Installation hardware, filters, turntable, rack, bulbs and steamer container
- Owner's manual
A: I'm somewhat handy and had no real problem installing this myself. I simply removed the old fan/light range hood and installed this microwave/convection oven in its place. I opted to use the default option of the recirculating fan instead of configuring an exterior vent so therefore I did not need to buy anything to install this that didn't already come in the box. The paper instructions have a template to locate holes for the top screws and the plug. This unit requires a 20A breaker, but luckily my outlet above the stove already had that. The top of the box is a template you use to very carefully locate where you will mount the rear bracket. You need to mount both ends of the bracket into the wall with drywall anchors if studs are not at those holes or just straight to the studs if your lucky enough that your studs do line up with the ends of the bracket. If you did use the drywall anchors at the ends, then you must find at least one hole in the bracket that is in front of a stud so that you can secure the bracket to at least one stud, preferably two. Once the bracket is in place, just roll the back edge of the oven onto it and then run screws through the upper cabinet down into the microwave to hold it into place. You may need a second pair of hands to help with this step because the oven is rather heavy to hold, roll onto the bracket, AND screw to the upper cabinet. You cannot let go until the upper screws are in place. -Dan
A: Yes, this microwave will either recirculate, vent out the back or vent out the top. Before install you just need to remove the fan & rotate it which way to want it to vent, it's super easy. I believe pretty much all over the range microwaves do this...at least from the research I did before purchasing this one.
A: Absolutely no different than a convection oven! If a recipe tells me to bake at 400 degrees for 30 min. I can safely set it at 375 degrees for 20 minutes and be confident that it will be perfect. I use mine instead of my huge oven and cook everything from chicken to cakes!
Q: If installed between cabinets (flush), will the door hit the cabinet when opening?
A: It will not hit, back edge of door actually swings in when the door is opened, when fully open the front edge is still even with the edge of the microware.
A: When using it as convection you can use a metal pan. If using it as a microwave then no.
A: All you have to do is touch Start and it starts running for 1 minute. Touch again to add a minute etc. it’s just a touch, no “pressing” as the surface is glass.
Q: Will this mount under a 15 inch deep cabinet?
A: Yes, it will. This is mine with 15"deep cabinets.
Q: Can this be rear vented outside
A: Yes, definitely. This is covered in the manual. By default, the fan is positioned to vent indoors (recirculate), but the installation instructions also cover how to remove and rotate the fan so that it blows out a pre-existing vent to the outside.
