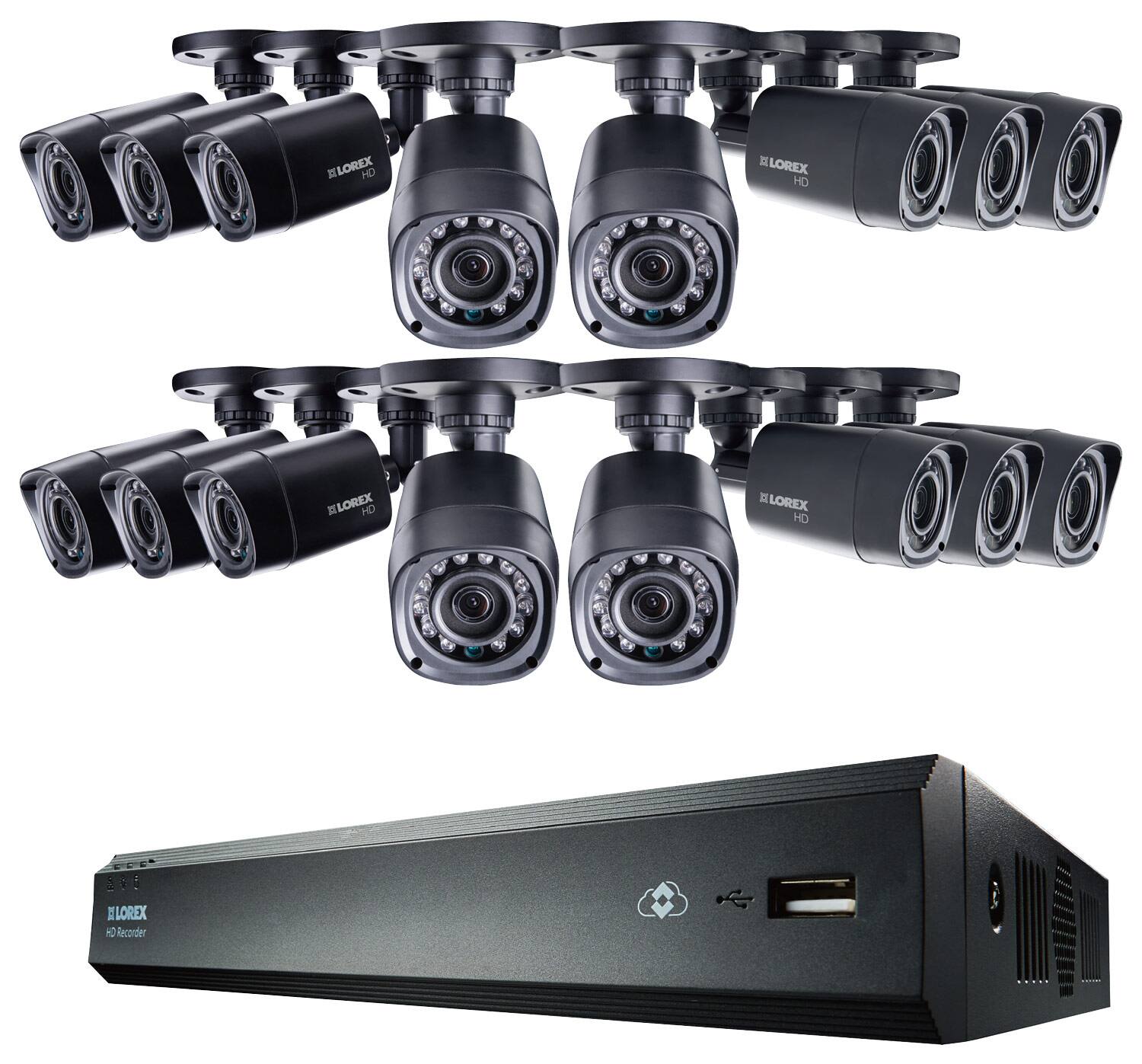

Lorex - 16-Channel, 16-Camera Indoor/Outdoor High-Definition DVR Security System - Black
Model: LHV00162TC16
SKU: 4713900
This item is no longer available in new condition. See similar items below
- Key Specs
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 55 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 16
- Camera Power Source: AC/DC Power (plug-in)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number Of Channels: 16
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage Type: Cloud, DVR
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- General
- Product Name: 16-Channel, 16-Camera Indoor/Outdoor High-Definition DVR Security System
- Brand: Lorex
- Model Number: LHV00162TC16
- Camera
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 55 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 130 feet
- Number Of Cameras Included: 16
- Number Of Cameras Supported: 16
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 12 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Infrared Distance: 90 feet (The distance over which the camera's infrared, or night vision, capabilities can detect objects.)
- Camera Iris: Automatic (The iris is the opening on a camera that controls how much light reaches its image sensor, which in turn affects image/video clarity. Fixed and manual irises are generally suited for locations with consistent levels of light. Automatic and "P" (precise) irises automatically adjust in response to changing levels of light and are suited for a wider variety of environments. "P" irises feature additional capabilities for improving footage clarity.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Wall mount
- Power
- Camera Power Source: AC/DC Power (plug-in)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Camera Compatibility: Lorex NTSC cameras
- Operating System Compatibility: Android, Apple iOS, Mac, Windows, Windows Mobile
- Connectivity
- Camera Connectivity: Wired, Wireless (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Recording & Playback
- Streaming Video: true (The ability to transmit a live video feed from the product.)
- Records Audio: true
- Number Of Channels: 16
- Video Compression Type: H.264
- Simultaneous Operation: Pentaplex (Refers to the number of operations (live view, record, playback, back up, remote control, etc.) the DVR can perform simultaneously. For example, a simplex DVR can perform only one task at a time, such as recording or playback of footage, while a pentaplex DVR can multitask up to 5 functions.)
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Video Recording Prompt: Motion detection
- Storage
- Storage Type: Cloud, DVR
- DVR Storage Capacity: 2000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Protective Qualities: Water resistant
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio Communication: 1-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- 3-Axis Adjustable: true
- Auto-On Detection: Motion
- Dimension
- Camera Height: 2.7 inches
- Camera Width: 2.7 inches
- Camera Depth: 6 inches
- Camera Weight: 0.3 pounds
- DVR Height: 2 inches
- DVR Width: 12.8 inches
- DVR Depth: 9.6 inches
- DVR Weight: 1.7 pounds
- DVR Cord Length: 6 feet
- Output
- DVR Output(s): VGA, HDMI, Analog audio, USB
- Display
- Clock Display: false
- Camera Color Display: true
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: true
- Cable(s) Included: true
- Warranty
- Manufacturer's Warranty - Parts: 1 year; 90 days: accessories
- Manufacturer's Warranty - Labor: 1 year
- Other
- UPC: 695529003221
Lorex 16-Channel, 16-Camera High-Definition DVR Security System: Stay informed on the go with this security system's remote access and app for Apple® and Android devices. Sixteen included cameras and a 2TB hard drive allow you to monitor and save video recordings of activity in multiple areas simultaneously.
- Notifications keep you informed: Instant e-mail alerts with snapshots and video recordings tell you about unauthorized movement.
- Monitor multiple areas with 16 included cameras: CMOS sensors capture detailed images.
- Watch and record from up to 16 channels: Monitor several areas at once to help keep your home or business safe.
- Set and forget with hard drive storage: 2TB hard drive provides ample space for storing important recordings.
- Capture everything in HD: 720p recording resolution lets you see small details on your screen.
Whats Included
- 2TB HD DVR, 16 cameras
- HDMI cable, power adapter, mouse, Ethernet cable, sixteen 60' BNC cables
- Mounting hardware
- Owner's manual
Q: Are these cameras powered through Ethernet or is there separate connections for power and video?
A: This is not a power over Ethernet system, it's Analog and uses a BNC power/video cable for each camera.
Q: How many frames per second do you get on this camera set?
A: 30 frames per second on each channel
Q: Does this system time and date stamp the images?
A: Hello, Yes, the date and time and channel number are watermarked onto the video. Thanks, Lorex
Q: are these motion activated camera's?
A: Yes, you can set the system to record when motion is detected if you prefer.
A: Please visit the Lorex website and click on Support then Contact Us. You can find the phone number to call our sales team for advice or you can submit an online ticket.
Q: Is Audio recorded with this camera set?
A: The Website states that this set does indeed record audio. Can anyone confirm?
