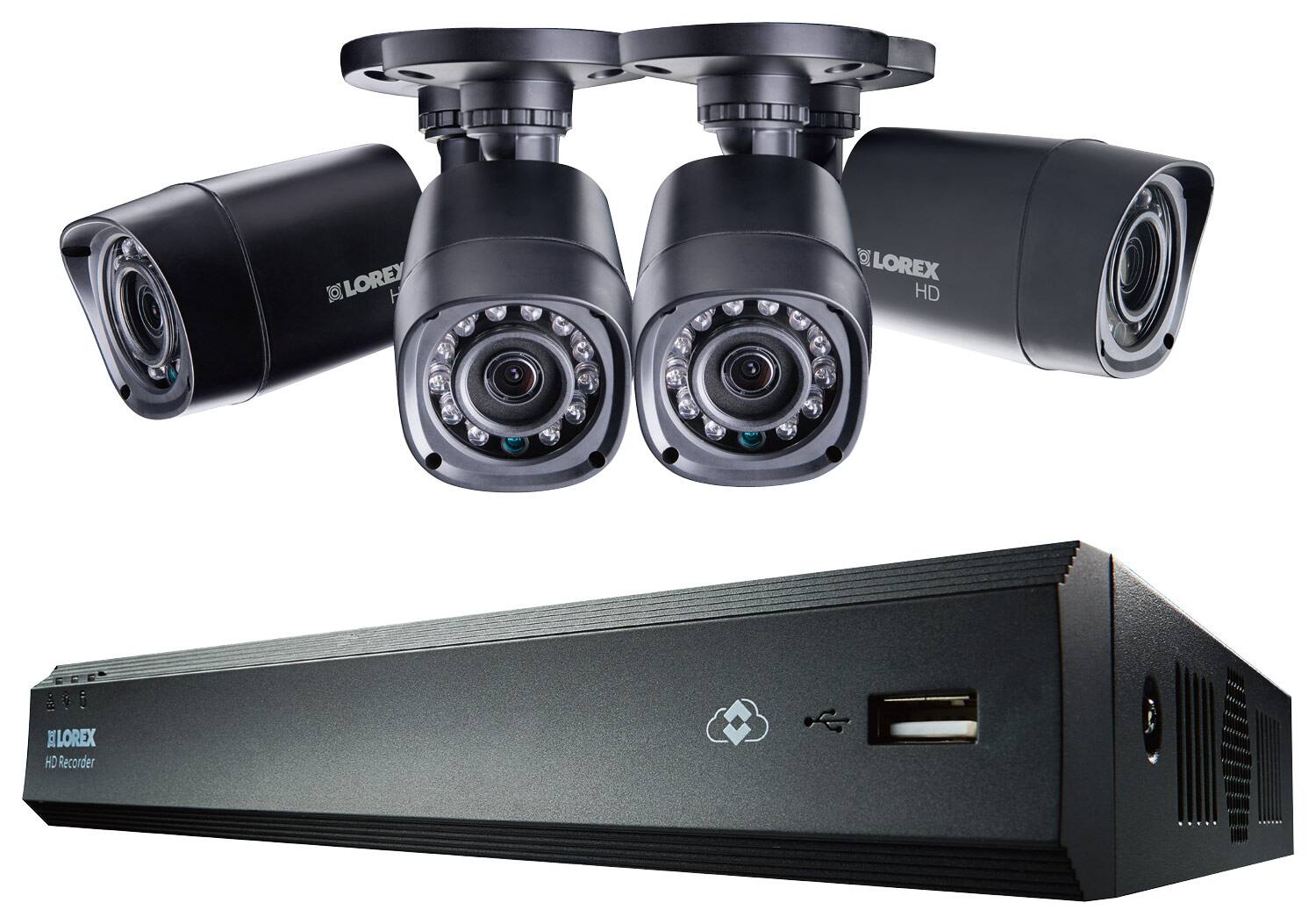

Lorex - 4-Channel, 4-Camera Indoor/Outdoor High-Definition DVR Security System - Black
Model: LHV00041TC4
SKU: 4713903
This item is no longer available in new condition. See similar items below
- Key Specs
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 55 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Number Of Channels: 4
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: 4-Channel, 4-Camera Indoor/Outdoor High-Definition DVR Security System
- Brand: Lorex
- Model Number: LHV00041TC4
- Camera
- Camera Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 55 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 130 feet
- Number Of Cameras Included: 4
- Number Of Cameras Supported: 4
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: Wired (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 12 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Iris: Automatic (The iris is the opening on a camera that controls how much light reaches its image sensor, which in turn affects image/video clarity. Fixed and manual irises are generally suited for locations with consistent levels of light. Automatic and "P" (precise) irises automatically adjust in response to changing levels of light and are suited for a wider variety of environments. "P" irises feature additional capabilities for improving footage clarity.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Mount Type: Wall mount
- Compatibility
- Camera Compatibility: Lorex NTSC
- Operating System Compatibility: Android, Apple iOS, Mac, Windows, Windows Mobile
- Connectivity
- Camera Connectivity: Wired (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Records Audio: true
- Number Of Channels: 4
- Video Compression Type: H.264
- Simultaneous Operation: Pentaplex (Refers to the number of operations (live view, record, playback, back up, remote control, etc.) the DVR can perform simultaneously. For example, a simplex DVR can perform only one task at a time, such as recording or playback of footage, while a pentaplex DVR can multitask up to 5 functions.)
- Recording Resolution: 720 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Storage
- DVR Storage Capacity: 1000 gigabytes
- Performance
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio-Only Option: false
- 3-Axis Adjustable: true
- Auto-On Detection: Motion
- Dimensions
- Camera Height: 2.7 inches
- Camera Width: 2.7 inches
- Camera Depth: 6 inches
- Camera Weight: 0.3 pounds
- DVR Height: 2 inches
- DVR Width: 12.8 inches
- DVR Depth: 9.6 inches
- DVR Weight: 1.7 pounds
- DVR Cord Length: 6 feet
- Output
- DVR Output(s): VGA, HDMI, Analog audio, USB
- Display
- Clock Display: false
- Camera Color Display: false
- Included
- Camera(s) Included: true
- DVR Included: true
- Monitor Included: false
- Remote Control Included: true
- Cable(s) Included: true
- Other
- UPC: 695529003153
Lorex 4-Channel, 4-Camera High-Definition DVR Security System: Remote monitoring for Apple® and Android devices gives you piece of mind for your property while you're away. Night vision lets you see up to 130' for around-the-clock security.
- Stay informed with instant notifications: E-mails are accompanied by snapshots and video recordings that alert you to unauthorized movement.
- Keep track of multiple areas with 4 included cameras: CMOS sensors ensure detailed image capture.
- Watch and record from up to 4 channels: Simultaneous monitoring capability helps keep your property safe.
- Store important recordings for review: 1TB hard drive provides ample space for saving video clips.
- Capture everything in HD: 720p recording resolution allows you to see small details, even in dim lighting.
Whats Included
- 1TB HD DVR, 4 cameras, HDMI cable, power adapter, mouse, Ethernet cable, four 60' BNC cables
- 4 mounting kits
- Owner's manual
Q: Can you connect the dvr to a laptop in order to download video onto an external hard drive?
A: There is a program for the desktop by the manufacturer that facilitates downloading video from the DVR itself. For direct backup, insert a thumb drive or a USB hard drive.
Q: does the system only record when there is motion?
A: This system can record in continuous, scheduled and motion sense mode.
A: They don't need a power cord, individually. You'll run all the cords back to the DVR, and it, will supply the power.
A: The extension cables are 60 feet in length.
Q: I assume the box needs to plug into our modem. How far does the box need to be from the modem?
A: This will need to be plugged into your network. it can be plug into your modem or a networking device.
Q: It says the cameras are ethernet yet the cables are only 60 feet, can I just utilize CAT 5 cable ?
A: These cameras use BNC cables but you can purchase longer cables if need be.
Q: can you wire up a mic with each camera?
A: The DVR allows audio from 1 channel so you can use a mic for one of your cameras.
Q: What is the operating temperature ranges for the cameras?
A: The Operating Temperature Range is : –22° ~ 122°F / –30° ~ 50°C
