Onkyo - 5.1-Channel Home Theater Speaker System with 10" Powered Subwoofer - Black
- Key Specs
- Speaker Type: Other
- General
- Product Name: 5.1-Channel Home Theater Speaker System with 10" Powered Subwoofer
- Brand: Onkyo
- Model Number: SKSHT690
- Audio
- Speaker Type: Other
- Peak Power Handling: 130 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Dimensions
- Product Width: 19 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 37.7 pounds (The out of box weight of the item.)
- Included
- Speaker Wire Included: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Manufacturer's Warranty - Parts: 2 years limited
- Manufacturer's Warranty - Labor: 2 years limited
- Other
- UPC: 751398010330

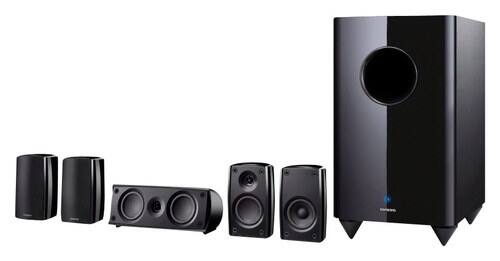

Enjoy immersive audio with this Onkyo SKSHT690 5.1-channel home theater speaker system, which includes 2 front speakers, 1 center-channel speaker and 2 surround speakers for lush sound. The 10" powered subwoofer enhances bass output.
- Two 2-way, 130W full-range surround speakers: Each feature a 3-1/4" woofer cone to handle low-end sound.
- Two 2-way, 130W front speakers: Along with a 2-way, 130W center-channel speaker each feature a 3-1/4" woofer cone and a 1" balanced-dome tweeter to deliver lush audio.
- 10", 120W, down-firing powered subwoofer: Provides authoritative bass.
- 2-way speaker system: Sounds like 1 source rather than several separate sources.
- Magnetically shielded front, center-channel and surround speakers: Help prevent picture distortion when placed on or near a TV or monitor.
Whats Included
- 2 front speakers (SKF-690), 1 center-channel speaker (SKC-690), 2 surround speakers (SKR-690), 1 powered subwoofer (SKW-780)
- Owner's manual
Q: Can these be mounted on stands? And are stands standard size
A: The side and rear speakers have a standard 1/4-20 threaded bushing recessed into the bottoms. The center speaker has no provision for mounting.
Q: What ceiling mounts work with these?
A: I got a set from Crutchfield (Pinpoint AM 24) http://www.crutchfield.com/p_121AM24W/Pinpoint-AM24-White.html?tp=586 The trick is finding ones that can mount speakers with the threaded fitting on the bottom - which is what these have. I wall mounted them because that's where the wires already exited the wall... the bottom mount forces a downward tilt, but that works for my room.
Q: How many ohms are these speakers? My Onkyo receiver only takes 8 ohms.
A: The speakers are all 6 ohm but you should be OK as long as you keep volume to reasonable levels. Overheating the output transistors is the major risk at very high volumes.
Q: What is the best size speaker wire for this set? 16AWG or 14AWG
A: I used 14 gauge. Heavier is better; there's less line loss in the signal.
Q: Do the speakers have wired connections to the stereo receiver?
A: Yes, the speakers are wired.
Q: Do I need a receiver with this Onkyo theater bundle?
A: Yes, you need a receiver to hook these up.
Q: Are the rear speakers wireless?
A: No. They do come with about 30' of what looks like #20 wire color coded for each speaker...
