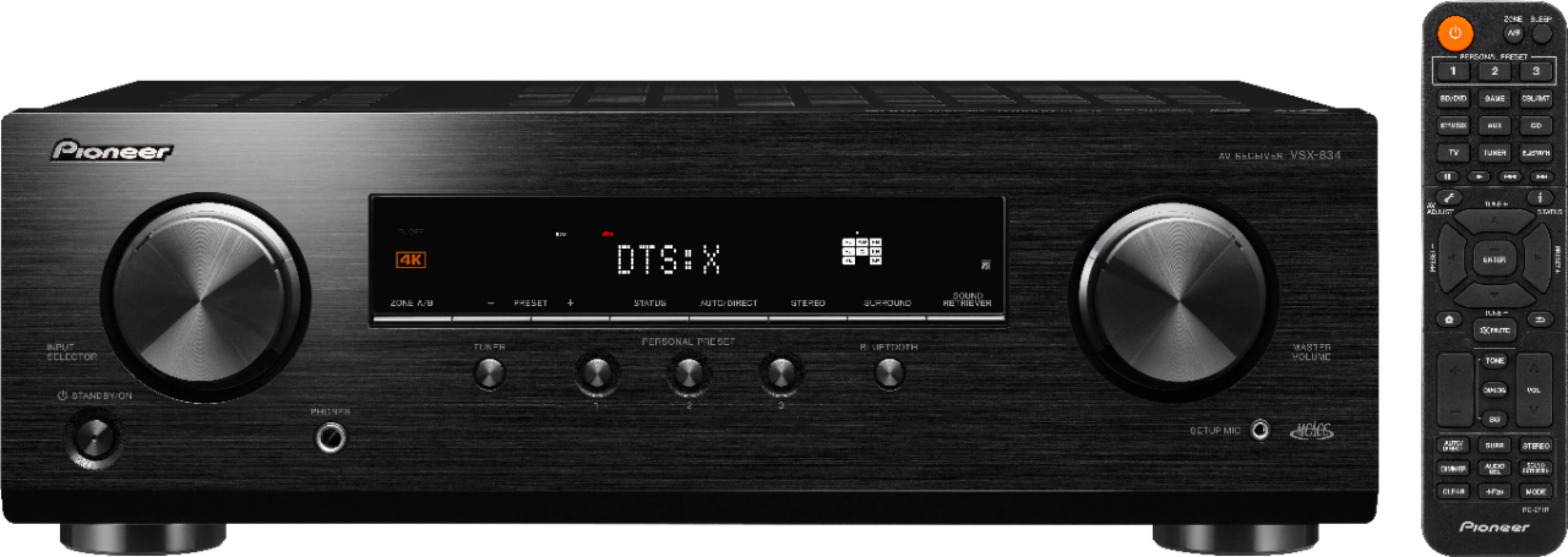

Pioneer - 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver - Black
- Key Specs
- Continuous Watts x Channel @ Ohms: 165 watts x 7 channels @ 6 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 3 x Analog audio, 1 x 3.5mm audio, 1 x Coaxial digital audio, 1 x Optical digital audio
- Audio/Video Inputs: 4 x HDMI (The number and type of HDMI inputs the product has.)
- Video Pass-through: HDR, 2160 (4K), 3D (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Product Name: 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver
- Brand: Pioneer
- Model Number: VSX-834
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 165 watts x 7 channels @ 6 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Surround Sound Supported: DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Tuner Type(s): AM/FM
- Inputs
- Audio Only Inputs: 3 x Analog audio, 1 x 3.5mm audio, 1 x Coaxial digital audio, 1 x Optical digital audio
- Audio/Video Inputs: 4 x HDMI (The number and type of HDMI inputs the product has.)
- Number of HDMI Inputs (Total): 4
- Number of USB Inputs: 0
- Video
- Video Pass-through: HDR, 2160 (4K), 3D (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- High Dynamic Range Format: Dolby Vision, HDR 10, Hybrid Log-Gamma (HLG) (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Outputs
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: RCA
- Number of HDMI Outputs (Total): 1
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Dimensions
- Product Height: 5.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 17.6 pounds (The out of box weight of the item.)
- Other
- UPC: 889951001454
Power your home entertainment system with this Pioneer 7.2-channel AV receiver. Direct energy amplification provides power over all available channels for more dynamic media playback, and Dolby Atmos support ensures 3-D sound is clear on compatible speakers. This Pioneer 7.2-channel AV receiver features a slim and sleek design for easy installation. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.
- 4K and 3D passthrough: Allows high-quality 3D and 4K video through the receiver straight to your media device.
- 165W per channel power: For powerful sound.
- Surround sound decoders: Include Dolby Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, Atmos Height Virtualizer, DTS-HD Master Audio, DTS-HD High Resolution, DTS:X, Virtual:X and more for crystal surround sound.
- Built-in Bluetooth Wireless: Allows you to stream songs from compatible phones and other devices.
- Headphone jack: Enables private listening. Plus Zone B audio output for connection to wireless headphones. Headphones not included.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- 4 HDMI inputs, 1 HDMI output: HDMI cable not included. All inputs support 4K resolution, Wide Color Gamut and HDCP 2.2 for all your video devices. Also supports HDR10, HLG (Hybrid Log-Gamma) and Dolby Vision technology.
- Hi-Res audio support: Lets you enjoy high-quality audio playback via Bluetooth.
- Remote control: Lets you control the receiver from afar.
- Advanced MCACC automatic room calibration: Automatically optimizes receiver output to optimum sound for the room acoustics.
Whats Included
- Pioneer 7.2-Ch. with Dolby Atmos 4K Ultra HD HDR Compatible A/V Home Theater Receiver
A: I have the same thing, I have a Onkyo 7.1 theater system but unfortunately the receiver went out after 8 years. I wanted to replace it with another Onkyo but wasn't ready to spend $600 on a receiver at the time so I purchased this Pioneer which was less than $300 to replace it. I'm still using my same Onkyo speakers with this receiver and everything sounds just the same do drop off at all. Hope this helps
A: Yes, as long as they are 8 ohm speakers.
Q: Is this also an FM receiver?
A: Yes, also fm, but be advised the antenna that is supplied isn't good. If you are keeping this in a closet or other closed area reception is likely to be an issue. Pretty much true of all the products in this class.
Q: Is this unit compatible with a JVC XL-F154 CD player?
A: undefined
Q: Will this reciver be compatible with Bose acoustimass 10 5 speaker system?
A: I struggled with this model to drive my powered subs. By struggle, I mean no bass was coming out. I returned and purchased the Denon AVR540 and my windows are bouncing again with the Klipsch Reference sub.
Q: Can I set this up as a 7.2.4 system? Is there enough speaker connection in the back?
A: Yes, it has 1 center, 2 front L&R, 2 surround L&R and 2 rear L&R, plus a powered subwoofer pre-out. In settings there are several configurations to choose from and an included microphone to adapt the sound to your specific room and speakers.
Q: Will this stereo play simply 2 channel stereo sound at the rated 165 watts?
A: No. The ratings on today’s receivers are misleading. The 165 watt claim is usually based off of driving one channel at a time not all 7 simultaneously. If that was the case they would need much much bigger power supplies inside them. However when I measured it it measured at about 85 watts per channel simultaneously. But the sound quality was still very good.
