Questions & Answers

Q: QuestionWhat size of ductwork is required for installation?

• A:Answer This ZLINE range hood is designed to fit standard 6" round ductwork for ease of installation. However, if you have a dual motor hood, you will need 8" ducting.

Q: QuestionWhat is the standardized width of this range hood?

• A:Answer The standardized width of the 30" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (8632S-30) by ZLINE is 30 inches. This information is specified in the product specifications section of the provided context.

Q: QuestionHow many fan speed settings does it have?

• A:Answer The ZLINE 30" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (model 8632S-30) features 4 fan speed settings, allowing you to adjust the ventilation to suit your cooking needs. The fan speed settings range from low for light frying or boiling to high for intensive frying or wok cooking.

Q: QuestionWhat is the width of the range hood?

• A:Answer The width of the range hood is 30 inches. This information can be found in the product specifications section, under "Product Width: 30 inches".

Q: QuestionWhat type of lighting does it use and how many bulbs are included?

• A:Answer This range hood uses LED lights. It comes with two LED bulbs included.

Q: QuestionWhat is the maximum airflow capacity of this range hood?

• A:Answer The maximum airflow capacity of the ZLINE 30" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (model 8632S-30) is 1200 CFM (cubic feet per minute). This information is found in the "product features" section of the provided context.

Q: QuestionWhat is the model number of this range hood?

• A:Answer The model number of the range hood is 8632S-30. This information can be found in the product name: "30\\" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (8632S-30)".

Q: QuestionHow much does the range hood weigh?

• A:Answer The range hood weighs 40 pounds. This information can be found in the section "Product Weight: 40 pounds".

Q: QuestionWhat is the minimum height it should be installed above the cooktop?

• A:Answer The minimum height to install the ZLINE 30" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (model: 8632S-30) above the cooktop is 30 inches. However, the recommended height for optimal venting efficiency is between 30 and 36 inches above the range top or cooktop.

Q: QuestionWhat is the height of the range hood?

• A:Answer The height of the 30" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (8632S-30) by ZLINE is 74 inches. However, the recommended installation height for this range hood is between 30 inches and 36 inches above the range top or cooktop.

Q: QuestionWhat type of control does it have?

• A:Answer The ZLINE 30" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (8632S-30) has a button control panel. The control panel includes buttons for power, power-off delay, low speed, medium 1 speed, high speed, and medium 2 speed.

Q: QuestionWhat type of vent does it have?

• A:Answer The 30" Designer Series Fingerprint Resistant Stainless Steel Ducted Wall Range Hood (8632S-30) by ZLINE has a ducted vent type. It is recommended to use solid ducting made of galvanized steel or another appropriate rigid metal ducting whenever possible for the lowest noise and highest flow.

Q: QuestionCan this only be installed under a cabinet?

Asked 3 years ago by pd.

• A:Answer Hello, Thank you for reaching out! Yes, this can be mounted under a cabinet. If there is anything else we can help with, please feel free to reach out at zlinekitchen.com/contact. Thank you!

  Answered 3 years ago by ZLine Customer Service


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionCan the height be adjusted ?

Asked 4 years ago by Cory.

This question was asked about the related product: ZLINE - 30 inches - Externally Vented - Wall Range Hood - Hand Hammered Copper

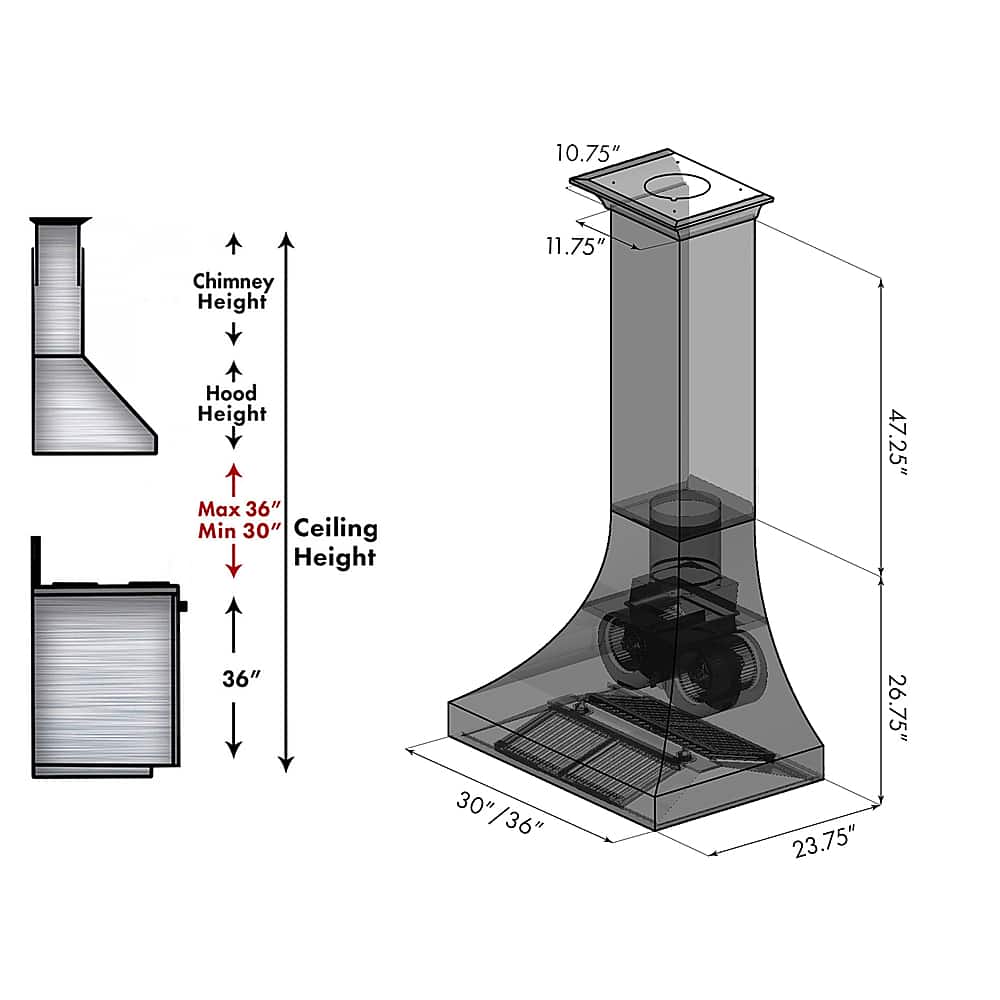

• A:Answer Hey Cory, Thank you for your inquiry. This model will not have an adjustable chimney. We do carry some models that do have telescopic chimneys if you need a hood with that feature. The dimensions of the chimney for this model are (11.75" W x 10.75" D x 47.25" H). If you have any questions please feel free to give us a call at (614)777-5004. We would be happy to answer any questions you may have. Thank you.

  Answered 4 years ago by ZLine Customer Service


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionDo u have the extension piece for this hood being sold separately?

Asked 4 years ago by Angela.

This question was asked about the related product: ZLINE - 30 inches - Externally Vented - Wall Range Hood - Hand Hammered Copper

• A:Answer Hello, Thank you for your inquiry. This hood currently does not have a compatible extension for larger ceilings. Thank you.

  Answered 4 years ago by ZLine Customer Service


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: Questioncan this be set up with the blower remote (inline)?

Asked 5 years ago by Rusty.

This question was asked about the related product: ZLINE - 30 inches - Externally Vented - Wall Range Hood - Oil-Rubbed Bronze

• A:Answer Hello Rusty! Thank you for your inquiry. This model range hood does not have the option for a remote blower. We do offer a variety of options with the remote blower. If you would like assistance finding the right model for you, please reach out to us at zlinekitchen.com/contact and we will be happy to assist you. Thank you!

  Answered 3 years ago by ZLine Customer Service


  Helpful (0)Unhelpful (0)ReportAnswer this question

Q: QuestionCan this 30” wide hood be installed in a 36” height?

Asked 5 years ago by Cindy.

This question was asked about the related product: ZLINE - 30 inches - Externally Vented - Wall Range Hood - Oil-Rubbed Bronze

• A:Answer Hi there, Thank you for your inquiry. This hood can be installed at a height between 30-36" above a stove. Thanks!

  Answered 5 years ago by ZLINEKitchenandBath

  Helpful (0)Unhelpful (0)ReportAnswer this question
