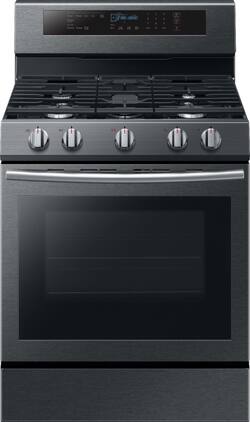

Samsung - 5.8 Cu. Ft. Self-cleaning Freestanding Fingerprint Resistant Gas Convection Range
- Key Specs
- Product Height: 46 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 93/100 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Single Oven
- Color Finish: Black stainless steel
- General
- Product Name: 5.8 Cu. Ft. Self-cleaning Freestanding Fingerprint Resistant Gas Convection Range
- Brand: Samsung
- Model Number: NX58M6630SG
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 46 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 93/100 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Capacity
- Oven Capacity: 5.8 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Fingerprint Resistant: true
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Features
- Single/Double Oven: Single Oven
- Broiler Location: Oven
- Number of Oven Racks: 2
- Number of Oven Rack Positions: 7
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Dual Flame, Oval Center, Simmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Broiler Burner Rating: 13500 british thermal units
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: true
- Other
- UPC: 887276226934
The Samsung 5.8 cu. ft. True Convection with illuminated knobs freestanding gas range offers blue LED illuminated knobs with a powerful and flexible cooktop that cooks faster with five specialized burners including 18K and 16K BTU power burners and a 5K simmer burner. True Convection, using a heated fan system, distributes heat throughout the oven faster and more evenly, saving more time than traditional ovens.
- Blue LED illuminated knobs: Visually let you know if your cooktop is on from a distance.
- Powerful, flexible cooktop: This flexible cooktop cooks faster with five specialized burners, including 18K BTU and 16K BTU power burners and one 5K simmer burner.
- True Convection: Cook food faster and more evenly with a heated fan system that is great for baking and broiling.
- 5.8 cu. ft. capacity: Fit multiple dishes at once or accommodate larger items.
- Touch controls: Provide easy control and visibility of oven and clock settings.
- Wide view window: Check cooking progress without opening the door and losing heat.
- Self Clean Cycle: Choose from 2, 3, or 5 hour settings for various cleaning needs.
- Three Easy Cook preset options: Slow Cook, Dehydrate, Bread Proof.
- Storage Drawer: Ideal for storing baking sheets and pans.
Product Manuals
A: When the oven is on, there is a lot of heat that escapes through the back vent under the control panel. This does cause a lot of heat to be present on the back half of the back burners. I have not had the experience of the heat escaping from the top center burner. The owner's manual does describe the heat that will be generated from the back vent but couldn't find anything about the center burner. May be worth a call to SamSung...
A: I finally found the griddle that fits my NX58M6630SS stove. It is the Samsung part # DG61-01469A. I found it cheaper on eBay, but Samsung Parts and other online websites sell it too.
Q: Is the true convection fan heating element an electric or gas heated element?
A: This has an electric bake element.
Q: Does the range have an automatic shut off if the flame is not ignited and the gas remains running?
A: If a burner does not ignite the gas regulator was stop the flow of natural gas.
Q: Can anyone provide a part # for a griddle that fits model # nx58m6630sg stove?
A: Don't bother, the surface area is pretty small and the griddle plate only has the one cooking side, and costs $125-$150. We got the 2 sided lodge griddle plate, $30. Has grill side and on the side has the smooth griddle side.
A: It doesn't need a 4 wire 220v cord. It has a built in 120v for electricity which is required for the igniters. The electric model of this requires a 220v 4 wire cable which is why it says no wire included. No, a griddle is not included.
Q: Can convection fan be turned off so the oven can be used as a conventional oven?
A: Yes, it has both convection and conventional settings. It has been a great oven!
A: It has three grates, the outside ones are about 9" wide and the inside one, over the oval burner, is about 7-8" wide. left number is Natural Gas right number is LP Gas also british thermal units RF 1 Rating 18000 british thermal units 14500 LF Rating 16000 british thermal units 11500 Center Rating 10000 british thermal units 7500 LRRating 9500 british thermal units 7500 RR Rating 5000 british thermal units 4000 Bake 18000 15000 Broil 13500 11500 about a 20% drop, all according to the installation manual. I use Natural Gas.
