Thermador - Masterpiece 30" Built-In Gas Cooktop with 5 Pedestal Star Burners and ExtraLow Select - Stainless Steel
Shipping
Specifications
Key Specs
Voice Assistant Built-inNoProduct Height5 3/8 inchesProduct Width31 inchesProduct Depth21 1/4 inchesCooktop Surface TypeGrateNumber of Burners5Color FinishStainless steel
General
Product NameMasterpiece 30" Built-In Gas Cooktop with 5 Pedestal Star Burners and ExtraLow SelectBrandThermadorModel NumberSGSXP305TSVendor CollectionThermador MasterpieceColorStainless SteelColor FinishStainless steel
Compatibility
Voice Assistant Built-inNo
Dimensions
Product Height5 3/8 inchesProduct Width31 inchesProduct Depth21 1/4 inchesStandardized Width30 inchesProduct Weight38.14 pounds
Cut-Out Dimensions
Cut-Out Height3 13/16 inchesCut-Out Width28 15/16 inchesCut-Out Depth19 1/8 inches
Features
Downdraft VentilationfalseInstalls Over Built-In OventrueControl TypeAnalogControl LocationTopDigital DisplayfalseHot Surface Indicator(s)falseChild LockfalseForm FactorCooktopPortablefalseWireless ConnectivityNoneGas TypeNatural gas
Cooktop Features
Cooktop Surface TypeGrateCooktop Surface MaterialStainless steelNumber of Cooking Zones5Number of Burners5Sealed BurnersfalseSpecialty Burner(s)ExtraLow SelectGrate TypeContinuousGrate MaterialCast ironDishwasher-Safe Gratesfalse
Included
Power Cord IncludedtrueGriddle Includedfalse
Burner Rating
Burner 1 Rating8000 british thermal unitsBurner 2 Rating10000 british thermal unitsBurner 3 Rating18000 british thermal unitsBurner 4 Rating8000 british thermal unitsBurner 5 Rating10000 british thermal unitsTotal Maximum BTU Rating54000
Power
Cooktop Power SourceGasIgnition TypeElectricPropane (LP) ConvertibletruePropane Conversion Kit IncludedfalsePropane Kit Model CompatibilitySNPKITPEDWGas Regulator Inlet Thread Size1/2 inch
Certifications Listings & Approvals
ADA ComplianttrueChemical DisclosuresFree of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio.
Warranty
Warranty - Parts2 yearsWarranty - Labor2 years
Other
UPC825225932819
Features
Thermador offers an impressive 30-inch gas cooktop with 5 raised pedestal Star Burners, including a powerful 18,000 BTU center burner for rapid boiling and high heat searing, 2 ExtraLow simmer burners, and 54,000 BTUs of overall heat output. The patented Star Burner's unique five-point design offers more ports and more flame distribution than a round burner. The patented Pedestal Star Burner enables a sponge to fit easily underneath to wipe the surface clean. ExtraLow Select burners have 5 precise settings is perfect for simmering or holding foods and melting chocolate without scorching or burning. Progressive illuminated light ring around each knob indicates burners in use.

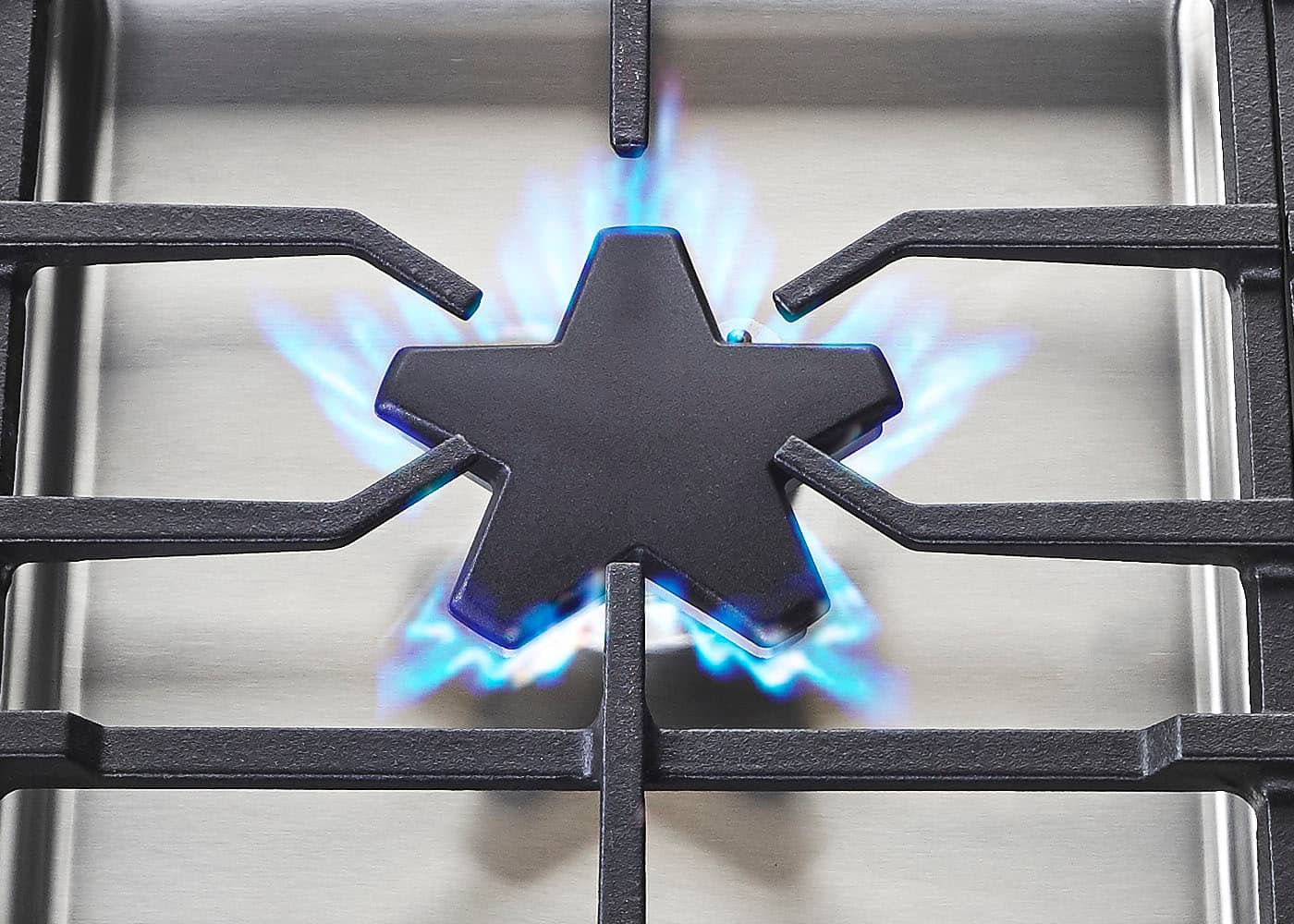

Our Star Burner provides equal flame distribution
Star Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
18,000 BTU Center Burner
Extra high heat 18,000 BTU Center Burner is the optimal choice for rapid boiling and high heat searing.
ExtraLow for slowly simmering delicate recipes
Our ExtraLow feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.
QuickClean Base allows for easy cleaning
The raised, patented Pedestal Star Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.
Illuminate knobs with a ring of light when in use
A ring of light encircles knobs when in use, artfully illuminating the controls.
30" cooktop with functionality of a 36" cooktop
30-inch 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment.
Continuous Grates make it easy to move pans
The connected gridwork allows for moving pots and pans effortlessly across the cooktop.
Electronic Re-ignition keeps your flame ignited
Your burners will automatically re-ignite in case the flame goes out.
Contemporary Grates
Redesigned with stunning contemporary grates.
Stainles Steel
Stainless Steel Gas Cooktop for a modern look.
Flexibility & Function
Thermador Gas Cooktops are designed for flexibility and functionality.
Star-K Sabbath Compliant
This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.
Downdraft Ventilation Pairing
The Stainless steel Gas Cooktop pairs beautifully with Downdraft Ventilation for a sleek and integrated look.
LP gas conversion kit not included; order seperately, Model# SNPKITPEDW
What's Included
Thermador Masterpiece Series 30" Gas Cooktop
Cast iron pan support
Manuals & Guides
Specification Sheet
Use and Care Manual
Installation Guide
Product Datasheet/Brochure
Questions & Answers (19)
Q: How many BTUs is the center burner on this Thermador cooktop? (1 answers)
A: The center burner on this Thermador cooktop has an output of 18,000 BTUs.Q: Are the grates on this cooktop dishwasher safe? (1 answers)
A: No, the grates on this cooktop are not dishwasher safe.Q: Does this cooktop come with a griddle? (1 answers)
A: No, this cooktop does not include a griddle.Q: Why should I choose a cooktop with Star Burners? (1 answers)
A: Thermador's Star Burners provide superior flame spread and reduced cold spots for faster and more even heating compared to round burners.Q: How easy is it to clean this cooktop? (1 answers)
A: This cooktop is designed for easy cleaning with a raised, patented Pedestal Star Burner and porcelain maintop.Q: What is the total BTU output for this cooktop? (1 answers)
A: This cooktop has a total maximum BTU rating of 54,000.Q: What is the benefit of the ExtraLow feature on this cooktop? (1 answers)
A: The ExtraLow feature provides a wide range of temperature control, perfect for simmering delicate sauces or keeping food warm without scorching.Q: What type of gas does this cooktop use? (1 answers)
A: This cooktop uses natural gas but is convertible to propane.
