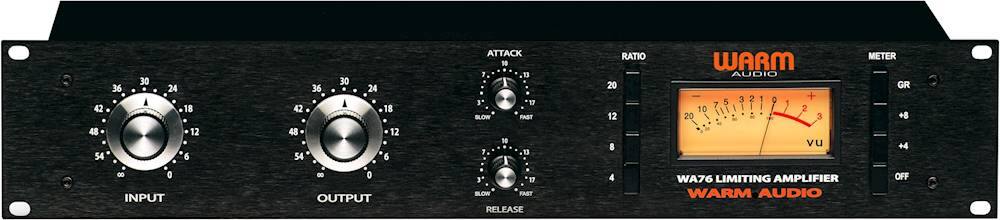

Name: Warm Audio - Discrete Compressor - Black
Brand: Warm Audio
SKU: 6385794
Rating: 0 (0 reviews)

Key Specs
- Number of Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Audio Only Inputs: 1 x 3.5mm audio, 1 x Analog audio
General
- Brand: Warm Audio
- Model Number: WA76
- Product Name: Discrete Compressor
- Color: Black
Audio
- Number of Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
Inputs
- Audio Only Inputs: 1 x 3.5mm audio, 1 x Analog audio
- Number of HDMI Inputs (Total): 0
- Number of USB Inputs: 0
Outputs
- Number of HDMI Outputs (Total): 0
Features
- Effect Type(s): Compressor
Dimensions
- Product Height: 5.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.33 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 9.31 pounds (The out of box weight of the item.)
- Rack Size: 2U
Other
- UPC: 799430206181

Take a trip to the analog world with this Warm Audio discrete compressor. The adjustable attack knob lets you vary the timing to capture a more open and lifelike recording, and support for all-buttons-in mode creates unique sounds. Dual input channels provide this Warm Audio discrete compressor with extra flexibility.

50dB of gain: Warm Audio utilizes premium-grade input and output CineMag USA transformers.
True to classic '76 compressor in design and performance: Offers less than 0.4% total harmonic distortion from 50Hz to 20kHz with limiting. Its signal-to-noise ratio is greater than 74dB at +25dBm.
Quality performance: Features ultrafast attack time - 20 to 800 microseconds, release time - 50 milliseconds to 1 second.
Inputs and outputs: XLR and TRS inputs, XLR and TRS outputs.
50dB of gain: Warm Audio utilizes premium-grade input and output CineMag USA transformers.
True to classic '76 compressor in design and performance: Offers less than 0.4% total harmonic distortion from 50Hz to 20kHz with limiting. Its signal-to-noise ratio is greater than 74dB at +25dBm.
Quality performance: Features ultrafast attack time - 20 to 800 microseconds, release time - 50 milliseconds to 1 second.
Inputs and outputs: XLR and TRS inputs, XLR and TRS outputs.
