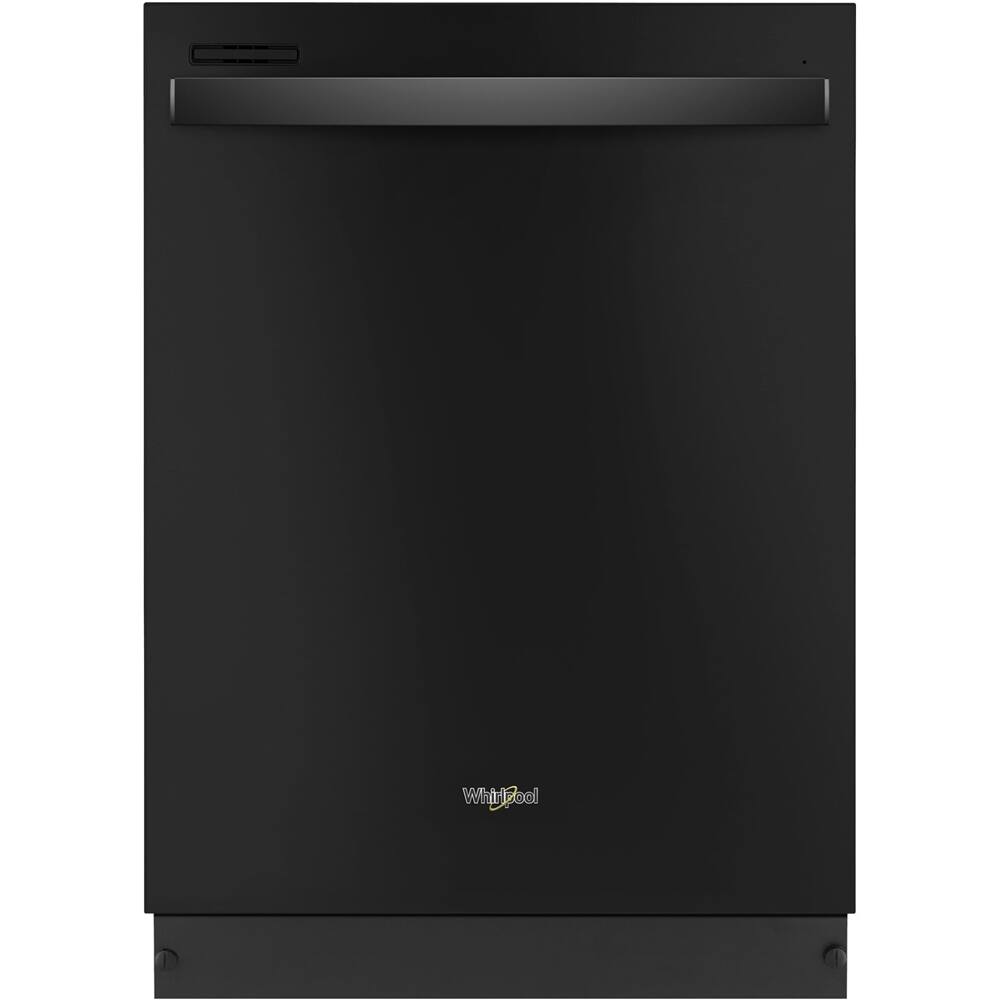

Whirlpool - 24" Tall Tub Built-In Dishwasher
Model: WDT710PAHB
SKU: 6112237
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 34 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 51 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 13 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Color Finish: Black
- General
- Product Name: 24" Tall Tub Built-In Dishwasher
- Brand: Whirlpool
- Model Number: WDT710PAHB
- Color Finish: Black
- Dimensions
- Product Height: 34 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 49 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 51 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 5 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Normal, Heavy, Sensor, 1 Hour Wash, Soak & Clean
- Options and Programs: 1-24 Hour Delay, Control Lock, Hi Temp Wash, Heated Dry, Sani Rinse
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- NSF-Certified Sanitization Cycle: false (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Cup shelf (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Plastic (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Place Setting Capacity: 13 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 32 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Other
- UPC: 883049449449
Clean on your schedule with this 24-inch Whirlpool dishwasher. Its tall tub design holds larger cookware, and its cycle status indicator lets you know exactly how long each phase takes. This built-in Whirlpool dishwasher has a smudge-resistant finish and offers normal, heavy and high-temp options to handle different soil levels.
- 24-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Cycle status indicator: The full lit display glows for wash, drain, drying, sanitized and clean along with the time in hours and minutes so there's no need to guess when your dishes will be ready.
- Accommodates up to 13 place settings: Generous interior space means more clean dishes, fewer loads.
- High temperature wash option: Gives items like baby bottles, glassware or dishes a more thorough clean.
- Energy Star Certified: Energy Star Certified models exceed government standards to help save money on your utility bills.
- Heated dry option: Use a clean, dry dish straight from the dishwasher thanks to added heat for drying. For optimal drying results, use this option with rinse aid.
- Sensor Cycle: Automatically selects the right wash and dry settings for your load by using two separate sensors to measure temperature, soil level and load size once during the prewash and once during the wash cycle.
- Normal Cycle: Use for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
- 1-Hour Wash Cycle: Cleans dishes in half the time compared to Normal cycle so your plates, pans and glasses are thoroughly cleaned up and taken care of in just an hour.
- Heavy Cycle: Take care of heavily-soiled messes and other hard-to-clean dishes without the extra elbow grease by adding extra time to the cycle.
Whats Included
- Whirlpool 24" Tall Tub Built-In Dishwasher
Product Manuals
Documents
- Energy_Guide_PDF
A: Curious, this Dishwasher is 51dBA and can be hardwired or plugged into an outlet.
Q: Is there a button to stop the heat dry cycle. Want to air dry to save on energy.
A: Hello Janice! The Heated Dry is an optional cycle. Per page 9 of the Use and Care Guide, Use Heat Dry for optimum drying performance. For air dry, Heat Dry LEDs must be off. We hope this helps!
Q: From the pictures, I see a little rectangle above the handle, what is it?
A: That little rectangle above handle is where the heat comes out of.
A: Great question Susan. Please visit https://www.repairclinic.com/ to make any out of warranty purchases.
A: Hello Dave! We are terribly sorry to hear about your concern. We would recommend contacting Whirlpool at 866-698-2538. We are available Monday & Tuesday 8:00 am - 8:00 pm and Wednesday through Friday 9:00 am - 7:00 pm. They will be better able to assist you.
Q: Is the tub stainless steel or plastic
A: Hello Bj, the tub is Plastic on this model. Thank you for your inquiry on our Whirlpool appliances.
Q: The tall tub. Does that mean it is higher than the average counter top?
A: Hello Pleasedcustomer, the Tall Tub design gives more capacity to the Dishwasher tub by compressing the mechanical parts and assemblies at the bottom of the unit. You will know a Tall Tub design because the door will continue the length of the cabinet with out an extra panel at the bottom to cover the larger pump and motor. The dimensions will be the same to fit standard height countertops. See page 7 for dimension information on the WDF331PAHS: https://content.syndigo.com/asset/4c807032-100a-4193-b380-4f98e2028708/original.pdf
Q: is it fingerprint resistant. info on the same model at another store said that is was ????
A: Hello Billbow, the WDT710PAHZ does feature our Fingerprint Resistant Stainless Steel. This model will resists fingerprints and smudges with steel that's easy to clean! Hope this helps!
