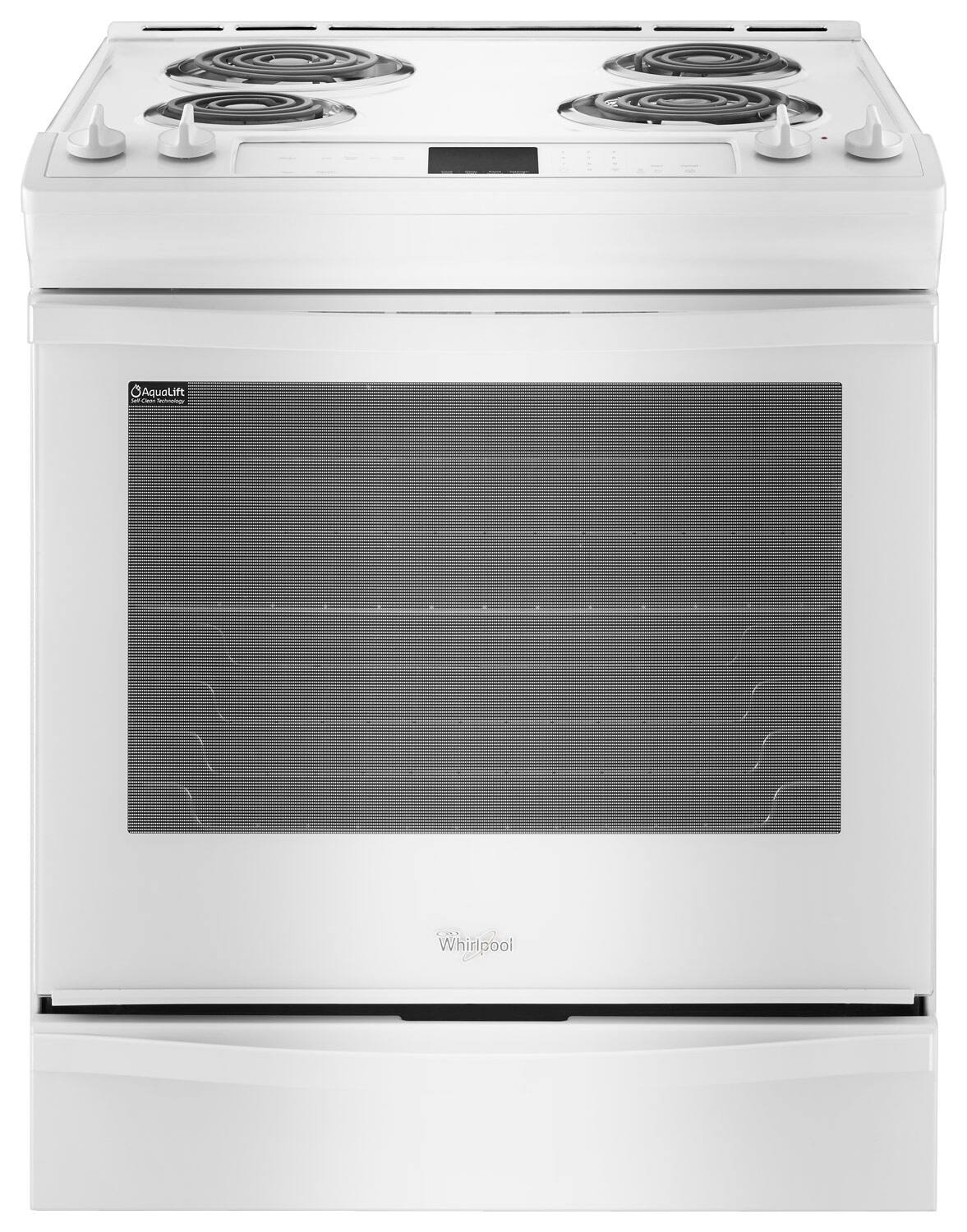

Whirlpool - 30" Self-Cleaning Slide-In Electric Coil Top Range - White
Model: WEC530H0DW
SKU: 1440087
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28.31 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Color Finish: White
- General
- Product Name: 30" Self-Cleaning Slide-In Electric Coil Top Range
- Brand: Whirlpool
- Model Number: WEC530H0DW
- Color Finish: White
- Dimensions
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28.31 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 180 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 6.2 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Electric
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Oven Control Location: Front panel
- Clock Display: false
- Oven Light: true
- Power-On Indicator Light(s): true
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Features
- Oven Cleaning Method: Self-cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Broiler Location: Oven
- Oven Window: true
- Cooktop Features
- Specialty Element(s): None
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Electrical Specification
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 883049330020
This Whirlpool WEC530H0DW 30" self-cleaning slide-in electric range features 7 oven rack positions, so you can maximize the 6.2 cu. ft. capacity for holiday dinners and more. Electronic oven controls and analog burner controls allow you to cook your way.
- 6.2 cu. ft. capacity oven with 2 oven racks: Provides ample room when cooking for large groups or holiday dinners.
- Two 1250W burner elements and two 2150W elements: Help ensure you receive the power you need for cooking.
- Frozen Bake technology: Allows you to skip the preheating step and cook frozen foods quickly.
- Delayed-bake option: Allows you to begin cooking at the ideal time, even if you aren't at home.
- AccuBake temperature management system: Features built-in sensors that monitor the oven for consistent temperatures.
- AquaLift self-cleaning technology: Eliminates the need to scrub the oven interior without using chemicals.
Whats Included
- Self-Cleaning Slide-In Electric Coil Top Range
- Three 10-32 hex nuts
- 3 direct wire lugs
- 2 screws
- Antitip bracket
- 2 oven racks
- Electric cord is sold separately
- Owner's manual
A: Hello Valued Customer, the information provided is for planning purposes. Model WEC530H0DW requires a min opening width of 30" for proper installation. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our Whirlpool appliances! Sincerely, Mary
A: No, this unit is also available in black (WEC530H0DB) and stainless steel (WEC530H0DS).
