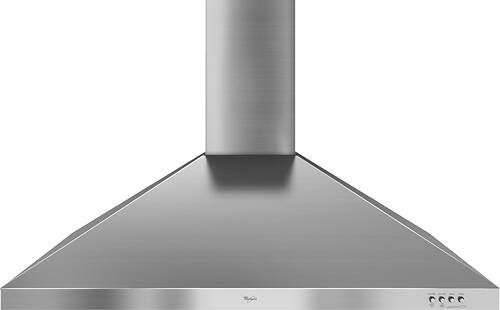

Whirlpool - 36 inches - Stainless steel
Model: Gxw7336dxs
SKU: 1570261
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 28 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Color Finish: Stainless steel
- General
- Product Name: 36" Externally Vented Range Hood
- Brand: Whirlpool
- Model Number: Gxw7336dxs
- Color Finish: Stainless steel
- Dimensions
- Product Height: 28 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 27.8 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Duct Length: 420 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Rocker
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 1
- Bulb Type Required: Fluorescent
- Bulb(s) Included: true
- Performance
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 150 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 883049213958
This range hood features a 3-speed fan to keep your kitchen smelling fresh. The externally vented design clears the area of smoke, grease and odors, while fluorescent lighting illuminates the cooking surface below.
- 300 cfm blower: Quickly removes smoke and cooking odors from the air.
- 3-speed fan: Can be easily adjusted to accommodate current exhaust needs.
- Push-button controls: Offer simple operation.
- Fluorescent lighting: Illuminates the cooktop for better visibility while cooking.
- Removable, dishwasher-safe mesh filters: For simple maintenance.
- Optional chimney extension kit W10337357 (not included): Designed for use with high ceilings.
- Included damper: Prevents smoke and odors from recirculating back into the stovetop area.
Whats Included
- Fluorescent light bulbs
- Hardware
- Owner's manual
- Whirlpool 36" Externally Vented Range Hood
Q: What are the dimensions of the chimney part of the vent hood??
A: Hi Buggybell, the depth is 20 inches the height is 28 7/8 inches and the width is 36 inches.
Q: can this fan be used as an Island mount?
A: This model is a wall mount unit. Thank you for your inquiry regarding our Whirlpool appliances! Thank you
