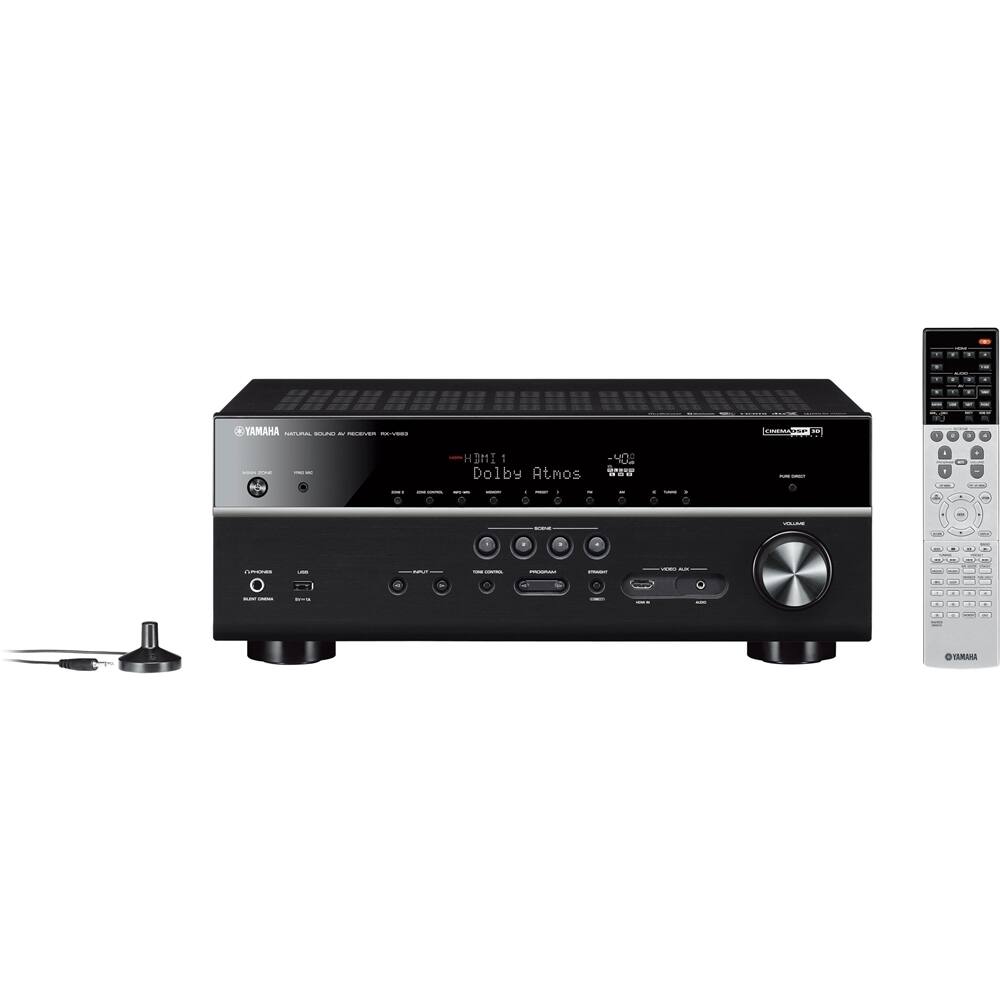

Yamaha - 7.2-Ch. 4K Ultra HD A/V Home Theater Receiver - Black
Model: RX-V683BL
SKU: 5832945
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 105 watts x 7 channels @ 8 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 5 x Analog audio, 2 x 3.5mm audio, 2 x Coaxial digital audio, 2 x Optical digital audio, 1 x Phono
- Audio/Video Inputs: 3 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Video Pass-through: 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Product Name: 7.2-Ch. 4K Ultra HD A/V Home Theater Receiver
- Brand: Yamaha
- Model Number: RX-V683BL
- Color: Black
- Color Category: Black
- Audio
- Continuous Watts x Channel @ Ohms: 105 watts x 7 channels @ 8 ohms
- Number of Channels: 7.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Surround Sound Supported: DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 5.6 MHz (DSD 128) (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: WAV, WMA, AAC, AIFF, MP3, FLAC, DSD, ALAC
- DSP Modes: 17 (Available sound modes that alter how the audio is processed and played back. A common example is a mode that allows stereo audio to be played on all available surround sound speakers, creating a simulated surround sound effect.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Inputs
- Audio Only Inputs: 5 x Analog audio, 2 x 3.5mm audio, 2 x Coaxial digital audio, 2 x Optical digital audio, 1 x Phono
- Video Only Inputs: 1 x Component video, 1 x Composite video (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: 3 x HDMI (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Number of HDMI Inputs (Total): 6
- Number of USB Inputs: 1
- Video
- Video Pass-through: 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) (The highest video resolution supported by the device for passing through video to another device.)
- Outputs
- Audio/Video Outputs: 1 x HDMI (The number and type of HDMI outputs the product has.)
- Speaker Connection Type: Binding posts
- Number of HDMI Outputs (Total): 1
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Featured Streaming Services: Pandora, Spotify (Streaming services and other programs are available on this device. Keep in mind, there may be more services supported than just those shown here.)
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay, Yamaha MusicCast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Compatibility
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 6.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22.1 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Manufacturer's Warranty - Parts: 2 years
- Manufacturer's Warranty - Labor: 2 years
- Other
- UPC: 027108955513
Experience cinematic sound and viewing at home with this Yamaha network A/V receiver. Its 4K and HDR support provide seamless video transmission without degradation, and it fills the room with true surround sound thanks to its Dolby Atmos and DTS:X decoding and processing functions. The Zone 2 features of this Yamaha network A/V receiver provide flexible control for multiroom entertainment setups. Includes HDMI 4K Ultra HD and 3D pass-through technologies for compatibility with 3D TVs, Blu-ray players and gaming consoles and 4K Ultra HD TVs.
- Works with Amazon Alexa: Easily control, monitor and schedule your electronics using your voice.
- Connect to the Internet: Via built-in Wi-Fi for access to DLNA, Pandora, Napster, Spotify and SiriusXM internet radio.
- 4K and 3D passthrough: Allows high-quality 3D and 4K video through the receiver straight to your media device.
- Surround sound decoders: Include Dolby Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X for crystal surround sound.
- Dual-zone capability, Apple AirPlay support and MusicCast system: Support distributed audio playback in another room, so you can enjoy music throughout your home.
- x.v.Color and Deep Color technology: Produce vibrant hues for a lifelike picture.
- 0.06% total harmonic distortion: Ensures clear audio.
- Remote: Lets you control the receiver from afar.
- AM/FM tuner: Lets you listen to your favorite stations.
- Headphone jack: Enables private listening.
- USB port: Enables simple connection of a variety of USB-enabled devices.
- Auxiliary input: Makes it easy to connect a variety of devices.
- 6 HDMI inputs, 1 HDMI output: HDMI cable not included. High-speed HDMI cable is the only connection that can deliver a full high-definition experience with a full 1080p picture and digital surround sound.
- Apple® iPod®/iPhone®/iPad® ready: So you can easily stream your music library.
- Pure Direct mode: Bypasses the buffer amp and tone, loudness and balance controls for pure sound.
Whats Included
- Yamaha 7.2-Ch. 4K Ultra HD A/V Home Theater Receiver
Q: Is this device having Input Voltage Selection like 110 V to 220V and vice versa?
A: Not all models have this. The ones intended for for Taiwan, Brazil or General have this option, but mine (US) does not, it is set only for the 110/120 VAC US standard.
Q: do amp have a app for remote control
A: They have a terrific app. That is part of the reason I bought another Yamaha receiver.
Q: Is this unit capable of playing two separate zones at the same time independent of each other ?
A: Yes, this unit is capable of playing two separate zones at the same time independent of each other.
Q: Does this reciever support Dolby Vision out of the box?
A: It does not have it out of the box. Yamaha has released a firmware update that does support Dolby Vision and HLG, so it will need to be updated.
Q: Will this support the dolby atmos speakers from Onkyo that have the top firing speakers for atmos?
A: Yes, this will support Dolby units.
